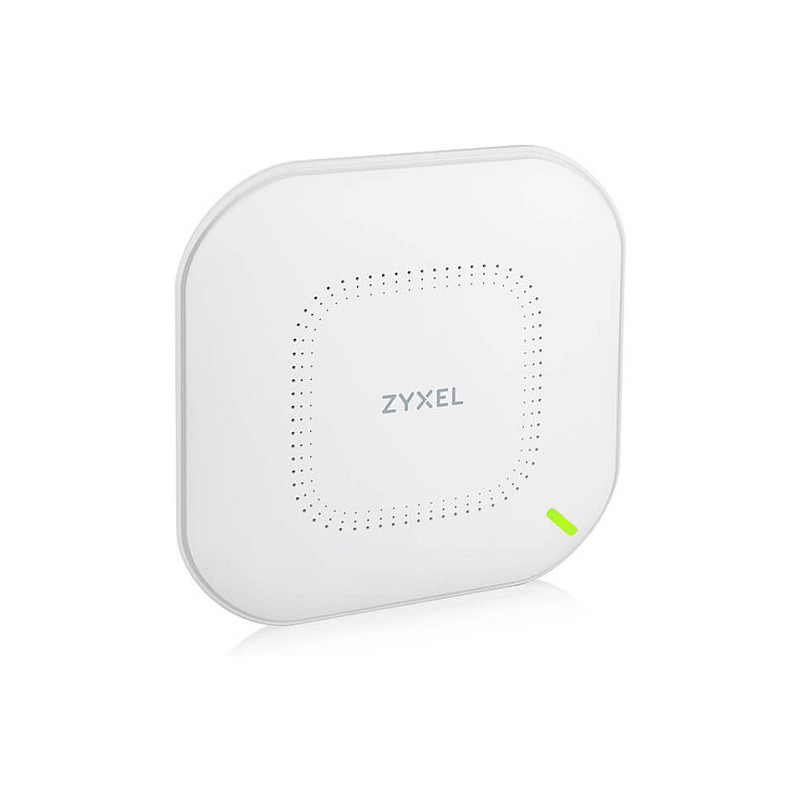

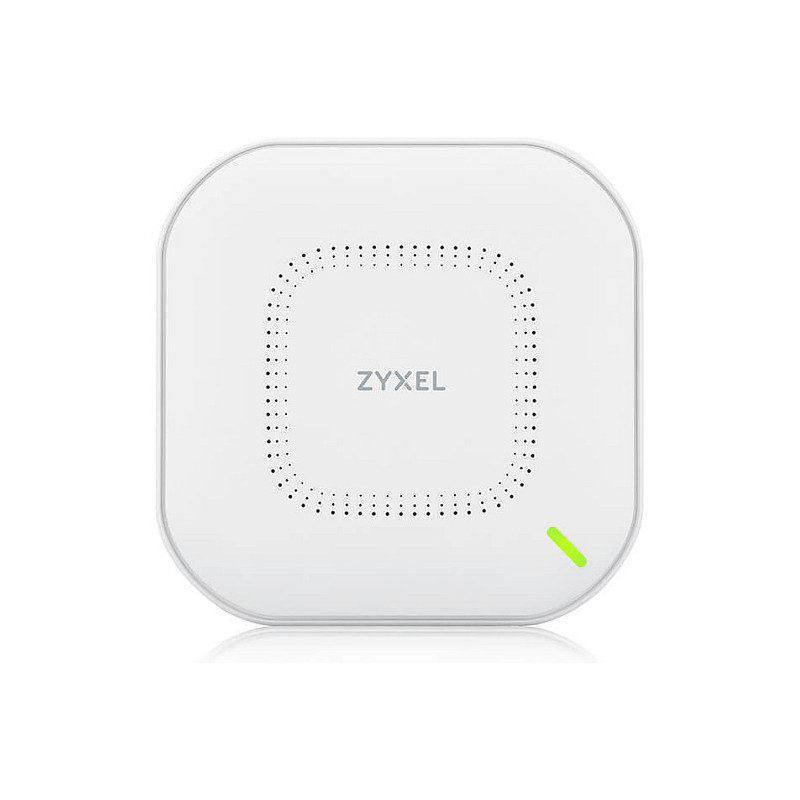

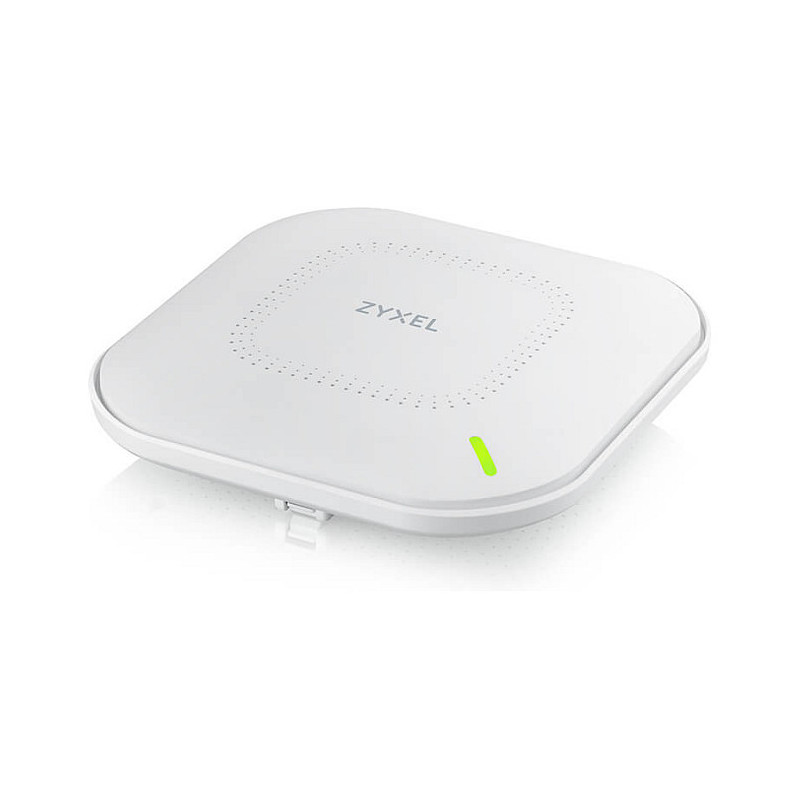

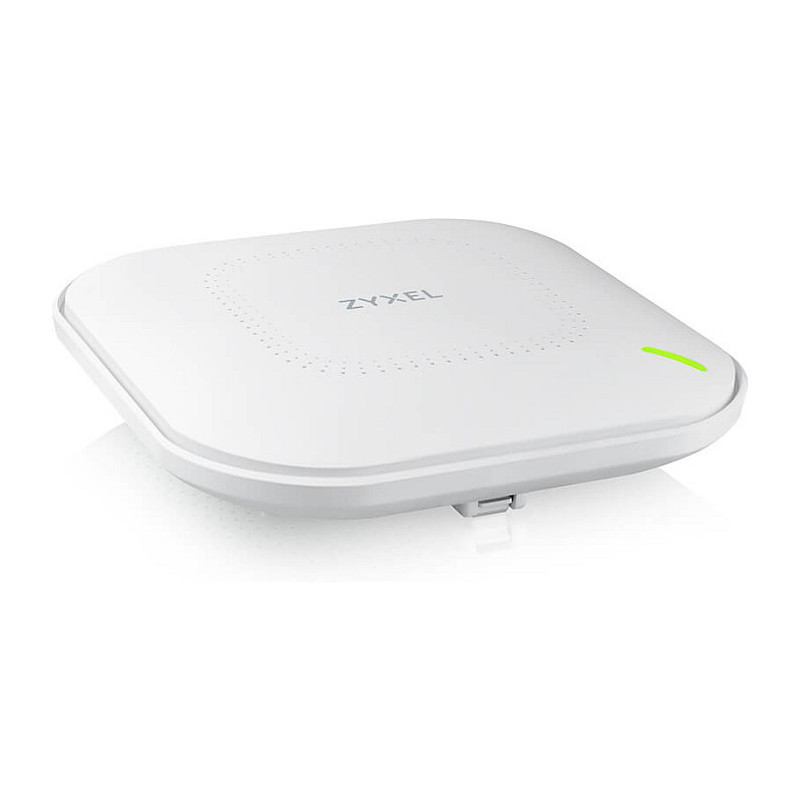

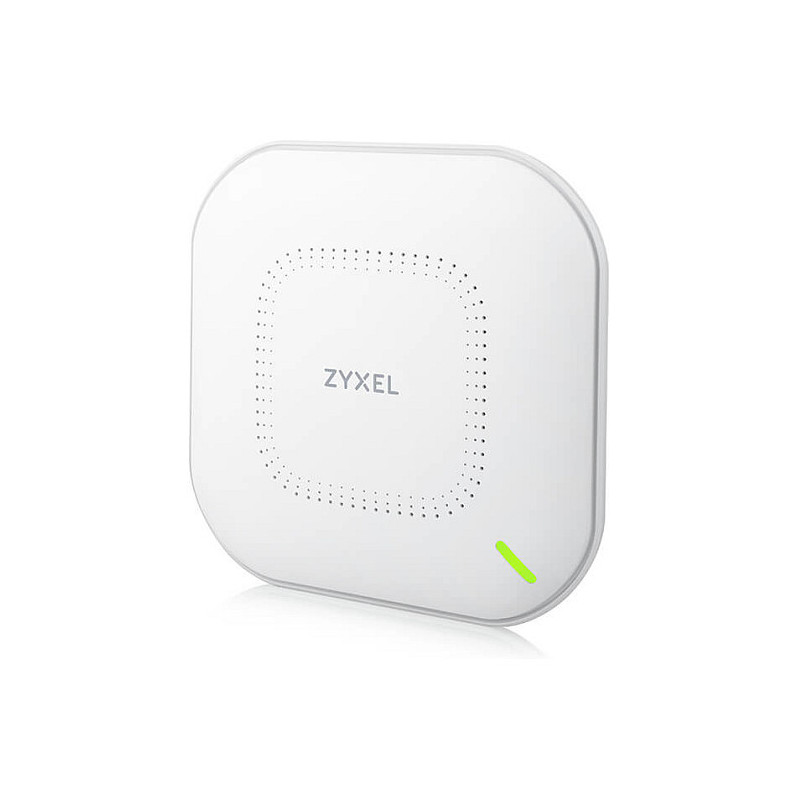

ZYXEL WAX630S

Zyxel WAX630S. 2.4 GHz, 5 GHz, Maximum data transfer rate: 2400 Mbit/s. Security algorithms: EAP, WEP, WPA, WPA2-PSK, WPA3, WPA3-Enterprise. Ethernet LAN data rates: 1000,2500 Mbit/s. Power over Ethernet (PoE). Product colour: White

Ultra-fast, Smarter WiFi 6 Access Point
Featuring 6 spatial streams (4x4:4 in 5GHz, 2x2:2 in 2.4GHz ), OFDMA and MU-MIMO capabilities, the Zyxel WAX630S is the true WiFi 6 access point that provides ultra-fast speed and consistent performance for your wireless network.

Any environment that needs to accommodate a large number of devices, it can offer a faster and smarter connection to everyone every time when they connect to the WiFi.

Unleashing the Power of Smart Antenna in WiFi 6
The built-in smart antenna technology, proven to be capable to mitigate co-channel interference, continuously monitors the connection and adaptively adjusts its antenna patterns to ensure that the optimum performance is delivered to every connection, which means more users and devices can be connected without any degradation in performance or response time even in high-density environments.


Robust Hardware You Can Trust
Every hardware design detail is critical to performance and reliability. The WAX630S access point is built with selected high quality components to warrant the best experience and longevity.

Hassle-free Upgrade
To meet the growing demands for WiFi connectivity, the WAX630S enhances the network capacity with 2.90 Gbps WiFi speed and 2.5 Gbps multi-gigabit Ethernet port, which allows multi-gigabit speed run on the existing infrastructure without the need of re-cabling.

Further boosted by smart antenna technology, it ensures everyone is provided with the optimum performance every time when they connect to the WiFi. Organizations such as schools, hotels, and retail stores can upgrade to the ultra-fast WiFi 6 network easily at an affordable price.

Manage it your way!
The WAX630S comes with the support of NebulaFlex Pro, which offers the full flexibility for users to easily switch between cloud-managed, controller-managed, and standalone modes. You can choose the appropriate managed-mode best suited for your needs.

Features

Feature: 2.4 GHz
Feature: 5 GHz
Maximum data transfer rate: 2400 Mbit/s
Maximum data transfer rate (2.4 GHz): 575 Mbit/s
Maximum data transfer rate (5 GHz): 2400 Mbit/s
Ethernet LAN data rates: 1000,2500 Mbit/s
Networking standards: IEEE 802.11a, IEEE 802.11ac, IEEE 802.11ax, IEEE 802.11b, IEEE 802.11g, IEEE 802.11k, IEEE 802.11n, IEEE 802.11r, IEEE 802.11v, IEEE 802.3at
Feature: MIMO
MIMO type: Multi User MIMO
Feature: VLAN support

Security

Security algorithms: EAP, WEP, WPA, WPA2-PSK, WPA3, WPA3-Enterprise
Feature: MAC address filtering

Management features

Feature: Web-based management

Ports & interfaces

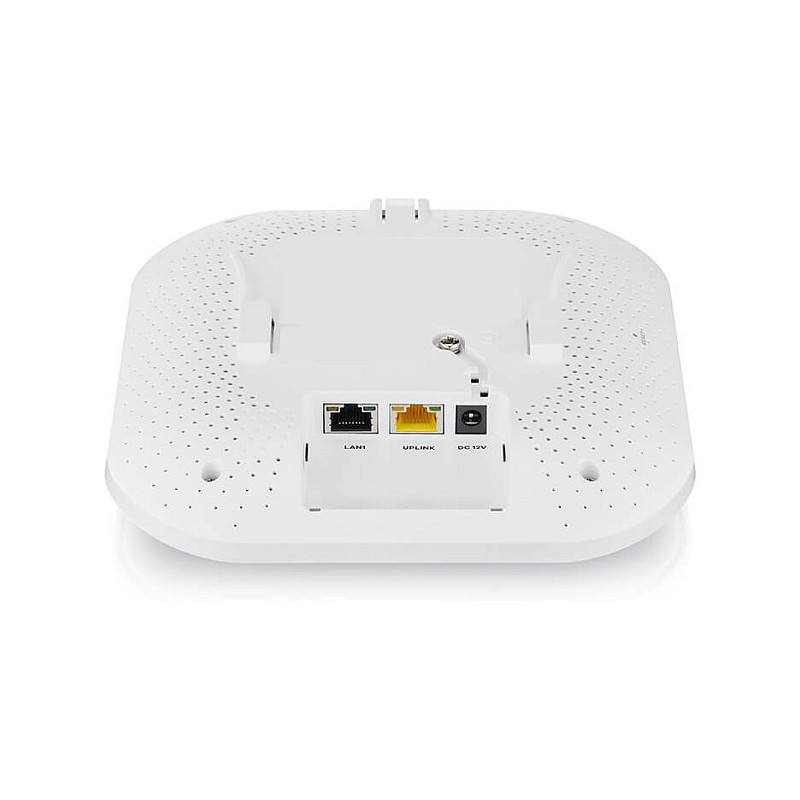

Ethernet LAN (RJ-45) ports: 2
Feature: DC-in jack

Power

Feature: Power over Ethernet (PoE)
Output voltage: 12 V
Output current: 2 A

Design

Product colour: White
LED indicators: Yes

Antenna

Antenna type: Internal

Weight & dimensions

Width: 180 mm
Depth: 180 mm
Height: 39 mm
Weight: 530 g

Packaging content

Quantity per pack: 1 pc(s)
Feature: Mounting kit

Logistics data

Harmonized System (HS) code: 85176990
