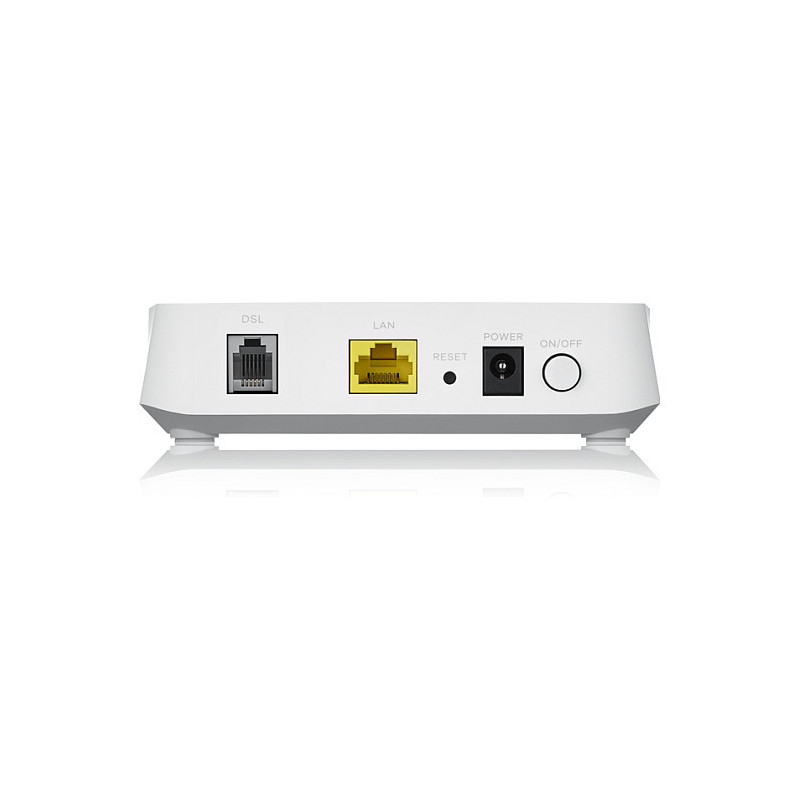

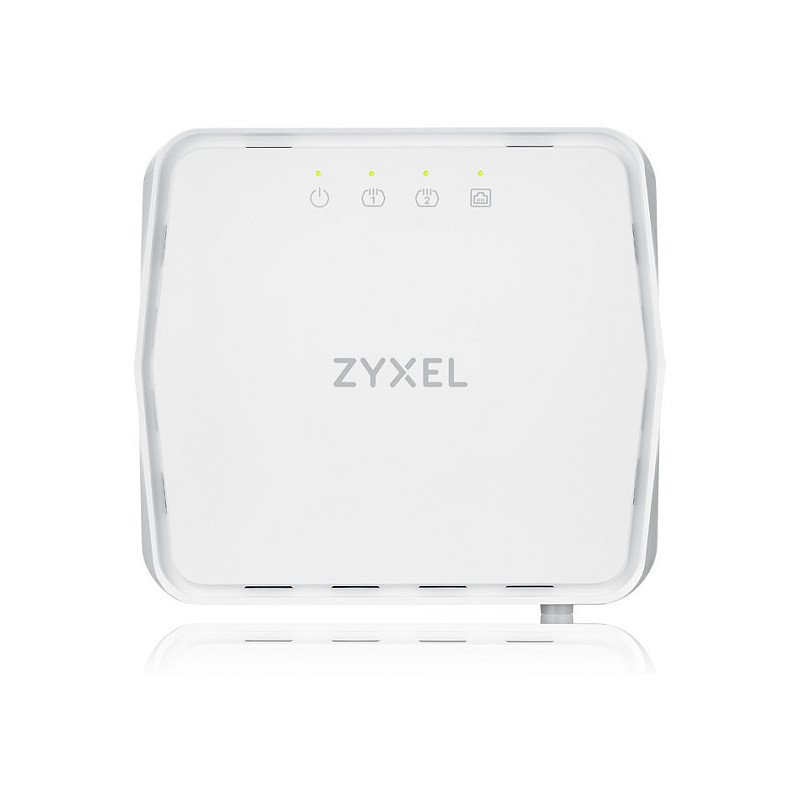

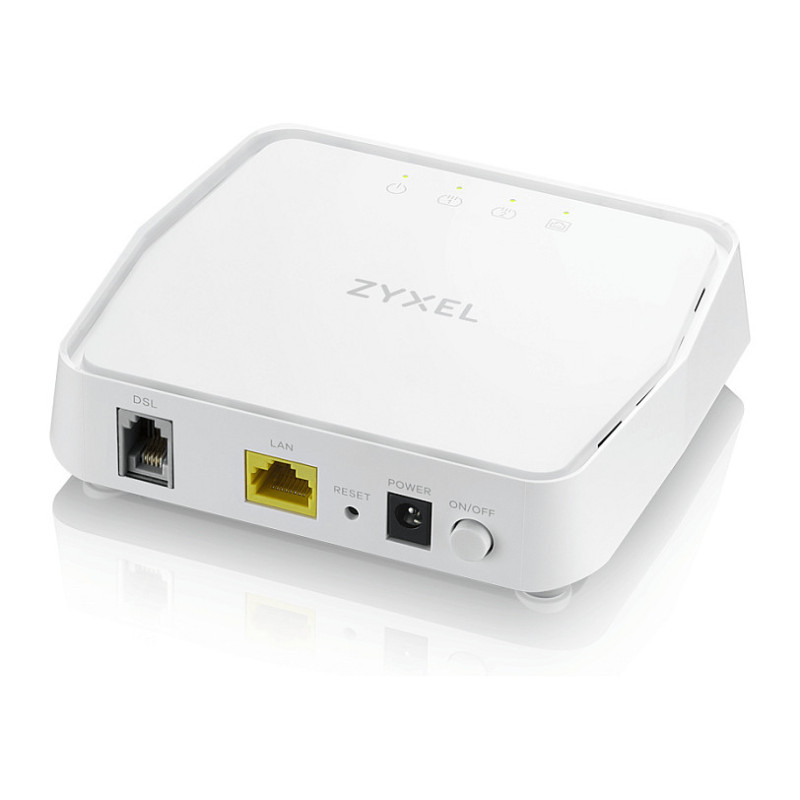

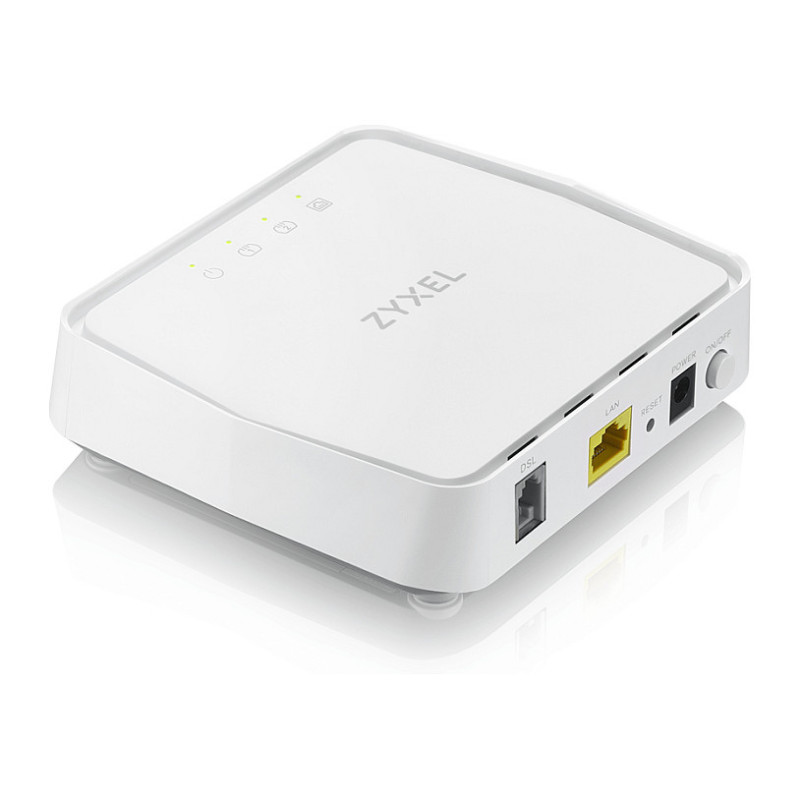

„Zyxel VMG4005-B50A“ laidinis maršrutizatorius

Zyxel VMG4005-B50A. Networking standards: IEEE 802.1D, IEEE 802.1Q, Ethernet interface type: Gigabit Ethernet, Cabling technology: 10/100/1000Base-T(X). Downstream data rate: 300 Mbit/s. Management protocols: Web/HTTP. Product colour: White, LED indicators: LAN, Power. Input current: 1 A

The Zyxel VMG4005-B Series is a VDSL2 17a Bonding and 35b Single Line Bridge is a VDSL bonding bridge which provides excellent premium-class line speeds of up to 200Mbps with 17a bonding or 300Mbps with 35b single line for broadband services to extend the coverage and performance for enhanced user experience.

For ISP/Telco needs, the VMG4005-B Series supports rate and line status monitoring and management while users can enjoy not only high-speed VDSL services, but also broadband multimedia applications such as interactive gaming, video streaming and real-time audio much easier than ever.

Bonded VDSL2 with Vector
The Zyxel VMG4005-B Series VDSL2 17a Bonding and 35b Single Line Bridge supports VDSL2 bonding with vectoring of up to profile 17a and 35b. Vectoring supports reduce cross-talk for up to 150% for improved performance and range for operators.

Comprehensive Routing with IPv6, QoS and Firewall
Zyxel offers excellent routing capabilities designed to meet service provider needs. The Zyxel VMG4005-B Series VDSL2 17a Bonding and 35b Single Line Bridge continues this legacy with full IPv4 support, IPv6/IPv4 Dual Stack and IPv6 Rapid Deployment (RD) for a strong foundation to implement advanced features including quality of service (QoS) functionality to categorize incoming and outgoing traffics in addition to a stateful packet inspection (SPI) firewall for end-user security.

TR-069 remote management
With TR-069 standard management specifications, the service providers are able to manage, configure and diagnose the client devices remotely without manual intervention of end-users. This unique feature not only offers a true "plug-and-play" experience, but also reduces the complexity of deployment and therefore saves operation and maintenance costs for service providers.

WAN connection

Ethernet WAN: No
DSL WAN: Yes
SIM card slot: No
3G/4G USB modem compatibility: No

Network

Networking standards: IEEE 802.1D, IEEE 802.1Q
Ethernet interface type: Gigabit Ethernet
Cabling technology: 10/100/1000Base-T(X)
Ethernet LAN data rates: 10,100,1000 Mbit/s
VLAN support: Yes
Traffic control: Yes

DSL features

Internal modem: Yes
VDSL: Yes
VDSL2: Yes
Downstream data rate: 300 Mbit/s

Management features

Web-based management: Yes
Quality of Service (QoS) support: Yes
Reset button: Yes
Firmware upgradeable: Yes

Ports & interfaces

Ethernet LAN (RJ-45) ports: 1
RJ-11 ports quantity: 1
DC-in jack: Yes

Protocols

Management protocols: Web/HTTP
DHCP client: Yes
DHCP server: Yes

Security

Firewall: Yes
MAC address filtering: Yes
DoS attack prevention: Yes
System event log: Yes

Packaging content

AC adapter included: Yes
Quick start guide: Yes

Design

Product colour: White
LED indicators: LAN, Power
On/off switch: Yes

Power

Input current: 1 A

Operational conditions

Operating temperature (T-T): 0 - 40 °C
Storage temperature (T-T): -30 - 70 °C
Operating relative humidity (H-H): 10 - 90%
Storage relative humidity (H-H): 10 - 95%

Weight & dimensions

Width: 130 mm
Depth: 120 mm
Height: 32 mm
Weight: 173 g

Packaging data

Package width: 245 mm
Package depth: 142 mm
Package height: 42 mm
Package weight: 380 g
Package type: Box

Logistics data

Harmonized System (HS) code: 85176990
