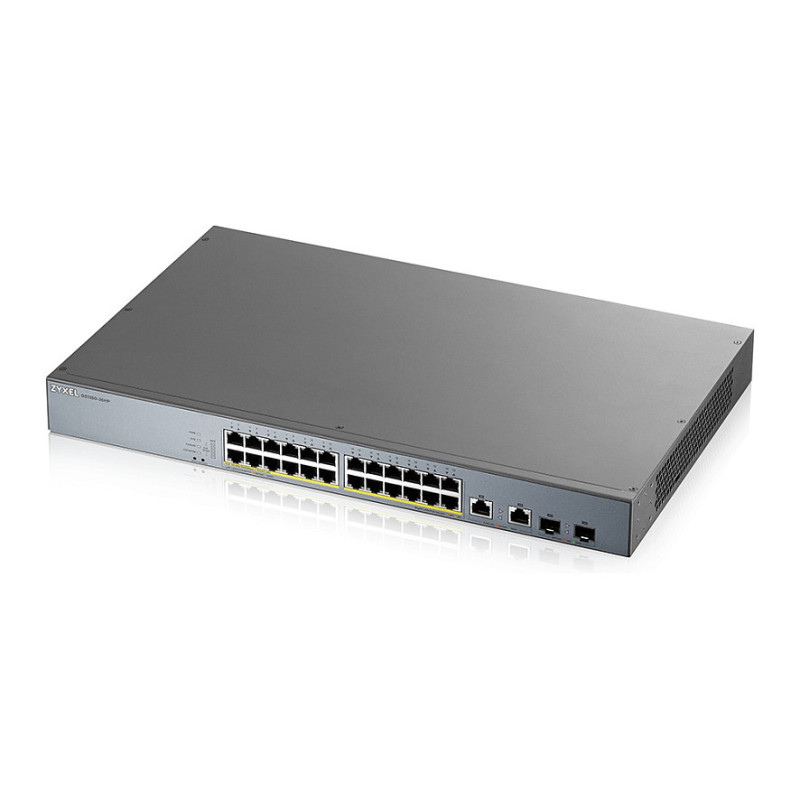

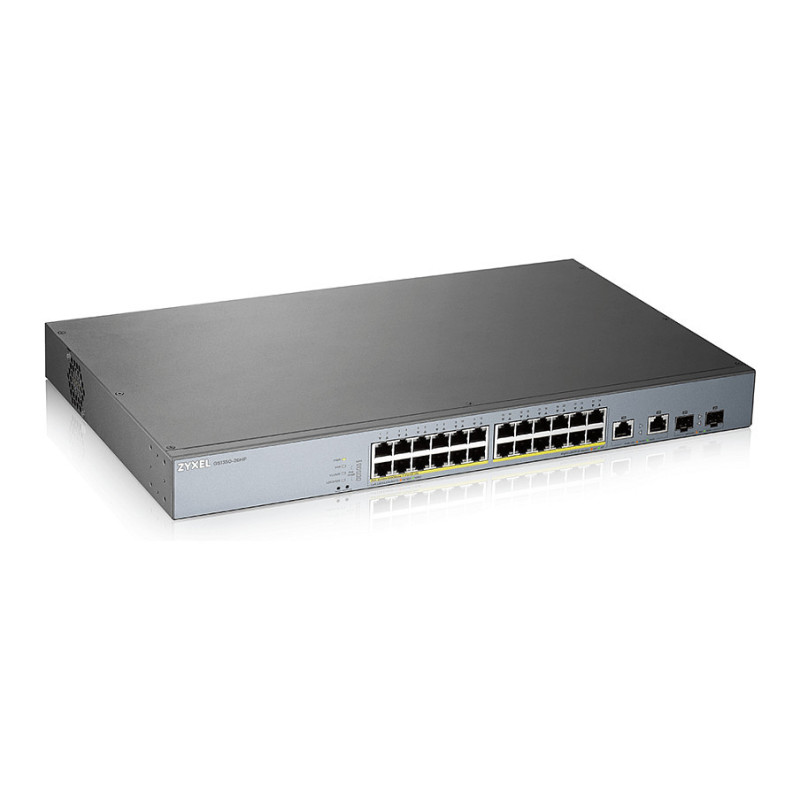

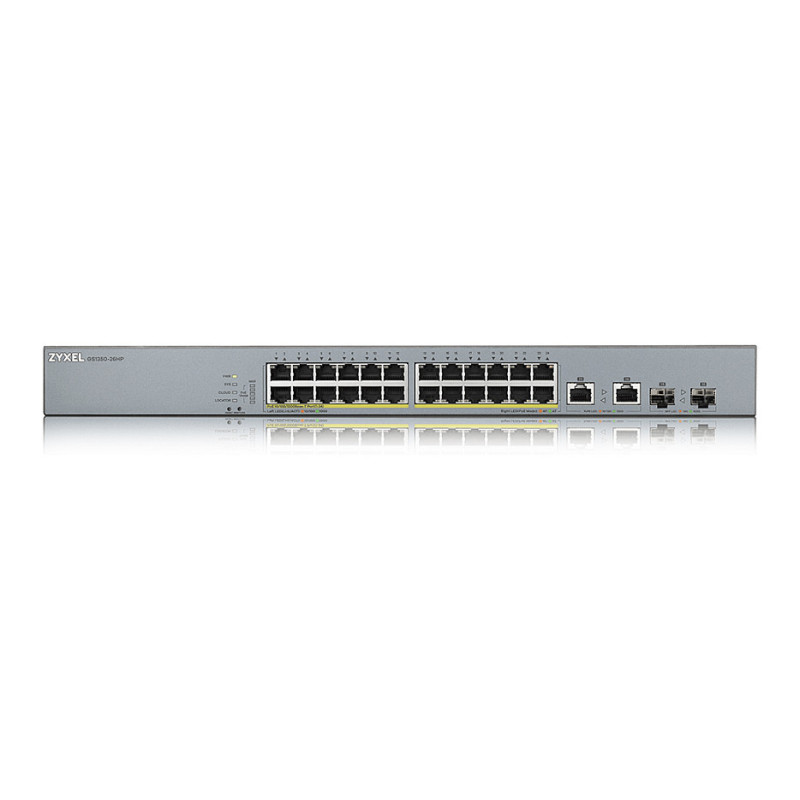

„Zyxel GS1350-26HP-EU0101F“ tinklo komutatorius

Zyxel GS1350-26HP-EU0101F. Switch type: Managed, Switch layer: L2. Basic switching RJ-45 Ethernet ports type: Gigabit Ethernet (10/100/1000), Basic switching RJ-45 Ethernet ports quantity: 24. MAC address table: 8000 entries, Switching capacity: 52 Gbit/s. Networking standards: IEEE 802.1D, IEEE 802.1ab, IEEE 802.1p, IEEE 802.1w, IEEE 802.3, IEEE 802.3ad, IEEE 802.3af, IEEE.... Power over Ethernet (PoE). Rack mounting

Just For Surveillance
Crafted for CCTV, Zyxel introduces the brand-new GS1350 smart managed switch for surveillance applications

New outlook
Coated in titanium grey, the GS1350 excels with an eye-catching identity dedicated for surveillance Switch.

Specialized PoE software features for surveillance

Detect and recover failed IP cameras and powered devices automatically with customizable granular parameters suitable for any types of devices and scenarios.
Delivers nonstop power to keep cameras in operation, even if switch under-goes maintenance for firmware or configuration updates, significantly reducing reboot time.

Easy for long-distance deployment
Traditionally, PoE switch delivers power and data within the distance of the 100 meter limitation. The GS1350 series fulfills the need to deploy IP camera or power devices using existing Cat 5e cable to distant locations. By enabling extended-range mode, instantly achieve distant deployments up to 250m. Save your money and effort with simply one PoE.

High power budget, intuitive front panel design

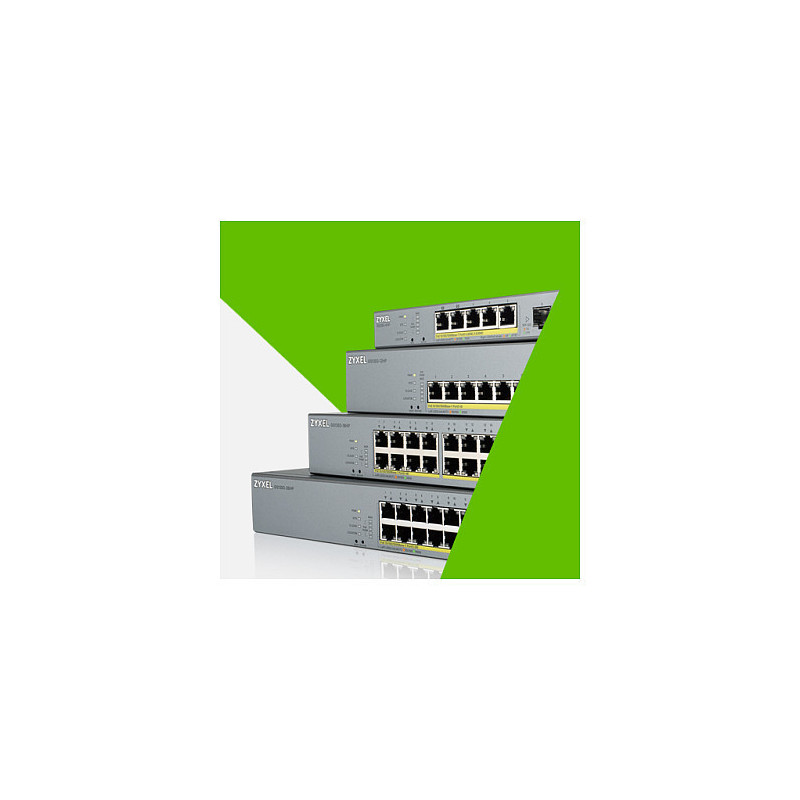

The GS1350 series includes four models with large power budgets of up to 375 W accommodating the requirement for powering up multiple IP cameras. The intuitive LED indicator on the front panel allows inspecting real-time PoE status. In addition, the one-touch "Restore" button on GS1350 Series helps effortless recovery from misconfigurations.

Unique hardware, robust design

Stabilized power
Filters electrical noise and surge to ensure supplying stable power to PoE and the system.

Selected power supply
2X Surge and ESD protection.

Isolated Circuit Design
Provides protection to isolate power surges from Ethernet and power supply.

Intelligent System Monitor
Keeps the system operational from anomalies.

Patented Ethernet Protection
- 4X Surge protection.
- 2X ESD resistant.

Management features

Switch type: Managed
Switch layer: L2
Feature: Web-based management
Feature: Configuring Location Settings (CLI)
Feature: System event log

Ports & interfaces

Basic switching RJ-45 Ethernet ports quantity: 24
Basic switching RJ-45 Ethernet ports type: Gigabit Ethernet (10/100/1000)

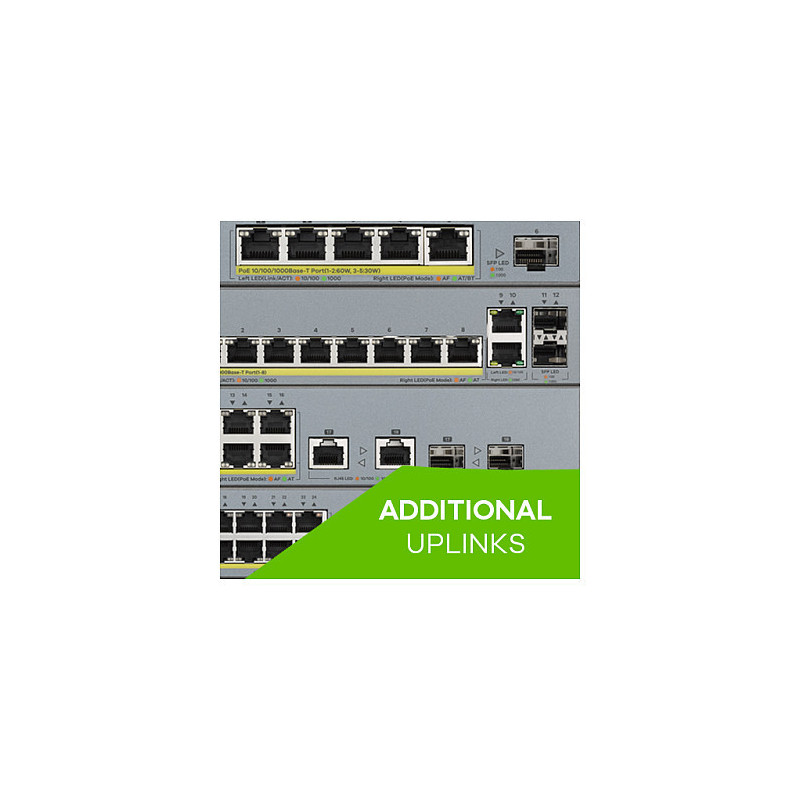

Combo SFP ports quantity: 2

Network

Networking standards: IEEE 802.1D, IEEE 802.1ab, IEEE 802.1p, IEEE 802.1w, IEEE 802.3, IEEE 802.3ad, IEEE 802.3af, IEEE 802.3at, IEEE 802.3u, IEEE 802.3x, IEEE 802.3z
Copper ethernet cabling technology: 10BASE-T, 100BASE-TX, 1000BASE-T
Feature: Port mirroring
Feature: Flow control support
Feature: Broadcast storm control
Feature: Rate limiting
Feature: Spanning tree protocol
Feature: VLAN support
Virtual LAN features: MAC address-based VLAN, Port-based VLAN
Number of VLANs: 256

Optical fiber

Fiber ethernet cabling technology: 1000BASE-X

Data transmission

Switching capacity: 52 Gbit/s
Forwarding rate: 38.7 Mpps
MAC address table: 8000 entries
Packet buffer memory: 0.525 MB

Security

DHCP features: DHCP client, DHCP relay, DHCP snooping
Feature: IGMP snooping
Feature: IGMP proxy
Security algorithms: SNMP, SNMPv3, SSH, SSL/TLS
Feature: Loop protection
Queue scheduling algorithms: SPQ, WFQ, Weighted Round Robin (WRR)

Multicast features

Feature: Multicast support

Design

Feature: Rack mounting
Product colour: Grey
LED indicators: Yes
Electromagnetic compatibility: CE, FCC, C-Tick, A; BSMI CNS13438

Performance

Noise level: 40.1 dB
Feature: Firmware upgradeable
Mean time between failures (MTBF): 888495 h

Power

AC input voltage: 100 - 240 V
AC input frequency: 50 - 60 Hz
Power consumption (max): 448.9 W

Power over Ethernet (PoE)

Feature: Power over Ethernet (PoE)
Power over Ethernet (PoE) ports quantity: 24
Total Power over Ethernet (PoE) budget: 375 W

Operational conditions

Operating temperature (T-T): -20 - 50 °C
Storage temperature (T-T): -40 - 70 °C
Operating relative humidity (H-H): 5 - 95%
Storage relative humidity (H-H): 5 - 95%
Heat dissipation: 1530.75 BTU/h

Weight & dimensions

Width: 441 mm
Depth: 270 mm
Height: 44 mm
Weight: 3.58 kg

Packaging content

Cables included: AC
Feature: Rack mount kit

Logistics data

Harmonized System (HS) code: 85176990
