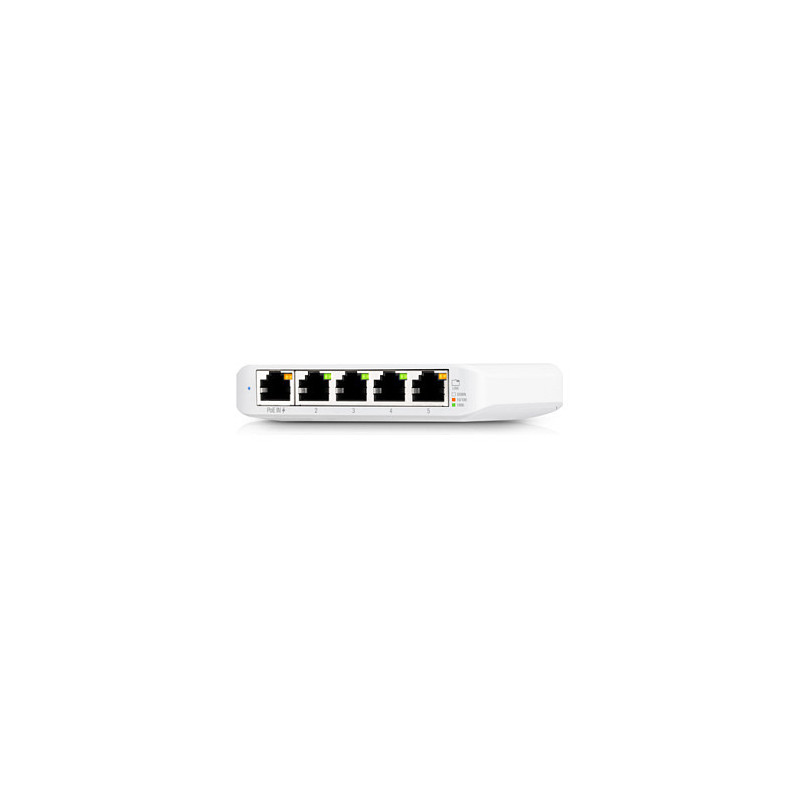

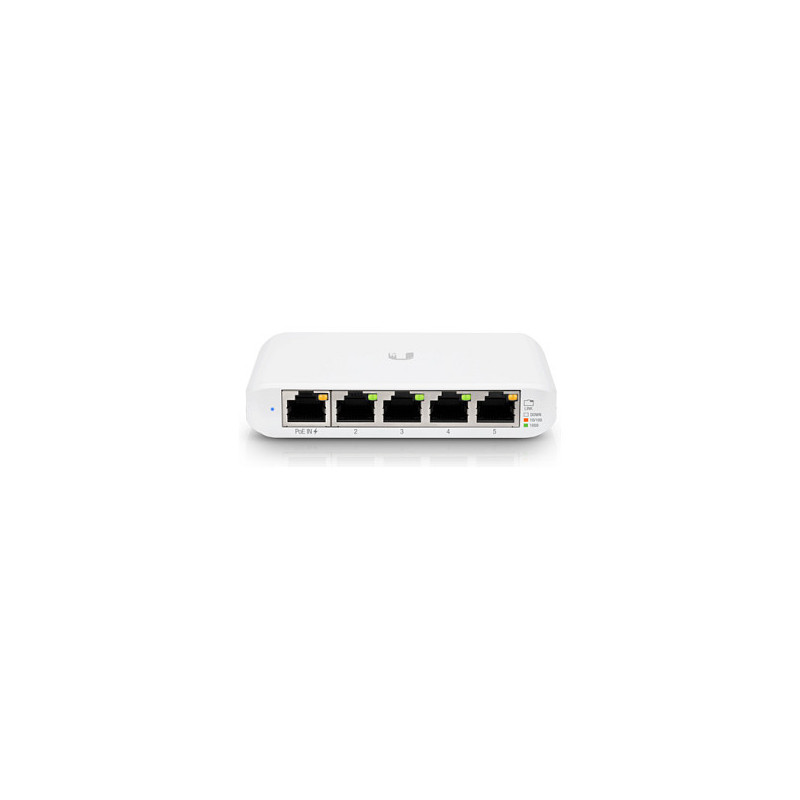

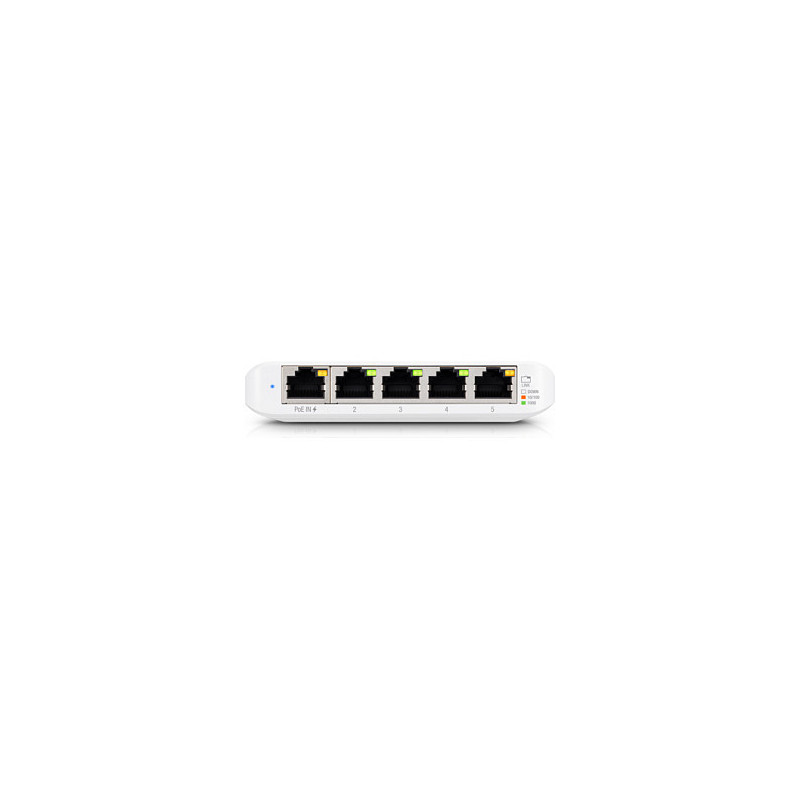

Ubiquiti UniFi USW Flex Mini

Ubiquiti UniFi USW Flex Mini. Switch type: Managed, Switch layer: L2. Basic switching RJ-45 Ethernet ports type: Gigabit Ethernet (10/100/1000), Basic switching RJ-45 Ethernet ports quantity: 5. Switching capacity: 10 Gbit/s. Networking standards: IEEE 802.3af, IEEE 802.3at. Power over Ethernet (PoE)

5-Port managed Gigabit Ethernet switch powered by 802.3af/at PoE or 5V, 1A USB-C power adapter

Build and expand your network with the UniFi® Switch, part of the Ubiquiti Networks® UniFi Enterprise System. The UniFi Switch, model USW-Flex-Mini, is a smart managed Gigabit switch. It offers 5 RJ45 Ethernet ports, providing 1 Gigabit links to your devices. Power up the USW-Flex-Mini with the included USB Type-C power adapter or with 802.3af PoE Ethernet in port 1.

Management features

Switch type: Managed
Switch layer: L2

Ports & interfaces

Basic switching RJ-45 Ethernet ports quantity: 5
Basic switching RJ-45 Ethernet ports type: Gigabit Ethernet (10/100/1000)

Network

Networking standards: IEEE 802.3af, IEEE 802.3at
Feature: Flow control support

Data transmission

Switching capacity: 10 Gbit/s
Throughput: 5 Gbit/s
Forwarding rate: 7.44 Mpps

Design

Product colour: White
LED indicators: Activity, Link, Speed, Status

Power

Feature: Power supply included
Power consumption (max): 2.5 W

Power over Ethernet (PoE)

Feature: Power over Ethernet (PoE)
Power over Ethernet (PoE) ports quantity: 1

Operational conditions

Operating temperature (T-T): -5 - 45 °C
Operating relative humidity (H-H): 10 - 90%

Weight & dimensions

Width: 107.2 mm
Depth: 70.2 mm
Height: 21.2 mm
Weight: 150 g

Certificates

Certification: CE, FCC, IC

Logistics data

Harmonized System (HS) code: 85176990
