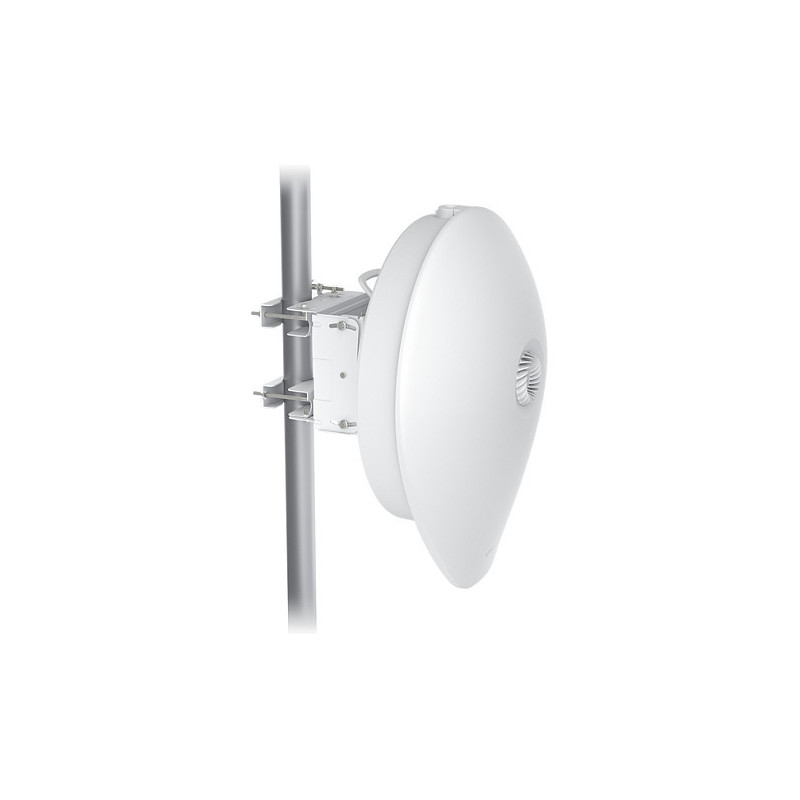

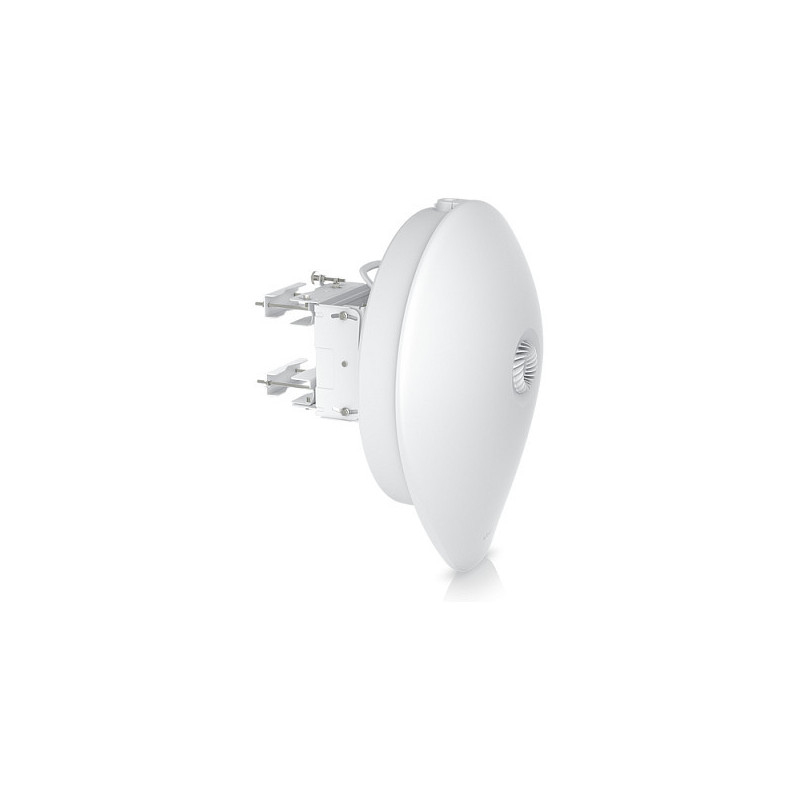

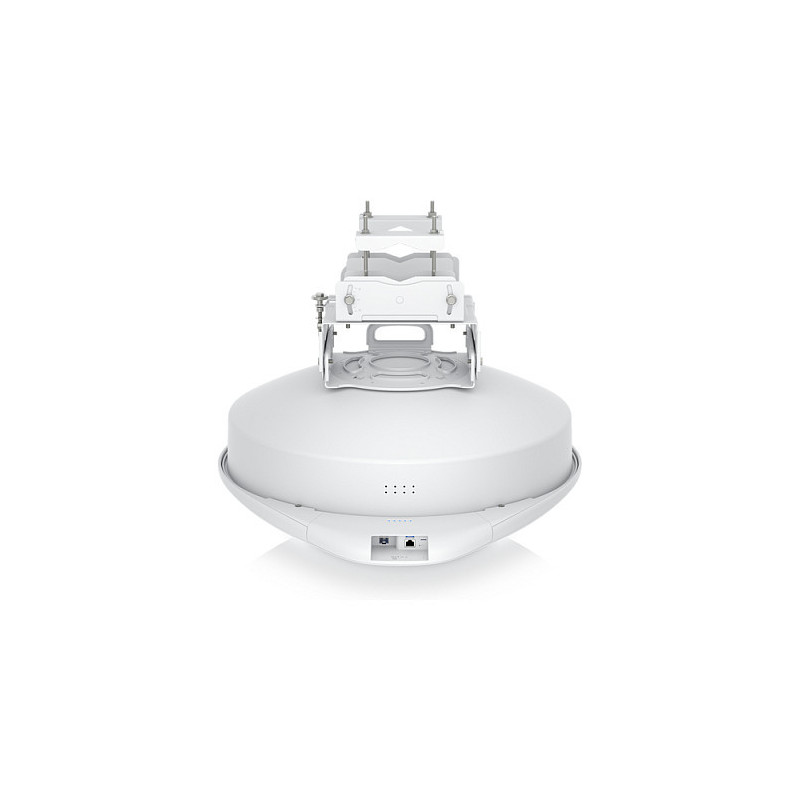

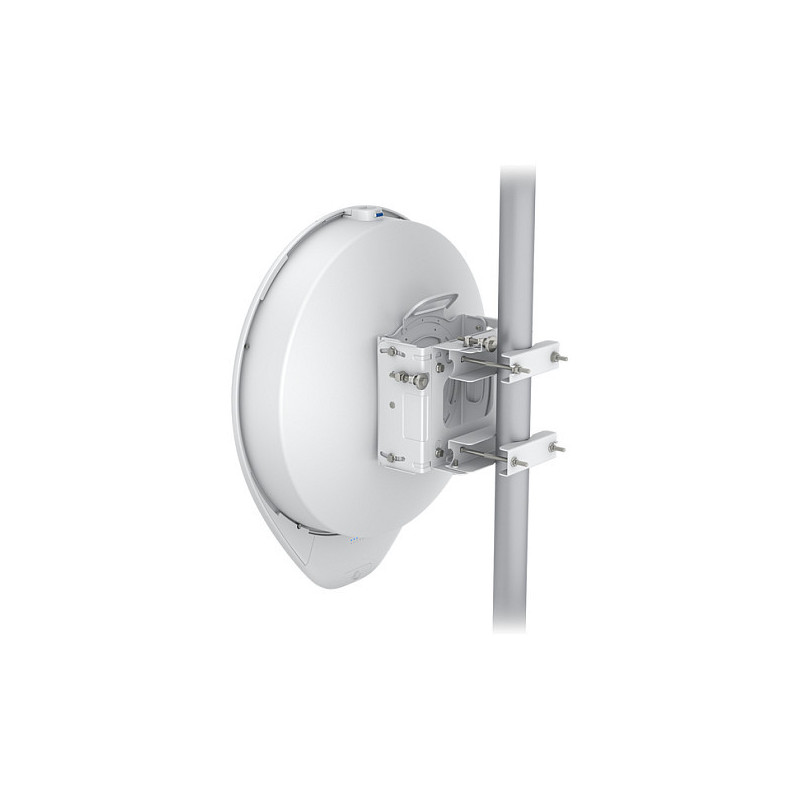

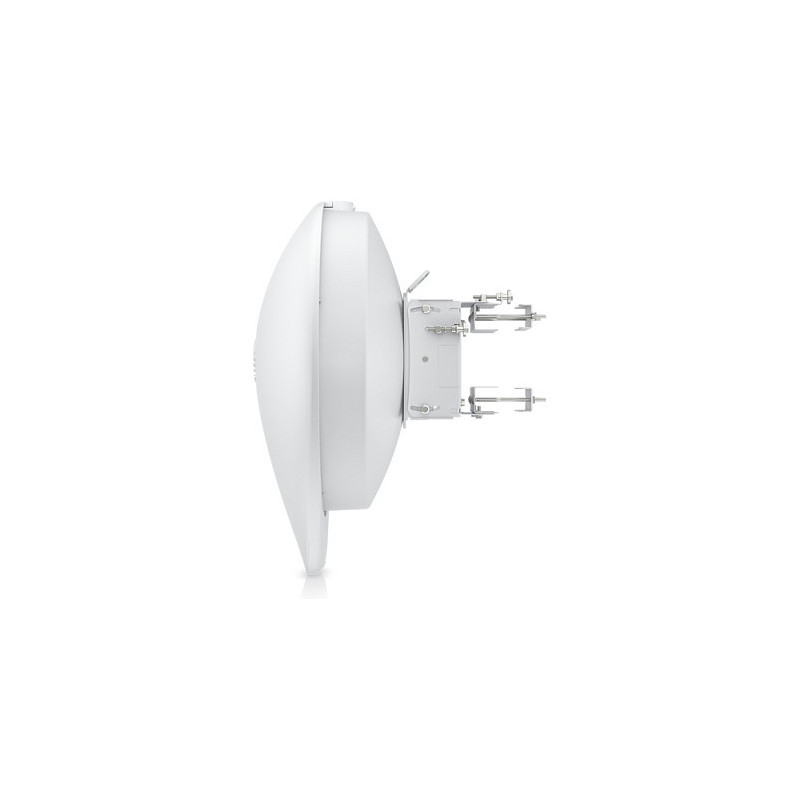

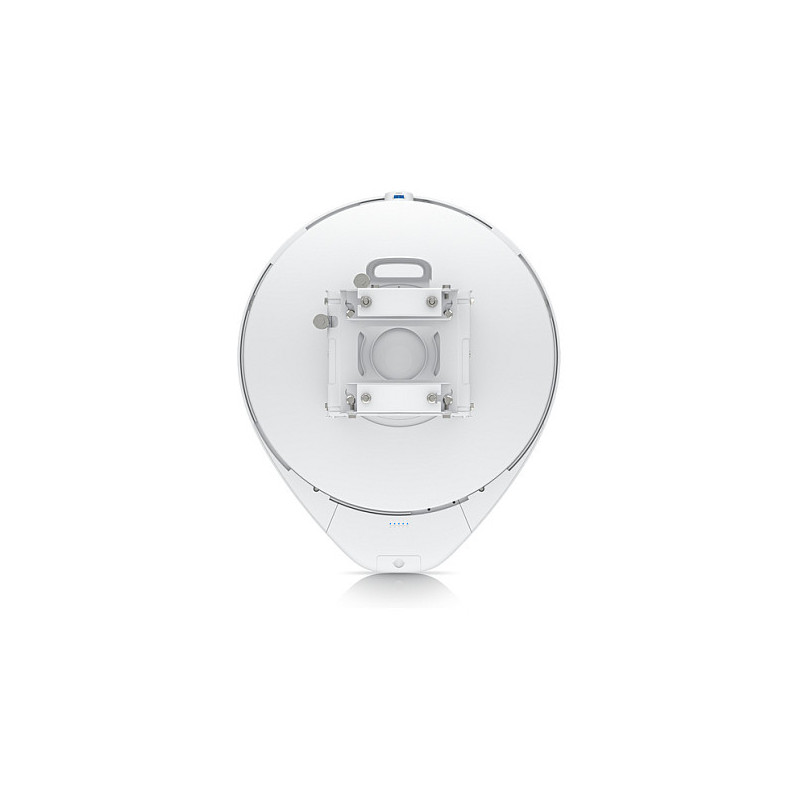

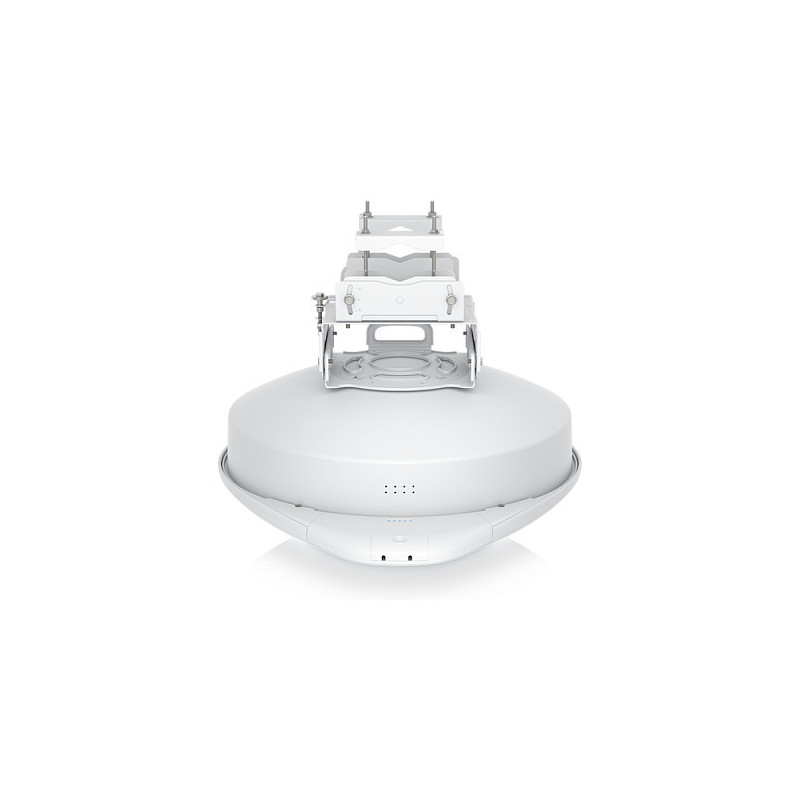

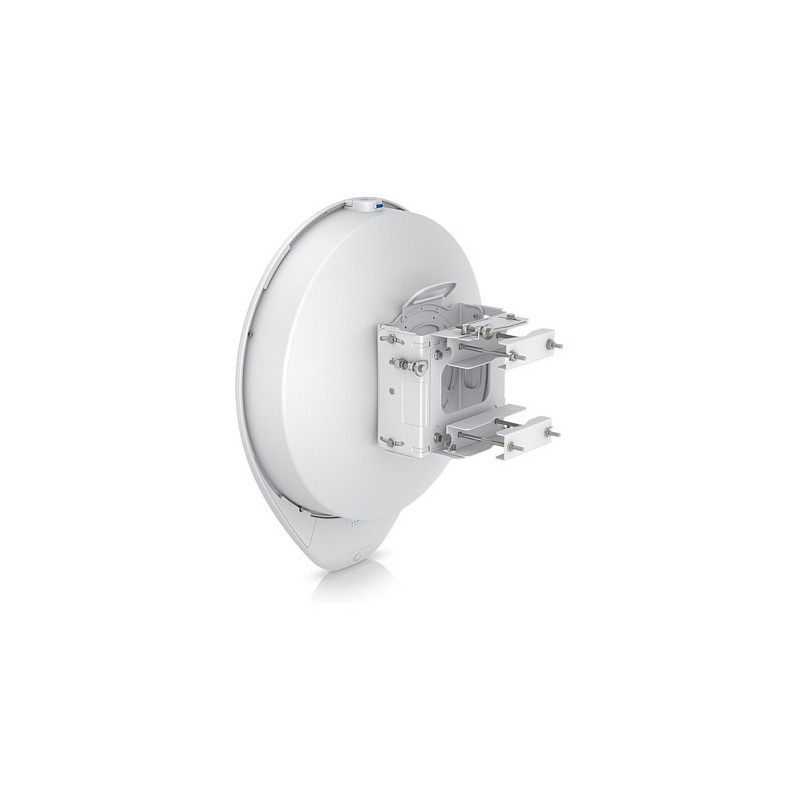

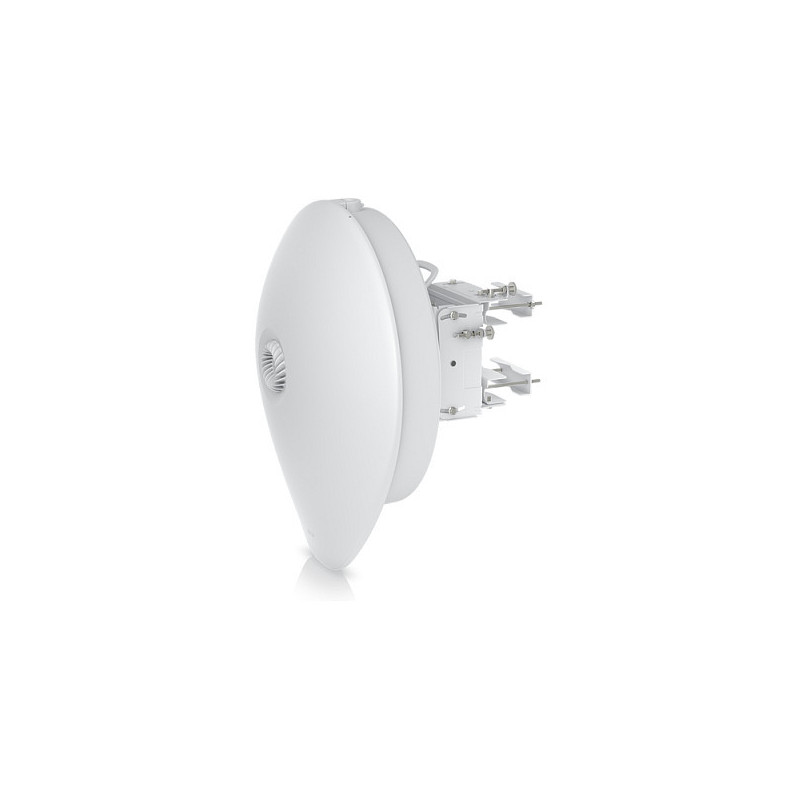

Ubiquiti UISP airFiber 60 XR

Ubiquiti UISP airFiber 60 XR. Maximum transfer distance: 4000 m. Antenna design: External, Antenna gain level (max): 26 dBi. Modulation: 16-QAM, BPSK, QPSK. Ethernet LAN interface type: Gigabit Ethernet, Ethernet LAN data rates: 1000 Mbit/s. Connectivity technology: Wired

Multi-gigabit, 60 GHz bridge designed to create long-distance links and deliver 5.4 Gbps total throughput (2.7 Gbps duplex) over them.

It's also equipped with a 5 GHz backup radio for operational redundancy, as well as a Bluetooth radio to simplify setup via the UISP® Mobile app.

Features:
- 5 GHz backup radio
- Link range: 15+ km
- (1) 10G SFP+ port
- Integrated GPS
- Link planning support via the ISP Design Center

Data transmission

Maximum transfer distance: 4000 m

Antenna

Antenna design: External
Antenna gain level (max): 26 dBi

Wireless LAN features

Modulation: 16-QAM, BPSK, QPSK

Network

Feature: Ethernet LAN
Ethernet LAN interface type: Gigabit Ethernet
Ethernet LAN data rates: 1000 Mbit/s

Ports & interfaces

Connectivity technology: Wired
Ethernet LAN (RJ-45) ports: 1

Security

Security algorithms: WPA2-PSK

Management features

Feature: Web-based management

Features

Product type: Network bridge
Material: Polycarbonate (PC), Steel
Mounting type: Pole
Product colour: White
LED indicators: LAN, Power
Feature: Power LED
Feature: Reset button
International Protection (IP) code: IPX6
Feature: Network Time Protocol (NTP) client
Processor frequency: 1400 MHz
Processor manufacturer: Qualcomm
Internal memory: 1024 MB
RAM type: DDR3

System requirements

Compatible operating systems: Any modern web browser/iOS™ or Android™ based smartphone

Power

Power source type: PoE
Power consumption (max): 24 W
Feature: Power over Ethernet (PoE)
Power over Ethernet (PoE) voltage: 48 V

Operational conditions

Operating temperature (T-T): -40 - 55 °C
Operating temperature (T-T): -40 - 131 °F
Operating relative humidity (H-H): 5 - 95%

Certificates

Certification: FCC, IC, CE

Weight & dimensions

Width: 779 mm
Depth: 664 mm
Height: 383 mm
Weight: 8.6 kg

Packaging content

Feature: Mounting bracket(s) included
Feature: Power supply included
Feature: Manual

Packaging data

Quantity per pack: 1 pc(s)
