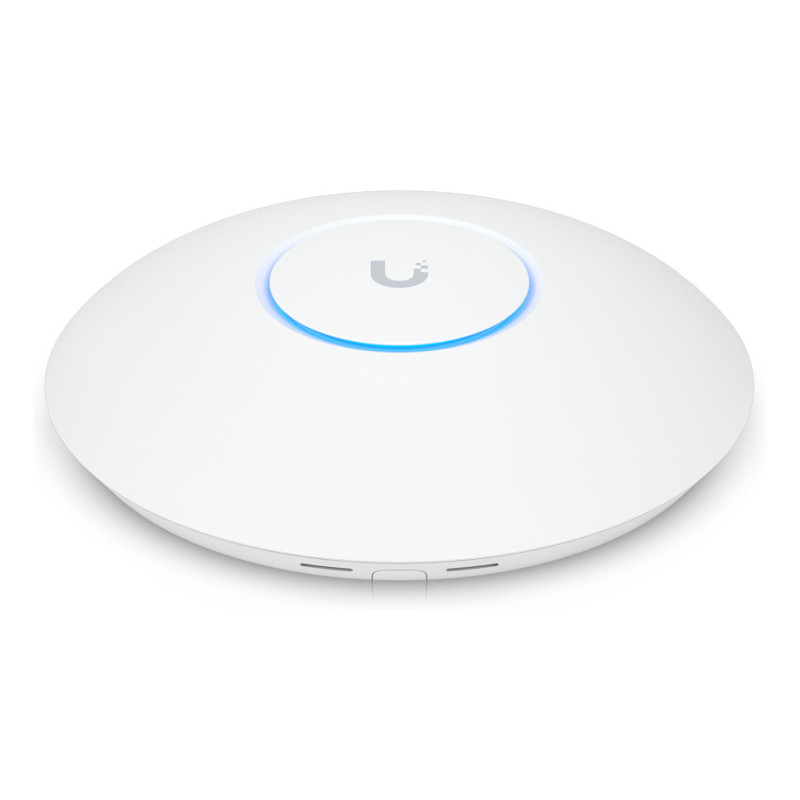

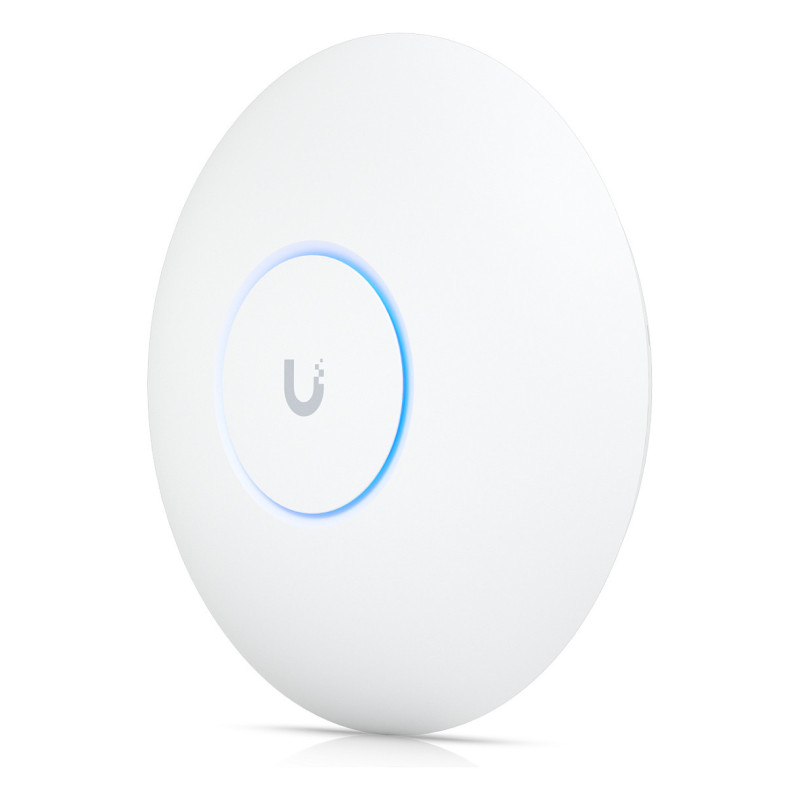

Ubiquiti U7 Pro

Ubiquiti U7 Pro. 2.4 GHz, 5 GHz, 6 GHz, Maximum data transfer rate: 5800 Mbit/s. Security algorithms: PPSK, WPA, WPA-Enterprise, WPA-PSK, WPA2, WPA3. Ethernet LAN data rates: 1000,2500 Mbit/s. Power over Ethernet (PoE). Product colour: White. Power consumption (max): 21 W

Ceiling-mounted WiFi 7 AP with 6 spatial streams and 6 GHz support for interference-free WiFi in demanding, large-scale environments.

Features

Feature: 2.4 GHz
Feature: 5 GHz
Feature: 6 GHz
Maximum data transfer rate: 5800 Mbit/s
Maximum data transfer rate (2.4 GHz): 688 Mbit/s
Maximum data transfer rate (5 GHz): 4300 Mbit/s
Maximum data transfer rate (6 GHz): 5800 Mbit/s
Ethernet LAN data rates: 1000,2500 Mbit/s
Throughput data rate: 5765 Mbit/s
Frequency band: 2.4 - 6 GHz
Coverage area: 140 m²
Number of users: 300 user(s)
Feature: MIMO
MIMO type: Multi User MIMO
Fit AP mode features: Hotspot 2.0
Feature: Fast roaming
Feature: VLAN support
Feature: Rate limiting
Feature: Band steering
Feature: Quality of Service (QoS) support
Maximum Tx power (2.4 GHz): 22 dBmW
Maximum Tx power (5 GHz): 26 dBmW
Maximum Tx power (6 GHz): 23 dBmW

Security

Security algorithms: PPSK, WPA, WPA-Enterprise, WPA-PSK, WPA2, WPA3

Ports & interfaces

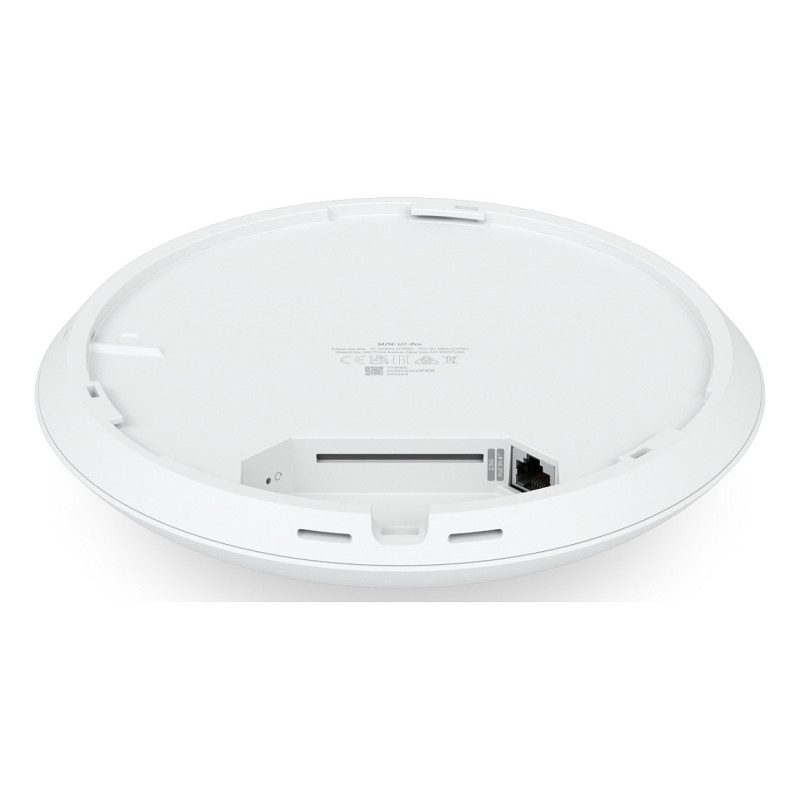

Ethernet LAN (RJ-45) ports: 1
WAN connection: Ethernet (RJ-45)

Power

Feature: Power over Ethernet (PoE)
Power over Ethernet (PoE) type supported: PoE+
DC voltage range: 44 - 57 V
Power consumption (max): 21 W

Design

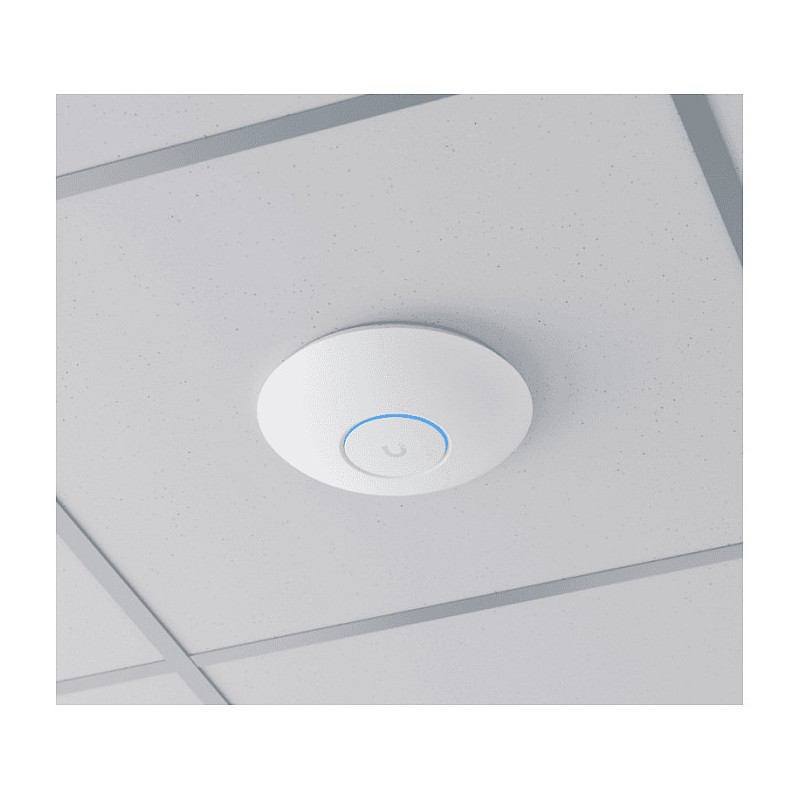

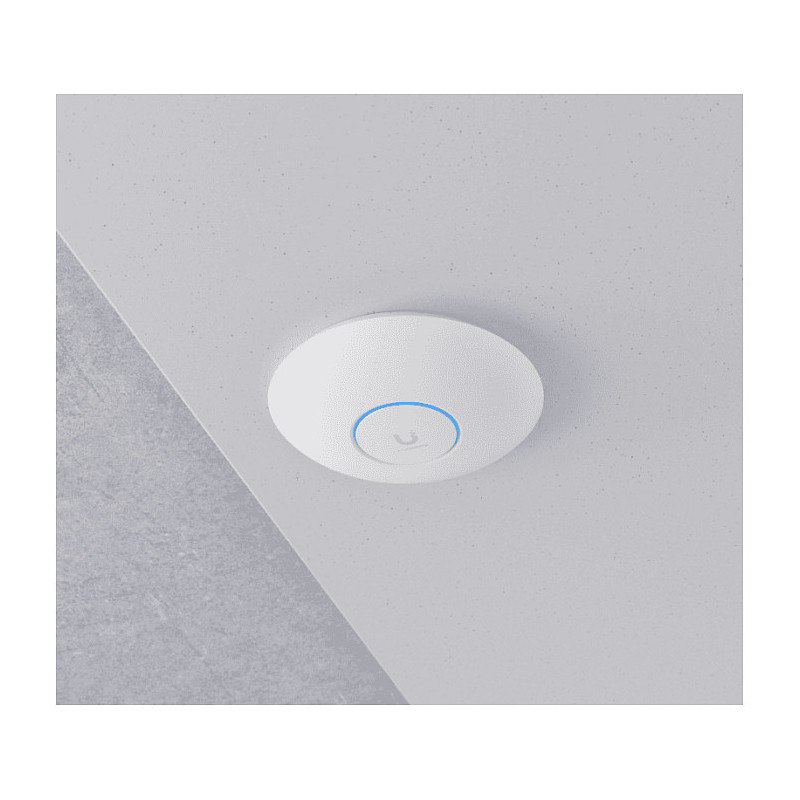

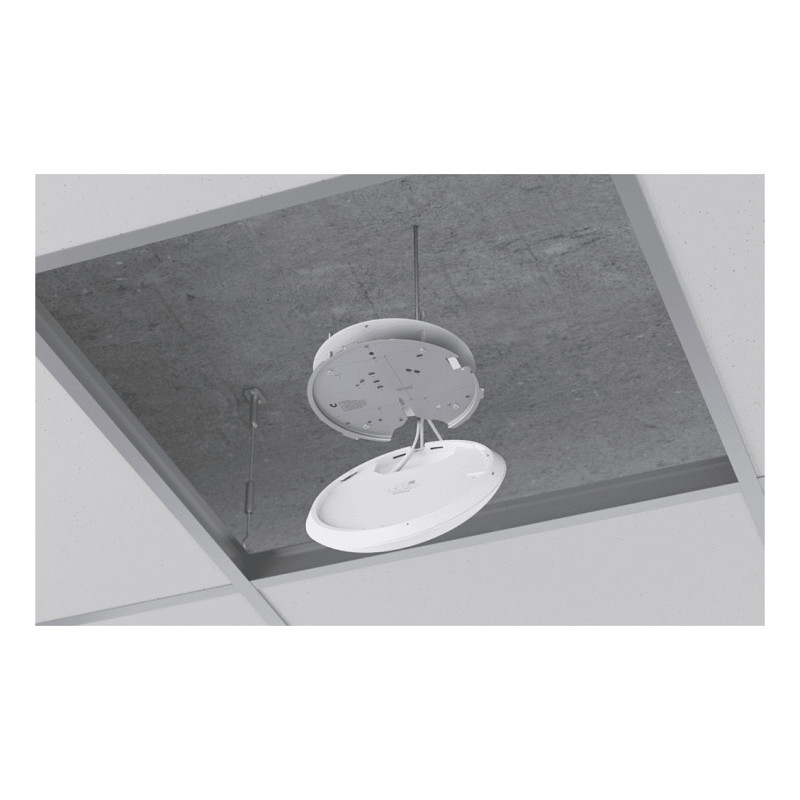

Placement: Ceiling, Wall
Product colour: White
Housing material: Metal, Polycarbonate (PC)
Feature: Reset button
LED indicators: Yes

Antenna

Antenna type: Internal
Antenna gain level (max): 6 dBi

Certificates

Compliance certificates: CE, Federal Communications Commission (FCC), Industry Canada (IC)

Weight & dimensions

Width: 206 mm
Depth: 206 mm

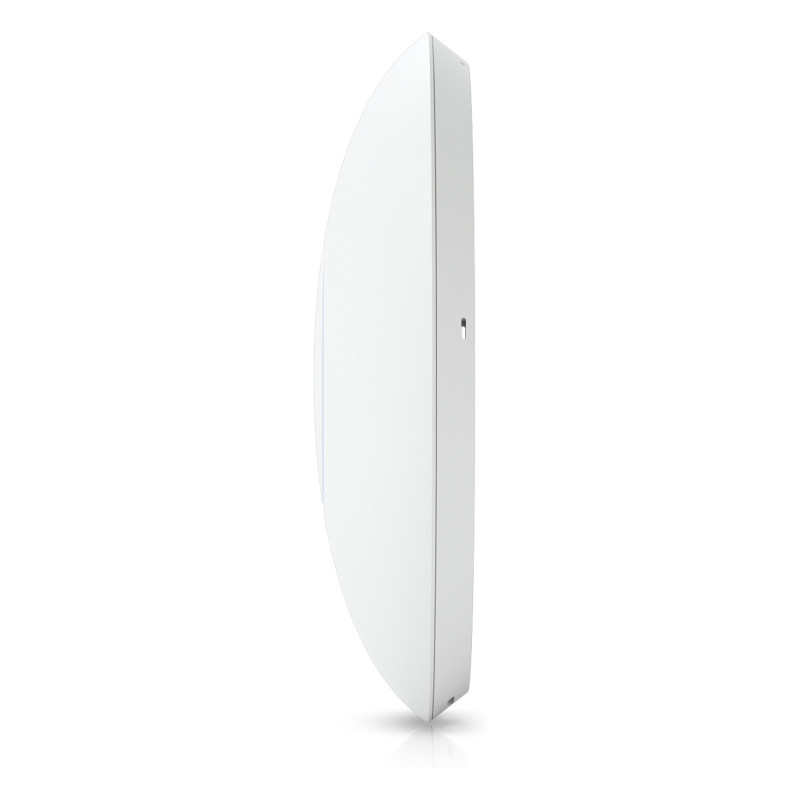

Height: 46 mm
Weight: 680 g

Packaging content

Quantity per pack: 1 pc(s)

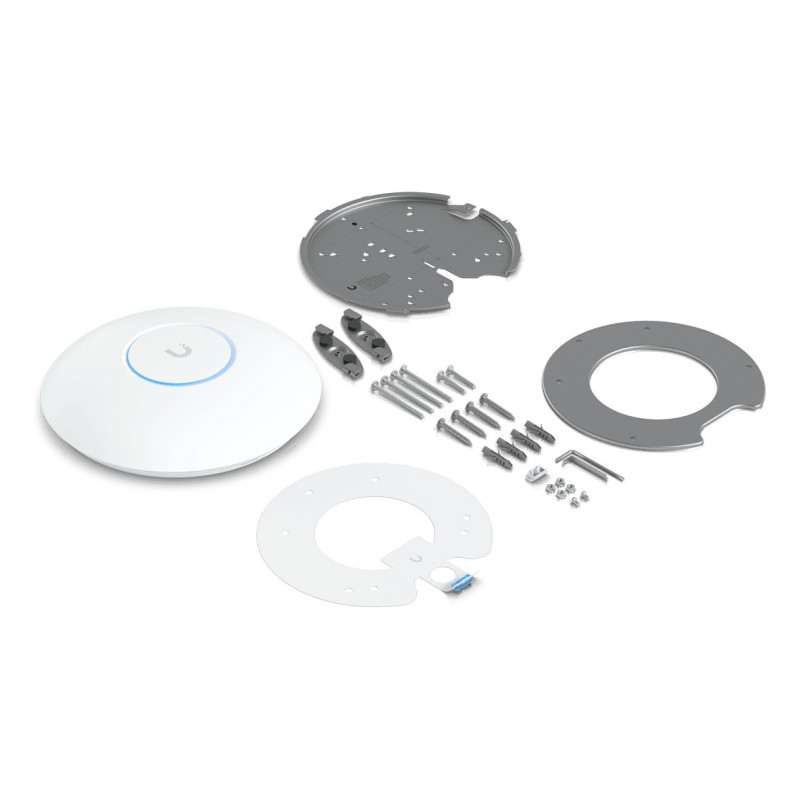

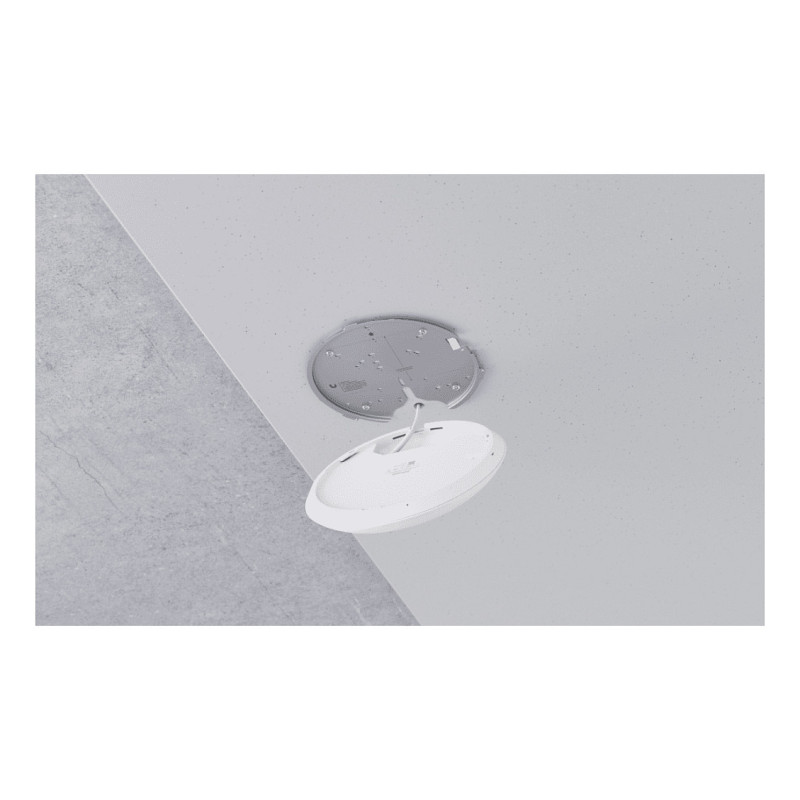

Feature: Mounting kit

Operational conditions

Operating relative humidity (H-H): 5 - 95%
Operating temperature (T-T): -30 - 60 °C

Sustainability

Feature: Sustainability compliance
