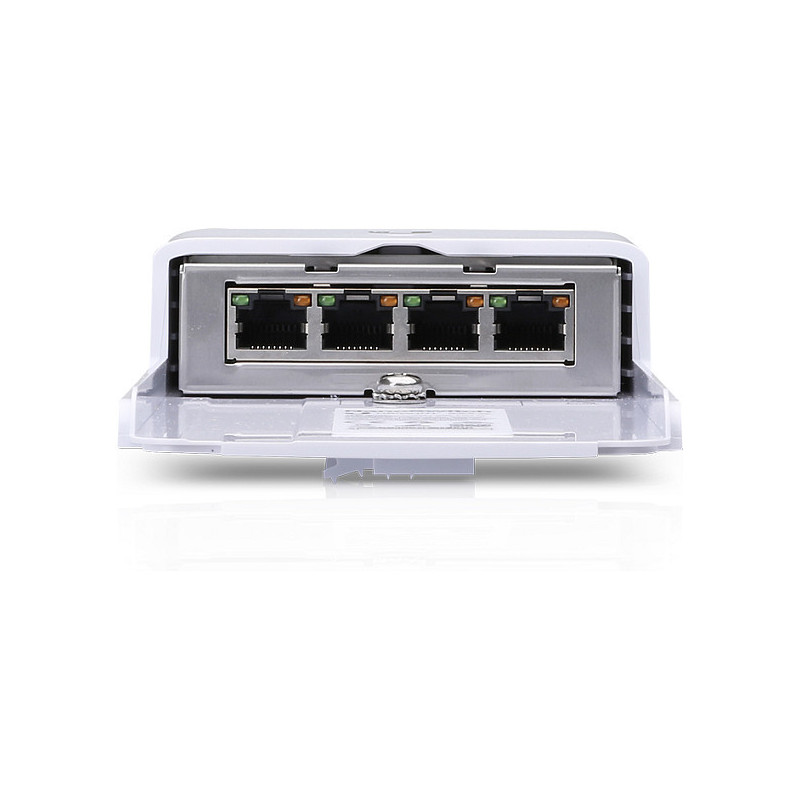

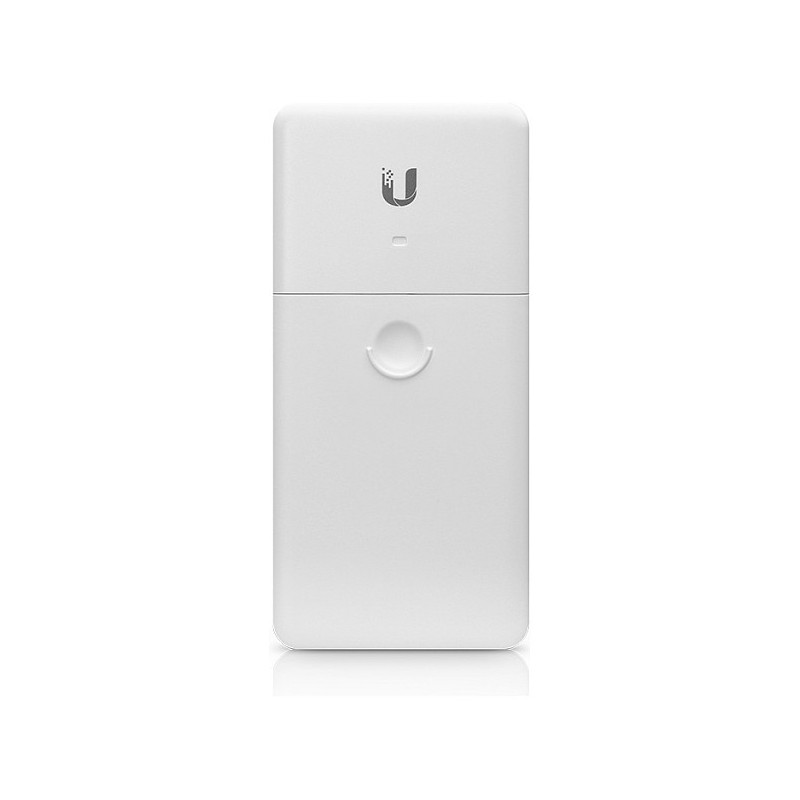

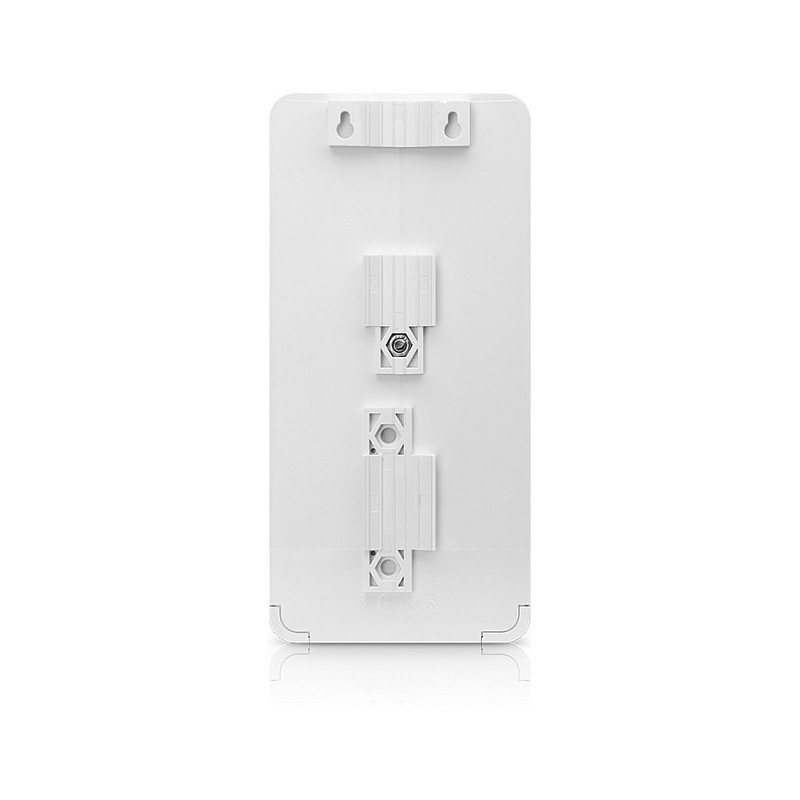

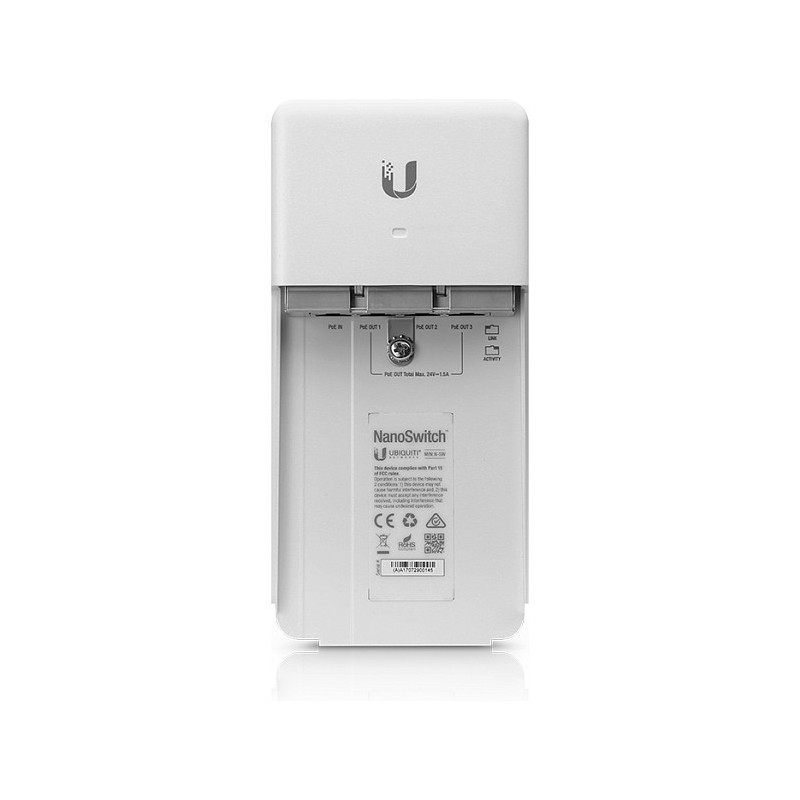

Ubiquiti NanoSwitch

Ubiquiti NanoSwitch. Basic switching RJ-45 Ethernet ports type: Gigabit Ethernet (10/100/1000), Basic switching RJ-45 Ethernet ports quantity: 4. Switching capacity: 4 Gbit/s. DC input voltage: 24 V. Power over Ethernet (PoE)

The NanoSwitch is an outdoor, 4-port Gigabit switch with PoE pass-through. It is powered by 24V Passive PoE and provides up to 24W of power on three PoE out ports. The NanoSwitch is designed for outdoor deployment and supports up to 4 Gbps total, non-blocking line rate.

Ports & interfaces

Basic switching RJ-45 Ethernet ports quantity: 4
Basic switching RJ-45 Ethernet ports type: Gigabit Ethernet (10/100/1000)

Data transmission

Switching capacity: 4 Gbit/s

Design

Product colour: White

Performance

Feature: Built-in processor

Power

DC input voltage: 24 V
Power consumption (typical): 1.5 W

Power over Ethernet (PoE)

Feature: Power over Ethernet (PoE)
Power over Ethernet (PoE) ports quantity: 4
Power over Ethernet (PoE) power per port: 24 W
Total Power over Ethernet (PoE) budget: 36 W

Operational conditions

Operating temperature (T-T): -30 - 70 °C
Operating relative humidity (H-H): 5 - 95%

Weight & dimensions

Width: 93.5 mm
Depth: 196.4 mm
Height: 32.4 mm
Weight: 269 g

Logistics data

Harmonized System (HS) code: 85176990
