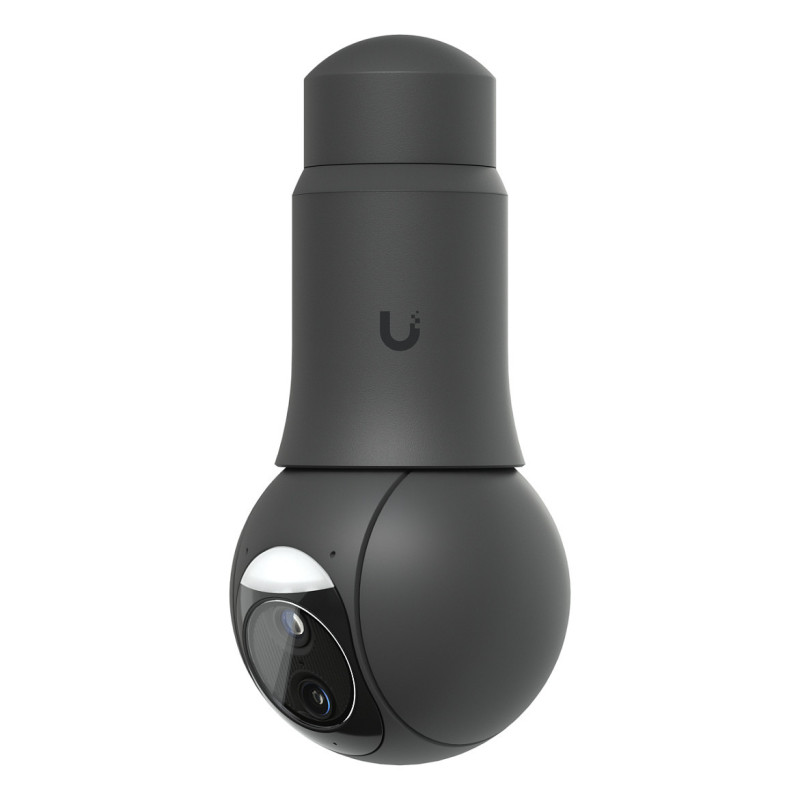

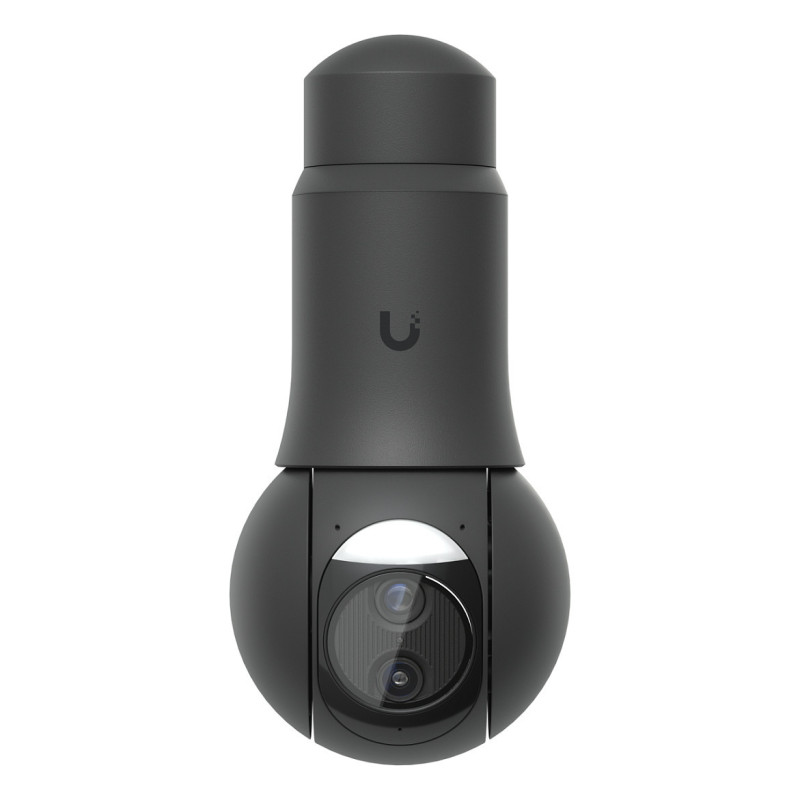

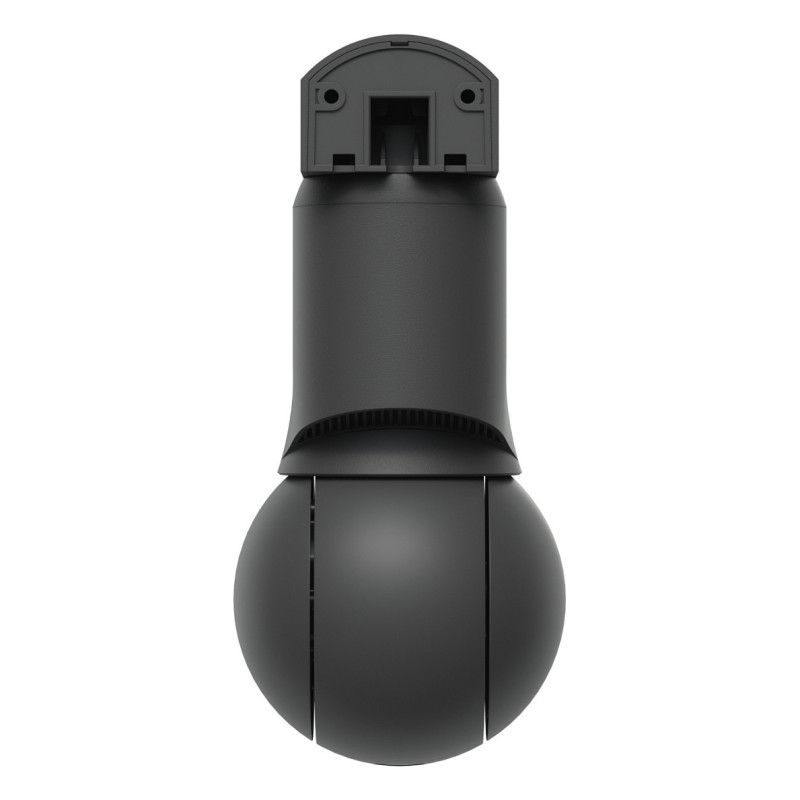

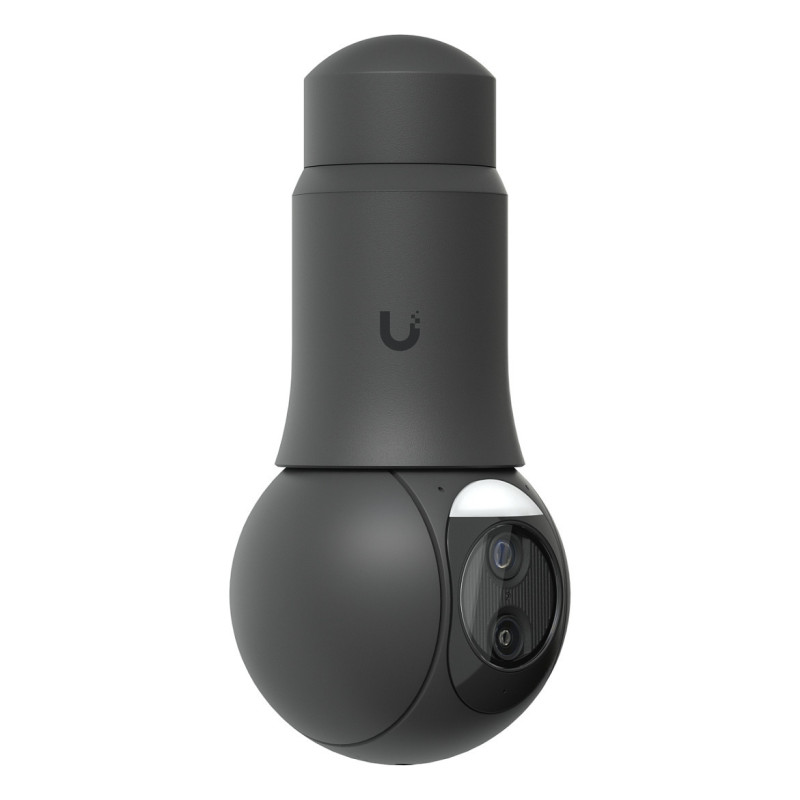

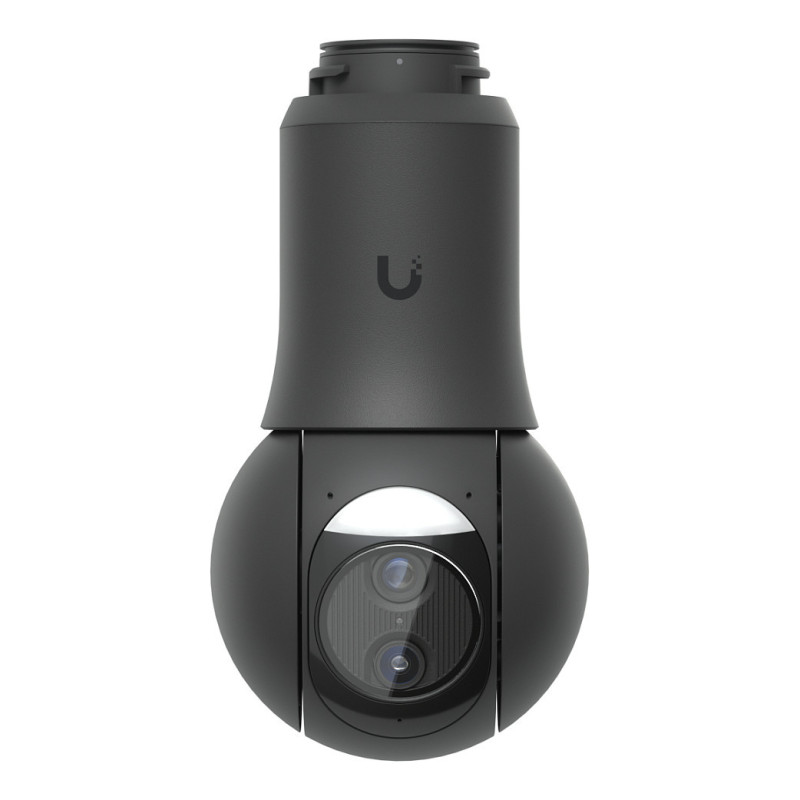

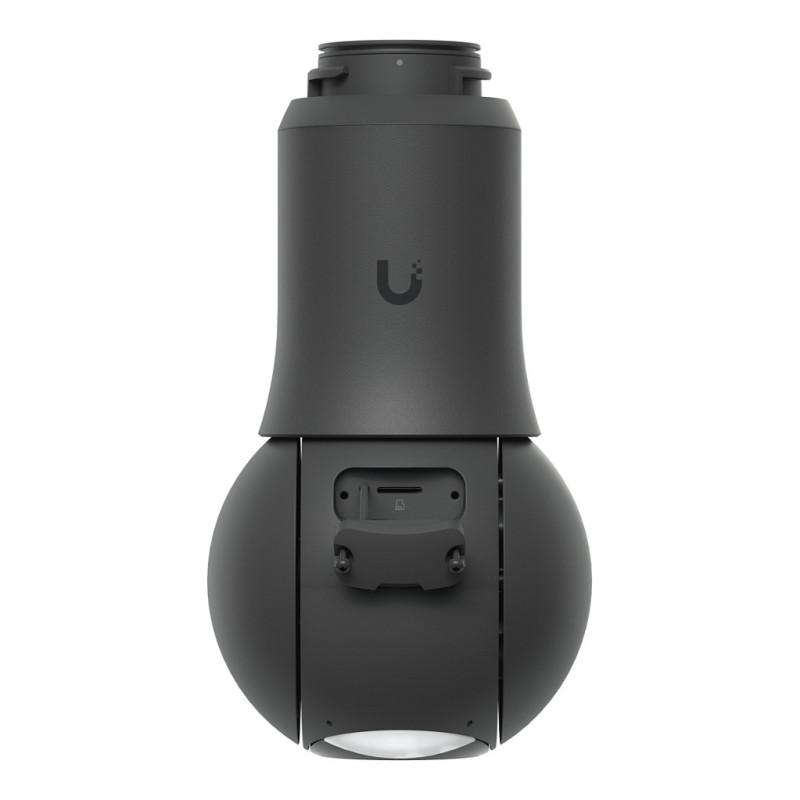

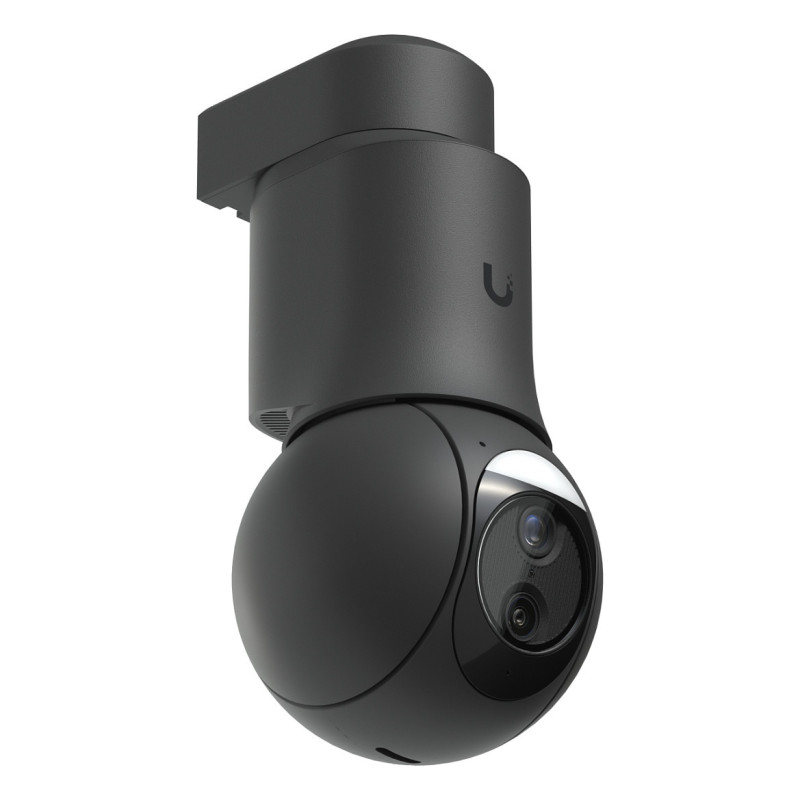

Ubiquiti G6 PTZ

Ubiquiti G6 PTZ. Type: IP security camera, Placement supported: Indoor & outdoor, Connectivity technology: Wired. Mounting type: Ceiling/Wall/Pole, Product colour: Black, Form factor: Spherical. Angle of rotation: 350°, Lens viewing angle, horizontal: 109.9°, Lens viewing angle, vertical: 56.7°. Optical sensor size: 25.4 / 1.8 mm (1 / 1.8"). Night vision distance: 30 m, LED type: IR

All-weather, 4K dual-lens camera with 10x hybrid zoom, 1/1.8" 8MP image sensor, Multi-TOPS AI Engine, and ultra-low latency pan-tilt-zoom control for motion tracking.

Performance

Type: IP security camera
Placement supported: Indoor & outdoor
Connectivity technology: Wired
Feature: PTZ control
Feature: Day/night mode
Feature: Infrared (IR) cut-off filter
Feature: Built-in light
Processor model: ARM Cortex-A53
Feature: Built-in processor

Design

Form factor: Spherical

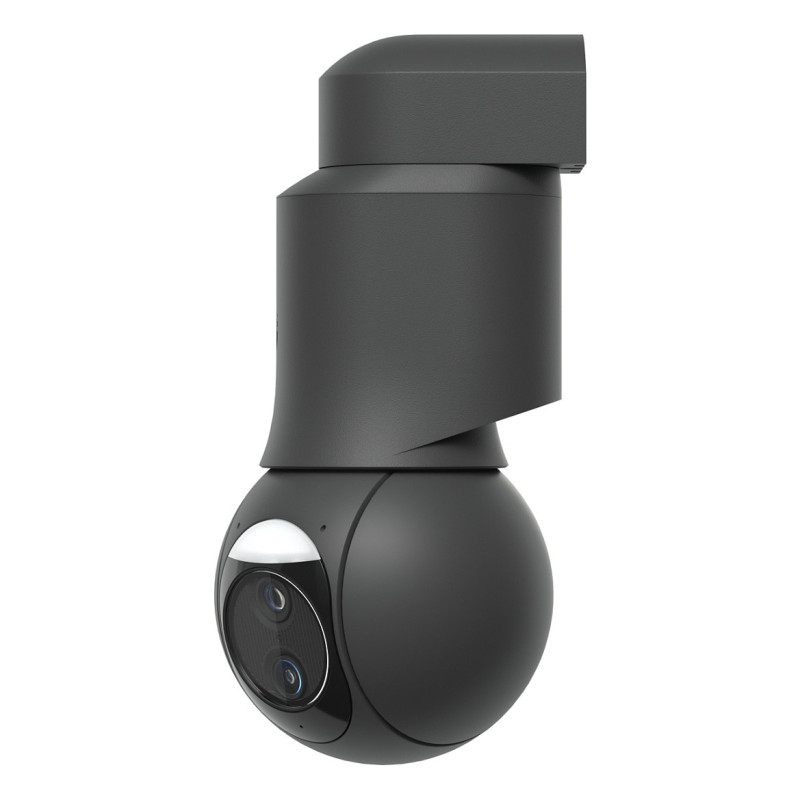

Mounting type: Ceiling/Wall/Pole
Product colour: Black
LED indicators: Yes
Housing material: Aluminium, Polycarbonate (PC)
International Protection (IP) code: IP66
IK code: IK04
Feature: Weatherproof

Camera

Feature: Camera pan control
Feature: Camera tilt control
Angle of rotation: 350°
Lens viewing angle, horizontal: 109.9°
Lens viewing angle, vertical: 56.7°
Lens viewing angle, diagonal: 134.1°

Image sensor

Optical sensor size: 25.4 / 1.8 mm (1 / 1.8")

Lens system

Feature: Zoom capability

Night vision

Feature: Night vision
Night vision distance: 30 m
LED type: IR

Video

Maximum resolution: 3864 x 2160 pixels
Total megapixels: 8 MP
Frame rate: 30 fps
Feature: Noise reduction
Noise reduction technology: 2D noise reduction, 3D noise reduction
Image quality adjustment: Brightness, Contrast, HDR, Sharpness
Feature: Privacy masking
Feature: Text caption overlay

Audio

Feature: Built-in speaker(s)
Audio system: 2-way
Feature: Built-in microphone

Network

Feature: Ethernet LAN
Ethernet interface type: Fast Ethernet

Storage

Feature: Card reader integrated
Compatible memory cards: MicroSD (TransFlash)

Ports & interfaces

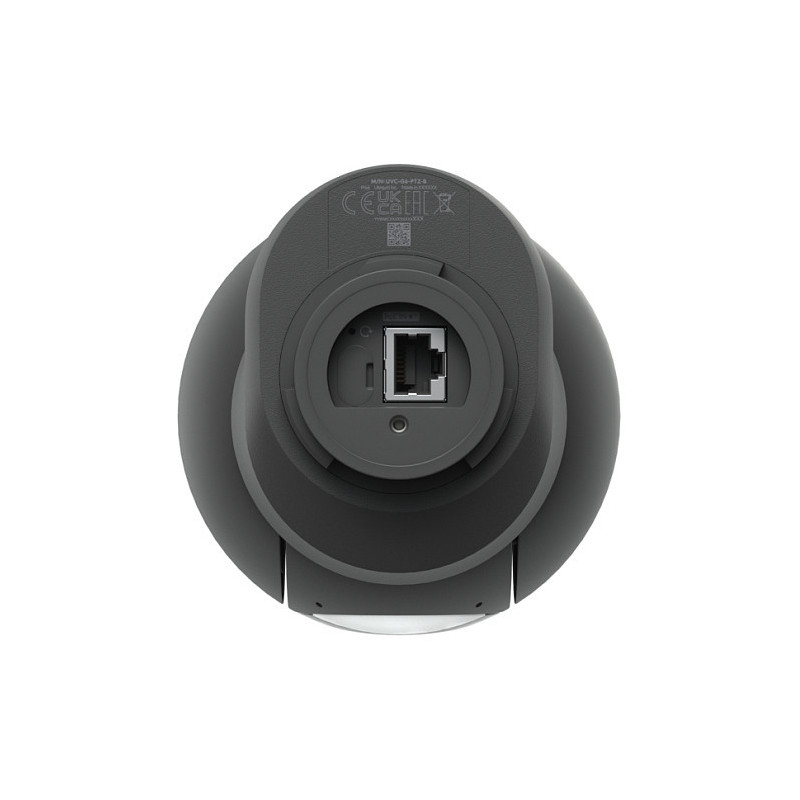

Ethernet LAN (RJ-45) ports: 1

Security

Feature: Light sensor
Intelligent Video Surveillance (IVS) system features: Face detection, Human detection, Pet detection, Vehicle detection
Feature: Human and vehicle targets classification

Management features

Feature: Reset button

Power

Power source type: PoE
Power consumption (max): 24.5 W
DC output voltage: 42.5, 57

Operational conditions

Operating temperature (T-T): -30 - 50 °C
Operating relative humidity (H-H): 20 - 90%

Weight & dimensions

Height: 203.2 mm
Diameter: 10.7 cm
Weight: 1 kg

Features

Feature: License plate recognition

Sustainability

Compliance certificates: CE, Federal Communications Commission (FCC), Industry Canada (IC), National Defense Authorization Act (NDAA)

Packaging content

Number of cameras: 1

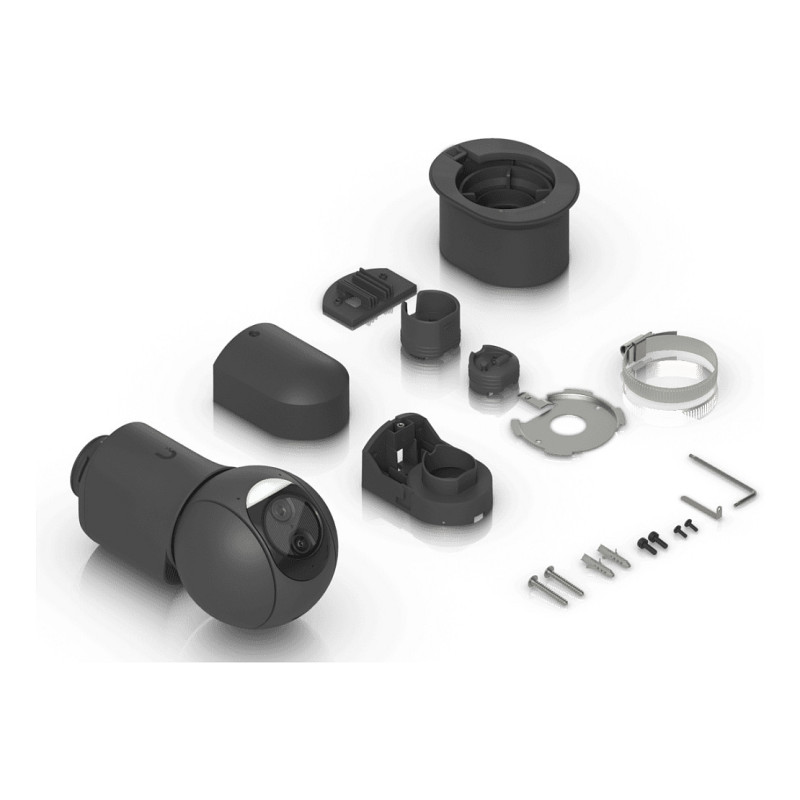

Feature: Mounting kit
Feature: Screws included
Feature: Manual
