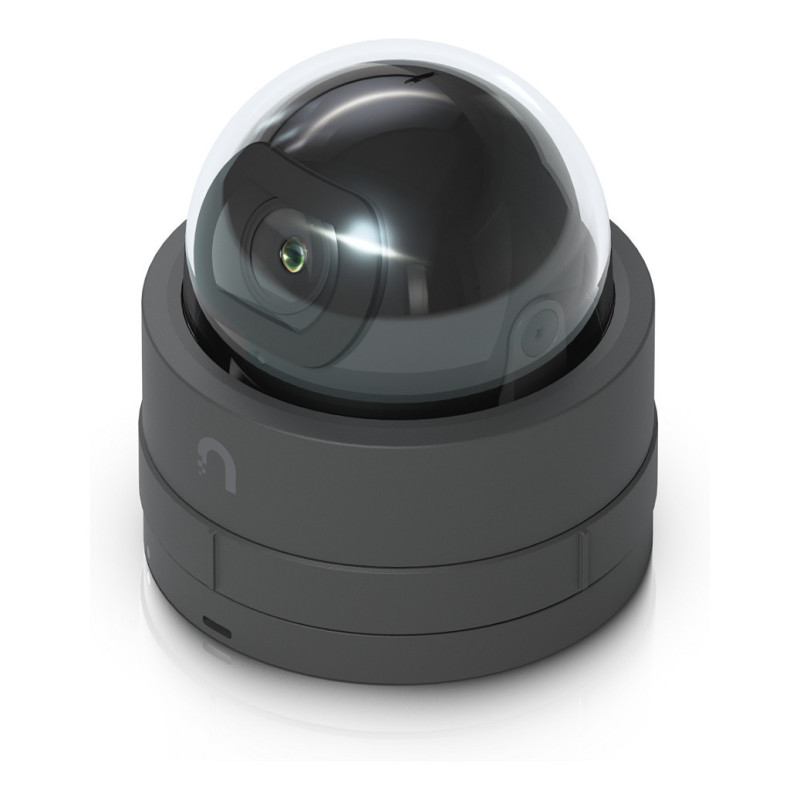

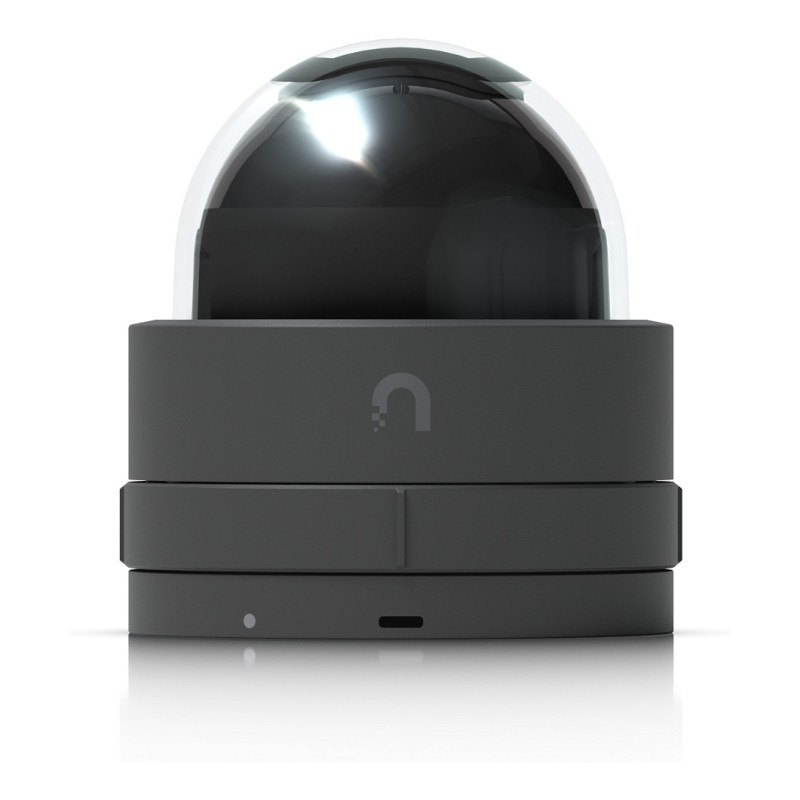

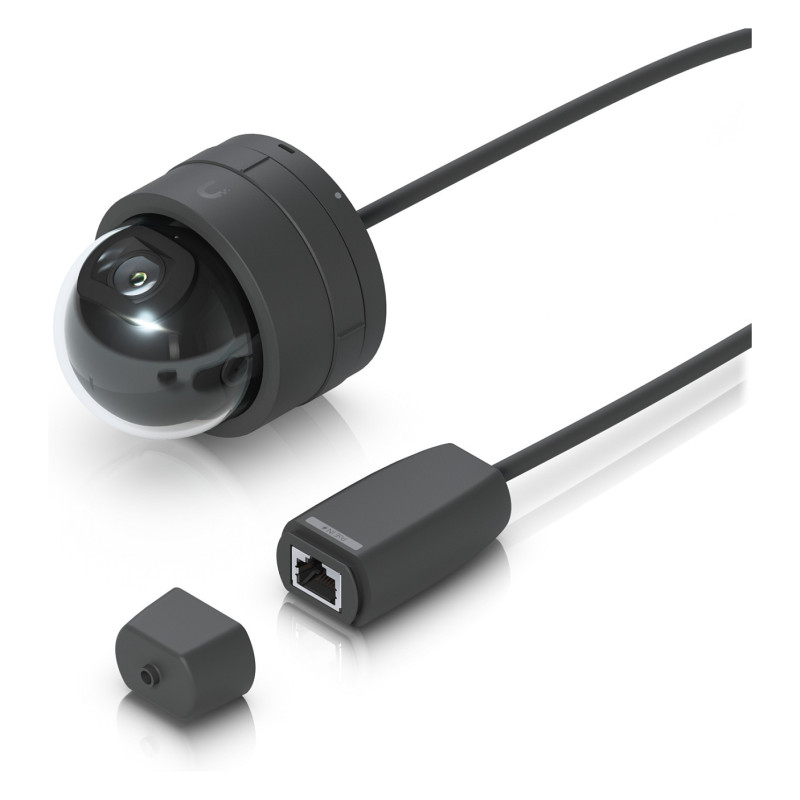

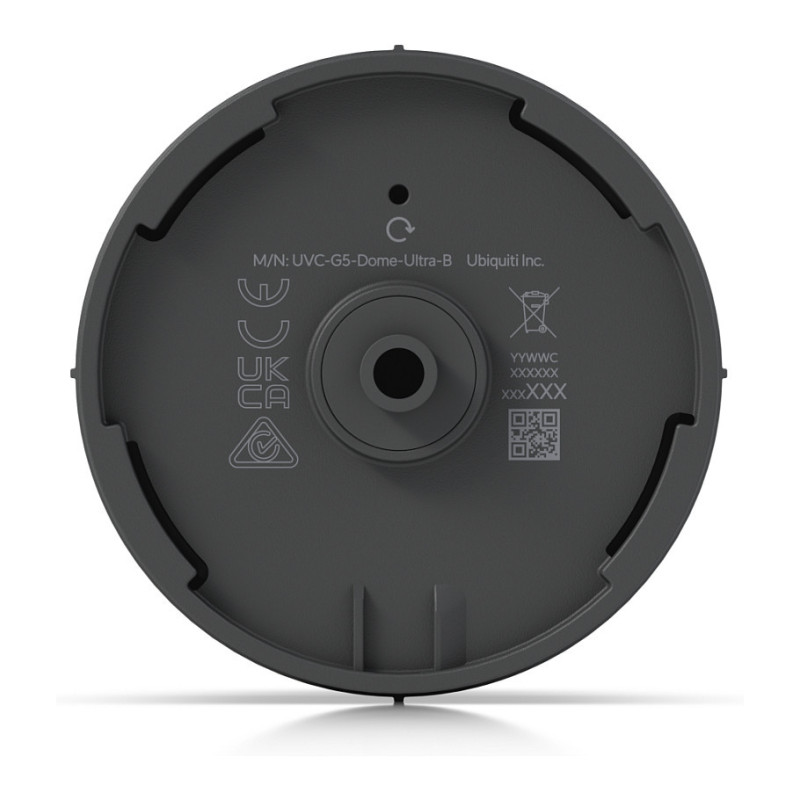

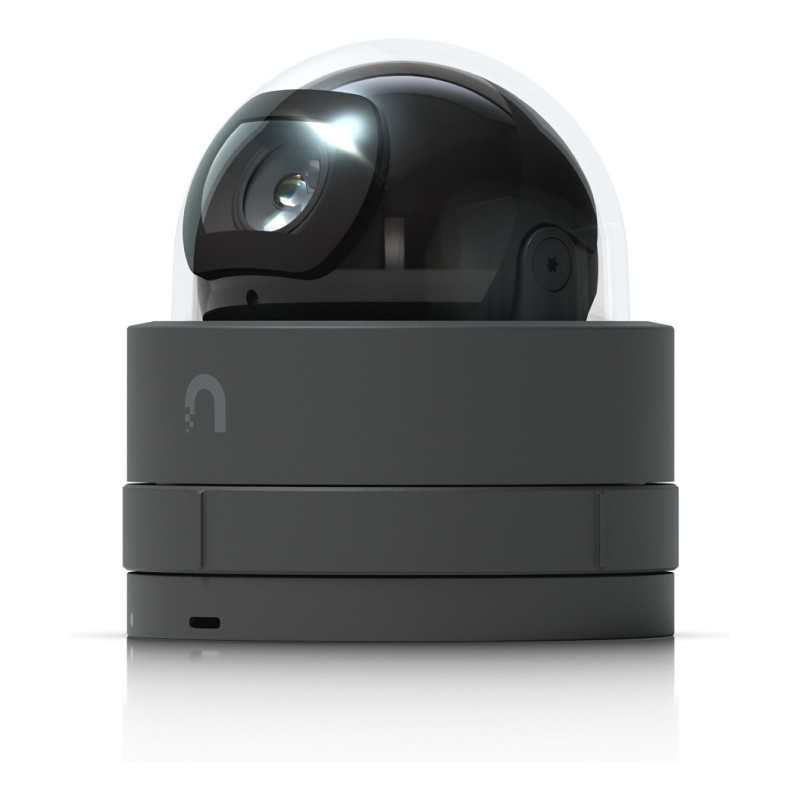

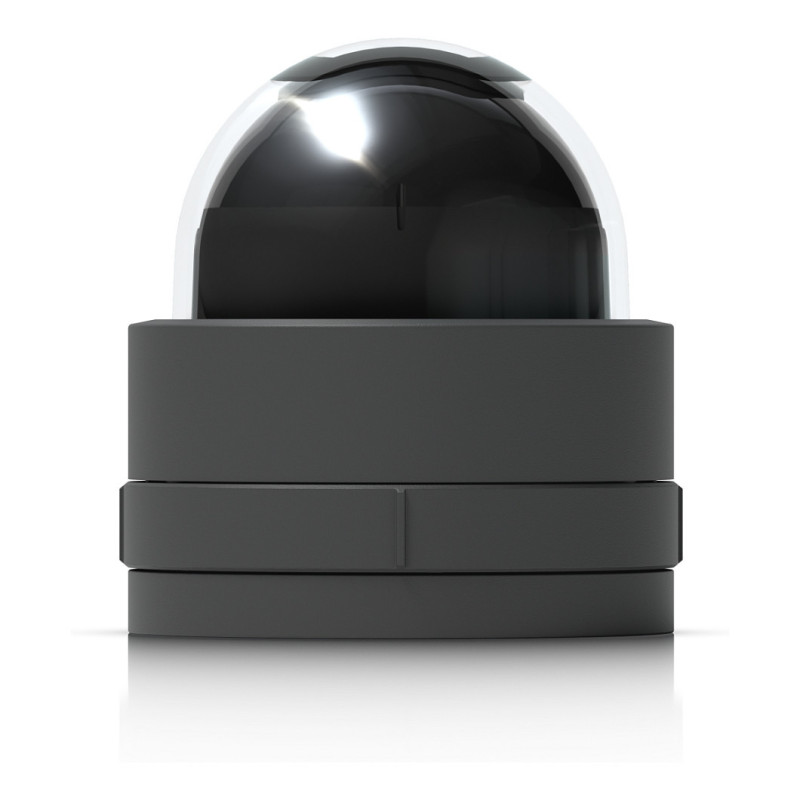

Ubiquiti G5 Dome Ultra

Ubiquiti G5 Dome Ultra. Type: IP security camera, Placement supported: Indoor & outdoor, Connectivity technology: Wired. Mounting type: Ceiling/wall, Product colour: Black, Form factor: Dome. Lens viewing angle, horizontal: 102.4°, Lens viewing angle, vertical: 54.9°, Lens viewing angle, diagonal: 120.6°. Sensor type: CMOS, Optical sensor size: 25.4 / 2.4 mm (1 / 2.4"). Night vision distance: 20 m, LED type: IR

Ultra-compact and tamper-resistant 2K HD PoE camera with night vision designed for low-profile indoor security.

Performance

Type: IP security camera
Placement supported: Indoor & outdoor
Connectivity technology: Wired
Feature: Day/night mode
Feature: Infrared (IR) cut-off filter
Processor model: ARM Cortex-A7
Feature: Built-in processor

Design

Form factor: Dome
Mounting type: Ceiling/wall
Product colour: Black
Housing material: Aluminium, Polycarbonate (PC), Stainless steel
Protection features: Vandal proof
IK code: IK06

Camera

Lens viewing angle, horizontal: 102.4°
Lens viewing angle, vertical: 54.9°
Lens viewing angle, diagonal: 120.6°

Image sensor

Number of sensors: 1
Optical sensor size: 25.4 / 2.4 mm (1 / 2.4")
Sensor type: CMOS

Lens system

Number of lenses: 1

Night vision

Feature: Night vision
Night vision distance: 20 m
LED type: IR

Video

Maximum resolution: 2688 x 1512 pixels
Total megapixels: 4 MP
Video formats supported: H.264
Frame rate: 30 fps
Feature: Noise reduction
Noise reduction technology: 2D noise reduction, 3D noise reduction
Feature: Privacy masking
Feature: Text caption overlay

Network

Feature: Ethernet LAN
Ethernet interface type: Fast Ethernet

Ports & interfaces

Ethernet LAN (RJ-45) ports: 1

Management features

Feature: Reset button

Power

Power source type: PoE
AC input voltage: 37 - 57 V
Power consumption (typical): 4.2 W

Operational conditions

Operating temperature (T-T): -20 - 40 °C
Operating relative humidity (H-H): 10 - 90%

Weight & dimensions

Height: 68.2 mm
Diameter: 6.36 cm
Weight: 175 g

Sustainability

Compliance certificates: CE, Federal Communications Commission (FCC), Industry Canada (IC)

Packaging content

Number of cameras: 1
Cables included: LAN (RJ-45)
Feature: Mounting kit
Feature: Screws included
