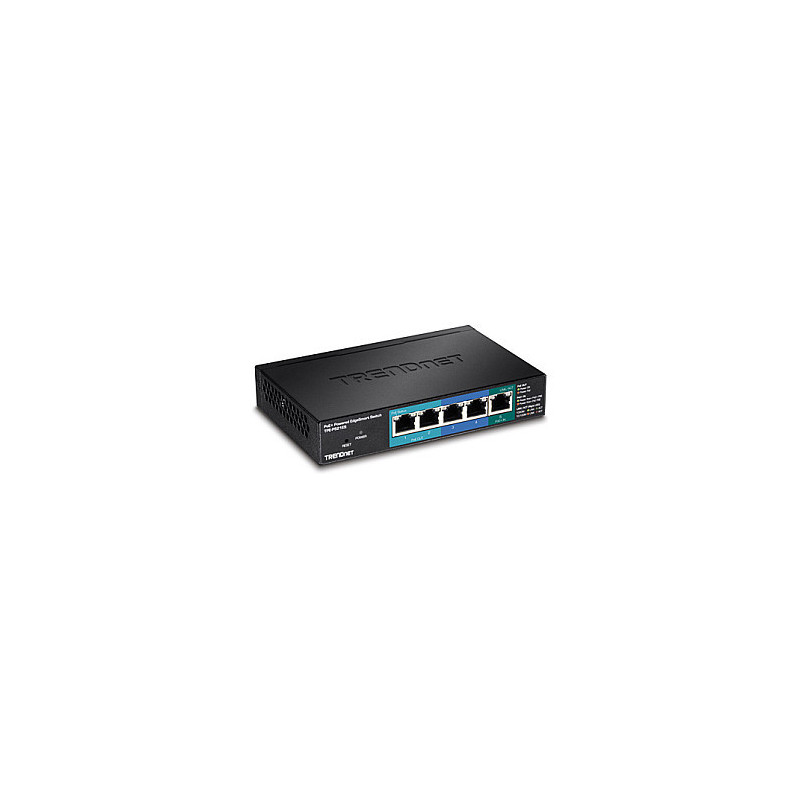

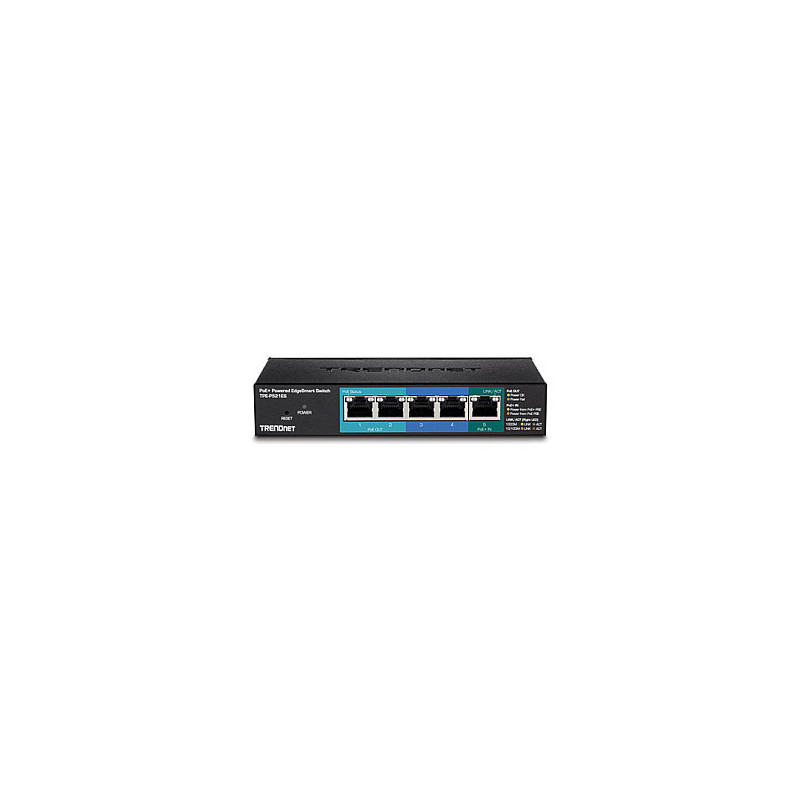

Trendnet TPE-P521ES tinklo jungiklis

Trendnet TPE-P521ES. Switch type: Managed. Basic switching RJ-45 Ethernet ports type: Gigabit Ethernet (10/100/1000), Basic switching RJ-45 Ethernet ports quantity: 5. MAC address table: 2048 entries, Switching capacity: 10 Gbit/s. Networking standards: IEEE 802.1D, IEEE 802.1Q, IEEE 802.1p, IEEE 802.1w, IEEE 802.3, IEEE 802.3ab, IEEE 802.3ad, IEEE.... Power over Ethernet (PoE). Wall mountable

5-Port Gigabit PoE+ Powered EdgeSmart Switch with PoE Pass Through, model TPE-P521ES, is powered by a PoE+ switch or injector, no AC adapter is required. It features two gigabit non-PoE ports, and two gigabit PoE ports to power devices such as IP cameras, VoIP handsets, and wireless access points. Reducing unnecessary switch complexity, this EdgeSmart switch is equipped with only the most commonly used managed switch features. The simple web-based user interface allows you to easily manage VLANs, QoS, and monitoring.

Integration Flexibility
Managed features include access control lists, VLAN, IGMP Snooping, and QoS for flexible network integration.

PoE+ Powered
No AC adapter required—this switch is powered by a PoE+ switch or injector, and features two gigabit non-PoE ports, and two gigabit PoE ports to power devices such as IP cameras.

EdgeSmart Management
Provides an easy to use web-based management interface for reduced switch configuration complexity and offers a combination of more commonly used SMB management features for easy deployment.

Management features

Switch type: Managed
Feature: Quality of Service (QoS) support

Ports & interfaces

Basic switching RJ-45 Ethernet ports quantity: 5
Basic switching RJ-45 Ethernet ports type: Gigabit Ethernet (10/100/1000)

Network

Feature: Port mirroring
Feature: Broadcast storm control
Feature: Spanning tree protocol
Feature: VLAN support
Virtual LAN features: Private VLAN, VLAN Identifier ( VLAN ID), Voice VLAN, Tagged VLAN, Port-based VLAN
Number of VLANs: 4094

Data transmission

Switching capacity: 10 Gbit/s
Forwarding rate: 7.44 Mpps
MAC address table: 2048 entries
Feature: Jumbo frames support
Jumbo frames: 9216

Security

Feature: IGMP snooping
Feature: Loop protection

Multicast features

Feature: Multicast support

Protocols

Management protocols: SNMP v1, v2c

Design

Product colour: Black
Feature: Reset button
LED indicators: Yes
Feature: Wall mountable

Performance

Feature: Firmware upgradeable
Buffer size: 512 KB
Mean time between failures (MTBF): 730455 h

Power

Power consumption (max): 20.4 W
Power protection features: Over current, Short circuit

Power over Ethernet (PoE)

Feature: Power over Ethernet (PoE)
Power over Ethernet (PoE) ports quantity: 2
Power over Ethernet plus (PoE+) ports quantity: 1
Total Power over Ethernet (PoE) budget: 18 W

Operational conditions

Operating temperature (T-T): 0 - 40 °C

Weight & dimensions

Width: 150 mm
Depth: 97 mm
Height: 28.6 mm
Weight: 370 g

Certificates

Certification: CE, FCC

Logistics data

Harmonized System (HS) code: 85176990
