Trendnet TI-PGLC50 tinklo jungiklis

Trendnet TI-PGLC50. Switch type: Unmanaged. Basic switching RJ-45 Ethernet ports type: Gigabit Ethernet (10/100/1000), Basic switching RJ-45 Ethernet ports quantity: 5. Full duplex. MAC address table: 2000 entries, Switching capacity: 10 Gbit/s. Networking standards: IEEE 802.3, IEEE 802.3ab, IEEE 802.3af, IEEE 802.3at, IEEE 802.3u, IEEE 802.3x, IEEE 802.3z. DC input voltage: 48 - 56 V. Power over Ethernet (PoE). Wall mountable

TRENDnet's 5-Port Industrial Gigabit PoE+ DIN-Rail Mini Switch, model TI-PGLC50, is a reliable and rugged networking solution designed for use in both extreme and demanding environments. This Industrial Gigabit DIN-Rail Mini Switch features a rugged IP30 rated metal enclosure, and is designed to withstand a high degree of vibration and shock, while operating in both high and low temperatures for industrial environments within -40° - 75° C (-40° - 167° F). The hardened industrial switch features four copper gigabit PoE+ ports and one copper gigabit port for high-speed device connections. The mini-sized housing is designed to fit into most compact installation areas.

Installers and integrators can save on equipment costs and reduce installation time with TRENDnet's Industrial Gigabit PoE+ Switches by delivering up to 30W per port of PoE power and data over existing Ethernet cables. With PoE technology, users only need one cable to deliver both data and power from the industrial unmanaged PoE+ switch. With these industrial unmanaged PoE+ switches, easily network PoE devices, such as high-power wireless access points, PTZ and other advanced IP cameras, VoIP phone systems, IPTV decoders, access controls, and more.

Management features

Switch type: Unmanaged

Ports & interfaces

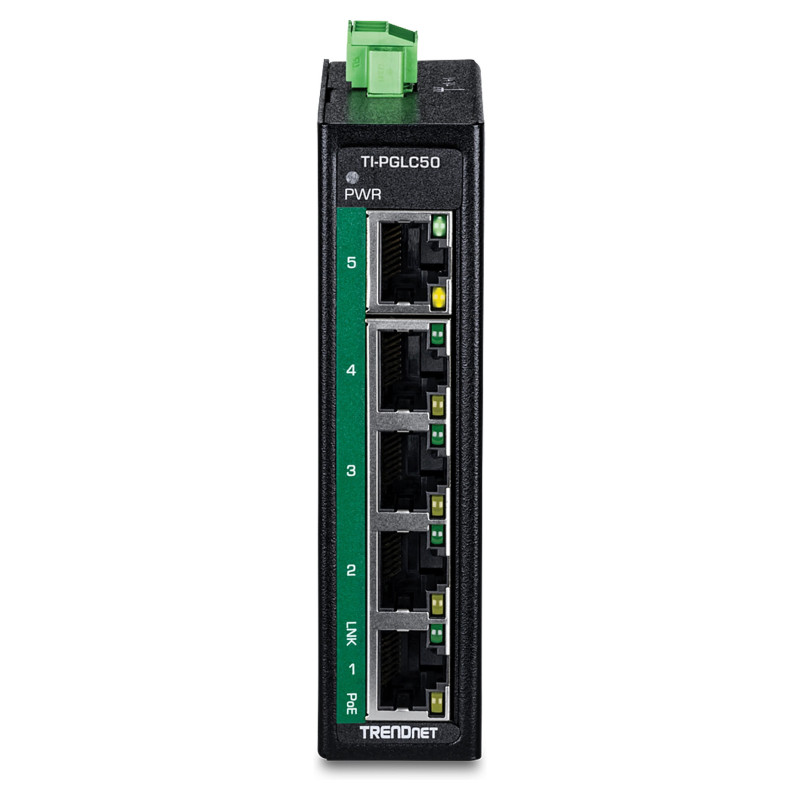

Basic switching RJ-45 Ethernet ports quantity: 5
Basic switching RJ-45 Ethernet ports type: Gigabit Ethernet (10/100/1000)

Network

Networking standards: IEEE 802.3, IEEE 802.3ab, IEEE 802.3af, IEEE 802.3at, IEEE 802.3u, IEEE 802.3x, IEEE 802.3z
Feature: Full duplex
Feature: Half duplex

Data transmission

Switching capacity: 10 Gbit/s
Forwarding rate: 7.44 Mpps
MAC address table: 2000 entries
Feature: Jumbo frames support
Jumbo frames: 9000

Design

Product colour: Black
LED indicators: Yes
International Protection (IP) code: IP30
Feature: Wall mountable

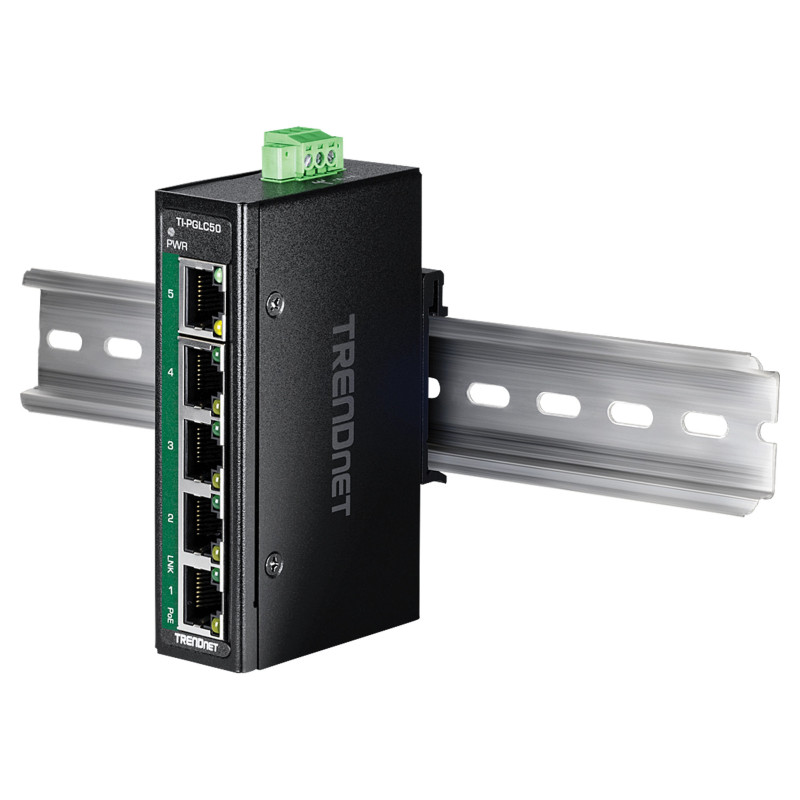

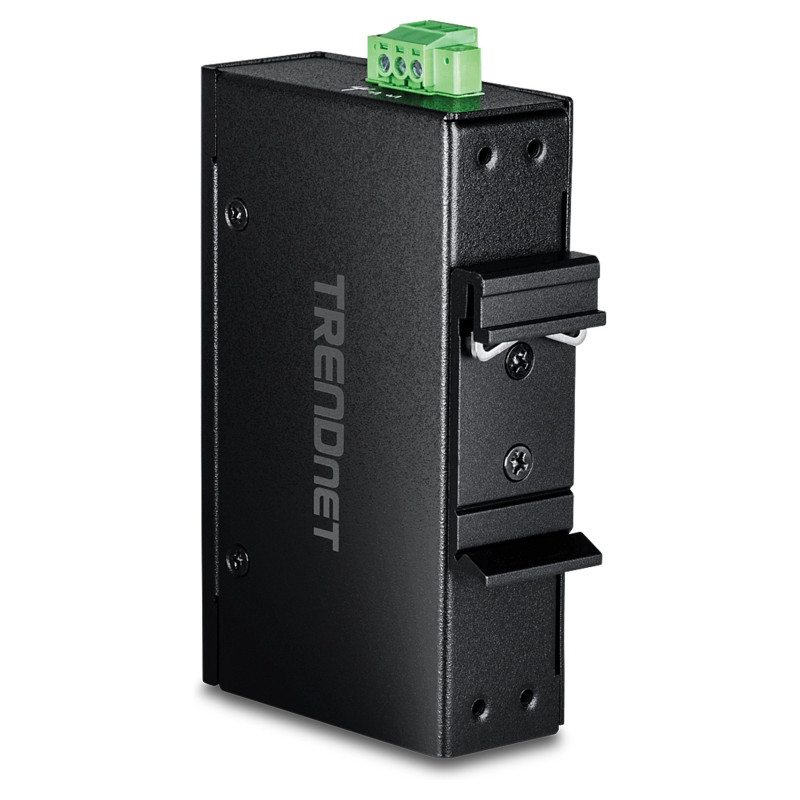

Feature: DIN rail mounting

Performance

Mean time between failures (MTBF): 1342000 h

Power

Power source: DC/PoE

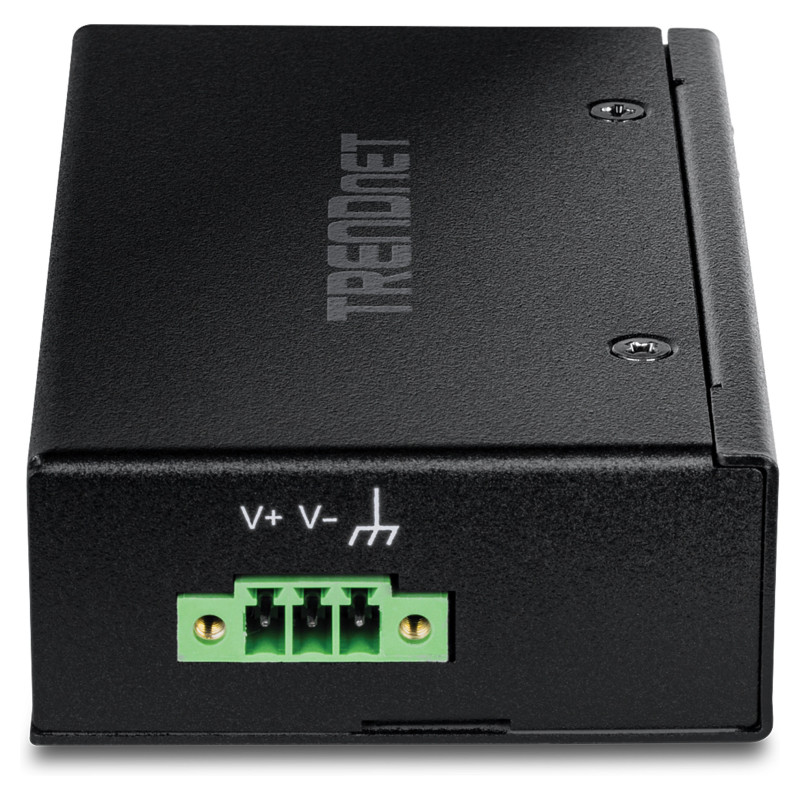

DC input voltage: 48 - 56 V
Power consumption (max): 3.36 W

Power over Ethernet (PoE)

Feature: Power over Ethernet (PoE)
Power over Ethernet plus (PoE+) ports quantity: 4
Power over Ethernet (PoE) power per port: 30 W
Total Power over Ethernet (PoE) budget: 90 W

Operational conditions

Operating temperature (T-T): -40 - 75 °C

Weight & dimensions

Width: 100.5 mm
Depth: 59 mm
Height: 25.5 mm
Weight: 238 g

Packaging content

Feature: Quick start guide

Certificates

Certification: CEFCC
