Trendnet TI-PELC50 tinklo jungiklis

Trendnet TI-PELC50. Switch type: Unmanaged. Basic switching RJ-45 Ethernet ports type: Fast Ethernet (10/100), Basic switching RJ-45 Ethernet ports quantity: 5. Full duplex. MAC address table: 1000 entries, Switching capacity: 1 Gbit/s. Networking standards: IEEE 802.3, IEEE 802.3af, IEEE 802.3at, IEEE 802.3u, IEEE 802.3x. DC input voltage: 48 - 56 V. Power over Ethernet (PoE). Rack mounting

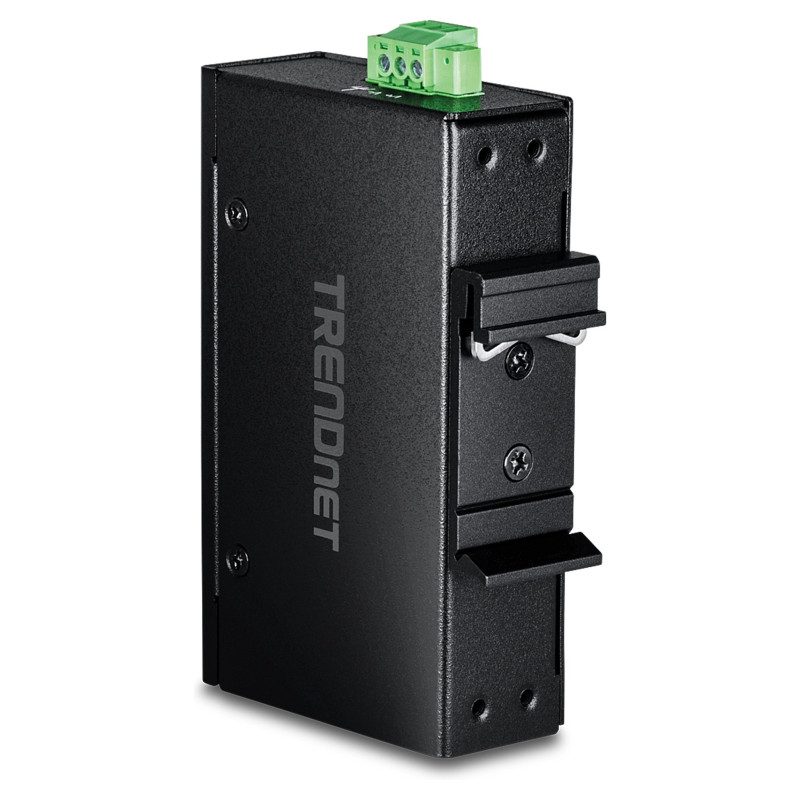

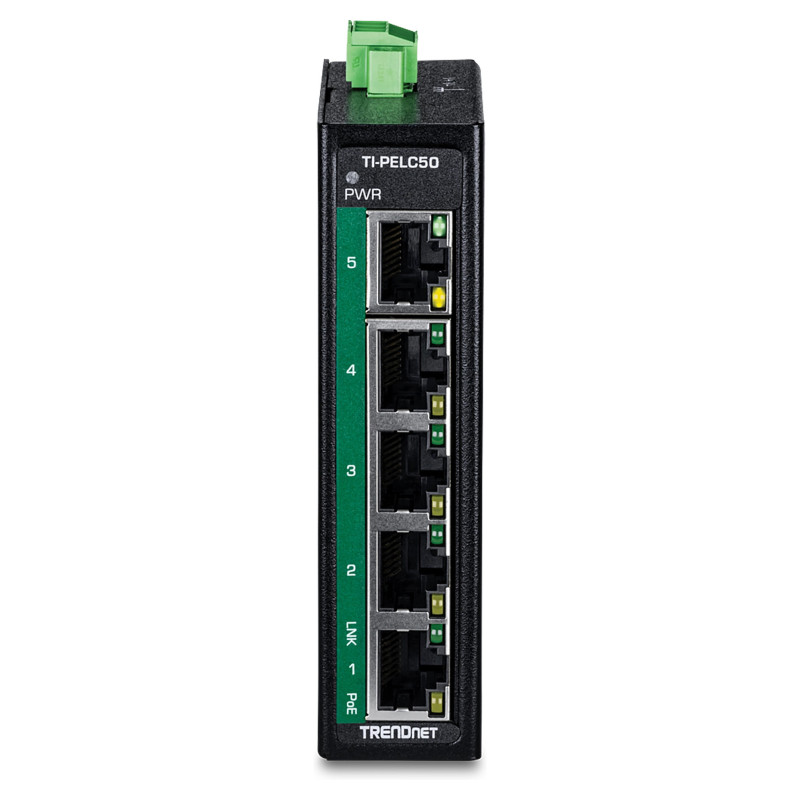

TRENDnet's 5-Port Industrial Fast Ethernet PoE+ DIN-Rail Mini Switch, model TI-PELC50, is a reliable and rugged networking solution designed for use in both extreme and demanding environments. This Industrial Fast Ethernet DIN-Rail Mini Switch features a rugged IP30 rated metal enclosure, and is designed to withstand a high degree of vibration and shock, while operating in both high and low temperatures for industrial environments within -40° - 75° C (-40° - 167° F). The hardened industrial switch features four Fast Ethernet PoE+ ports and one Fast Ethernet port for high-speed device connections. The mini-sized housing is designed to fit into most compact installation areas.
Installers and integrators can save on equipment costs and reduce installation time with TRENDnet's Industrial Fast Ethernet PoE+ Switches by delivering up to 30W per port of PoE+ power and data over existing Ethernet cables. With PoE technology, users only need one cable to deliver both data and power from the industrial unmanaged PoE+ switch. With these industrial unmanaged PoE+ switches, easily network PoE devices, such as high-power wireless access points, PTZ and other advanced IP cameras, VoIP phone systems, IPTV decoders, access controls, and more.

Management features

Switch type: Unmanaged

Ports & interfaces

Basic switching RJ-45 Ethernet ports quantity: 5
Basic switching RJ-45 Ethernet ports type: Fast Ethernet (10/100)
Fast Ethernet (copper) ports quantity: 5

Network

Networking standards: IEEE 802.3, IEEE 802.3af, IEEE 802.3at, IEEE 802.3u, IEEE 802.3x
Feature: Full duplex

Data transmission

Switching capacity: 1 Gbit/s
Forwarding rate: 0.744 Mpps
MAC address table: 1000 entries

Design

Feature: Rack mounting
Product colour: Black
LED indicators: Yes

Performance

Mean time between failures (MTBF): 560321 h

Power

Power source: DC/PoE
DC input voltage: 48 - 56 V

Power over Ethernet (PoE)

Feature: Power over Ethernet (PoE)
Power over Ethernet plus (PoE+) ports quantity: 4
Power over Ethernet (PoE) power per port: 30 W
Total Power over Ethernet (PoE) budget: 90 W

Operational conditions

Operating temperature (T-T): -40 - 70 °C

Weight & dimensions

Width: 60 mm
Depth: 100.5 mm
Height: 25.5 mm
Weight: 226 g

Certificates

Certification: CE, FCC
