Trendnet TI-PE50 tinklo jungiklis

Trendnet TI-PE50. Switch type: Unmanaged. Basic switching RJ-45 Ethernet ports type: Fast Ethernet (10/100), Basic switching RJ-45 Ethernet ports quantity: 5. Full duplex. MAC address table: 1024 entries, Switching capacity: 1 Gbit/s. Networking standards: IEEE 802.3, IEEE 802.3af, IEEE 802.3at, IEEE 802.3u, IEEE 802.3x. DC input voltage: 48 - 56 V. Power over Ethernet (PoE). Wall mountable

TRENDnet's Industrial Fast Ethernet PoE+ DIN-Rail Switches feature a rugged IP30 rated metal enclosure. These industrial unmanaged PoE+ switches are designed to withstand a high degree of vibration and shock, while operating in both high and low temperatures for industrial environments within -40° - 75° C (-40° - 167° F). Redundant power inputs with overload current protection on each industrial unmanaged PoE+ switch minimizes network downtime.

Installers and integrators can save on equipment costs and reduce installation time with TRENDnet's Industrial Fast Ethernet Switches by delivering up to 30W per port of PoE power and data over existing Ethernet cables. With PoE technology, users only need one set of cables to deliver both data and power from the industrial unmanaged PoE+ switch. With these industrial unmanaged PoE+ switches, easily network PoE devices such as high-power wireless access points, PTZ and other advanced IP cameras, VoIP phone systems, IPTV decoders, access controls, and more.

Management features

Switch type: Unmanaged

Ports & interfaces

Basic switching RJ-45 Ethernet ports quantity: 5
Basic switching RJ-45 Ethernet ports type: Fast Ethernet (10/100)
Fast Ethernet (copper) ports quantity: 5

Network

Networking standards: IEEE 802.3, IEEE 802.3af, IEEE 802.3at, IEEE 802.3u, IEEE 802.3x
Copper ethernet cabling technology: 10BASE-T, 100BASE-TX
Feature: Full duplex
Feature: Auto-negotiation
Feature: MAC address auto-learning supported
Feature: MAC address auto-aging supported

Data transmission

Switching capacity: 1 Gbit/s
Forwarding rate: 0.1488 Mpps
MAC address table: 1024 entries
Feature: Store-and-forward

Design

Product colour: Black
Housing material: Metal
LED indicators: Yes
International Protection (IP) code: IP30

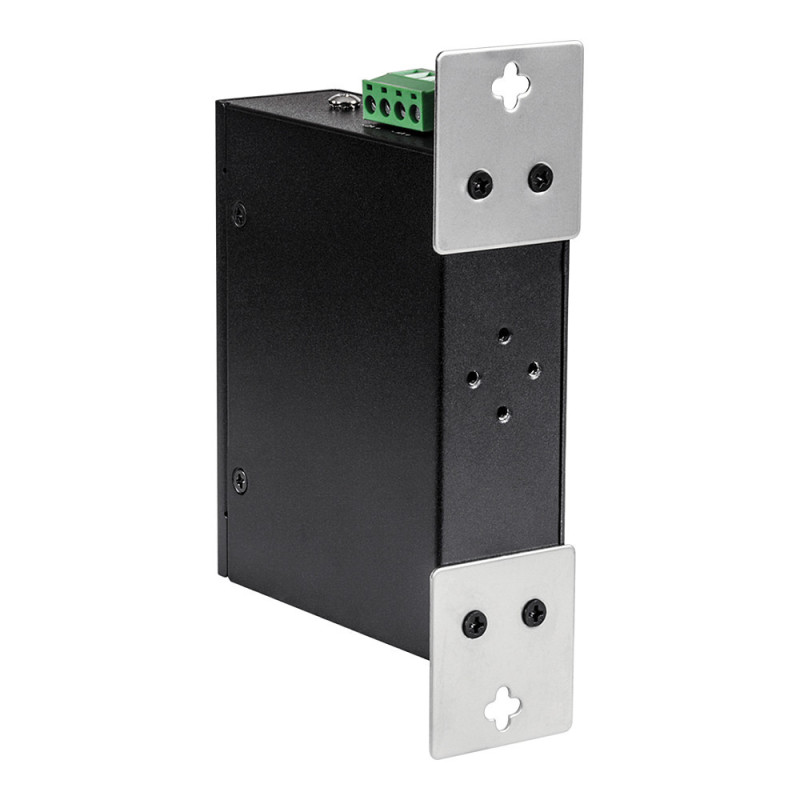

Feature: Wall mountable

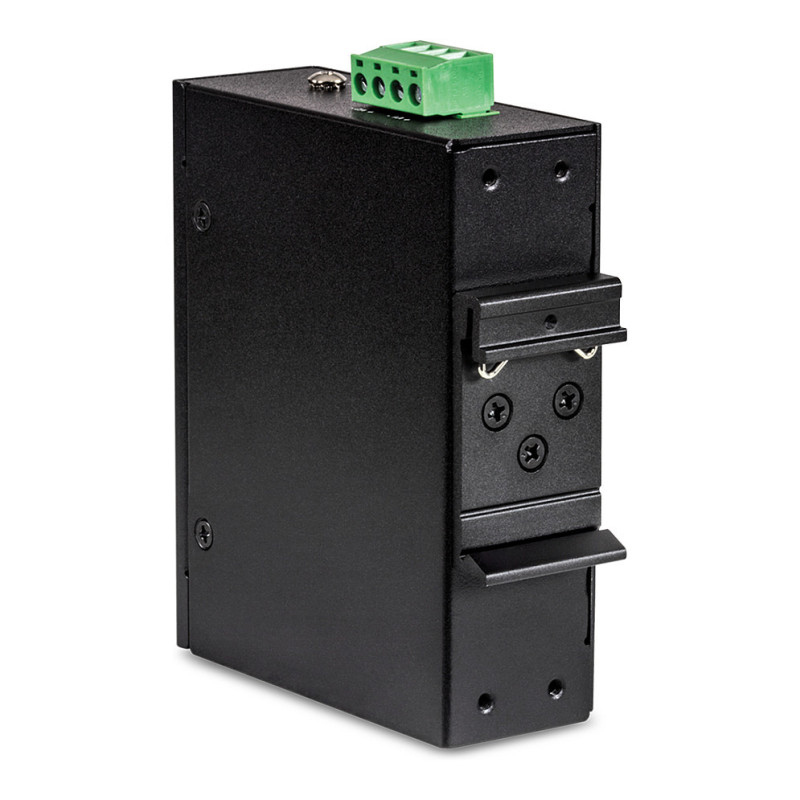

Feature: DIN rail mounting

Performance

Mean time between failures (MTBF): 708903 h

Power

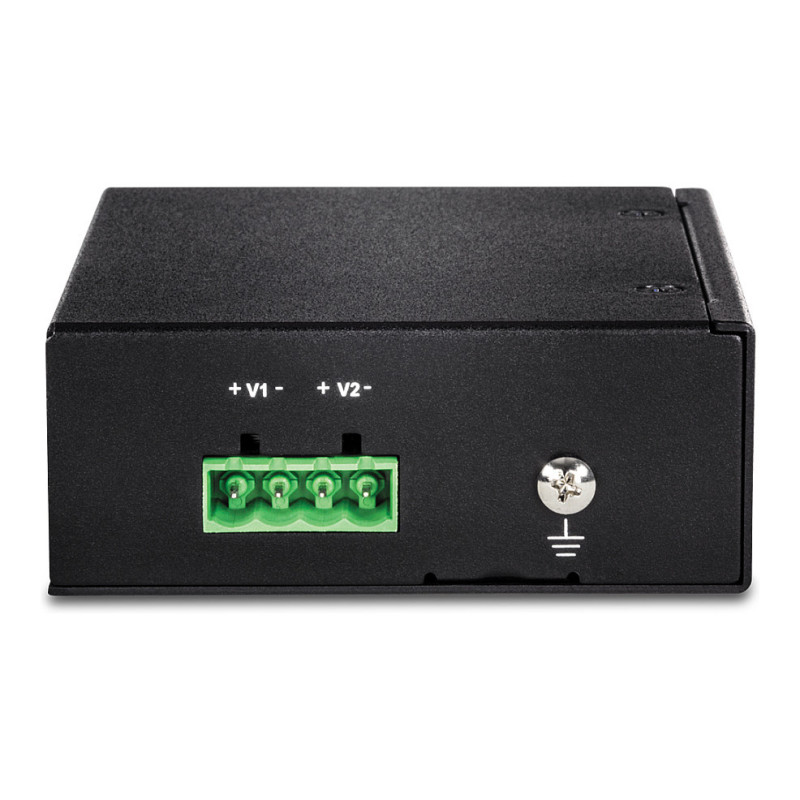

Feature: Redundant power supply (RPS) support
DC input voltage: 48 - 56 V
Power consumption (max): 2.24 W
Power protection features: Overload

Power over Ethernet (PoE)

Feature: Power over Ethernet (PoE)
Power over Ethernet plus (PoE+) ports quantity: 4
Total Power over Ethernet (PoE) budget: 90 W

Operational conditions

Operating temperature (T-T): -40 - 75 °C

Weight & dimensions

Width: 103 mm
Depth: 82 mm
Height: 31 mm
Weight: 160 g

Packaging content

Feature: Quick start guide

Certificates

Certification: CE, FCC

Logistics data

Harmonized System (HS) code: 85176990
