Trendnet TI-G50 tinklo komutatorius

Trendnet TI-G50. Switch type: Unmanaged. Basic switching RJ-45 Ethernet ports type: Gigabit Ethernet (10/100/1000), Basic switching RJ-45 Ethernet ports quantity: 5. Full duplex. MAC address table: 8000 entries, Switching capacity: 10 Gbit/s. Networking standards: IEEE 802.3u, IEEE 802.3x, IEEE 802.3, IEEE 802.3ab

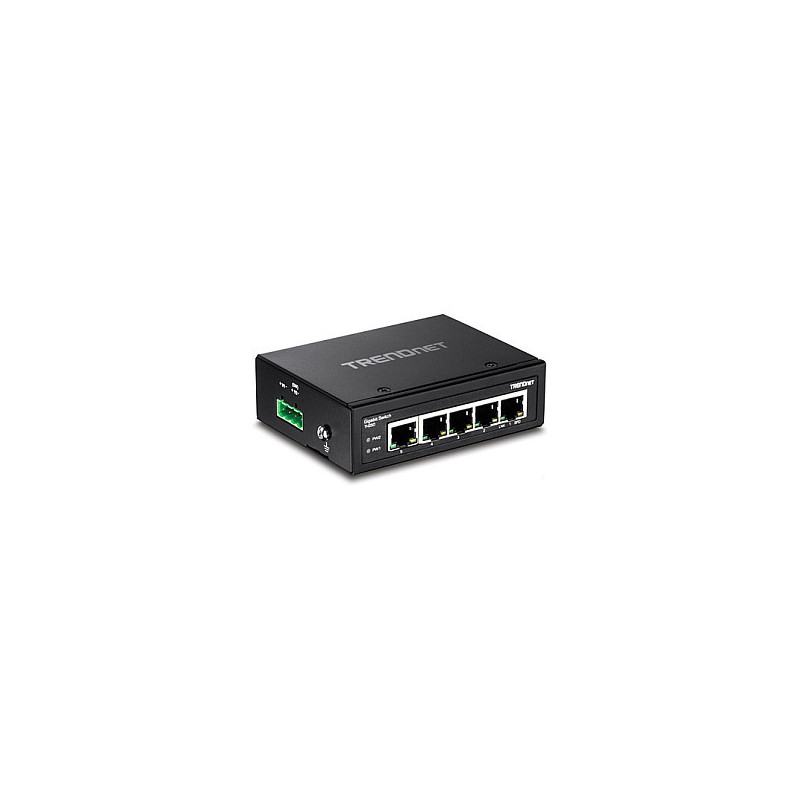

TRENDnet's TI-G50 is a reliable IP30 unmanaged DIN-rail switch with hardened components rated for extreme industrial environments. It offers 5 Gigabit ports and a 10 Gbps switching capacity. Dual redundant power inputs (power adapter sold separately: TI-M6024) with overload current protection support zero downtime applications.

Management features

Switch type: Unmanaged

Ports & interfaces

Basic switching RJ-45 Ethernet ports quantity: 5
Basic switching RJ-45 Ethernet ports type: Gigabit Ethernet (10/100/1000)
Gigabit Ethernet (copper) ports quantity: 5

Network

Networking standards: IEEE 802.3u, IEEE 802.3x, IEEE 802.3, IEEE 802.3ab
Copper ethernet cabling technology: 1000BASE-T, 100BASE-TX, 10BASE-T
Feature: Full duplex
Feature: Flow control support

Data transmission

Switching capacity: 10 Gbit/s
MAC address table: 8000 entries
Feature: Store-and-forward

Design

Housing material: Metal
International Protection (IP) code: IP30

Performance

Buffer size: 1024 KB
Mean time between failures (MTBF): 510304 h

Power

Feature: Redundant power supply (RPS) support
Power consumption (max): 2.76 W

Other features

Power requirements: 12 - 56 VDC / 18 - 36 VAC

Operational conditions

Operating temperature (T-T): -40 - 75 °C

Weight & dimensions

Width: 113 mm
Depth: 82 mm
Height: 31 mm
Weight: 168 g

Packaging content

Feature: User guide

Packaging data

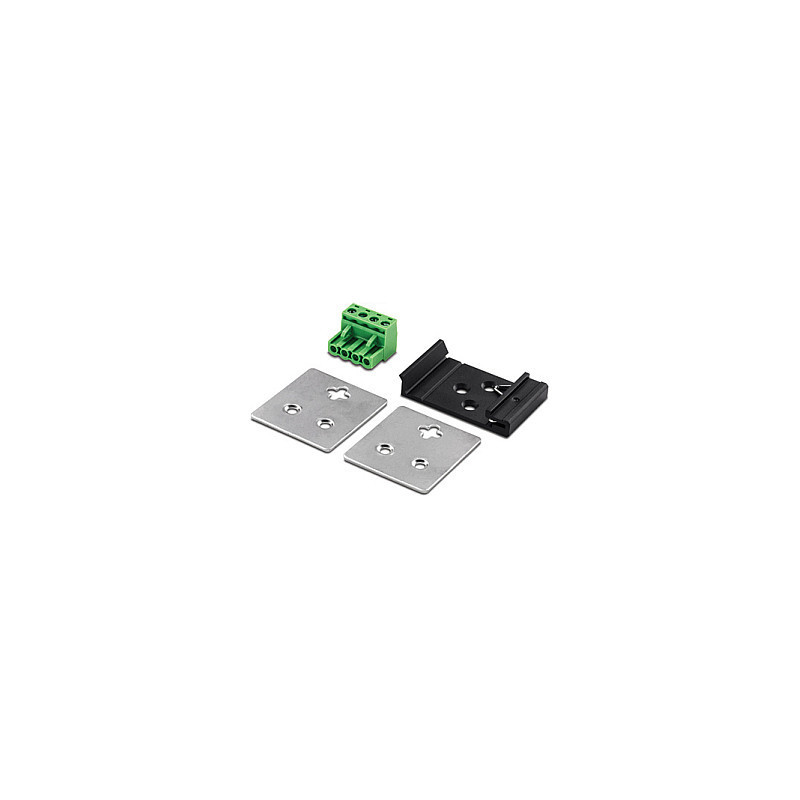

Feature: Wall mounting kit
Feature: Terminal block included

Certificates

Certification: FCCCE

Logistics data

Harmonized System (HS) code: 85176990
