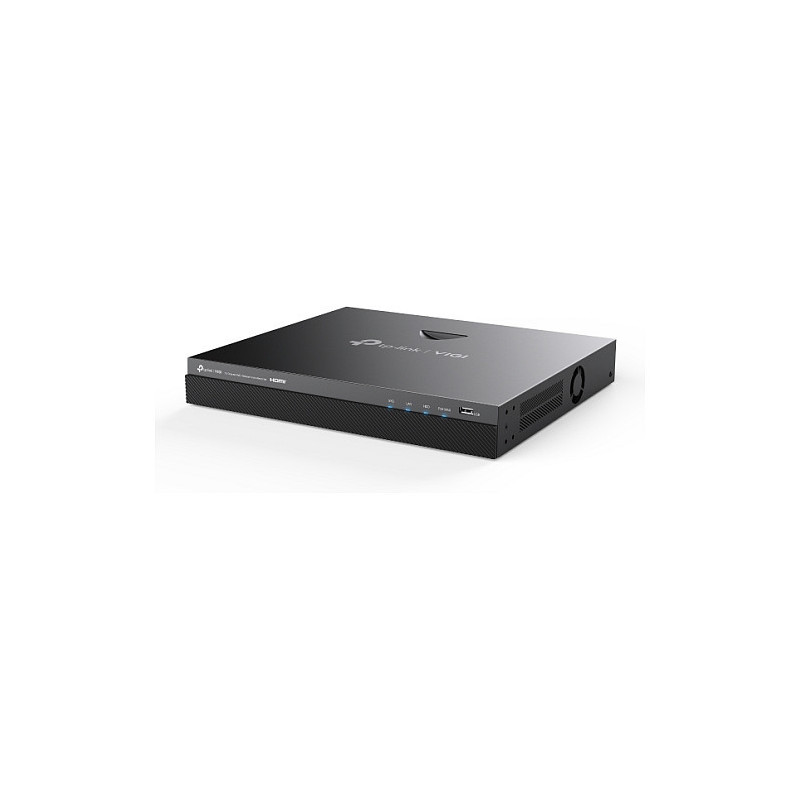

TP-Link VIGI NVR2016H-16MP tinklo vaizdo įrašymo įrenginys

TP-Link VIGI NVR2016H-16MP. Video input channels: 16 channels, Maximum resolution: 3840 x 2160 pixels, Number of simultaneously playbacked channels: 16 channels. Maximum storage capacity: 10 TB, HDD interface: SATA. Ethernet LAN data rates: 10,100,1000 Mbit/s, Networking standards: IEEE 802.3af, IEEE 802.3at, Supported network protocols: UPnP (Plug and Play), NTP (Network Timing). Product colour: Black, Certification: CE, EAC, UKCA, RCM, Triman, BSMI, VCCI, FCC, IC, HDMI. Power consumption (max): 40 W, Output current: 2.43 A, Output voltage: 53.5 V

Performance

Video input channels: 16 channels
Number of simultaneously playbacked channels: 16 channels
Video recording modes: 720p, 1080p
Maximum resolution: 3840 x 2160 pixels
Feature: Video motion detection
Audio formats supported: G.711 A-law, G.711 μ-law, G.726
Video formats supported: H.264, H.264+, H.265, H.265+
Playback modes: Digital zoom, Fast play, Forward, Full screen, Pause, Play, Stop
Feature: Playback controls
Maximum frame rate: 30 fps
Input bandwidth: 80 Mbit/s
Output bandwidth: 60 Mbit/s
Recording modes: Manual, Schedule

Hard drive

HDD capacity: 0 GB
Number of HDDs supported: 2
Maximum storage capacity: 10 TB
HDD interface: SATA

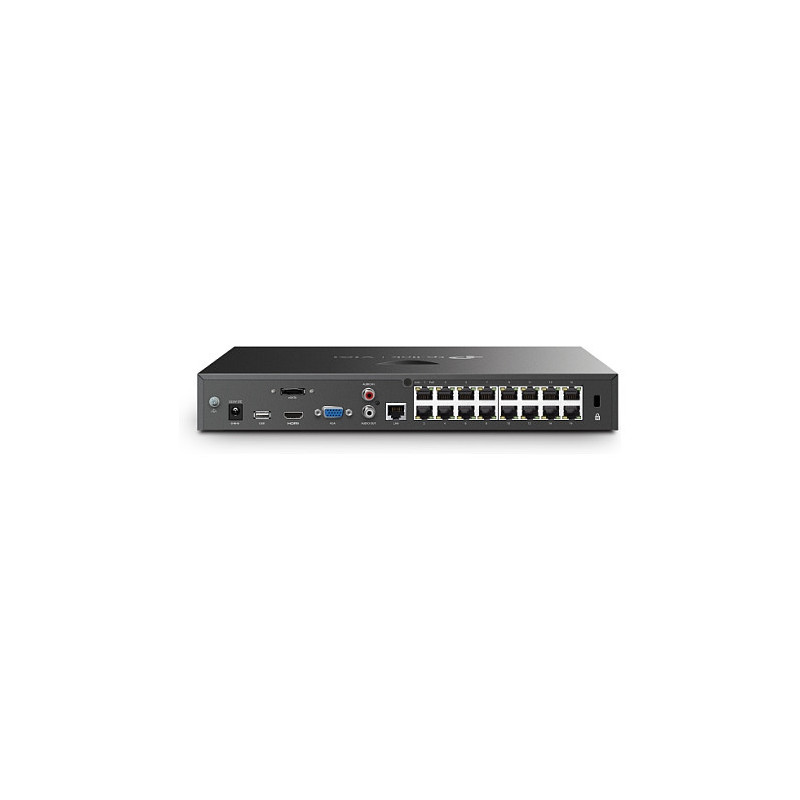

Ports & interfaces

Ethernet LAN (RJ-45) ports: 1
Feature: Power over Ethernet (PoE)
Ethernet LAN data rates: 10,100,1000 Mbit/s
Power over Ethernet (PoE) ports quantity: 16
HDMI ports quantity: 1
VGA (D-Sub) output ports: 1
USB 2.0 ports quantity: 2
eSATA ports quantity: 1
Internal SATA ports quantity: 2
Feature: eSATA
Feature: Line-in
Audio output: 1
Feature: DC-in jack
Networking standards: IEEE 802.3af, IEEE 802.3at
Supported network protocols: UPnP (Plug and Play), NTP (Network Timing)

Features

Feature: Reset button
Product colour: Black
Certification: CE, EAC, UKCA, RCM, Triman, BSMI, VCCI, FCC, IC, HDMI

Power

Power consumption (max): 40 W
Output current: 2.43 A
Output voltage: 53.5 V
Total Power over Ethernet (PoE) budget: 140 W

Operational conditions

Operating temperature (T-T): -10 - 55 °C
Operating relative humidity (H-H): 10 - 90%
Storage temperature (T-T): -40 - 70 °C

Weight & dimensions

Width: 330 mm
Depth: 285 mm
Height: 45 mm
Weight: 2.1 kg
Package weight: 4.1 kg

Packaging content

Cables included: AC
Feature: AC adapter included
Feature: Quick installation guide
