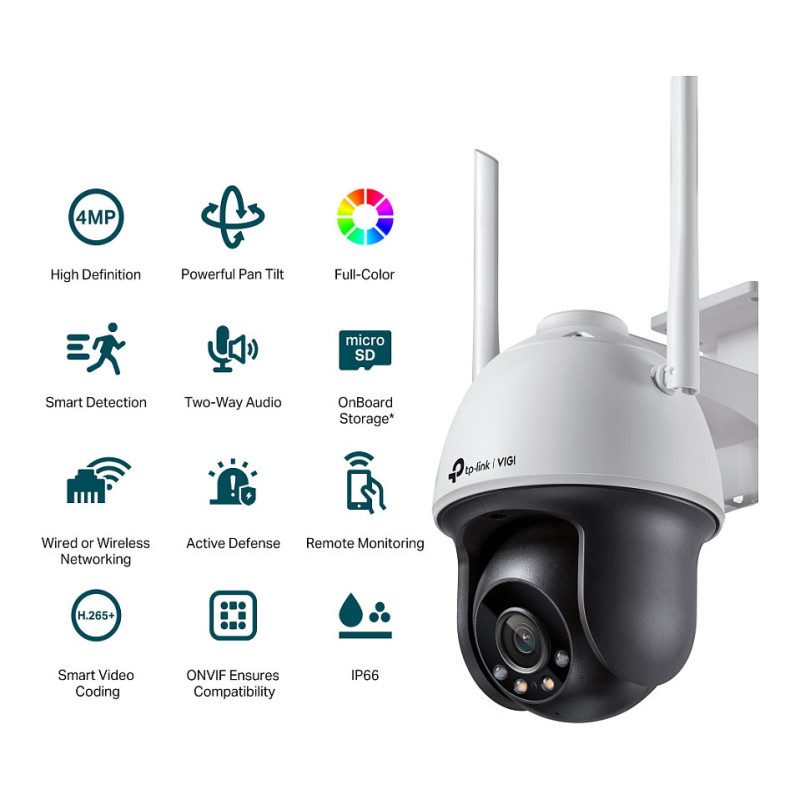

TP-Link VIGI C540-W V1

TP-Link VIGI 4MP Outdoor Full-Color Wi-Fi Pan Tilt Network Camera. Type: IP security camera, Placement supported: Indoor & outdoor, Connectivity technology: Wired & Wireless. Mounting type: Ceiling/wall, Product colour: Black, White, Form factor: Turret. Lens viewing angle, horizontal: 79°, Lens viewing angle, vertical: 43°, Lens viewing angle, diagonal: 93°. Sensor type: CMOS, Optical sensor size: 25.4 / 3 mm (1 / 3"). Detect distance: 80 m, Observe distance: 33 m, Recognize distance: 16 m

Powerful Pan Tilt
Cover every corner flexibly with VIGI's Pan Tilt camera. Customized patrol routes and auto tracking provide more intelligent options to monitor key areas and improve the security within your property.

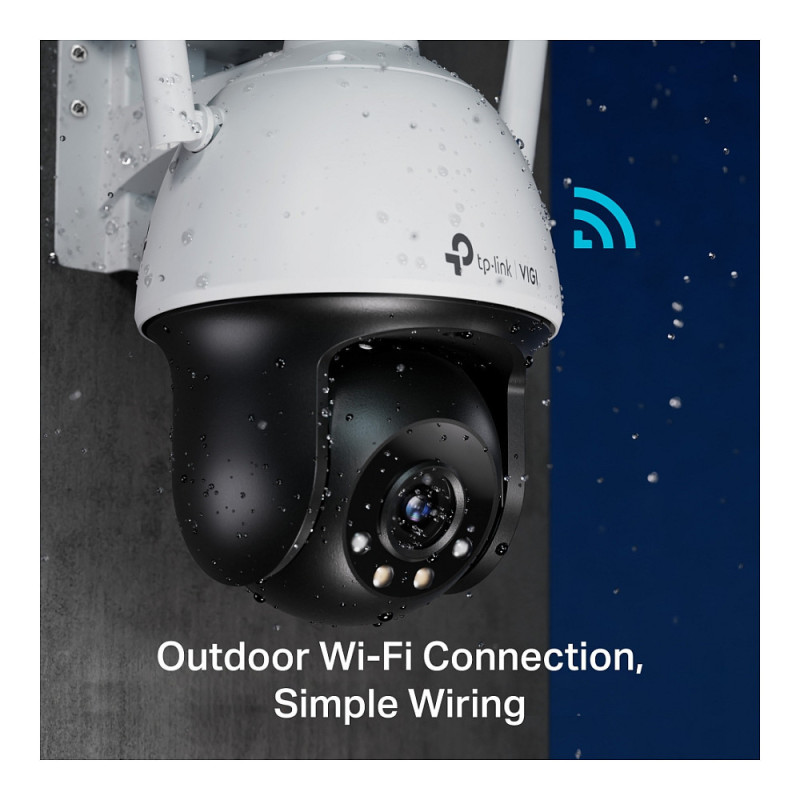

Outdoor Wi-Fi Connection, Simple Wiring
Just power up your camera, then the transmission starts by its 2×2 MIMO antennas. Waterproof hardware protects stable performance in outdoor scenarios.

Clarity and Colors, All in One
Monitor 24-hour clear and colorful details even in pitch dark night. VIGI Full-Color camera provides maximum 4MP resolutions and ensures colorful monitoring with its large-aperture lens, high-sensitivity sensor, and attached supplemental lights.

We keep an eye on your business.
Smart Detection
Receive notifications and check feeds when someone crosses a boundary, enters an area you've set, or obstructs the camera.

Active Defense
Warn potential intruders instantly with sound and light when abnormal events are detected.

Every Event is Under Your Control.
VIGI camera intelligently detects activities, informs you instantly, and responds automatically by smart detection and two-way audio.

Smart IR
Keeps objects from being under-rendered when far away or overexposed when close to the camera at night.

Wide Dynamic Range
Adjusts for lighting contrast to minimize shadowing effects and renders images true to life.

3D DNR
Removes abnormal pixelation to provide clearer video and eliminate distortion.

More compression. More savings. Same quality.
Without using any extra bandwidth, your cameras transmit compressed crystal-clear video to save disk space, ease network loads, and reduce monitoring costs without sacrificing image quality.

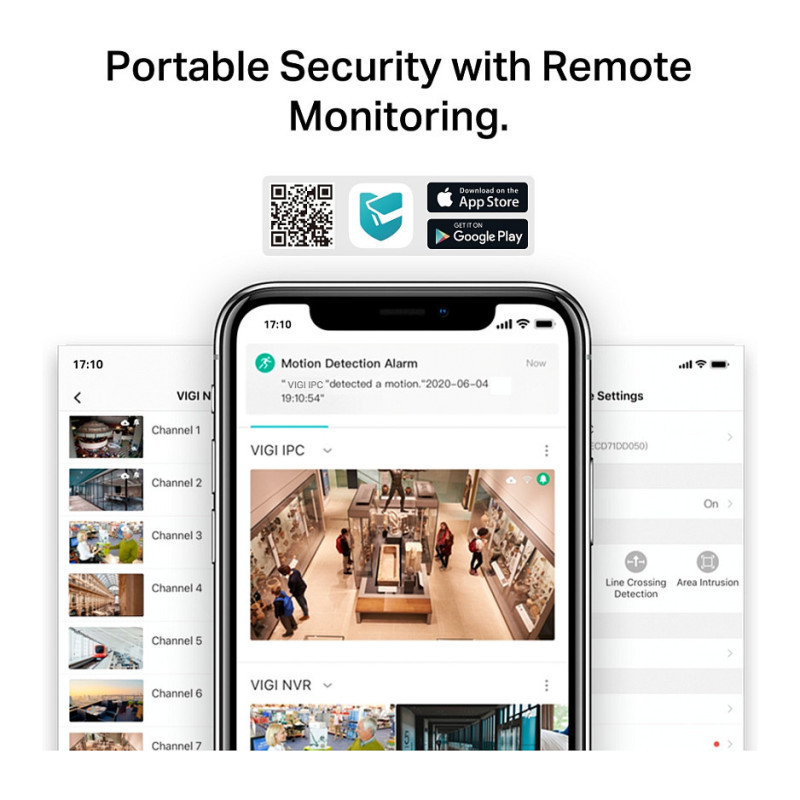

Flexible Management and Storage
Take full control over your security via four management methods: the web UI, NVR UI, VIGI app, and VIGI Security Manger. Local storage is available for each method, as well as on-board storage with an SD card slot (up to 256 GB).

Performance

Type: IP security camera
Placement supported: Indoor & outdoor
Connectivity technology: Wired & Wireless
Certification: RCM, BSMI, VCCI, NCC, JRF, KC

Design

Form factor: Turret
Mounting type: Ceiling/wall
Product colour: Black, White
Housing material: Plastic
International Protection (IP) code: IP66

Camera

Feature: Camera pan control
Feature: Camera tilt control
Lens viewing angle, horizontal: 79°
Lens viewing angle, vertical: 43°
Lens viewing angle, diagonal: 93°
Tilt angle range: 0 - 120°
Tilt speed: 44 °/sec
Pan range: 0 - 350°
Pan speed: 44 °/sec

Image sensor

Optical sensor size: 25.4 / 3 mm (1 / 3")
Feature: Progressive scan
Sensor type: CMOS

Lens system

Feature: Zoom capability
Number of lenses: 1
Detect distance: 80 m
Observe distance: 33 m
Recognize distance: 16 m
Lens diameter: 4 mm
Identify distance: 8 m

Night vision

Feature: Night vision
Night vision distance: 30 m
LED type: IR
Infra-red wavelength: 850 nm

Video

Maximum resolution: 2560 x 1440 pixels
Total megapixels: 4 MP
Video compression formats: H.264, H.264+, H.265, H.265+
Supported graphics resolutions: 320 x 240, 352 x 288, 640 x 480 (VGA), 1920 x 1080 (HD 1080), 2048 x 1280, 2304 x 1296, 2560 x 1440
Frame rate: 30 fps
Feature: Video streaming
Feature: Noise reduction
Noise reduction technology: 3D noise reduction
Image quality adjustment: Brightness, Contrast, Mirror, Saturation, Sharpness
Feature: Privacy masking
Bit rate: 256 Kbps - 4 Mbps
Feature: Digital Wide Dynamic Range (DWDR)

Audio

Feature: Built-in speaker(s)
Feature: Built-in microphone

Network

Feature: Ethernet LAN
Ethernet interface type: Fast Ethernet
Supported network protocols: TCP/IP, UDP, ICMP, HTTP, HTTPS, DHCP, DNS, RTSP, NTP, UPnP UDP, SSL/TLS
Feature: Wi-Fi
Wi-Fi standards: 802.11b, 802.11g, Wi-Fi 4 (802.11n)
Feature: Live view
Number of simultaneous live view channels: 3 channels

Storage

Feature: Card reader integrated
Compatible memory cards: MicroSD (TransFlash)
Maximum memory card size: 256 GB

Ports & interfaces

Ethernet LAN (RJ-45) ports: 1

Security

Feature: Password protection
Feature: IP address filtering
Security algorithms: WPA, WPA2-PSK
Feature: HTTPS encryption
Intelligent Video Surveillance (IVS) system features: Human detection
Feature: Mirror
Feature: Digest authentication

Management features

Feature: Reset button
Behavior analysis: Intrusion detection, Line crossing detection

Power

Power source type: DC
DC output voltage: 12

Operational conditions

Operating temperature (T-T): -30 - 60 °C

Weight & dimensions

Width: 120 mm
Depth: 172 mm
Height: 198 mm

Features

Basic event: Motion Detection, Camera Tampering Detection, Exception

Packaging data

Package width: 163 mm
Package depth: 243 mm
Package height: 243 mm
Package weight: 1.21 kg

Sustainability

Compliance certificates: CE, RoHS

Packaging content

Number of cameras: 1
Feature: Mounting kit
