TP-Link VIGI C450

TP-Link VIGI 5MP Full-Color Turret Network Camera. Type: IP security camera, Placement supported: Indoor, Connectivity technology: Wired. Mounting type: Ceiling, Product colour: Black, White, Form factor: Turret. Minimum illumination: 0.005 lx, Lens viewing angle, horizontal: 90°, Lens viewing angle, vertical: 48°. Sensor type: CMOS, Optical sensor size: 25.4 / 2.7 mm (1 / 2.7"). Detect distance: 80 m, Observe distance: 33 m, Recognize distance: 16 m

All The Colors, All The Time

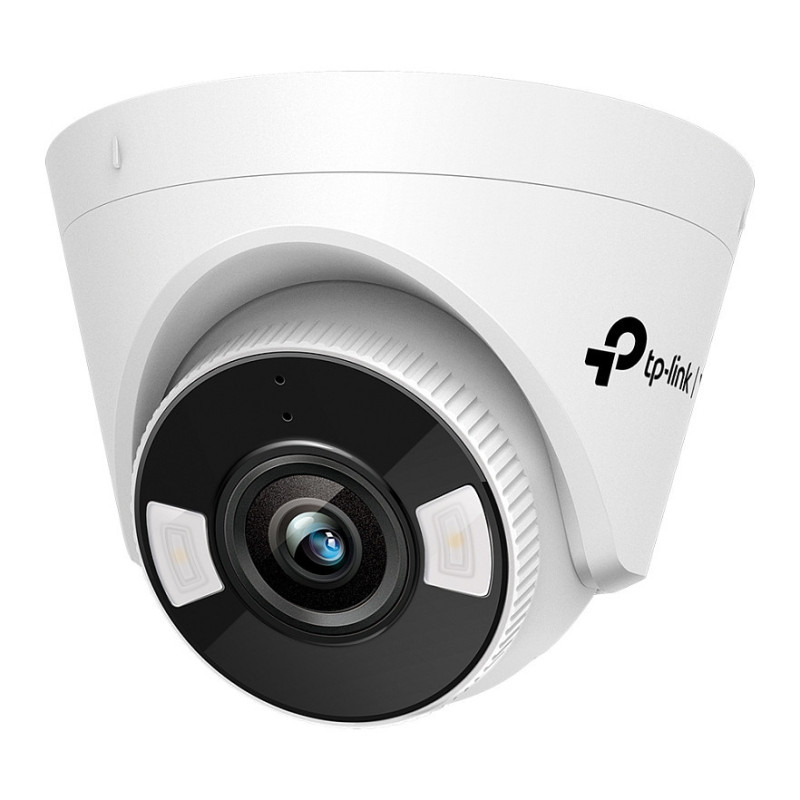

5MP Full-Color Turret Network Camera

24/7 Stunning Visual Experience
5MP Super-High Definition
Monitor 24-hour clear and colorful details even in pitch dark night. VIGI Full-Color camera provides maximum 5MP resolutions and ensures colorful monitoring with its large-aperture lens, high-sensitivity sensor, and attached supplemental lights.

SmartVid-Smart Video Enhancement
VIGI's professional technologies process videos to greatly improve their quality that is vital to your monitoring, including WDR, 3D DNR, Smart IR, and Night Vision.

Human & Vehicle Classification
Integrated AI chips support advanced algorithms to distinguish humans and vehicles from other objects. You can flexibly customize alarm rules to match your monitoring needs and receive more accurate event notifications.

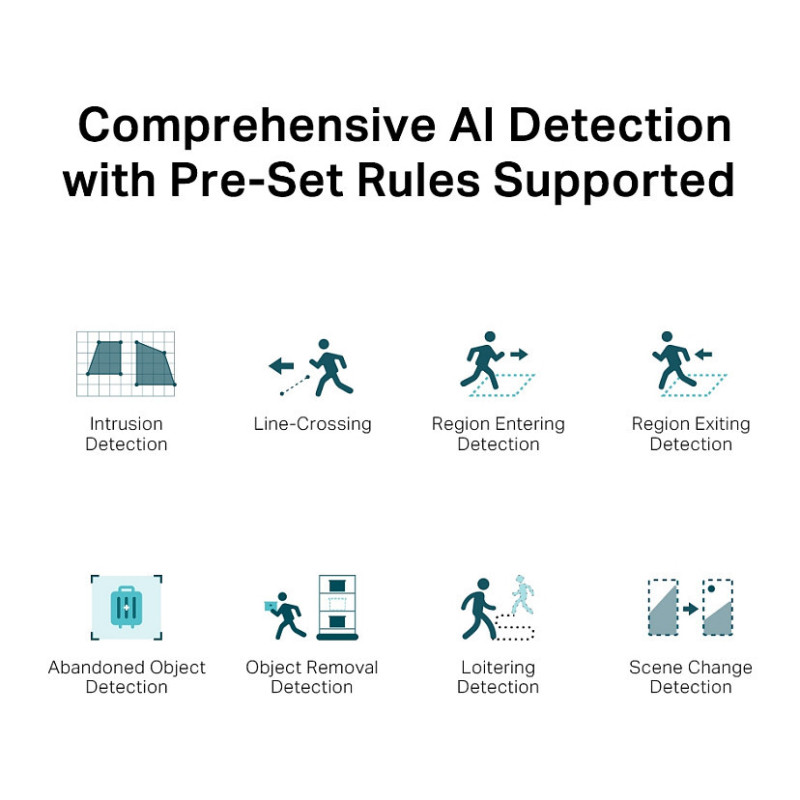

Comprehensive AI Detection with Pre-Set Rules Supported
By setting the detection rules in advance, VIGI AI-powered cameras can accurately capture various abnormal events. This will greatly reduce false alarms and cover your specified monitoring needs in different scenarios.

People & Vehicle Analytics
Quickly find people and vehicles of interest using a series of attributes.

People Analytics
Filter people of interest by various attributes, such as gender, hair length, and clothing, allowing you to improve search efficiency.

Vehicle Analytics
Identify and search for vehicles of interest based on vehicle color and type for targeting meaningful events in a short time

Active Defense
Warn potential intruders instantly with sound and light when abnormal events

Two-Way Audio
With voice intercom support, carry two-way conversations while watching your feed from anywhere.

Corridor Mode
Rotate the live image and lens 90° clockwise simultaneously. This way, your image aspect ratio changes from 16:9 to 9:16, helping you monitor long and narrow areas and providing a more natural viewing experience.

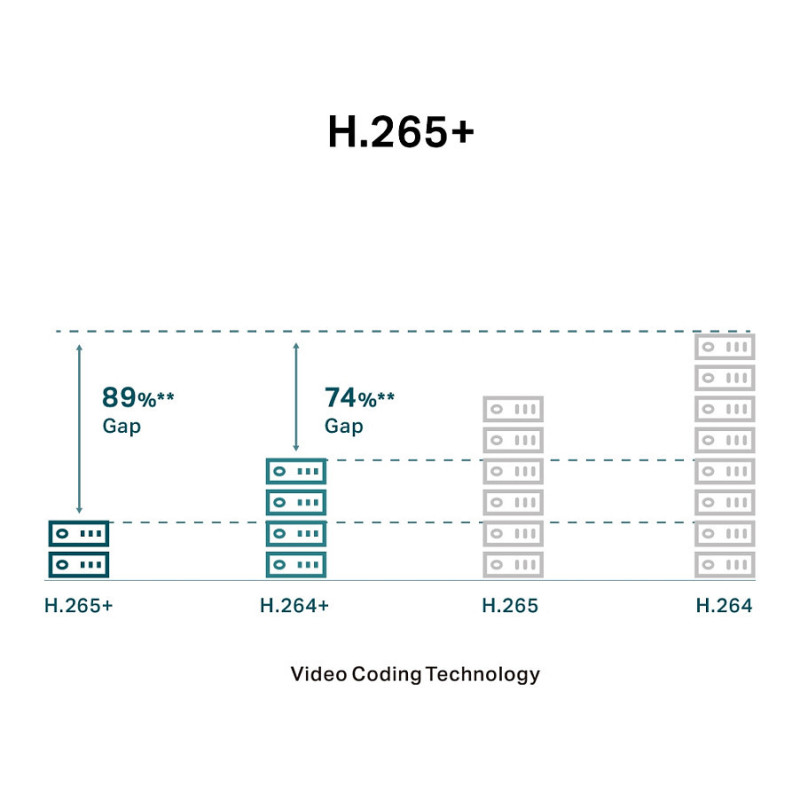

Smart Video Coding by H.265+
Compresses the video size without sacrificing video quality, easing the network load and saving disk space.

Flexible Storage
Local storage is available for each method, as well as onboard storage with an SD card slot (up to 256 GB).

Plug & Play with
One Cable
Enjoy simple wiring with PoE connections. Connect your camera with an RJ45 cable, then your power supply and data transmission are all settled.

One system. Full security.
Run your business with peace of mind.
The VIGI professional surveillance system by TP-Link is dedicated to protecting the business you've worked hard to build — whenever, wherever. Our outstanding functions, reliable quality guarantees, and simplified installation work together to ensure your business stays safe and sound.

Performance

Type: IP security camera
Placement supported: Indoor
Connectivity technology: Wired
Feature: Wide Dynamic Range (WDR)
Feature: Day/night mode
Feature: Infrared (IR) cut-off filter
Feature: Built-in light
Dynamic range: 120 dB
Certification: CE, NTRA, VCCI, KC, BSMI, FCC, IC

Design

Form factor: Turret
Mounting type: Ceiling
Product colour: Black, White
Housing material: Plastic

Camera

Minimum illumination: 0.005 lx
Lens viewing angle, horizontal: 90°
Lens viewing angle, vertical: 48°
Lens viewing angle, diagonal: 107°
Tilt angle range: 0 - 85°
Pan range: 0 - 360°
Camera shutter speed: 1/3 - 1/10000 s
Number of Privacy masking areas: 4

Image sensor

Number of sensors: 1
Optical sensor size: 25.4 / 2.7 mm (1 / 2.7")
Feature: Progressive scan
Sensor type: CMOS

Panoramic camera

Feature: Digital Wide Dynamic Range (DWDR) (panoramic camera)

Lens system

Number of lenses: 1
Detect distance: 80 m
Observe distance: 33 m
Recognize distance: 16 m
Maximum aperture number: 1.6
Identify distance: 8 m
Fixed focal length: 4 mm

Night vision

Feature: Night vision
Night vision distance: 30 m
LED type: IR
Number of illumination LEDs: 2
Infra-red wavelength: 850 nm

Video

Maximum resolution: 2880 x 1620 pixels
Total megapixels: 5 MP
Video formats supported: H.264, H.264+, H.265, H.265+
Supported graphics resolutions: 1280 x 720 (HD 720), 1920 x 1080 (HD 1080), 2048 x 1280, 2304 x 1296, 2688 x 1520, 2880 x 1620
Supported video modes: 720p, 1080p, 2560p, 2880p
Feature: Video recording
Frame rate: 30 fps
Feature: Video streaming
Feature: Noise reduction
Noise reduction technology: 3D noise reduction
Image quality adjustment: Brightness, Contrast, Saturation, Sharpness
Bit rate control: Variable Bit Rate (VBR)
Bit rate: 64 Kbps - 6 Mbps
Feature: Back Light Compensation (BLC)
Feature: Highlight Compensation (HLC)
Feature: Region of Interest (ROI) encoding
Feature: Smart IR

Audio

Feature: Built-in speaker(s)
Audio system: 2-way
Sample rate: 8 kHz
Signal-to-Noise Ratio (SNR): 52 dB
Feature: Built-in microphone
Voice codecs: G.711
Bit rate range: 0 - 64 Kbit/s

Network

Feature: Ethernet LAN
Ethernet interface type: Fast Ethernet
Supported network protocols: TCP/IP, UDP, ICMP, HTTP, HTTPS, DHCP, DNS, RTSP, NTP, UPnP UDP, SSL/TLS
Client interoperability: VIGI App, VIGI Security Manager, Web UI
Feature: Live view
Number of simultaneous live view channels: 6 channels

Storage

Feature: Card reader integrated
Compatible memory cards: MicroSD (TransFlash)
Maximum memory card size: 512 GB

Ports & interfaces

Ethernet LAN (RJ-45) ports: 1
Feature: DC-in jack

Security

Feature: Password protection
Feature: Video motion detection
Feature: Active tampering alarm
Feature: IP address filtering
Feature: HTTPS encryption
Feature: Digest authentication

Management features

Feature: Web browser
Feature: Cloud-managed
Feature: Reset button

Power

Power source type: DC
Power consumption (max): 9 W
Power consumption (Power over Ethernet (PoE)): 10.5 W
DC output voltage: 12

Operational conditions

Operating temperature (T-T): -30 - 60 °C
Storage temperature (T-T): -40 - 60 °C
Operating relative humidity (H-H): 0 - 95%
Storage relative humidity (H-H): 0 - 95%

Weight & dimensions

Height: 84 mm
Diameter: 12.3 cm
Weight: 240 g

Packaging data

Package width: 163 mm
Package depth: 163 mm
Package height: 116 mm
Package weight: 400 g
Package type: Box

Packaging content

Number of cameras: 1
