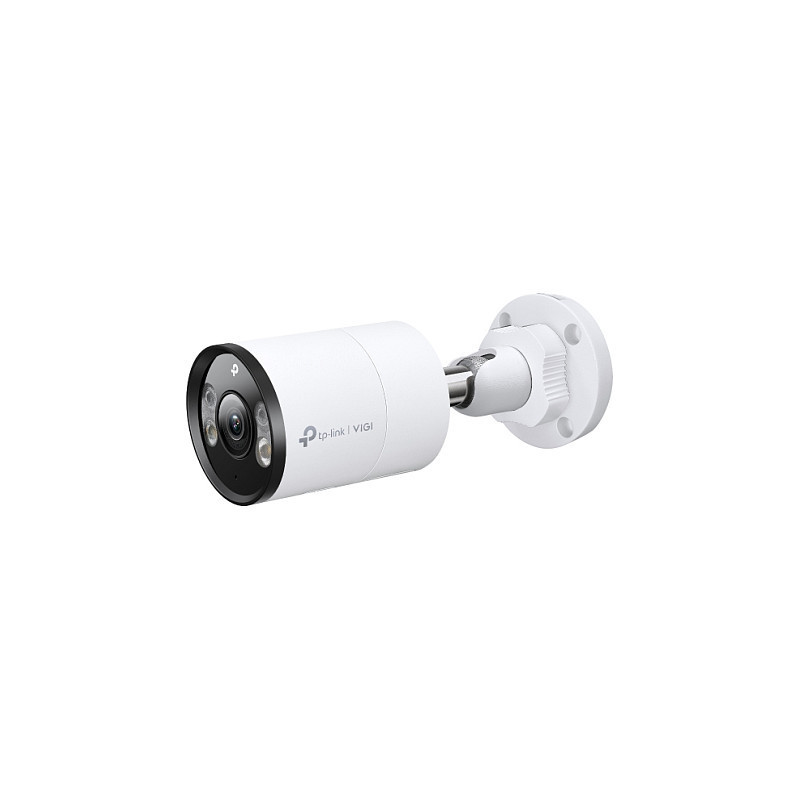

TP-Link VIGI C355

TP-Link VIGI C355. Type: IP security camera, Placement supported: Outdoor, Connectivity technology: Wired. Mounting type: Wall, Product colour: White, Form factor: Bullet. Minimum illumination: 0.0005 lx, Lens viewing angle, horizontal: 88°, Lens viewing angle, vertical: 46°. Sensor type: CMOS, Optical sensor size: 25.4 / 1.2 mm (1 / 1.2"). Detect distance: 80 m, Observe distance: 33 m, Recognize distance: 16 m

People & Vehicle Analytics
Search and filter to people or vehicle of interest based on many different attributes, making post-event search faster and easier.

Human & Vehicle Classification
Distinguish humans and vehicles from other objects and receive more accurate event notifications.

Smart Video Enhancement Technology

- True WDR: By analyzing and blending different exposures, True WDR ensures both bright and dark areas remain properly exposed, delivering a well-balanced and natural-looking image even in environments with high-contrast lighting.△

- Smart IR: Smart IR dynamically adjusts infrared lighting to prevent overexposure and glare, improve visibility at different distances, and ensure clearer footage.
- 3D DNR: 3D DNR is a noise reduction technology that analyzes image data across frames to selectively reduce noise while preserving important details.
- White Balance: White Balance ensures that white appears neutral in an image, regardless of the lighting conditions.

Performance

Type: IP security camera
Placement supported: Outdoor
Connectivity technology: Wired
Feature: Wide Dynamic Range (WDR)
Feature: Day/night mode
Feature: Infrared (IR) cut-off filter
Dynamic range: 120 dB

Design

Form factor: Bullet
Mounting type: Wall
Product colour: White
Housing material: Metal, Plastic
International Protection (IP) code: IP67

Camera

Feature: Camera pan control
Feature: Camera tilt control
Minimum illumination: 0.0005 lx
Lens viewing angle, horizontal: 88°
Lens viewing angle, vertical: 46°
Lens viewing angle, diagonal: 105.4°
Tilt angle range: -90 - 90°
Pan range: 0 - 360°
Camera shutter speed: 1/10000 s
Number of Privacy masking areas: 4

Image sensor

Optical sensor size: 25.4 / 1.2 mm (1 / 1.2")
Sensor type: CMOS

Lens system

Number of lenses: 1
Detect distance: 80 m
Observe distance: 33 m
Recognize distance: 16 m
Lens diameter: 4 mm
Focal length range: 4 mm
Maximum aperture number: 1.6
Identify distance: 8 m
Minimum aperture number: 1.6
Fixed focal length: 4 mm

Night vision

Feature: Night vision
Night vision distance: 30 m
LED type: IR/White
Number of illumination LEDs: 4
Infra-red wavelength: 850 nm

Video

Maximum resolution: 2880 x 1620 pixels
Total megapixels: 5 MP
Video compression formats: H.264, H.264+, H.265, H.265+
Supported graphics resolutions: 1280 x 720 (HD 720), 1920 x 1080 (HD 1080), 2048 x 1280, 2304 x 1296, 2688 x 1520, 2880 x 1620
Frame rate: 60 fps
Feature: Noise reduction
Noise reduction technology: 3D noise reduction
Bit rate control: Constant Bit Rate (CBR), Constant Bit Rate (CBR)/Variable Bit Rate (VBR)
Bit rate: 6 Mbps
Feature: Region of Interest (ROI) encoding
Feature: Smart IR

Audio

Feature: Built-in speaker(s)
Sample rate: 8 kHz
Signal-to-Noise Ratio (SNR): 52 dB
Feature: Built-in microphone
Bit rate range: 256 - 6000 Kbit/s

Network

Feature: Ethernet LAN
Ethernet interface type: Fast Ethernet
Supported network protocols: TCP/IP, UDP, ICMP, HTTP, HTTPS, DHCP, DNS, RTSP, NTP, UPnP UDP, SSL/TLS

Ports & interfaces

Ethernet LAN (RJ-45) ports: 1
Feature: DC-in jack

Security

Feature: Password protection
Feature: IP address filtering
Feature: Privacy protection
Feature: Digest authentication

Power

Power source type: DC, PoE
Power consumption (max): 10.1 W

Operational conditions

Operating temperature (T-T): -30 - 60 °C
Storage temperature (T-T): -40 - 60 °C
Operating relative humidity (H-H): 0 - 95%
Storage relative humidity (H-H): 0 - 95%

Weight & dimensions

Width: 184 mm
Depth: 74 mm
Height: 74 mm
Weight: 525 g

Packaging content

Number of cameras: 1
