TP-Link VIGI C340

TP-Link VIGI 4MP Outdoor Full-Color Bullet Network Camera. Type: IP security camera, Placement supported: Outdoor, Connectivity technology: Wired. Mounting type: Ceiling/Wall/Pole, Product colour: Black, White, Form factor: Bullet. Minimum illumination: 0.005 lx, Lens viewing angle, horizontal: 102°, Lens viewing angle, vertical: 55°. Sensor type: CMOS, Optical sensor size: 25.4 / 3 mm (1 / 3"). Detect distance: 64 m, Observe distance: 27 m, Recognize distance: 13 m

All The Colors,
All The Time

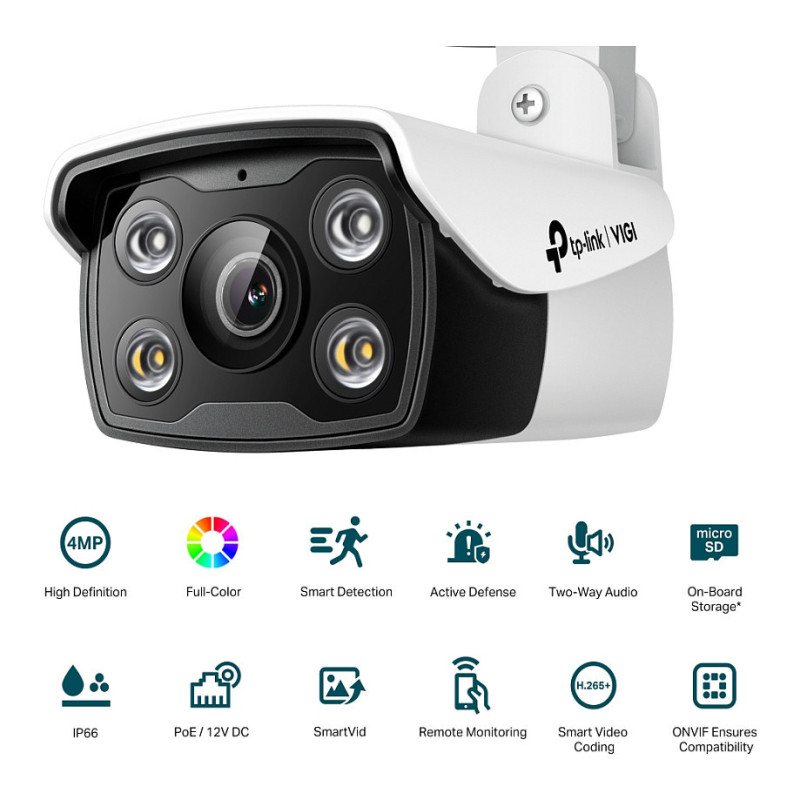

4MP Outdoor Full-Color Bullet Camera

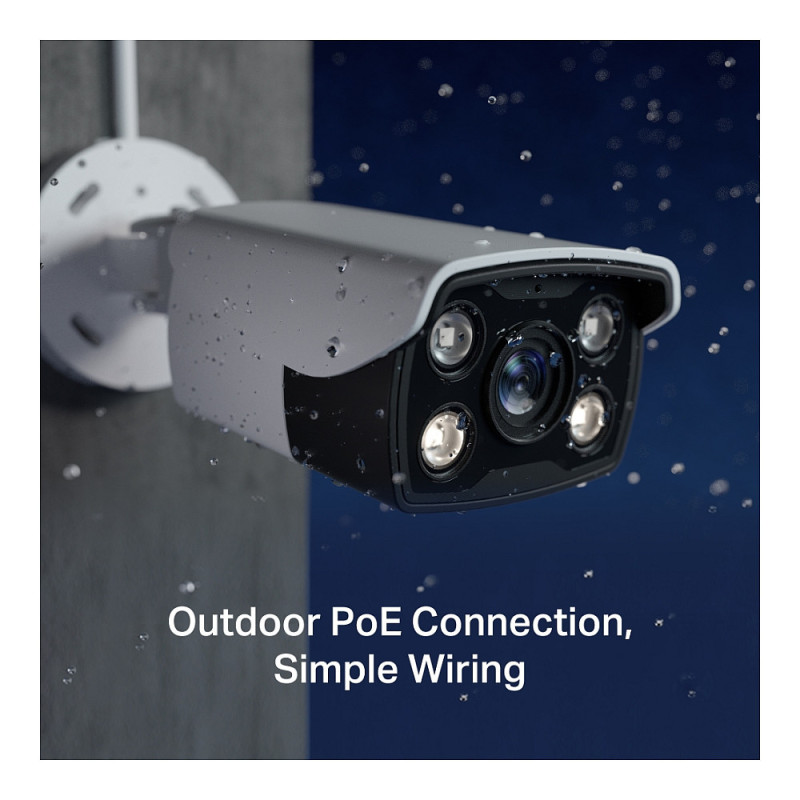

Outdoor PoE Connection, Simple Wiring
Just connect your camera via an RJ45 cable, then power supply and data transmission are all settled. Waterproof hardware protect stable performance in outdoor scenarios.

Clarity and Colors, All in One
Monitor 24-hour clear and colorful details even in pitch dark night. VIGI's Full-Color camera provides maximum 4MP resolutions and ensures colorful monitoring with its large-aperture lens, high-sensitivity sensor, and attached supplemental lights.

We keep an eye on your business.
Smart Detection
Receive notifications and check feeds when someone crosses a boundary, enters an area you've set, or obstructs the camera.

Motion Detection
Get instant notifications when your camera detects motion.

Area Intrusion
Set customized activity zones around key areas for more focused monitoring.

Line-Crossing
Set a boundary and receive an alert anytime a person crosses it from either or both directions.

Camera Tampering
Receive alerts when someone obstructs the camera.

Active Defense
Warn potential intruders instantly with sound and light when abnormal events

Every Event is Under Your Control.
VIGI camera intelligently detect activities, inform you instantly and response automatically by smart detection and two-way audio.

Never miss a detail.
SmartVid-Smart Video Enhancement

Smart IR
Keeps objects from being under-rendered when far away or overexposed when close to camera at night.

Wide Dynamic Range
Adjusts for lighting contrast to minimize shadowing effects and renders images true to life.

3D DNR
Removes abnormal pixelation to provide clearer video and eliminate distortion.

More compression. More savings. Same quality.
Without using any extra bandwidth, your cameras transmit compressed crystal-clear video to save disk space, ease network loads, and reduce monitoring costs without sacrificing image quality.

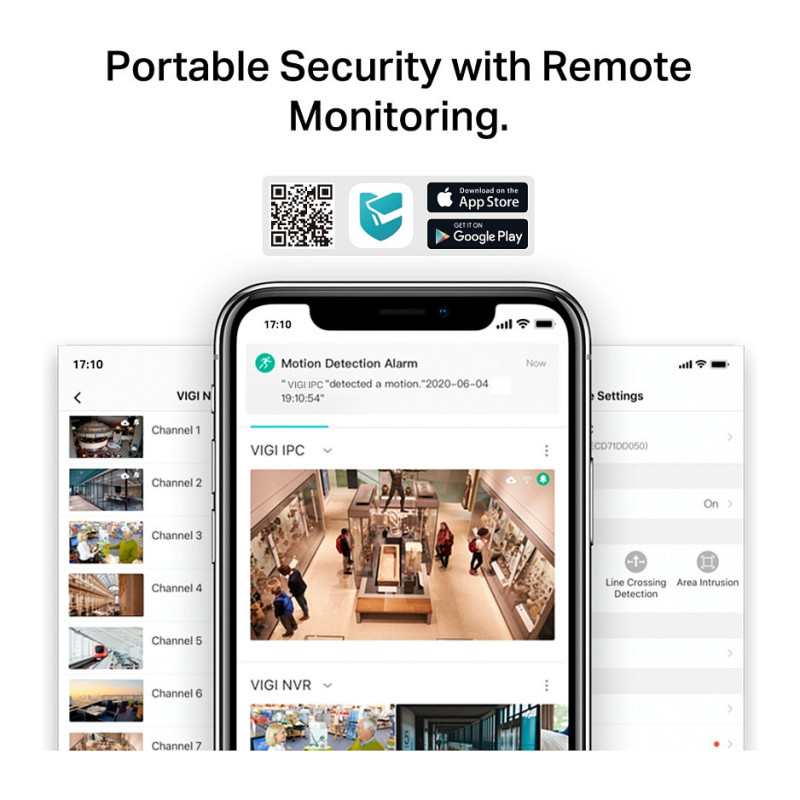

Flexible Management and Storage
Take full control over your security via four management methods: the web UI, NVR UI, VIGI app, and VIGI Security Manger. Local storage is available for each method, as well as on-board storage with SD card slot (up to 256 GB).

Discover the best way to power your camera.
PoE/12V DC
Two power supply ways not only give you more convenience but also make your wiring remarkably easy.

Flexible Installation
Find the perfect vantage point by simply securing your camera to ceiling, pole or wall.

One system. Full security.
Run your business with peace of mind.
The VIGI professional surveillance system by TP-Link is dedicated to protecting the business you've worked hard to build — whenever, wherever. Our outstanding functions, reliable quality guarantees, and simplified installation work together to ensure your business stays safe and sound.

Performance

Type: IP security camera
Placement supported: Outdoor
Connectivity technology: Wired
Feature: Day/night mode

Design

Form factor: Bullet
Mounting type: Ceiling/Wall/Pole
Product colour: Black, White
LED indicators: Yes
Housing material: Plastic
International Protection (IP) code: IP66

Camera

Minimum illumination: 0.005 lx
Lens viewing angle, horizontal: 102°
Lens viewing angle, vertical: 55°
Lens viewing angle, diagonal: 122°
Tilt angle range: -90 - 90°
Pan range: -90 - 90°
Camera shutter speed: 1/3 - 1/10000 s
Number of Privacy masking areas: 4

Image sensor

Number of sensors: 1
Optical sensor size: 25.4 / 3 mm (1 / 3")
Feature: Progressive scan
Sensor type: CMOS

Lens system

Number of lenses: 1
Detect distance: 64 m
Observe distance: 27 m
Recognize distance: 13 m
Maximum aperture number: 1.6
Identify distance: 6 m
Fixed focal length: 2.8 mm

Night vision

Feature: Night vision
Night vision distance: 30 m
LED type: IR
Number of illumination LEDs: 2
Infra-red wavelength: 850 nm

Video

Maximum resolution: 2560 x 1440 pixels
Total megapixels: 4 MP
Video formats supported: H.264, H.264+, H.265, H.265+
Video compression formats: H.264, H.264+, H.265, H.265+
Supported graphics resolutions: 1280 x 720 (HD 720), 1920 x 1080 (HD 1080), 2048 x 1280, 2304 x 1296, 2560 x 1440
Frame rate: 30 fps
Image quality adjustment: Brightness, Contrast, Mirror, Saturation
Feature: Privacy masking
Bit rate control: Constant Bit Rate (CBR)/Variable Bit Rate (VBR)
Bit rate: 256 Kbps - 4 Mbps
Feature: Back Light Compensation (BLC)
Feature: Highlight Compensation (HLC)
Feature: Digital Wide Dynamic Range (DWDR)
Feature: Region of Interest (ROI) encoding
Feature: Smart IR
Feature: 3D positioning

Audio

Feature: Built-in speaker(s)
Audio system: 2-way
Audio input channels: 1.0 channels
Audio output channels: 1.0 channels
Sample rate: 8 kHz
Signal-to-Noise Ratio (SNR): 52 dB
Feature: Built-in microphone
Bit rate range: 0 - 64 Kbit/s

Network

Feature: Ethernet LAN
Ethernet interface type: Fast Ethernet
Networking standards: IEEE 802.3af, IEEE 802.3at
Supported network protocols: TCP/IP, UDP, ICMP, HTTP, HTTPS, DHCP, DNS, RTSP, NTP, UPnP UDP, SSL/TLS
Feature: Live view
Number of simultaneous live view channels: 3 channels

Storage

Feature: Card reader integrated
Compatible memory cards: MicroSD (TransFlash)
Maximum memory card size: 256 GB

Ports & interfaces

Ethernet LAN (RJ-45) ports: 1
Feature: DC-in jack

Security

Feature: Password protection
Feature: Video motion detection
Feature: IP address filtering
Feature: HTTPS encryption
Feature: Automatic Network Replenishment (ANR)
Feature: Network access storage (NAS)

Management features

Feature: Web browser
Feature: Reset button

Power

Power source type: DC, PoE
Power consumption (typical): 3.4 W
Power consumption (max): 7 W
DC output voltage: 12

Operational conditions

Operating temperature (T-T): -30 - 60 °C
Storage temperature (T-T): -40 - 60 °C
Operating relative humidity (H-H): 0 - 95%
Storage relative humidity (H-H): 0 - 95%

Weight & dimensions

Width: 174 mm
Height: 70 mm
Length: 78 mm
Weight: 280 g

Packaging data

Package width: 128 mm
Package depth: 218 mm
Package height: 103 mm
Package weight: 424 g
Package type: Box

Sustainability

Feature: Sustainability compliance
Compliance certificates: BSMI, CE, KC

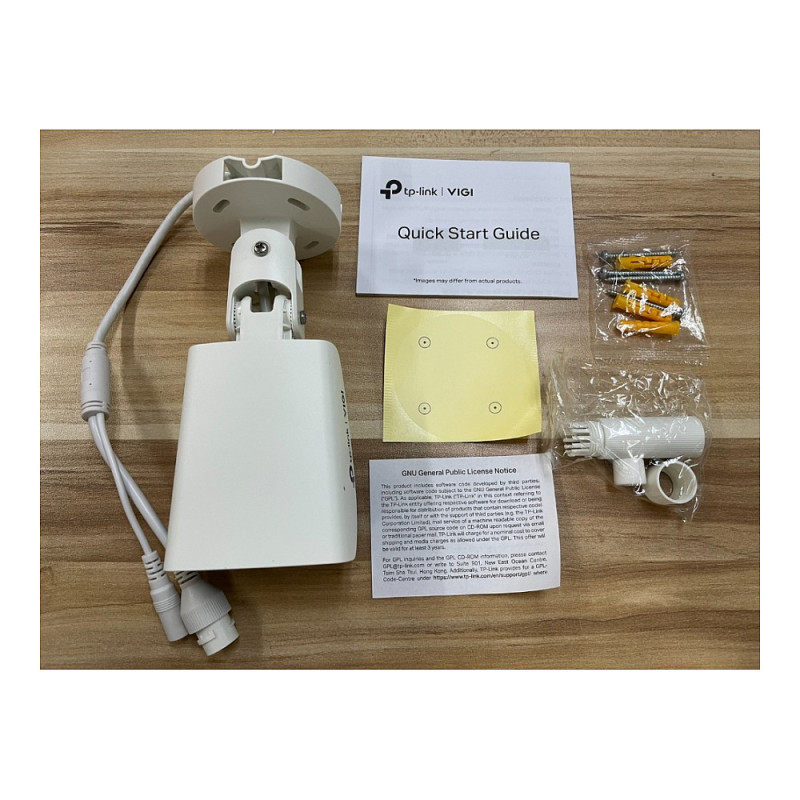

Packaging content

Number of cameras: 1
Feature: Mounting kit
Feature: Manual
