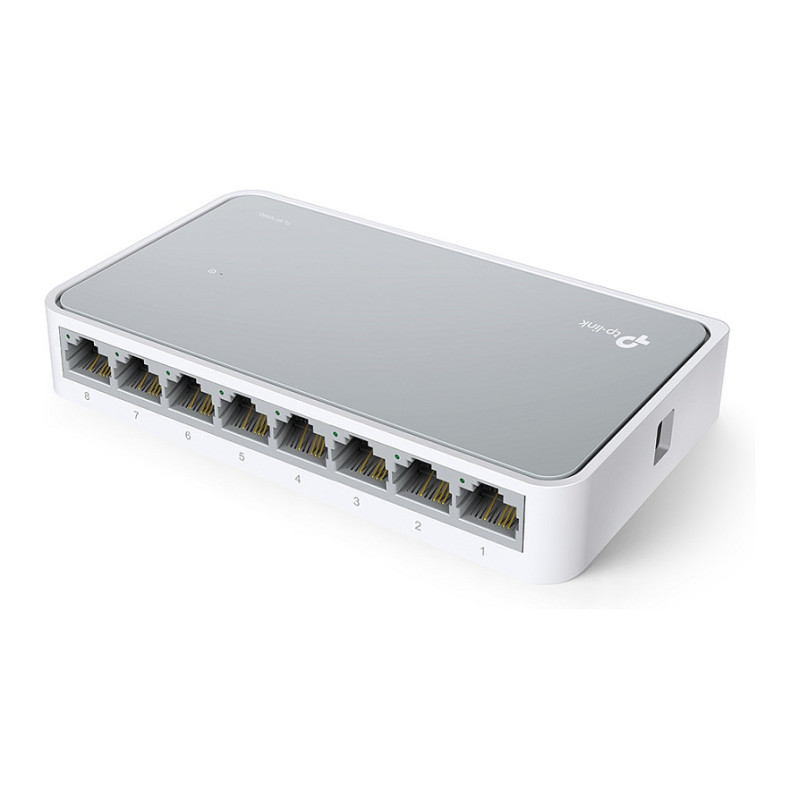

TP-LINK TL-SF1008D

TP-Link TL-SF1008D. Switch type: Unmanaged. Basic switching RJ-45 Ethernet ports type: Fast Ethernet (10/100), Basic switching RJ-45 Ethernet ports quantity: 8. Full duplex. MAC address table: 1000 entries, Switching capacity: 1.6 Gbit/s. Networking standards: IEEE 802.3, IEEE 802.3ab, IEEE 802.3x. DC input voltage: 5 V. Power connector: DC-in jack

What This Product Does
The TL-SF1008D Fast Ethernet Switch is designed for SOHO (Small Office/Home Office) or workgroup users. All 8 ports support auto MDI/MDIX, no need to worry about the cable type, simply plug and play. Moreover, with the innovative energy-efficient technology, the TL-SF1008D can save power consumption, making it an eco-friendly solution for your business network.

High Performance
TL-SF1008D Fast Ethernet Switch provides 8 10/100Mbps Auto-Negotiation RJ45 ports. All ports support Auto MDI/MDIX function, eliminating the need for crossover cables or Uplink ports. Featuring non-blocking switching architecture, TL-SF1008D forwards and filters packets at full wire-speed for maximum throughput. With 2K Jumbo frame, the performance of large files transfers is improved significantly. And IEEE 802.3x flow control for Full Duplex mode and backpressure for Half Duplex mode alleviate the traffic congestion and make TL-SF1008D work reliably.

TP-Link Green Technology
This new generation TL-SF1008D Fast Ethernet Switch features the latest innovative energy-efficient technologies that can greatly expand your network capacity with much less power. It automatically adjusts power consumption according to the link status and cable length to limit the carbon footprint of your network.

It also complies with the EU'S RoHS, prohibiting the use of certain hazardous materials. Besides, 70% of the packaging material can be recycled.

Easy to Use
The auto features of this switch make installation plug and play and hassle-free. No configuring is required. Auto MDI/MDIX eliminates the need for crossover cables. Auto-negotiation on each port senses the link speed of a network device (10, 100 Mbps) and intelligently adjusts for compatibility and optimal performance.

Management features

Switch type: Unmanaged

Ports & interfaces

Basic switching RJ-45 Ethernet ports quantity: 8
Basic switching RJ-45 Ethernet ports type: Fast Ethernet (10/100)
Fast Ethernet (copper) ports quantity: 8
Power connector: DC-in jack

Network

Networking standards: IEEE 802.3, IEEE 802.3ab, IEEE 802.3x
Copper ethernet cabling technology: 10BASE-T, 100BASE-TX
Feature: Full duplex
Feature: Half duplex
Feature: Flow control support
Feature: Auto MDI/MDI-X
Feature: Auto-negotiation

Data transmission

Switching capacity: 1.6 Gbit/s
MAC address table: 1000 entries
Feature: Store-and-forward
Packet buffer memory: 0.768 MB

Protocols

Supported network protocols: CSMA/CD, TCP/IP

Design

Product colour: White
LED indicators: Yes

Performance

Feature: Fanless

Power

Power source: DC
AC input voltage: 100 - 240 V
AC input frequency: 50/60 Hz
DC input voltage: 5 V
Input current: 0.6 A
Power consumption (max): 2.05 W

Operational conditions

Operating temperature (T-T): 0 - 40 °C
Storage temperature (T-T): -40 - 70 °C
Operating relative humidity (H-H): 10 - 90%
Storage relative humidity (H-H): 5 - 95%
Heat dissipation: 6.99 BTU/h

Weight & dimensions

Width: 134.5 mm
Depth: 79 mm
Height: 22.5 mm

Packaging content

Feature: User guide

Packaging data

Feature: AC adapter included
Package type: Box
Package width: 100 mm
Package depth: 139 mm
Package height: 85 mm
Package weight: 357 g

Sustainability

Feature: Sustainability compliance

Certificates

Compliance certificates: CE, Federal Communications Commission (FCC), RoHS

Logistics data

Harmonized System (HS) code: 85176990
