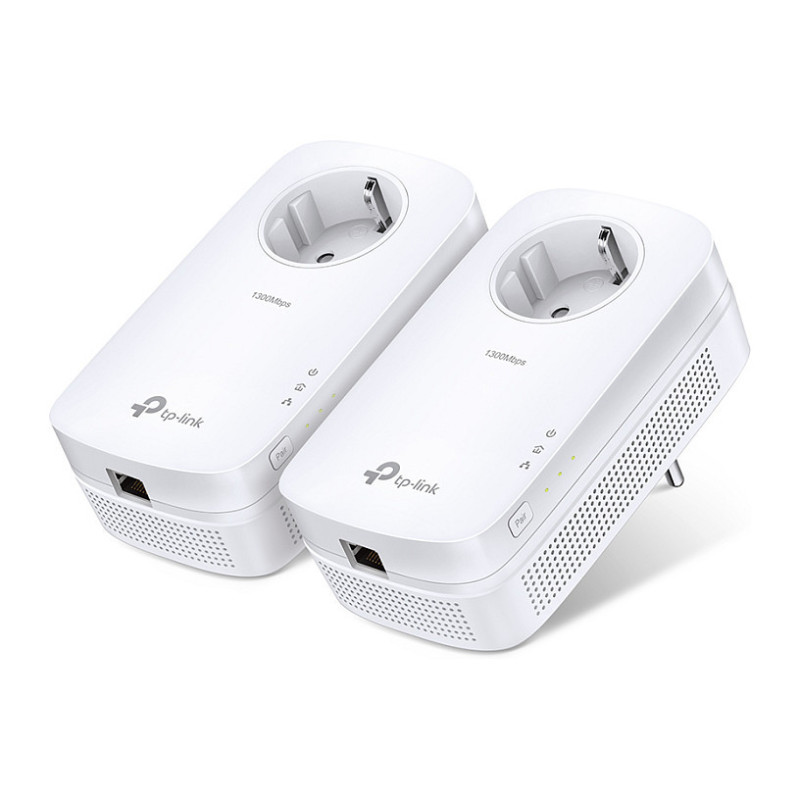

TP-Link TL-PA8010P KIT PowerLine tinklo adapteris

TP-Link TL-PA8010P KIT. Maximum data transfer rate: 1300 Mbit/s, Networking standards: IEEE 802.3, IEEE 802.3ab, IEEE 802.3u, Power plug: Type E / F. Power consumption (typical): 6 W, Power consumption (standby): 0.5 W, AC input voltage: 220 V. Product colour: White, LED indicators: LAN, PLC, Power, Certification: CE. Windows operating systems supported: Windows 2000, Windows 7, Windows 8, Windows 8.1, Windows XP, Mac operating systems supported: macOS. Width: 42 mm, Depth: 72 mm, Height: 131 mm

Upgraded 1300Mbps!

Perfect for Bandwidth Demanding Activities

Advanced HomePlug AV2 technology means the TL-PA8010P KIT supports 2x2 MIMO* with beamforming, so users benefit from ultra-fast data transfer speeds of up to 1300Mbps. Perfect for bandwidth demanding activities like streaming Ultra HD video to multiple devices simultaneously, online gaming and large file transfers.

Line-Neutral / Line-Ground with Beamforming

Larger Range

MIMO Technology with Beamforming maximizes the performance on the independent streams, which improves coverage throughout the home, particularly for previously hard to reach outlets.

Higher Transmission Capacity & More Stable Connections

MIMO Technology means the TL-PA8010P KIT can use the 3 wires, including the live, neutral and earth to create multiple data paths, meaning that you benefit from faster data throughput and more stable connections.

Gigabit Port for Ultra-fast Data Transfer Speed

With one Gigabit Ethernet port, TL-PA8010P KIT allows users to connect a bandwidth intensive device to the Internet at high speeds and ensures the smooth transmission of Ultra HD video streaming. This makes the TL-PA8010P KIT the perfect home entertainment companion.

Plug and Play, No Configuration Required

Connect a powerline adapter to the router; plug another powerline adapter into a wall socket in another room, and connect it to your Internet enabled device via Ethernet - and you're done!

Extra Power Socket for Additional Devices

The integrated power socket, with power output of up to 16A, means the powerline can be used like a traditional electrical socket. Simply plug in your device or extension lead as though it were a normal wall socket. The built-in noise filter also helps to prevent electrical signal noise from affecting Powerline performance.

Power Save by Up to 85%

TL-PA8010P KIT is a new-generation of Powerline adapter. Its sophisticated Power-Saving mode automatically switches from its regular "Working" mode to "Power-Saving" mode reducing energy consumption by up to 85%.

Performance

Maximum data transfer rate: 1300 Mbit/s
Feature: Ethernet LAN
Ethernet LAN interface type: Gigabit Ethernet
Ethernet LAN data rates: 10,100,1000 Mbit/s
Copper ethernet cabling technology: 10BASE-T, 100BASE-TX, 1000BASE-T
Ethernet LAN (RJ-45) ports: 1
Networking standards: IEEE 802.3, IEEE 802.3ab, IEEE 802.3u
Power plug: Type E / F
Feature: Built-in power socket
PowerLine standard: HomePlug AV2
Modulation: OFDM
Security algorithms: 128-bit AES
Maximum operating distance: 300 m
Feature: Plug and Play

Power

Power consumption (typical): 6 W
Power consumption (standby): 0.5 W
AC input voltage: 220 V
AC input frequency: 50 Hz

Design

LED indicators: LAN, PLC, Power
Product colour: White
Certification: CE

System requirements

Windows operating systems supported: Windows 2000, Windows 7, Windows 8, Windows 8.1, Windows XP
Linux operating systems supported: Yes
Feature: Mac compatibility
Mac operating systems supported: macOS

Operational conditions

Operating temperature (T-T): 0 - 40 °C
Storage temperature (T-T): -40 - 70 °C
Operating relative humidity (H-H): 10 - 90%
Storage relative humidity (H-H): 5 - 90%

Weight & dimensions

Width: 42 mm
Depth: 72 mm
Height: 131 mm

Certificates

Compliance certificates: RoHS

Packaging data

Package width: 230 mm
Package depth: 190 mm
Package height: 100 mm
Package weight: 700 g

Packaging content

Quantity per pack: 2 pc(s)
Feature: Quick installation guide
Cables included: LAN (RJ-45)

Logistics data

Harmonized System (HS) code: 85171800
