TP-Link Tapo C560WS

TP-Link Tapo Outdoor Pan/Tilt Security Wi-Fi Camera. Type: IP security camera, Placement supported: Indoor & outdoor, Connectivity technology: Wired. Mounting type: Ceiling/Wall/Desk, Product colour: White, Form factor: Bulb. Lens viewing angle, horizontal: 88°, Lens viewing angle, vertical: 45°, Lens viewing angle, diagonal: 105°. Sensor type: CMOS, Optical sensor size: 25.4 / 2.7 mm (1 / 2.7"). Digital zoom: 18x, Fixed focal length: 4 mm

Smarter, Safer 4K Security: Powered by On-Device AI.

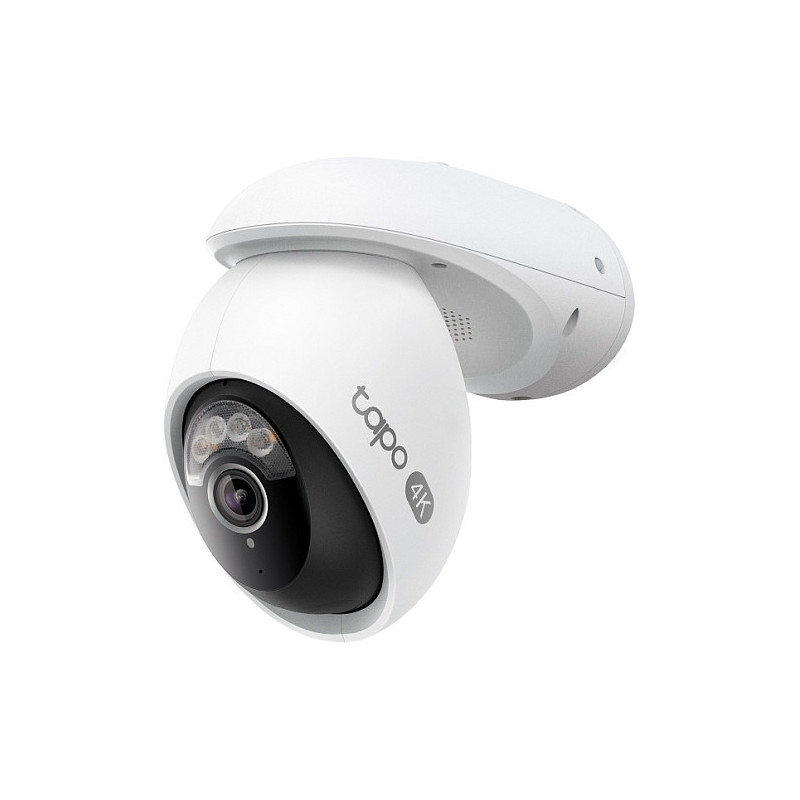

Outdoor Pan/Tilt Security Wi-Fi Camera

4K: Unmatched Clarity, Extended Range
Tapo 4K cameras deliver sharper, more detailed live views, making them perfect for capturing finer details like license plates, human faces and moving objects.

Zoom In, See More
Equipped with 18x digital zoom and an F1.6 aperture, Tapo C560WS captures sharper details and high-quality recordings to enable precise detection with the ability to magnify images for remarkable clarity.

Accurate Facial Recognition, Easy Identification, Local AI Processing
The camera boasts free and powerful Al that recognizes and tags strangers, family, and friends for easy identification, reducing overall notifications to the ones that matter. All facial data is processed locally without cloud uploads, ensuring privacy and security.

Upgraded Panoramic Patrol Mode
Set a custom schedule for the camera to automatically scan a full 360° and record or define specific viewpoints that it will visit at designated times.

Vibrant & Detailed Night Vision
Capture colorful details even in darkness with spotlights and a starlight sensor. Tapo C560WS also offers a stealthy IR black and white mode and a smart mode that automatically switches to color when a person is detected.

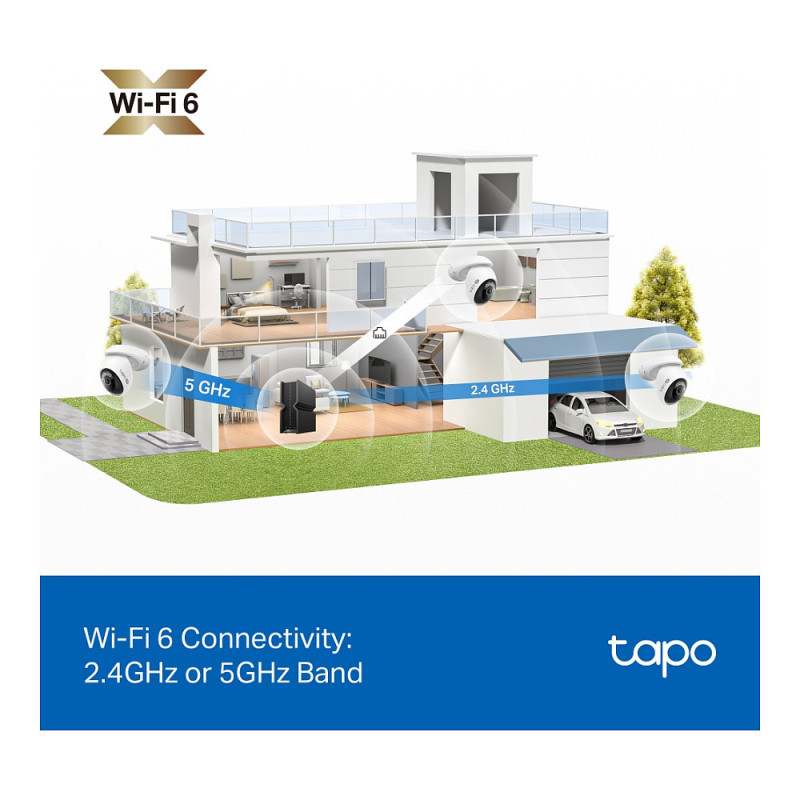

Wi-Fi 6 Dual-Band Connectivity: Faster & More Flexible
Connect the camera to a Wi-Fi 6 router and enjoy improved speed, greater stability, and reduced congestion in heavy bandwidth scenarios.The 5 GHz connection△ offers faster speed, while 2.4 GHz provides longer distance. Ethernet networking is also supported.

Solid Defense System with Custom Alarms
Ward off intruders with sound and light alarms you can personalize: record custom audio and set your preferred spotlight brightness.

Performance

Type: IP security camera
Placement supported: Indoor & outdoor
Connectivity technology: Wired
Feature: Wide Dynamic Range (WDR)
Virtual assistant: Amazon Alexa & Google Assistant
Feature: Day/night mode
Feature: Built-in light
Certification: FCC, RoHS, RCM

Design

Form factor: Bulb
Mounting type: Ceiling/Wall/Desk
Product colour: White
International Protection (IP) code: IP66
Country of origin: China

Camera

Lens viewing angle, horizontal: 88°
Lens viewing angle, vertical: 45°
Lens viewing angle, diagonal: 105°

Image sensor

Number of sensors: 1
Optical sensor size: 25.4 / 2.7 mm (1 / 2.7")
Feature: Progressive scan
Sensor type: CMOS

Lens system

Feature: Zoom capability
Digital zoom: 18x
Maximum aperture number: 1.6
Fixed focal length: 4 mm

Night vision

Feature: Night vision
Number of illumination LEDs: 2
Infra-red wavelength: 850 nm

Video

Maximum resolution: 3840 x 2160 pixels
Total megapixels: 8 MP
Video formats supported: H.264
Video compression formats: H.264
Supported graphics resolutions: 3840 x 2160
Supported video modes: 2160p
Feature: Video recording
Frame rate: 25 fps
Feature: Noise reduction
Noise reduction technology: 3D noise reduction

Audio

Feature: Built-in speaker(s)
Audio system: 2-way
Feature: Built-in microphone

Network

Feature: Ethernet LAN
Feature: Wi-Fi
Wi-Fi standards: 802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac), Wi-Fi 6 (802.11ax)
Feature: Live view

Storage

Feature: Card reader integrated
Compatible memory cards: MicroSD (TransFlash)
Maximum memory card size: 512 GB

Ports & interfaces

Ethernet LAN (RJ-45) ports: 1

Security

Feature: Built-in siren
Siren noise level: 99 dB
Feature: Video motion detection
Security algorithms: AES, SSL/TLS
Feature: Motion sensor
Feature: Human and vehicle targets classification

Management features

Feature: Cloud-managed
Feature: Reset button
Management software: Tapo App

Power

Power source type: DC
AC input voltage: 100-240 V
AC input frequency: 50/60 Hz
DC output voltage: 12
DC output current: 1 A

Operational conditions

Operating temperature (T-T): -30 - 60 °C
Storage temperature (T-T): -40 - 60 °C
Operating relative humidity (H-H): 10 - 90%
Storage relative humidity (H-H): 0 - 90%

System requirements

Mobile operating systems supported: iOS 11.0, Android 5.0

Weight & dimensions

Width: 74.7 mm
Depth: 165.4 mm
Height: 147.4 mm
Weight: 490 g

Packaging data

Package width: 99 mm
Package depth: 196 mm
Package height: 215 mm
Package weight: 830 g

Packaging content

Number of cameras: 1
Cables included: AC
Feature: Manual

Logistics data

Customs product code (TARIC): 8525890000
