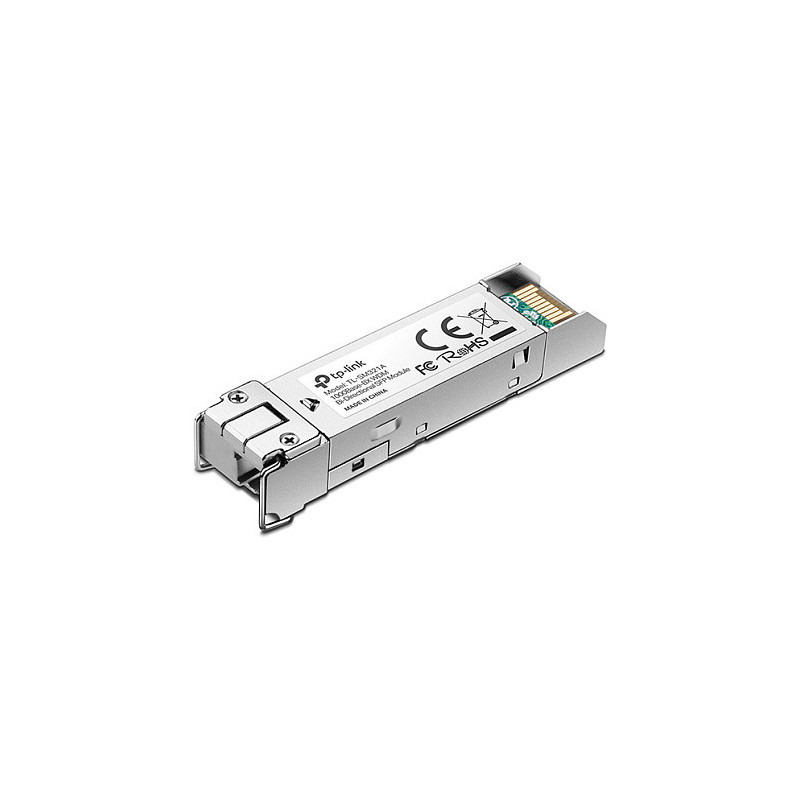

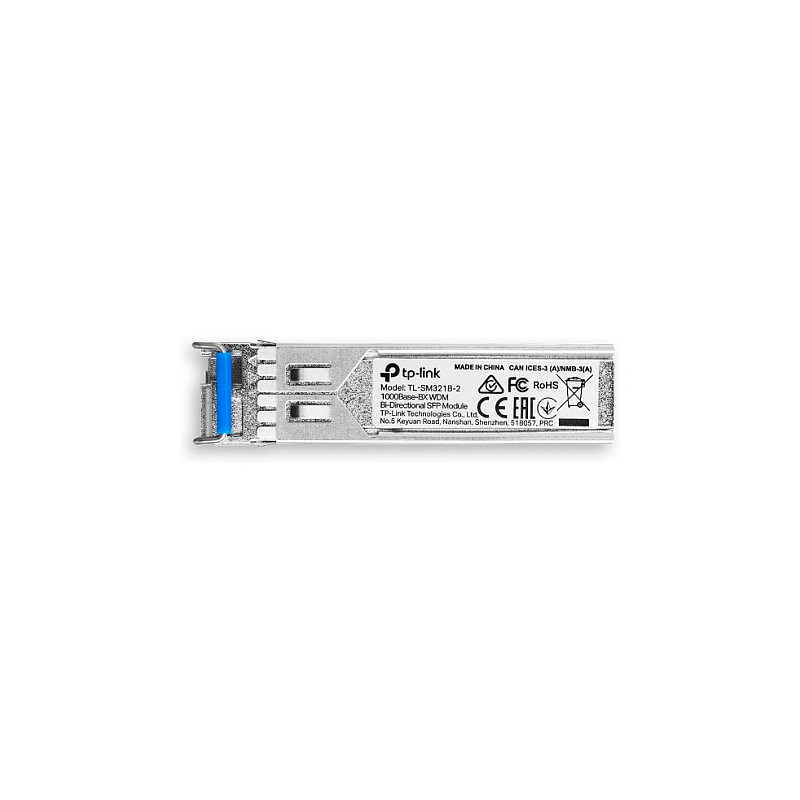

TP-Link Omada TL-SM321B tinklo siųstuvo-imtuvo modulis

TP-Link Omada Gigabit Single-Mode WDM Bi-Directional SFP Module. SFP transceiver type: Fiber optic, Maximum data transfer rate: 1250 Mbit/s, Interface type: SFP. Product colour: Metallic. Compliance certificates: RoHS, Certification: FCC, CE. Width: 55.4 mm, Depth: 14.6 mm, Height: 12.9 mm. Quantity per pack: 1 pc(s)

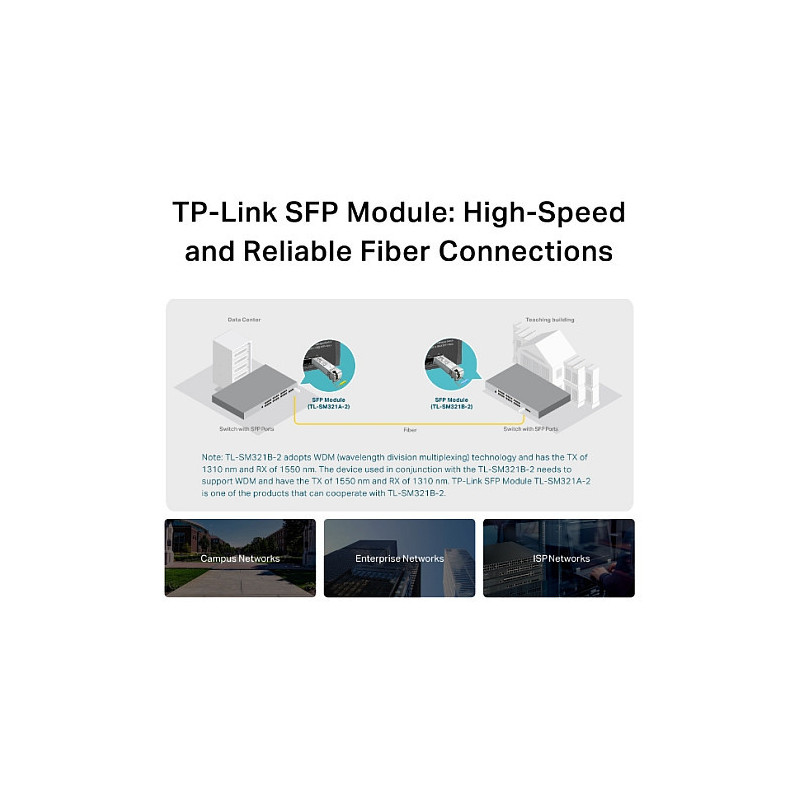

TP-LINK´s TL-SM321B adopts the latest standard 1000Base-BX, transmission over a single strand of fiber, with one different wavelength going in each direction. You can extend the network distance up to 10Km(6.2 miles) with TP-LINK´s Routers, Switches, Media Converters to provide high speed and stability.

Performance

SFP transceiver type: Fiber optic
Maximum data transfer rate: 1250 Mbit/s
Interface type: SFP

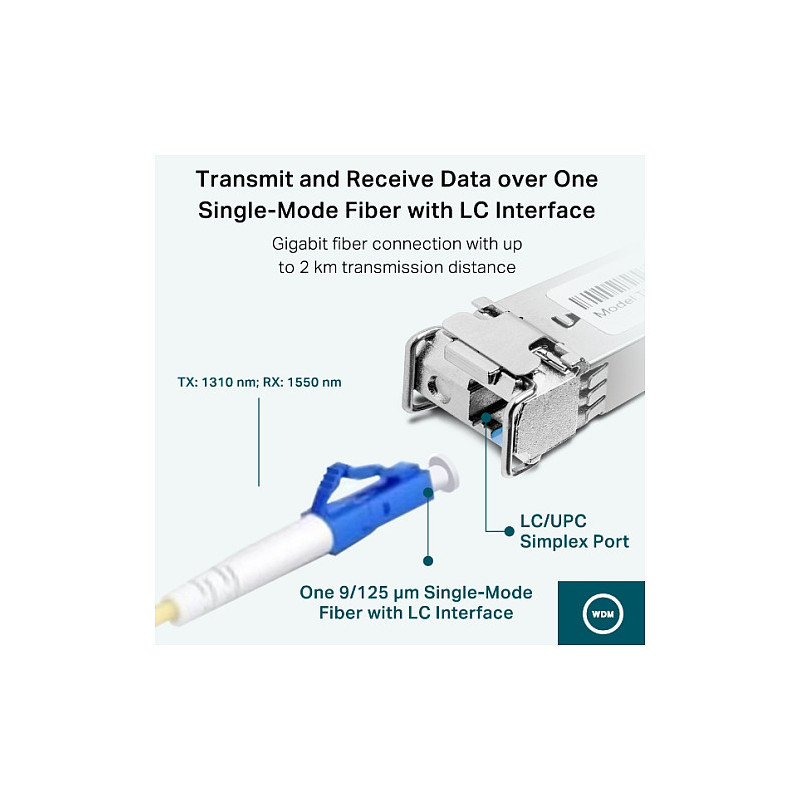

Feature: Single-mode fiber (SMF) supported
Fiber optic connector: LC
Fiber cable diameters supported (core/cladding): 9/125 µm
SFP transceiver standard: BX
Maximum transfer distance: 1000 m
Tx wavelength (max): 1310 nm
Rx wavelength (max): 1550 nm
Networking standards: IEEE 802.3z
Feature: Wavelength-division multiplexing (WDM)

Features

Product colour: Metallic

Certificates

Compliance certificates: RoHS
Certification: FCC, CE

Operational conditions

Operating temperature (T-T): 0 - 70 °C
Storage temperature (T-T): -40 - 80 °C
Operating relative humidity (H-H): 10 - 90%
Storage relative humidity (H-H): 5 - 90%

Weight & dimensions

Width: 55.4 mm
Depth: 14.6 mm
Height: 12.9 mm

Packaging content

Quantity per pack: 1 pc(s)

Packaging data

Feature: User guide
Package width: 81.5 mm
Package depth: 122.5 mm
Package height: 38.5 mm
Package weight: 60 g

Logistics data

Harmonized System (HS) code: 85369010
