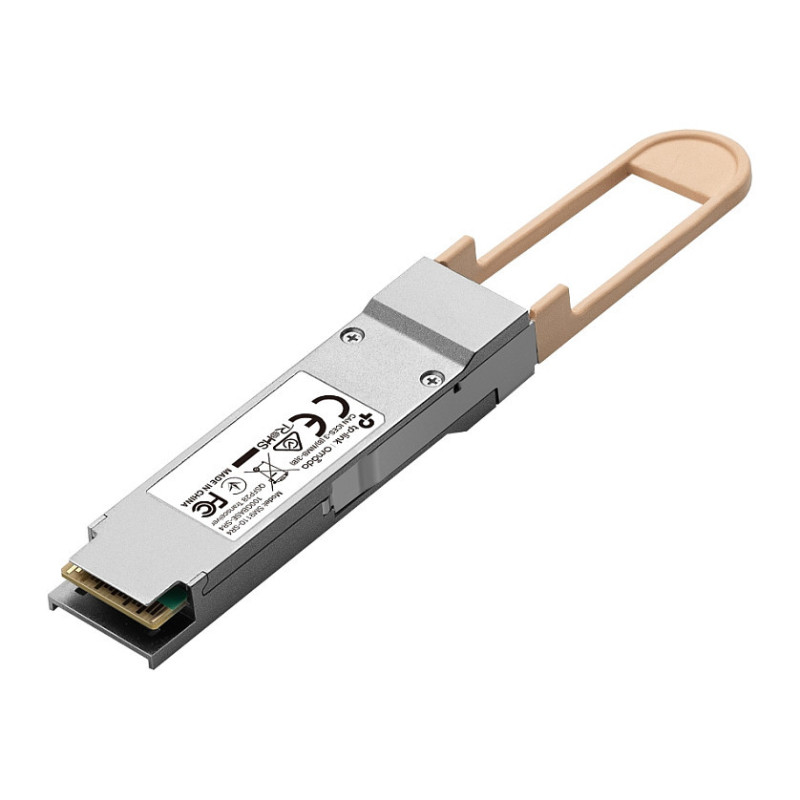

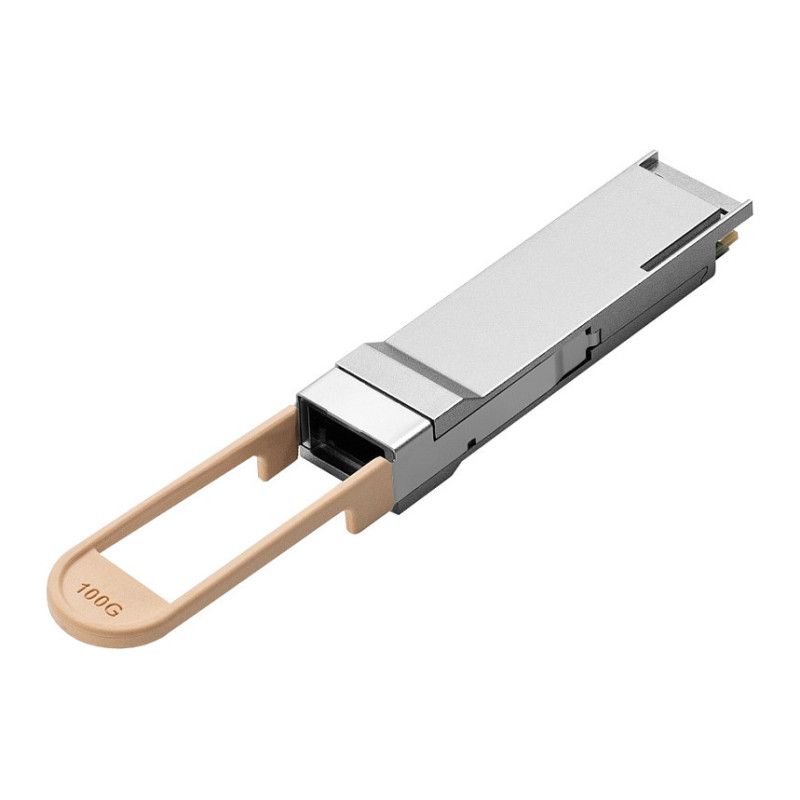

TP-Link Omada SM9110-SR4 tinklo siųstuvo-siųstuvo modulis

TP-Link Omada SM9110-SR4. SFP transceiver type: Fiber optic, Maximum data transfer rate: 100000 Mbit/s, Interface type: QSFP28. Product colour: Metallic, Form factor: QSFP28. Input voltage: 3.3 V. Compliance certificates: CE, Federal Communications Commission (FCC), RoHS, Certification: QSFP28 MSA, SFF-8665, SFF-8636, SFF-8436, CPRI, eCPRI, TCP/IP. Width: 124 mm, Depth: 18.4 mm, Height: 11.7 mm

The SM9110-SR4 is designed to extend transmission distance based on ultra-fast Ethernet connectivity. It is a 100G/40GBASE-SR4 high performance 850nm multi-mode QSFP28 transceiver. It supports 100G Ethernet connection up to 100 m (OM4) and 40G Ethernet connection up to 150 m (OM4).

Performance

SFP transceiver type: Fiber optic
Maximum data transfer rate: 100000 Mbit/s
Interface type: QSFP28
Feature: Multi-mode fiber (MMF) supported
Fiber optic connector: MPO-12, MTP
Fiber cable diameters supported (core/cladding): 50/125 µm
SFP transceiver standard: SR4
Maximum transfer distance: 150 m
Wavelength: 850 nm
Tx power (min): -8.4 dBmW
Tx power (max): 2.4 dBmW
Ethernet interface type: 40 Gigabit Ethernet, 100 Gigabit Ethernet
Networking standards: IEEE 802.3ba, IEEE 802.3bm
Fiber ethernet cabling technology: 40GBASE, 100GBASE
Feature: Digital Diagnostics Monitoring (DDM)

Features

Product colour: Metallic
Form factor: QSFP28
Feature: Plug and Play
Feature: Hot-swap

Power

Input voltage: 3.3 V

Certificates

Compliance certificates: CE, Federal Communications Commission (FCC), RoHS
Certification: QSFP28 MSA, SFF-8665, SFF-8636, SFF-8436, CPRI, eCPRI, TCP/IP

Operational conditions

Minimum operating temperature: 0 °C
Maximum operating temperature: 70 °C
Operating temperature (T-T): 0 - 70 °C
Storage temperature (T-T): -40 - 85 °C
Operating relative humidity (H-H): 0 - 85%
Storage relative humidity (H-H): 0 - 85%

Weight & dimensions

Width: 124 mm
Depth: 18.4 mm
Height: 11.7 mm

Packaging content

Quantity per pack: 1 pc(s)

Packaging data

Feature: User guide

Logistics data

Country of origin: China
