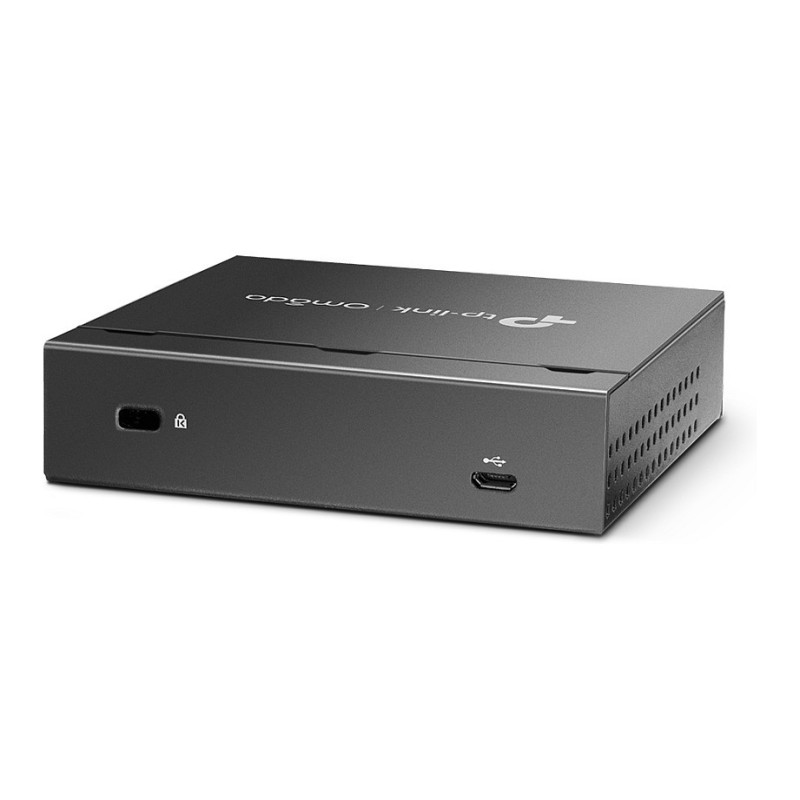

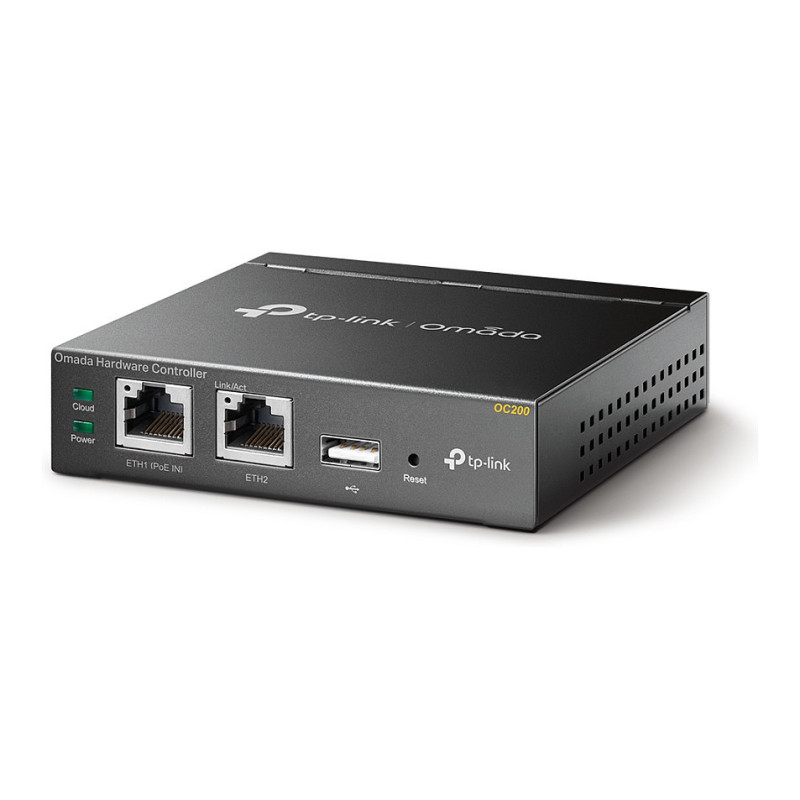

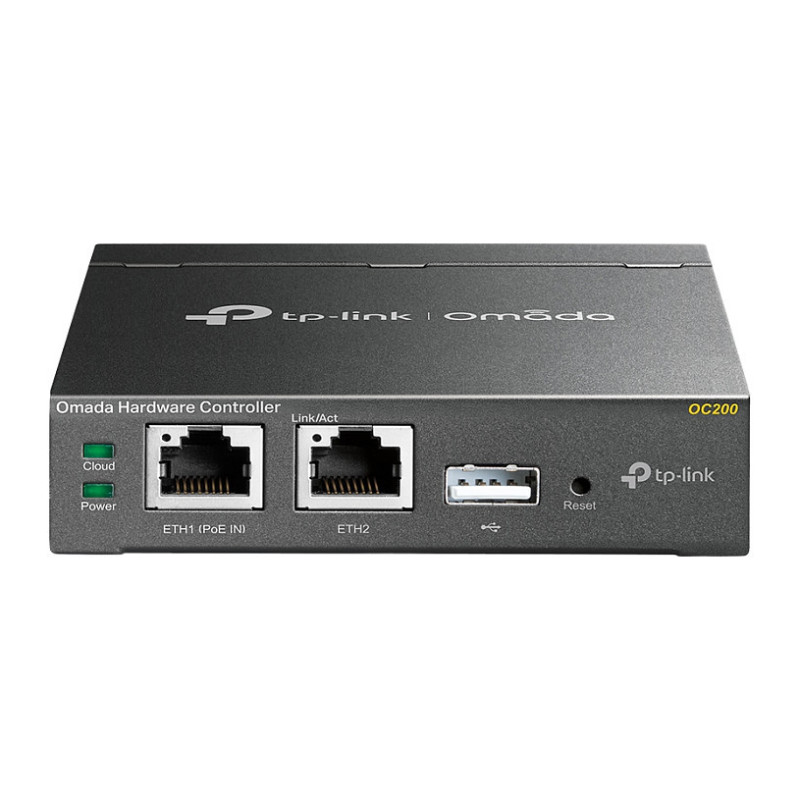

TP-LINK Omada OC200 šliuzas / valdiklis

TP-Link Omada Hardware Controller. Product colour: Black, Cable lock slot type: Kensington. Antenna type: Internal. Processor frequency: 1200 MHz, Internal memory: 1024 MB, Internal memory type: DDR3. Ethernet LAN data rates: 10,100 Mbit/s, Networking standards: IEEE 802.3af, IEEE 802.3at. Security algorithms: SSID, WEP, WPA, WPA-PSK, WPA2, WPA2-PSK

Centralized Management for
Access Points, Switches, and Routers
OC200, the professional on-premises hardware controller for the Omada Software Defined Networking (SDN) platform, provides 100% centralized management of Omada access points, Omada switches, and Omada routers—all controlled from a single interface.

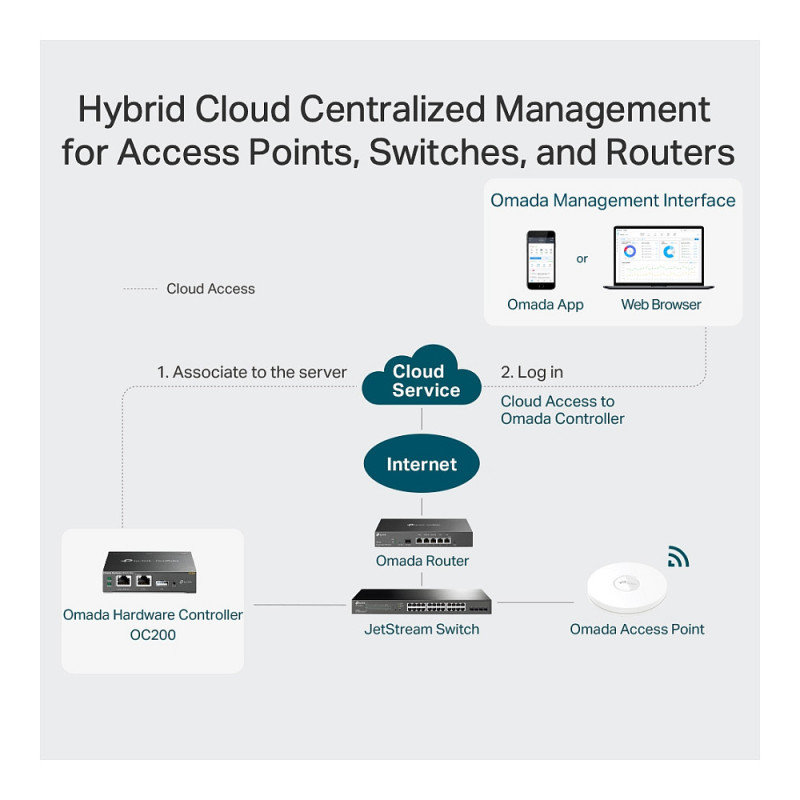

Hybrid Cloud for Maximum Convenience
Featuring hybrid cloud technology, the Omada Hardware Controller OC200 allows you to remotely control the whole network wherever you are in the world with cloud access. Locally manage devices with the ultimate security and stability.

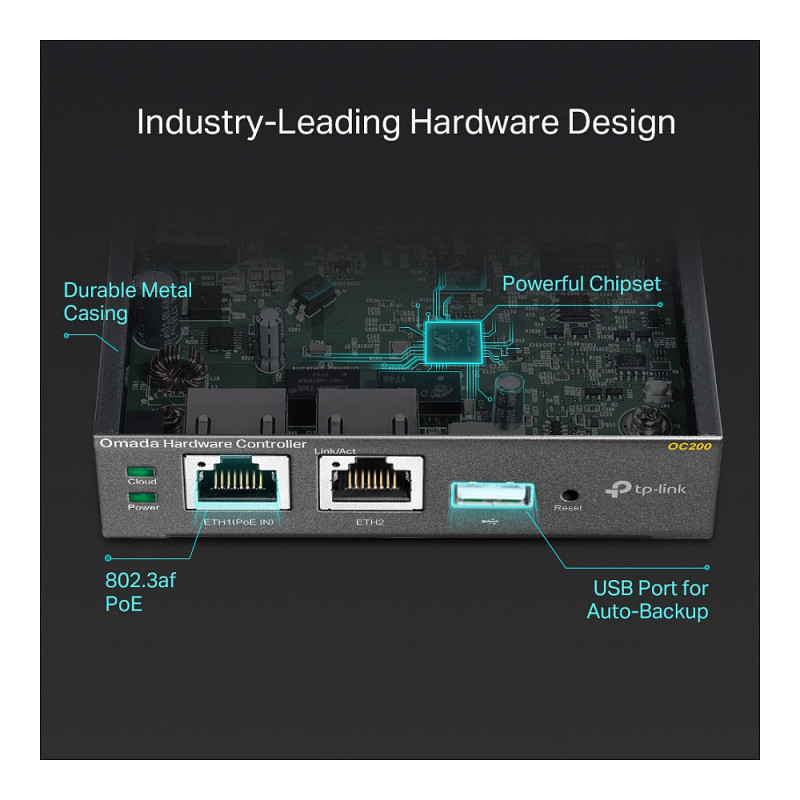

Industry-Leading Hardware Design
Equipped with an advanced design and the latest chipset, OC200 has enough processing power to support the massive management of your business network.

Easy and Intelligent Network Monitoring
The easy-to-use dashboard makes it easy to see your real-time network status; check network usage and traffic distribution; receive network condition logs, abnormal event warnings, and notifications; or even track key data for better business results. Network topology helps IT admins quickly see and troubleshoot connections at a glance.

WiFi Heatmap Simulator
Generate a Wi-Fi solution by simulating the wireless coverage effect of APs in the actual site. Determine the appropriate number and location of APs according to the coverage requirements.

Visualizable Network Report for Conveniently Summary
Help service providers easily report network service quality to their customers through reports. IT administrators also easily report network operation status through reports.

Batch Management, Multi-Site Management, and Remote Firmware Updates
Improve network maintenance without needing to configure on-site or manage devices one by one.

Powerful Scheduling
Maintain your network easily with more agile and effective processing. No manual tasks required.

Design

Product colour: Black
LED indicators: Yes
Cable lock slot type: Kensington

Features

Antenna type: Internal

Performance

Feature: Built-in processor
Processor frequency: 1200 MHz
Number of processors installed: 1
Internal memory: 1024 MB
Internal memory type: DDR3
Flash memory: 4000 MB

Network

Ethernet LAN data rates: 10,100 Mbit/s
Networking standards: IEEE 802.3af, IEEE 802.3at

Security

Feature: Access Control List (ACL)
Feature: MAC address filtering
Security algorithms: SSID, WEP, WPA, WPA-PSK, WPA2, WPA2-PSK
Feature: VLAN support

Ports & interfaces

USB 2.0 ports quantity: 1
Ethernet LAN (RJ-45) ports: 2

Management features

Feature: Web-based management
Feature: Quality of Service (QoS) support
Feature: Reset button

Power

Power consumption (max): 11.3 W
Feature: Power over Ethernet (PoE)

Weight & dimensions

Width: 100 mm
Depth: 98 mm
Height: 25 mm

Packaging content

Cables included: LAN (RJ-45)
Feature: Quick installation guide

Operational conditions

Operating temperature (T-T): 0 - 40 °C
Storage temperature (T-T): -40 - 70 °C
Operating relative humidity (H-H): 10 - 90%
Storage relative humidity (H-H): 5 - 90%

Certificates

Certification: CE, FCC, RoHS

Logistics data

Harmonized System (HS) code: 85176990
