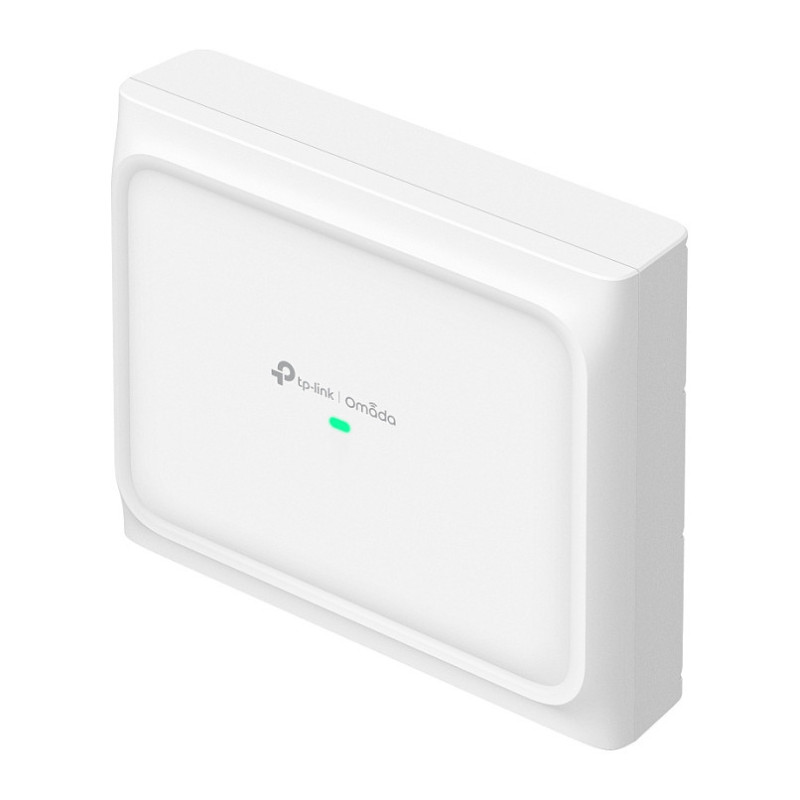

TP-Link Omada EAP650 D120-Outdoor

TP-Link Omada AX3000 Indoor/Outdoor WiFi 6 Access Point. 2.4 GHz, 5 GHz, Maximum data transfer rate: 3000 Mbit/s. Security algorithms: SNMP, SNMPv2, SNMPv3. Ethernet LAN data rates: 10,100,1000 Mbit/s. Power over Ethernet (PoE). Product colour: White

Omada AX3000
Indoor/Outdoor WiFi 6
Access Point

Designed for Warehouses
The EAP650 D120-Outdoor features a durable, fully sealed IP68 weatherproof enclosure, making it dustproof and capable of withstanding submersion in water. It is ideal for warehouse environments.

Elevate WiFi Experience for Shelf Areas with Directional Antennas
Equipped with 4× built-in dual-band directional antennas with high gain to ensure the optimal WiFi experience ideal for precise and extended coverage.

Stay Smooth with Seamless Roaming
Ensure users enjoy uninterrupted steaming when moving around by switching clients automatically to the access points with the optimal signals.

Features

Feature: 2.4 GHz
Feature: 5 GHz
Maximum data transfer rate: 3000 Mbit/s
Maximum data transfer rate (2.4 GHz): 574 Mbit/s
Maximum data transfer rate (5 GHz): 2402 Mbit/s
Ethernet LAN data rates: 10,100,1000 Mbit/s
Frequency band: 2.4 - 5 GHz
Networking standards: IEEE 802.11a, IEEE 802.11ac, IEEE 802.11ax, IEEE 802.11b, IEEE 802.11g, IEEE 802.11n
Cabling technology: 10/100/1000Base-T(X)
Number of users: 250 user(s)
Feature: Bluetooth
Feature: Automatic channel selection
Feature: MIMO
MIMO type: Multi User MIMO
Feature: VLAN support
Virtual LAN features: SSID-based VLAN assignment
Feature: Band steering
Feature: Airtime Fairness (ATF)
Maximum indoor range: 500 m

Security

Security algorithms: SNMP, SNMPv2, SNMPv3
Feature: MAC address filtering
Feature: Remote Authentication Dial-In User Service (RADIUS)

Management features

Feature: Web-based management

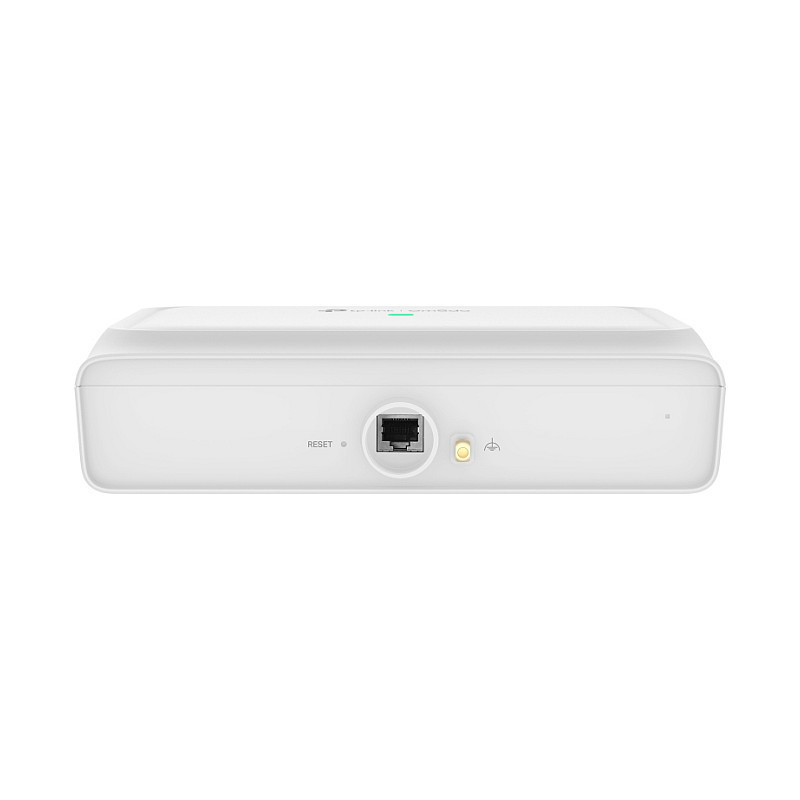

Ports & interfaces

Ethernet LAN (RJ-45) ports: 1

Power

Feature: Power over Ethernet (PoE)
Power over Ethernet (PoE) type supported: Passive PoE
AC input voltage: 48 V

Design

Placement: Ceiling, Wall
Product colour: White

Antenna

Antenna type: Internal
Antenna direction type: Directional
Antennas quantity: 4
Antenna gain level (max): 10 dBi

Weight & dimensions

Width: 230 mm
Depth: 207.5 mm
Height: 58 mm

Packaging content

Quantity per pack: 1 pc(s)
Feature: Mounting kit
Feature: Quick start guide

Other features

Horizontal beam width: 120°
Vertical beam width: 30°
