TP-Link Omada EAP615-WALL

TP-Link Omada AX3000 Wall Plate WiFi 6 Access Point. 2.4 GHz, 5 GHz, Maximum data transfer rate: 1774 Mbit/s. Security algorithms: HTTPS, SNMP, SNMPv2, SNMPv3, SSH, WPA-Enterprise, WPA-Personal, WPA2-Enterprise, WPA2-Personal,.... Ethernet LAN data rates: 10,100,1000 Mbit/s. Power over Ethernet (PoE). Product colour: White

The Smarter Cloud Solution for Business Networking.
AX1800 Wall Plate WiFi 6 Access Point

Futureproof Your Network with WiFi 6 Connectivity
Connect more devices at the same time with WiFi 6 speeds of up to 1800 Mbps..

Corner-to-Corner Indoor WiFi Coverage
Guests can enjoy strong private networks that paint their entire space by installing EAP615-Walls in each guest room.

Features

Feature: 2.4 GHz
Feature: 5 GHz
Maximum data transfer rate: 1774 Mbit/s
Maximum data transfer rate (2.4 GHz): 574 Mbit/s
Maximum data transfer rate (5 GHz): 1201 Mbit/s
Ethernet LAN data rates: 10,100,1000 Mbit/s
Frequency band: 2.4 - 5 GHz
Networking standards: IEEE 802.11a, IEEE 802.11ac, IEEE 802.11ax, IEEE 802.11b, IEEE 802.11g, IEEE 802.11n, IEEE 802.1x, IEEE 802.3af, IEEE 802.3at
Cabling technology: 10/100/1000Base-T(X)
Feature: Automatic channel selection
Feature: Automatic channel scanning
Feature: MIMO
MIMO type: Multi User MIMO
Feature: VLAN support
Feature: Rate limiting
Feature: Wireless isolation
Feature: Band steering
Feature: Airtime Fairness (ATF)
Feature: Quality of Service (QoS) support
Feature: BeamForming
Transmitting power (CE): 23 dBm
Transmitting power (FCC): 21 dBm

Security

Security algorithms: HTTPS, SNMP, SNMPv2, SNMPv3, SSH, WPA-Enterprise, WPA-Personal, WPA2-Enterprise, WPA2-Personal, WPA3-Enterprise, WPA3-Personal
Feature: MAC address filtering
Service Set Identifier (SSID) features: Multiple SSIDs
Number of SSID supported: 16
Feature: Remote Authentication Dial-In User Service (RADIUS)
Feature: Access Control List (ACL)

Protocols

Feature: STelnet using SSH v2

Management features

Feature: Web-based management
Feature: Syslog
Feature: Firmware upgradeable

Ports & interfaces

Ethernet LAN (RJ-45) ports: 4

Power

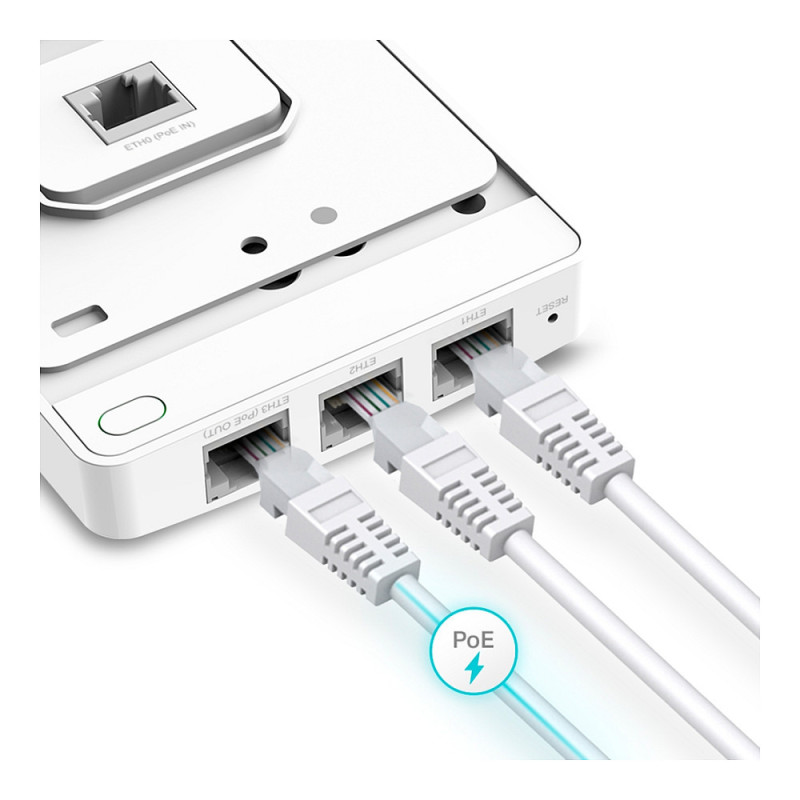

Feature: Power over Ethernet (PoE)
Power consumption (typical): 10 W

Design

Placement: Wall
Product colour: White
Feature: Cable lock slot
Feature: On/off switch
Feature: Reset button
LED indicators: Power

Antenna

Antenna type: Internal
Antennas quantity: 4
Antenna gain level (max): 4 dBi

Performance

Compatible operating systems: Microsoft Windows XP, Vista, Windows 7, Windows 8, Windows 10, Windows 11, Linux

Certificates

Compliance certificates: CE, Federal Communications Commission (FCC), RoHS

Weight & dimensions

Width: 143 mm
Depth: 86 mm
Height: 20 mm

Packaging data

Package width: 385 mm
Package depth: 495 mm
Package height: 210 mm
Package weight: 330 g

Packaging content

Quantity per pack: 5 pc(s)
Feature: Mounting kit
Feature: Quick start guide

Operational conditions

Operating relative humidity (H-H): 10 - 90%
Operating temperature (T-T): 0 - 40 °C
Storage temperature (T-T): -40 - 70 °C
Storage relative humidity (H-H): 5 - 90%
