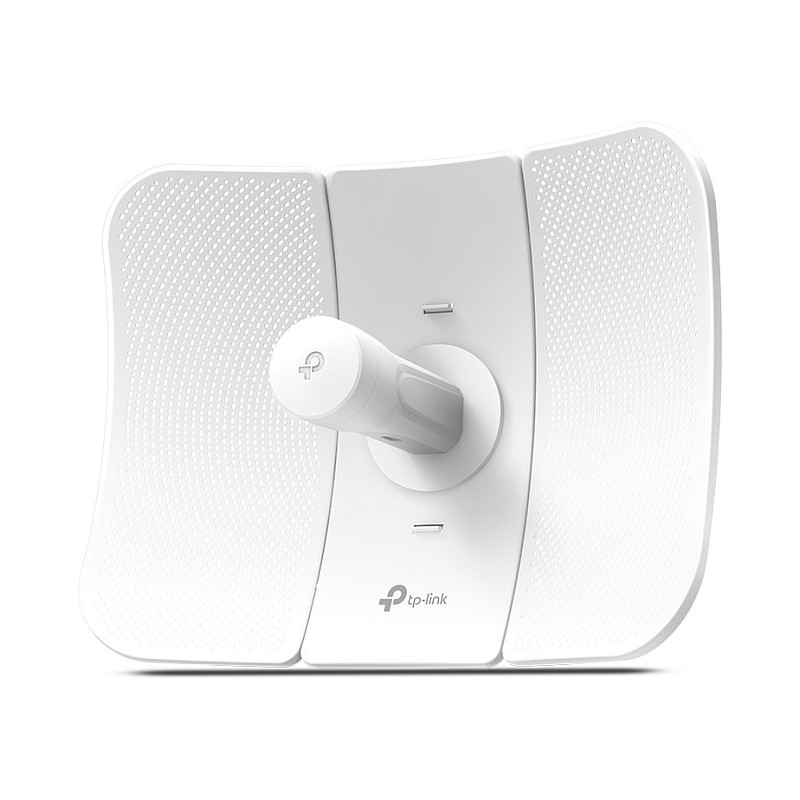

TP-Link CPE710 tinklo antena

TP-Link CPE710. Antenna gain level (max): 23 dBi, Frequency band: 5.15 - 5.85 GHz, Networking standards: IEEE 802.11a, IEEE 802.11ac, IEEE 802.11n. Antenna type: Directional antenna, Antenna connector type: PoE/LAN, Product colour: White. Power source type: PoE, Input voltage: 24 V. Certification: CE, FCC, RoHS, IC. Width: 366 mm, Depth: 280 mm, Height: 207 mm

Blazing Speed without Wait
256 QAM and an 80 MHz bandwidth boosts overall speeds up to 867 Mbps, 3× faster than 802.11n Wi-Fi.

Professional-Standard 23 dBi Directional
Antenna for Long-range Wireless Transmission
With 23 dBi high-gain directional Cassegrain antenna and dedicated metal reflector, the CPE710 provides excellent beam directivity, improved latency, and noise immunity. Professional performance, coupled with user-friendly design, makes the 5 GHz 867 Mbps 23 dBi Outdoor CPE710 an ideal choice and cost-effective solution for outdoor long-distance wireless networking applications.

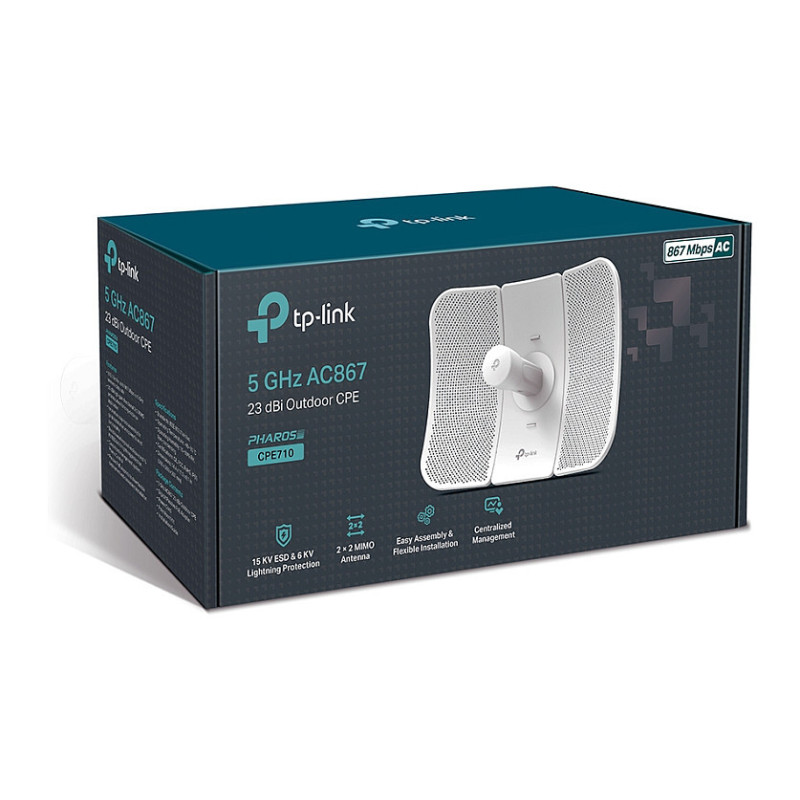

Compact and Lightweight Packaging
Small and lightweight boxes benefit shipping, logistics, and retail.

Pharos Control - Centralized Management System
CPE710 comes equipped with Pharos Control centralized management software, helping users easily manage all devices in their network from a single PC. Functions include device discovery, status monitoring, firmware upgrading, and network maintenance. An intuitive web-based interface- PharOS - provides an alternative management method and allows professionals to access more detailed configurations.

Performance

Frequency band: 5.15 - 5.85 GHz
Networking standards: IEEE 802.11a, IEEE 802.11ac, IEEE 802.11n
Gain: 23 dBi
Horizontal beam width: 9°
Vertical beam width: 7°
Feature: Built-in processor
Processor frequency: 750 MHz
Internal memory: 128 MB
Flash memory: 16 MB
Antenna gain level (max): 23 dBi
Wi-Fi standards: 802.11a, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac)

Features

Antenna type: Directional antenna
Antenna connector type: PoE/LAN
Product colour: White
Housing material: Plastic
International Protection (IP) code: IP65
LED indicators: Power

Power

Power source type: PoE
Input voltage: 24 V

Certificates

Certification: CE, FCC, RoHS, IC

Operational conditions

Operating temperature (T-T): -40 - 70 °C
Storage temperature (T-T): -40 - 70 °C
Operating relative humidity (H-H): 10 - 90%
Storage relative humidity (H-H): 5 - 95%

Weight & dimensions

Width: 366 mm
Depth: 280 mm
Height: 207 mm

Packaging data

Package type: Box

Packaging content

Cables included: AC

Logistics data

Export Control Classification Number (ECCN): EAR99
Harmonized System (HS) code: 85176990
