Teltonika NETWORKS TSW030 8 prievadų Ethernet komutatorius

Teltonika Switch TSW030 8x RJ45 100Mb/s, IP30. Switch type: Unmanaged. Basic switching RJ-45 Ethernet ports type: Fast Ethernet (10/100), Basic switching RJ-45 Ethernet ports quantity: 8. MAC address table: 2048 entries, Switching capacity: 20 Gbit/s. Networking standards: IEEE 802.3, IEEE 802.3ab, IEEE 802.3i, IEEE 802.3u, IEEE 802.3x. DC input voltage: 7 - 57 V

The TSW030 is a cost-efficient unmanaged Ethernet switch, featuring eight 10/100 RJ45 ports and integrated DIN rail mounting. This compact and rugged 8-port switch includes a 2-pin power input and low power consumption of up to 0.5 W when idle and a maximum of up to 1.5 W. These make this plug-and-play switch perfect for industrial applications requiring to connect up to eight devices.

Management features

Switch type: Unmanaged

Ports & interfaces

Basic switching RJ-45 Ethernet ports quantity: 8
Basic switching RJ-45 Ethernet ports type: Fast Ethernet (10/100)
Fast Ethernet (copper) ports quantity: 8

Network

Networking standards: IEEE 802.3, IEEE 802.3ab, IEEE 802.3i, IEEE 802.3u, IEEE 802.3x
Ethernet LAN data rates: 10,100 Mbit/s

Data transmission

Switching capacity: 20 Gbit/s
MAC address table: 2048 entries
Feature: Jumbo frames support
Jumbo frames: 9216

Design

Product colour: Black
Housing material: Aluminium
Feature: Reset button
LED indicators: LAN, Power, Status

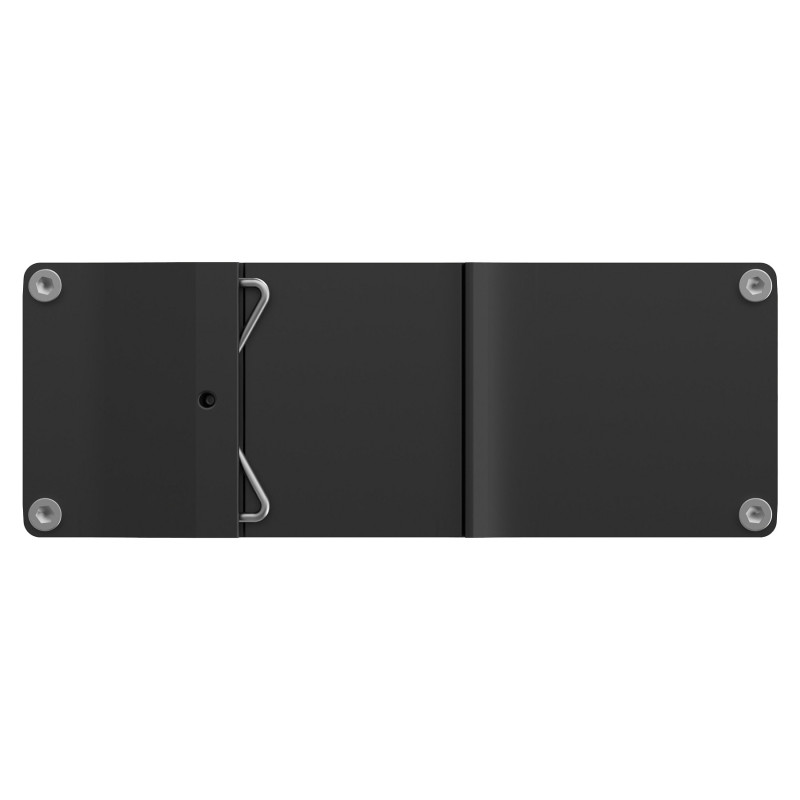

Feature: DIN rail mounting

Power

Power source: DC
DC input voltage: 7 - 57 V

Operational conditions

Operating temperature (T-T): -40 - 75 °C
Operating relative humidity (H-H): 10 - 90%
