Teltonika DAP142

Teltonika DAP142. 2.4 GHz, Maximum data transfer rate: 300 Mbit/s. Security algorithms: OWE, WPA-EAP, WPA-PSK, WPA2-EAP, WPA2-PSK, WPA3-EAP, WPA3-SAE. Ethernet LAN data rates: 10,100 Mbit/s. Power over Ethernet (PoE). Product colour: Black

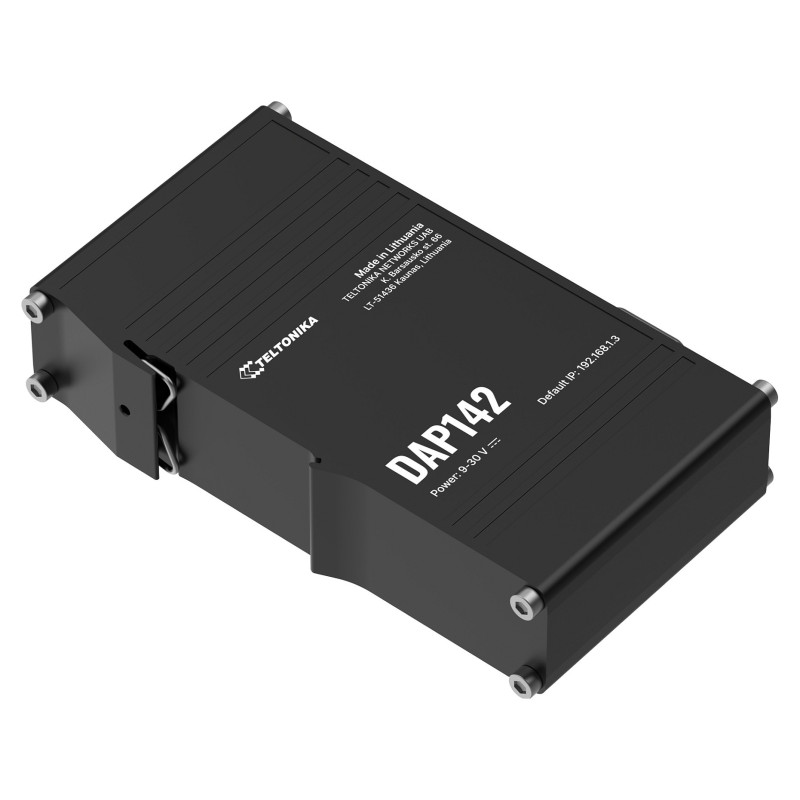

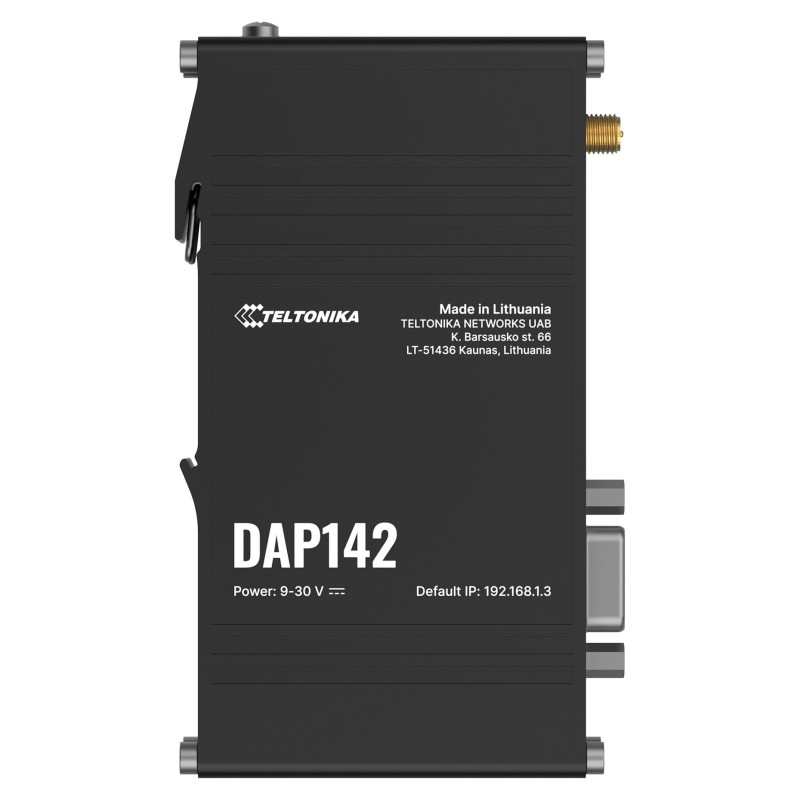

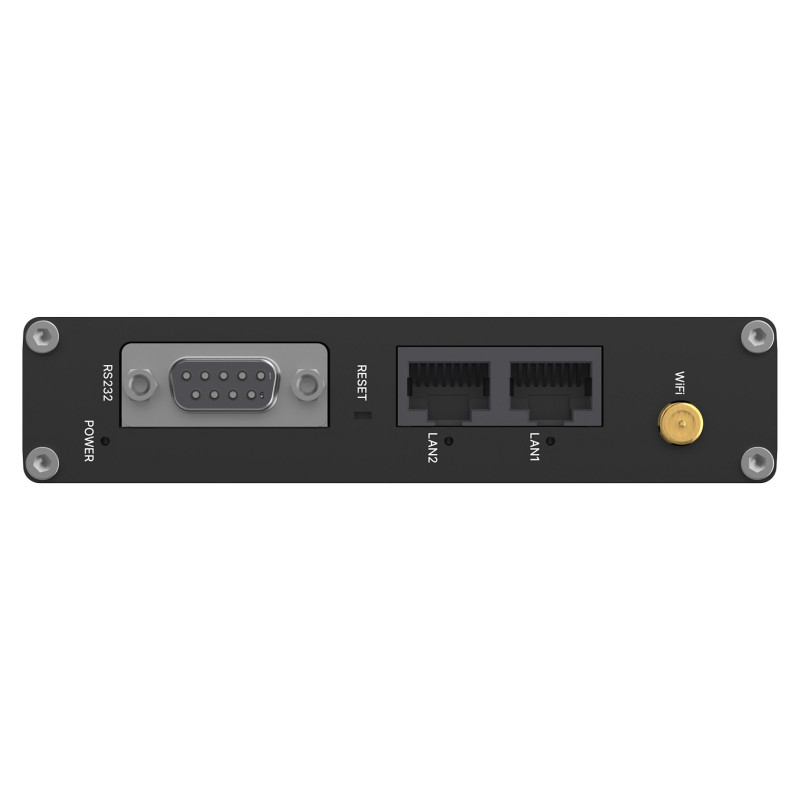

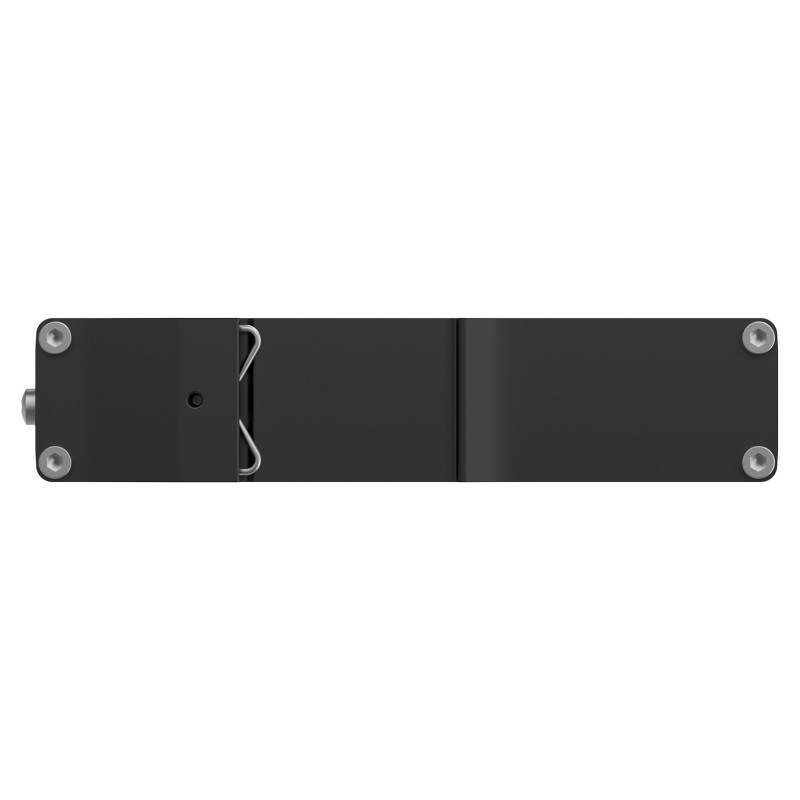

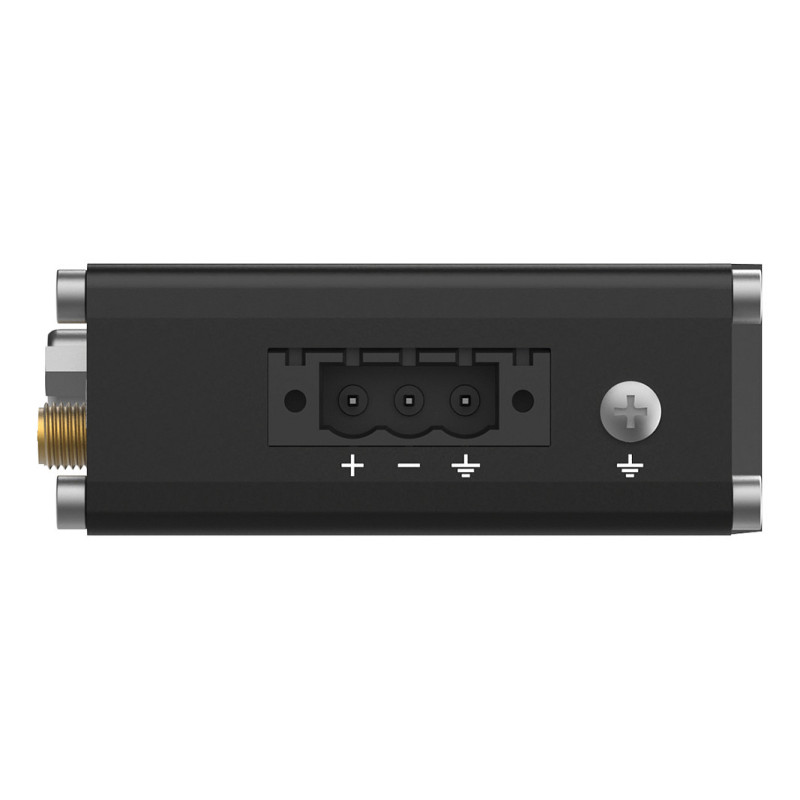

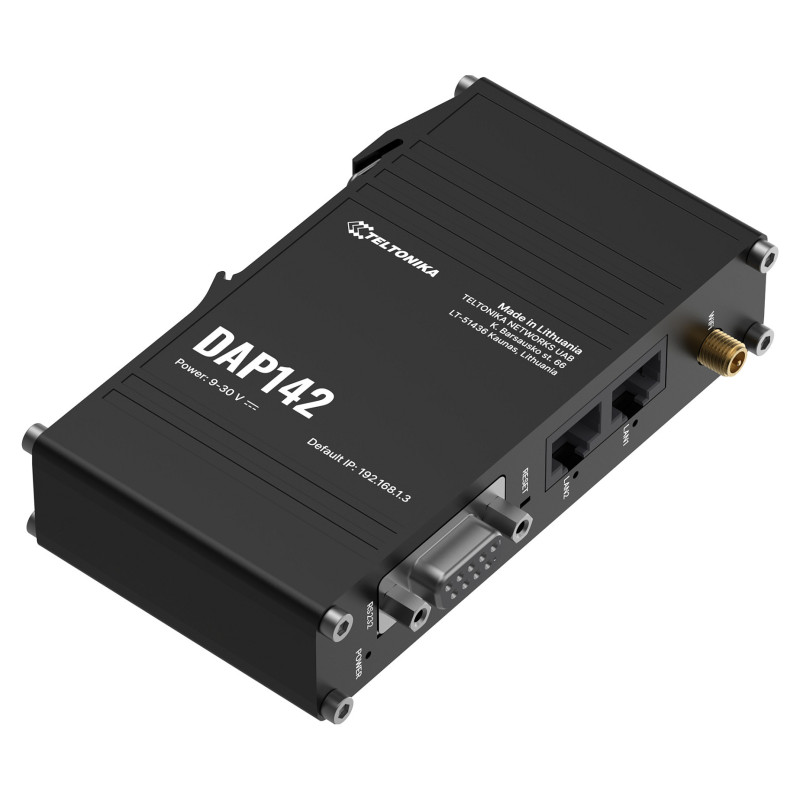

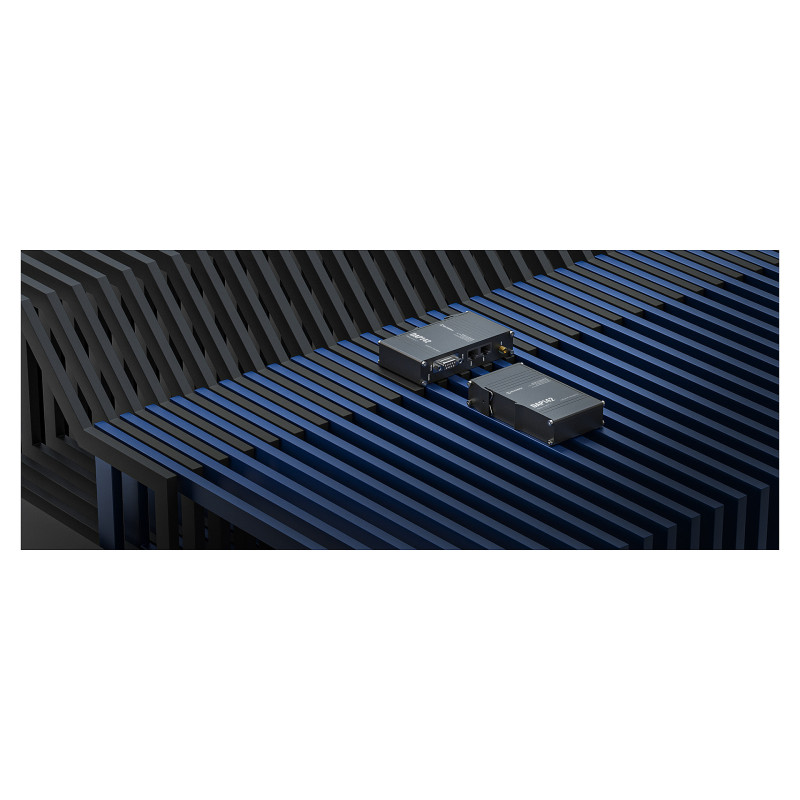

The DAP142 is a Teltonika industrial wireless access point with passive PoE, engineered for enhanced and reliable Wi-Fi coverage and performance in industrial environments. This access point is equipped with an RS232 port and two RJ45 ports, and is powered via a 3-pin power connector, making it ideal for specialised industrial applications. In addition to Wi-Fi 4 capabilities, the DAP142 supports Wi-Fi mesh, Fast Roaming, and up to 50 simultaneous connections. With an integrated DIN rail bracket, durable aluminium casing, and plug-and-play functionality, this wireless access point provides simple installation and configuration at minimum effort.

Features

Feature: 2.4 GHz
Maximum data transfer rate: 300 Mbit/s
Ethernet LAN data rates: 10,100 Mbit/s
Networking standards: IEEE 802.11b, IEEE 802.11g, IEEE 802.11n, IEEE 802.11s
Cabling technology: 10/100Base-T(X)

Security

Security algorithms: OWE, WPA-EAP, WPA-PSK, WPA2-EAP, WPA2-PSK, WPA3-EAP, WPA3-SAE

Protocols

Feature: DHCP server
Feature: DHCP client
IPv4 & IPv6 features: Dual stack IPv4/IPv6

Ports & interfaces

Ethernet LAN (RJ-45) ports: 2
Feature: RS-232 interface

Power

Feature: Power over Ethernet (PoE)
Power over Ethernet (PoE) type supported: Passive PoE

Design

Placement: Pole, Shelf
Product colour: Black
Housing material: Aluminium
International Protection (IP) code: IP30
Feature: Reset button
LED indicators: Power

Antenna

Antenna type: External
Antenna connector type: RP-SMA

Weight & dimensions

Width: 113.1 mm
Depth: 68.6 mm
Height: 25 mm
Weight: 150 g

Packaging content

Quantity per pack: 1 pc(s)
