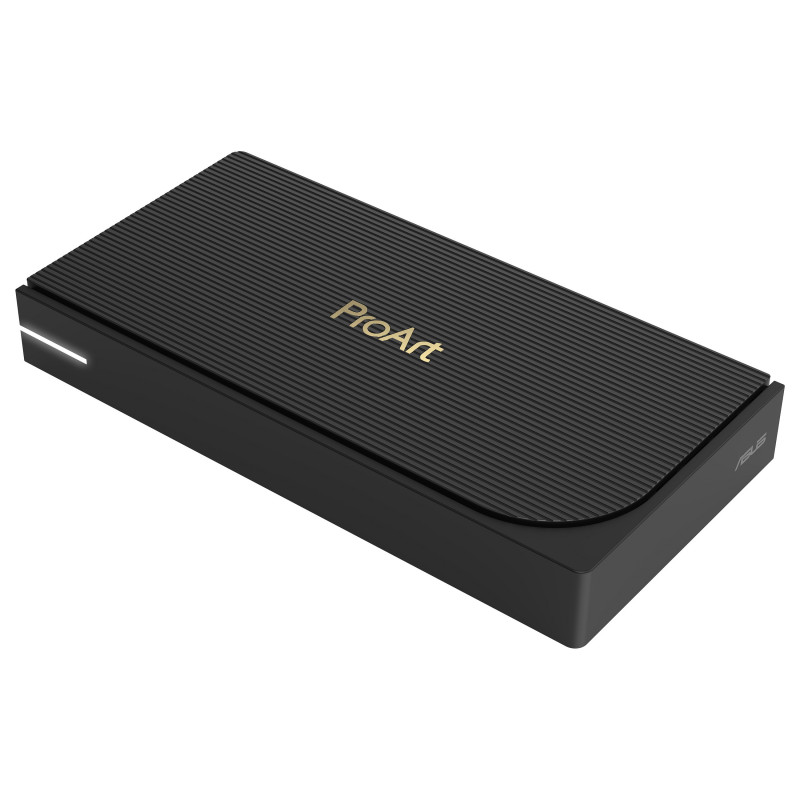

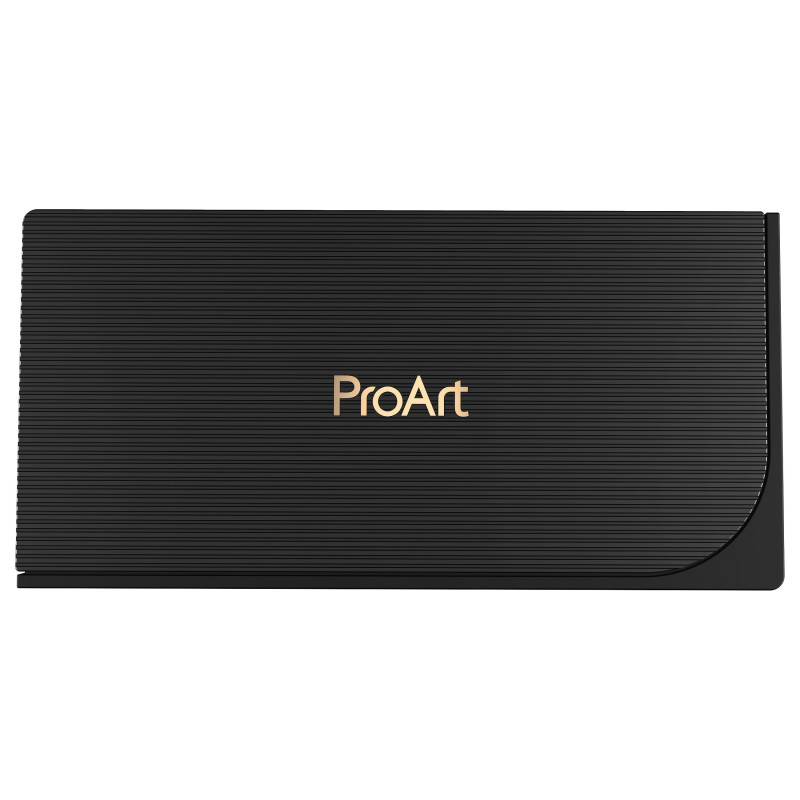

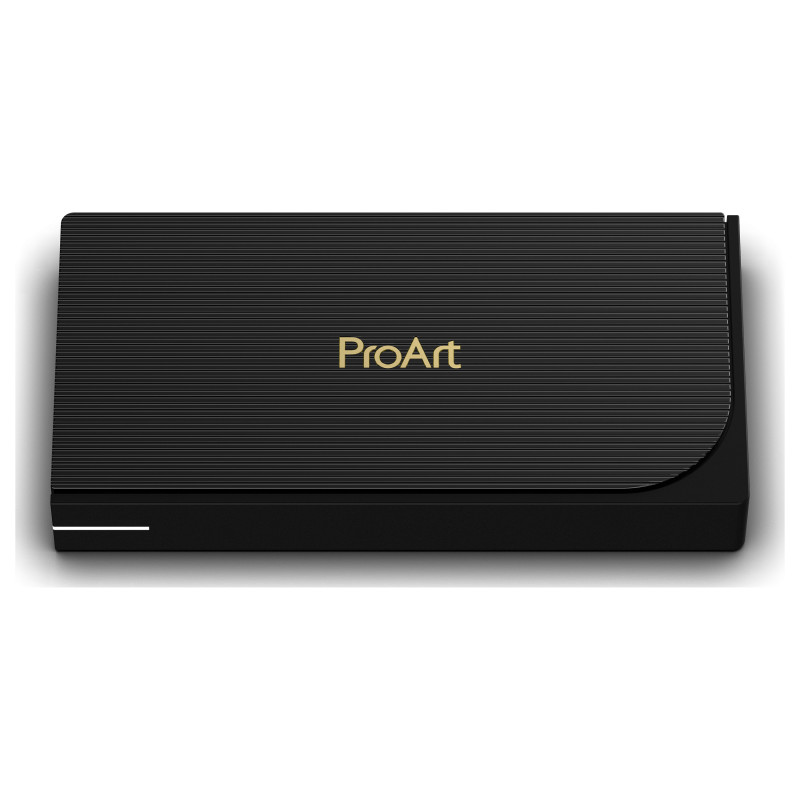

ASUS ProArt Switch PQG-U1080

ASUS ProArt Switch PQG-U1080. Switch type: Unmanaged. Basic switching RJ-45 Ethernet ports type: 2.5G Ethernet (100/1000/2500), Basic switching RJ-45 Ethernet ports quantity: 8. MAC address table: 16000 entries. Networking standards: IEEE 802.3ab, IEEE 802.3bz, IEEE 802.3u, IEEE 802.3x, IEEE 802.3az. DC input voltage: 12 V

Creator-First Networking

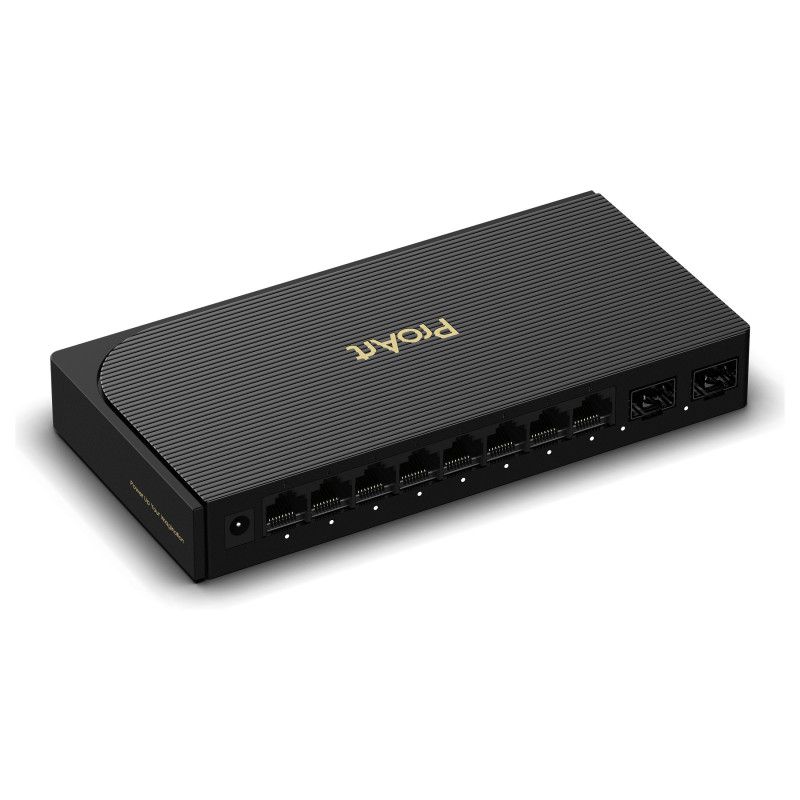

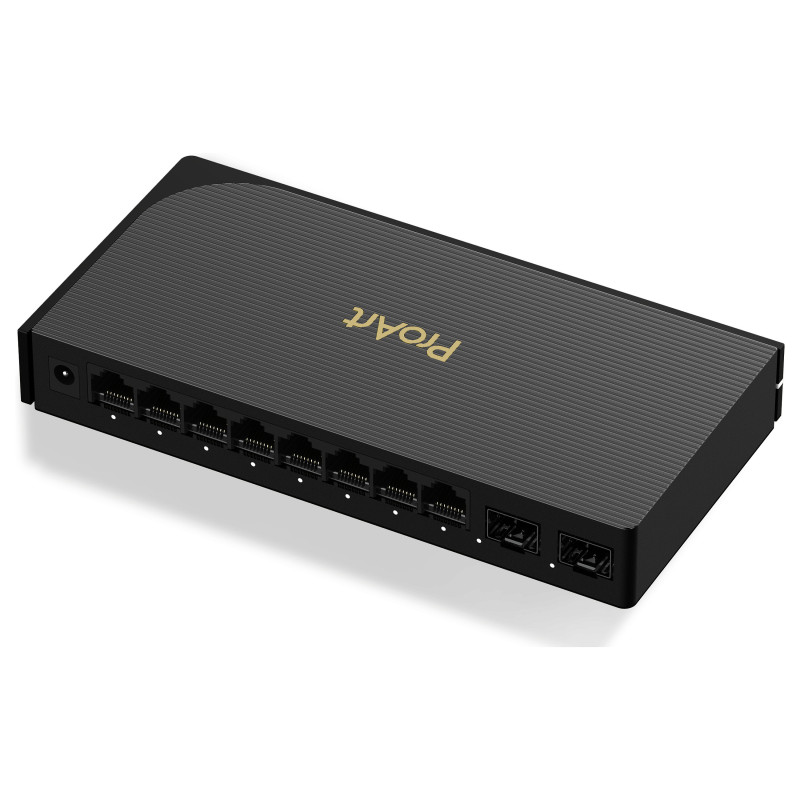

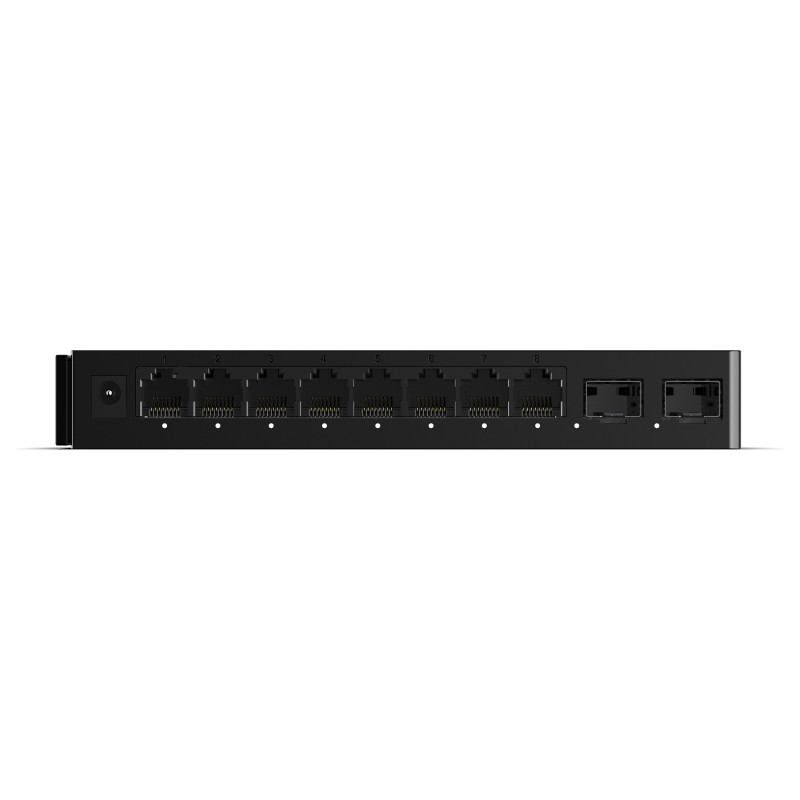

The ProArt Switch PQG-U1080 features eight 2.5G RJ45 ports and two 10G SFP+ ports to deliver high-speed wired expansion for creator studios, enabling stable connections, large file transfers, backup workflows and multi-device collaboration for network-attached storage (NAS), workstations, and other devices. Plug-and-play setup and versatile mounting options make it easy to integrate into clean, modern workspaces.

Management features

Switch type: Unmanaged

Ports & interfaces

Basic switching RJ-45 Ethernet ports quantity: 8
Basic switching RJ-45 Ethernet ports type: 2.5G Ethernet (100/1000/2500)
SFP+ module slots quantity: 2

Network

Networking standards: IEEE 802.3ab, IEEE 802.3bz, IEEE 802.3u, IEEE 802.3x, IEEE 802.3az
Feature: 10G support
Copper ethernet cabling technology: 100BASE-TX, 1000BASE-T, 2500BASE-T
Cable types supported: Cat5e
Feature: Flow control support

Data transmission

Forwarding rate: 59.52 Mpps
MAC address table: 16000 entries
Feature: Jumbo frames support
Jumbo frames: 10000
Packet buffer memory: 8 MB

Design

Product colour: Black

Power

Power source: DC
Feature: Power supply included
DC input voltage: 12 V
Input current: 1 A

Operational conditions

Operating temperature (T-T): 0 - 40 °C
Storage temperature (T-T): -40 - 70 °C
Operating relative humidity (H-H): 10 - 90%
Storage relative humidity (H-H): 5 - 90%

Weight & dimensions

Width: 180 mm
Depth: 89.5 mm
Height: 26 mm
Weight: 260 g

Packaging content

Feature: Quick start guide

Packaging data

Package type: Box
Package width: 215 mm
Package depth: 125 mm
Package height: 110 mm
Package weight: 760 g
