„StarTech.com“ USB32000SPT tinklo plokštė

StarTech.com USB 3.0 to Dual Port Gigabit Ethernet Adapter w/ USB Port, 10/100/1000 Mbps, USB Gigabit LAN Network NIC Adapter. Connectivity technology: Wired, Host interface: USB, Interface: Ethernet. Maximum data transfer rate: 5000 Mbit/s. USB powered. Product colour: Black

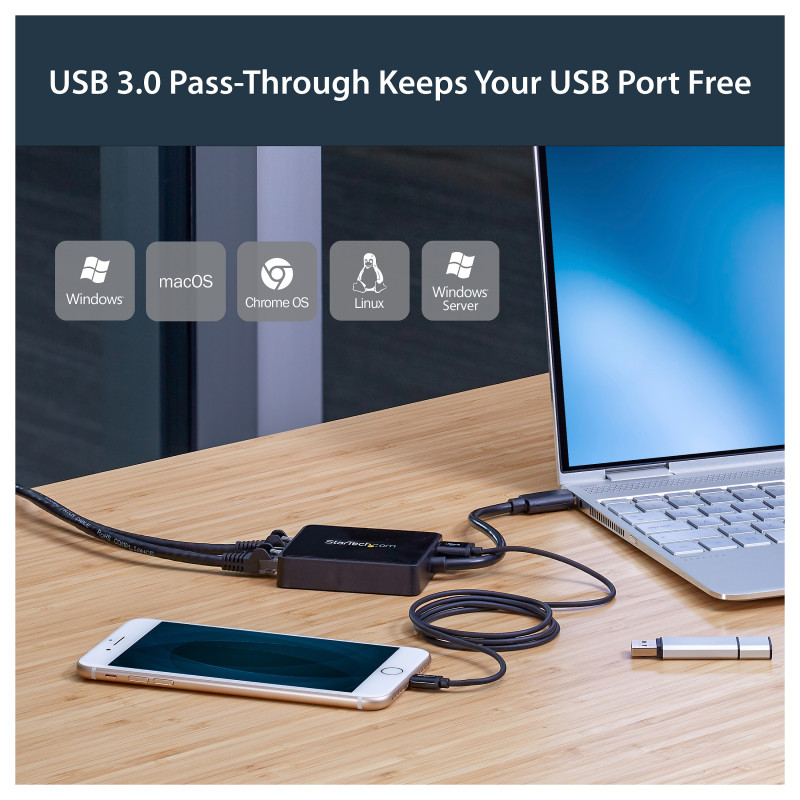

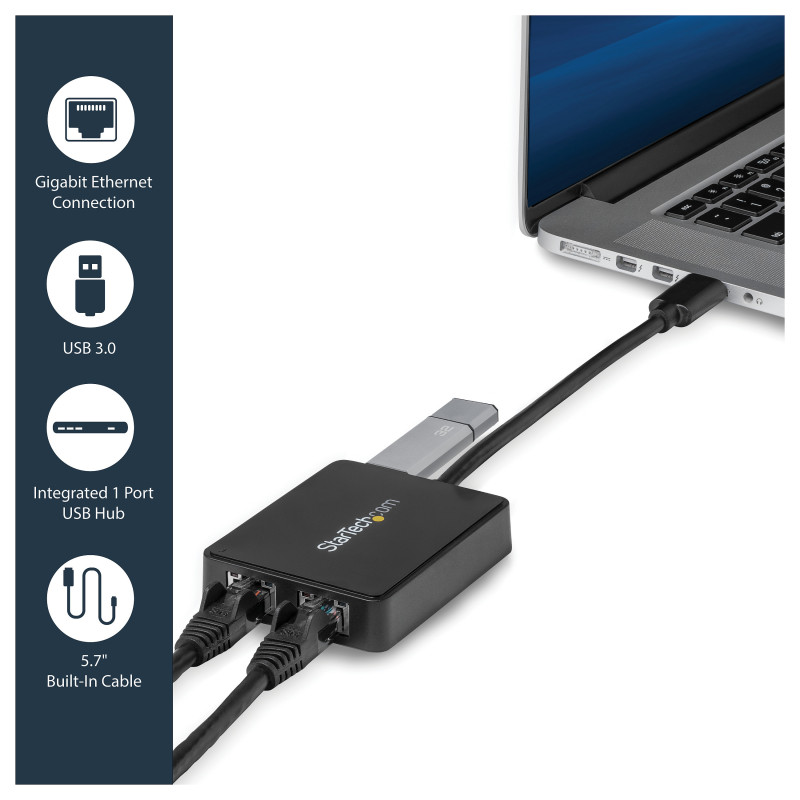

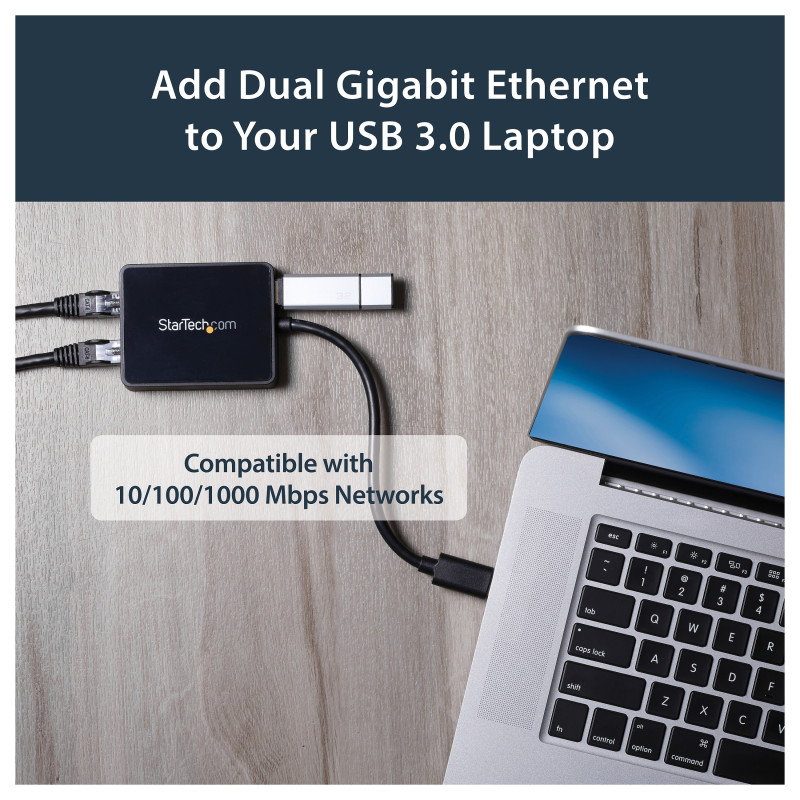

Add two Gigabit Ethernet ports and a USB 3.0 pass-through port to your laptop through a single USB 3.0 port

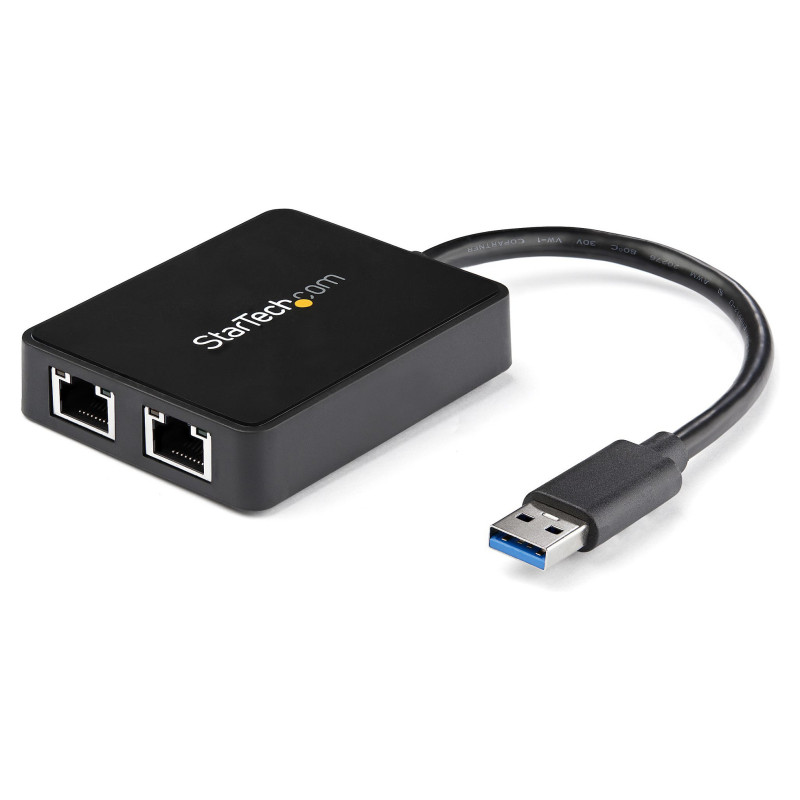

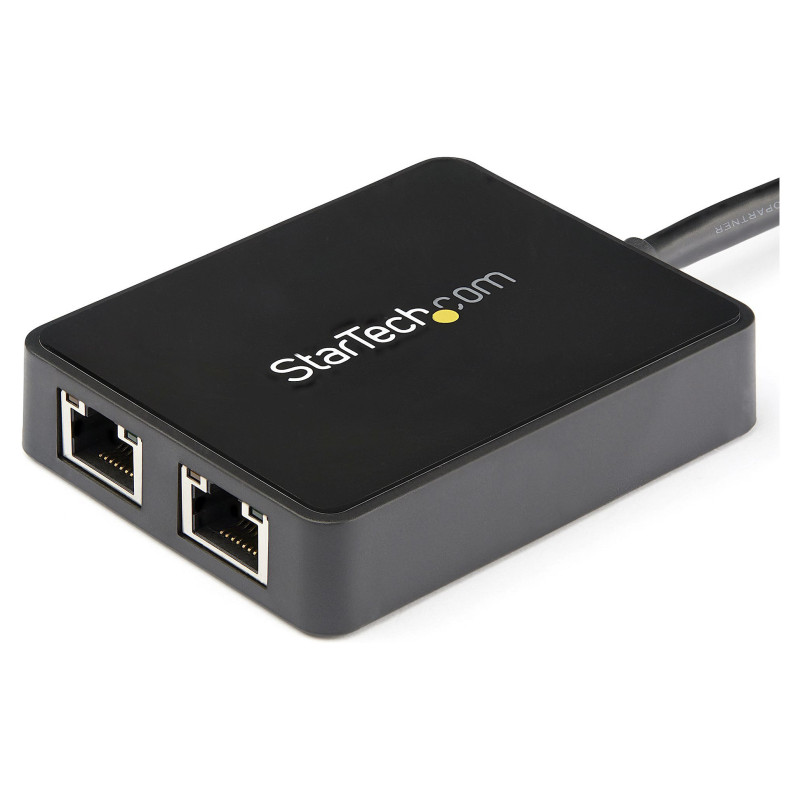

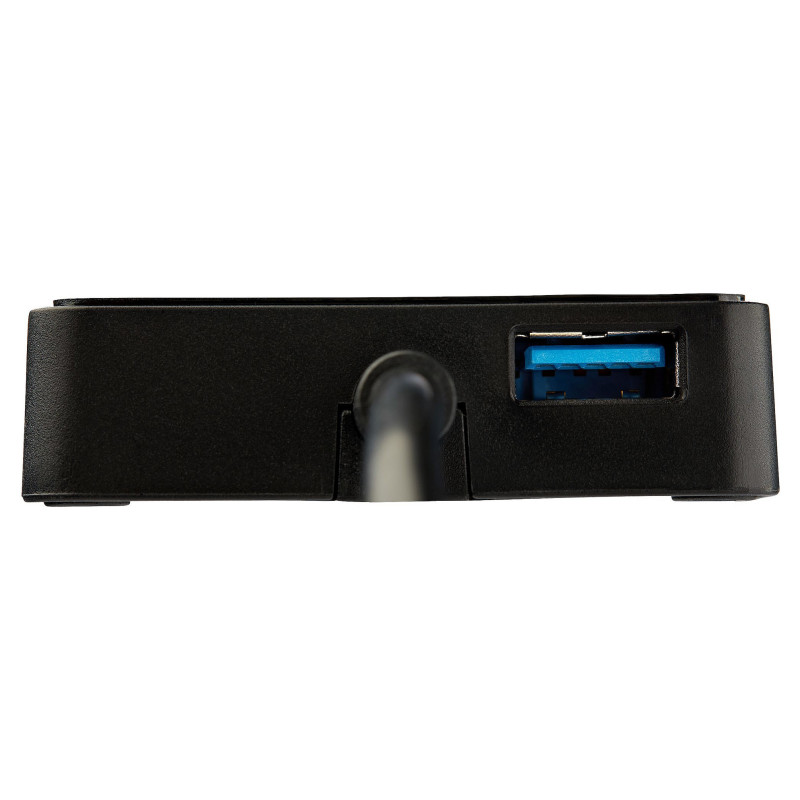

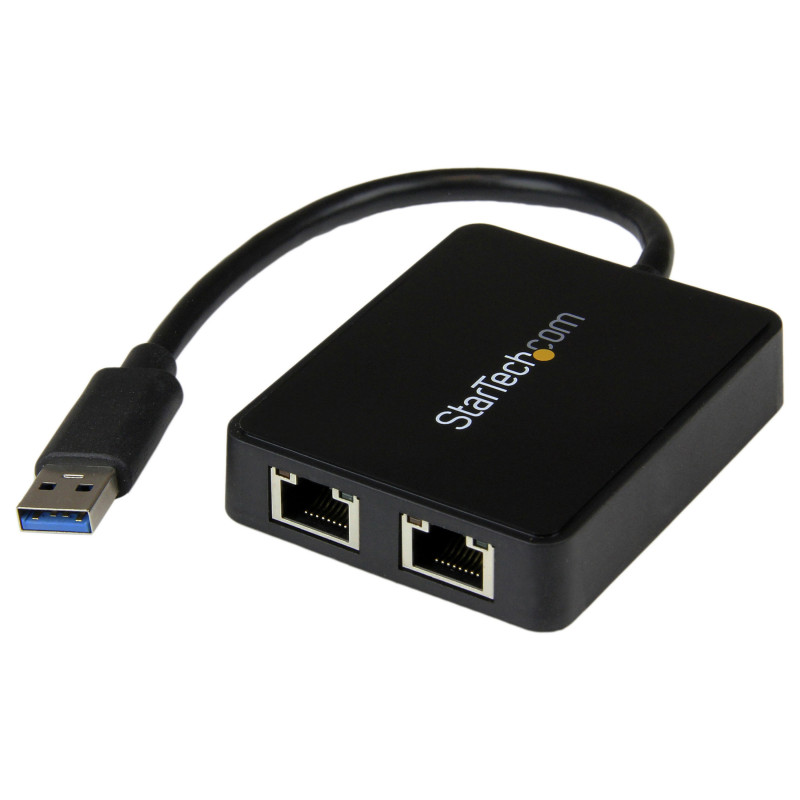

The USB32000SPT USB 3.0 to Dual Port Gigabit Ethernet Adapter lets you add two Gigabit Ethernet ports to your laptop or Ultrabook™ computer through a single USB 3.0 port, and features an integrated USB 3.0 pass-through port that keeps your USB port available for use with external storage or other peripherals. Each RJ45 port supports 10/100/1000 Mbps Ethernet and is fully compatible with IEEE 802.3i/u/ab standards.

This 2-port USB LAN adapter is a versatile solution for connecting to two separate physical networks simultaneously, leveraging the 5 Gbps speed of USB 3.0 to provide dedicated gigabit bandwidth to each port. The dual USB NIC is also ideal for providing dedicated physical network interfaces to virtual machine configurations. Great for IT administrators that require dual-homed or multi-homed host systems.

The USB 3.0 NIC supports IPv4/IPv6 packet Checksum Offload Engine (COE) and TCP large send offload to reduce the load on your CPU, as well as Jumbo Frames, full-duplex operation with 802.3x flow control, and VLAN tagging for an efficient and full-featured USB network adapter.

Ports & interfaces

Connectivity technology: Wired

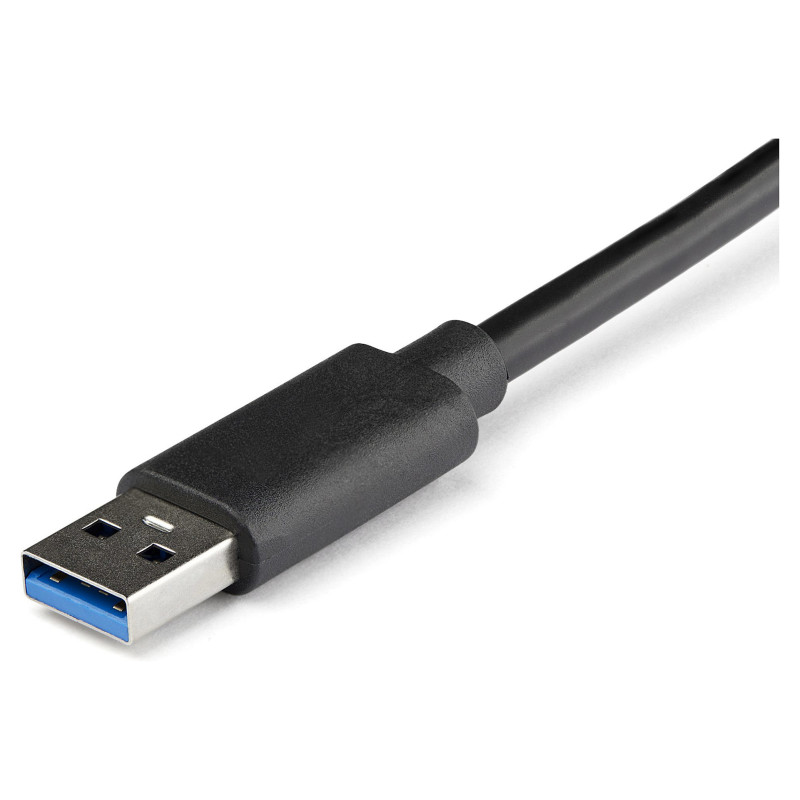

Host interface: USB
Interface: Ethernet

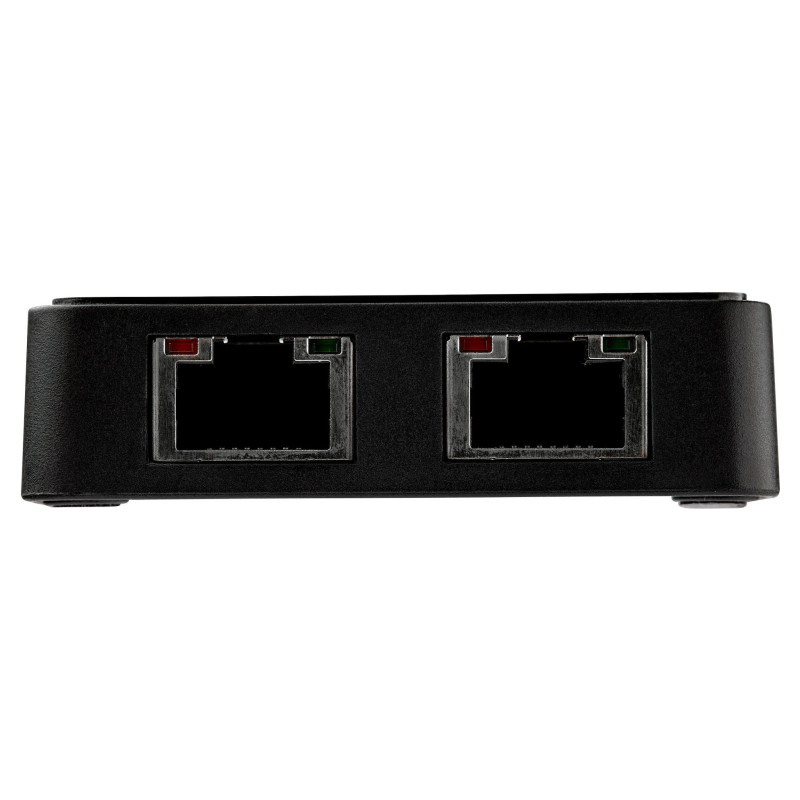

Ethernet LAN (RJ-45) ports: 2
USB ports quantity: 1
USB version: 3.2 Gen 1 (3.1 Gen 1)

Network

Maximum data transfer rate: 5000 Mbit/s
Networking standards: IEEE 802.1Q, IEEE 802.3ab, IEEE 802.3az, IEEE 802.3i, IEEE 802.3u
Feature: Ethernet LAN
Ethernet interface type: Gigabit Ethernet
Ethernet LAN data rates: 10,100,1000 Mbit/s
Cabling technology: 10/100/1000BaseT(X)
Feature: Auto MDIX IEEE
Feature: Jumbo frames support
Jumbo frames: 4000
Feature: VLAN tagging
Maximum operating distance: 100 m

Design

Component for: PC/Laptop
Product colour: Black
Chipset: ASIX - AX88179, VIA/VLI - VL811
LED indicators: Yes
Certification: RoHS, CE, FC

Power

Feature: USB powered

System requirements

Compatible operating systems: - Windows 8 (32/64bit), 7 (32/64), Vista(32/64), XP(32/64)- Windows Server 2008 R2, 2003(32/64)- Mac OS 10.6 - 10.8- Linux Kernel 2.6.14 - 3.5.0
Linux operating systems supported: Yes
Server operating systems supported: Windows Server 2003, Windows Server 2008 R2, Windows Server 2012, Windows Server 2012 R2, Windows Server 2016, Windows Server 2019

Operational conditions

Operating temperature (T-T): 0 - 50 °C
Storage temperature (T-T): -20 - 60 °C
Operating relative humidity (H-H): 5 - 95%

Sustainability

Feature: Sustainability compliance

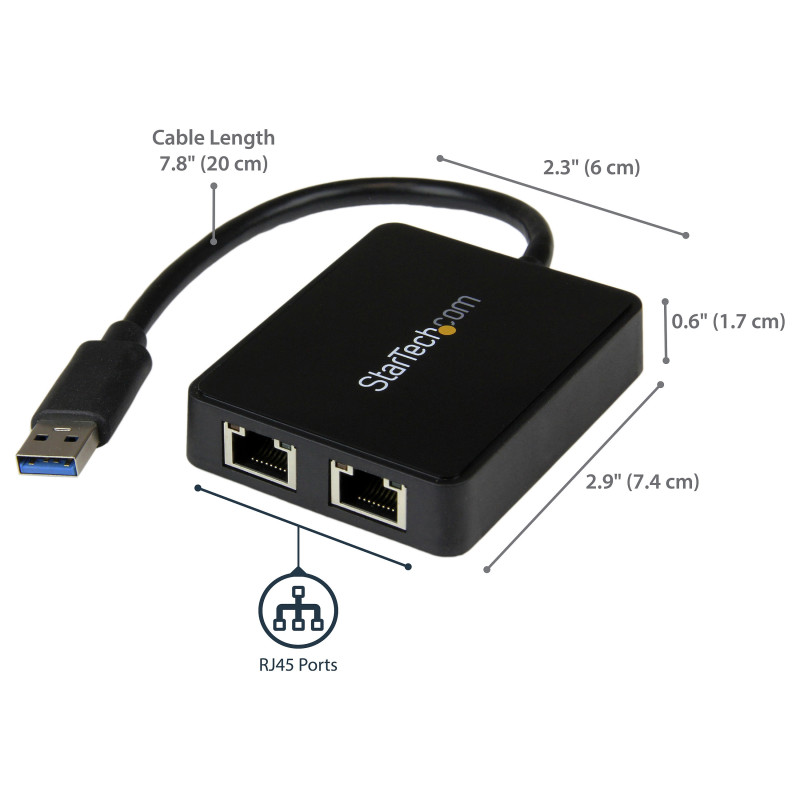

Weight & dimensions

Width: 60 mm
Depth: 75 mm
Height: 16 mm
Weight: 59 g

Packaging data

Feature: Drivers included
Package width: 143 mm
Package depth: 171 mm
Package height: 30 mm
Package weight: 154 g

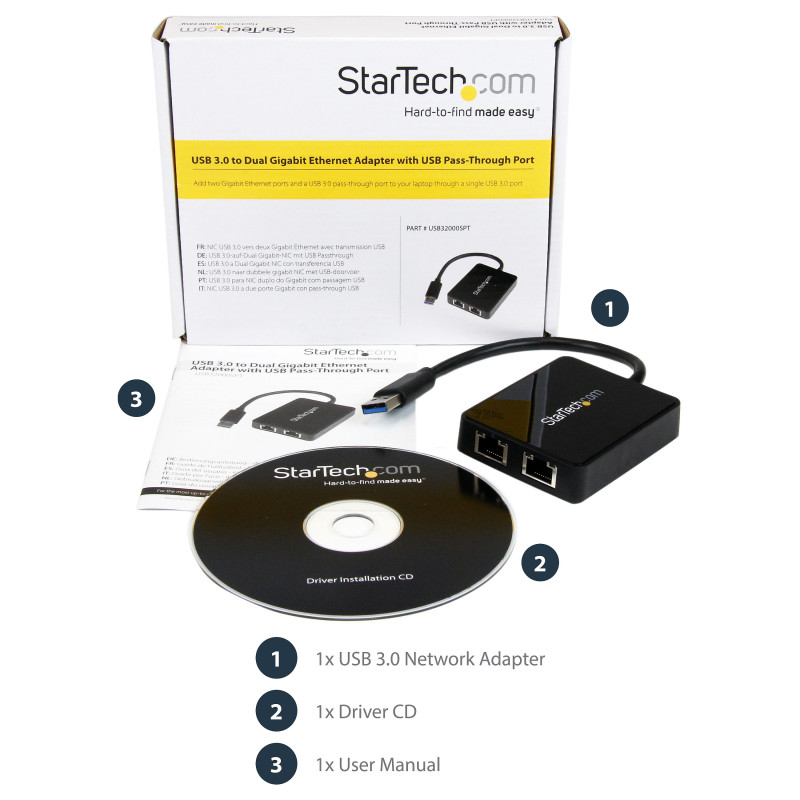

Packaging content

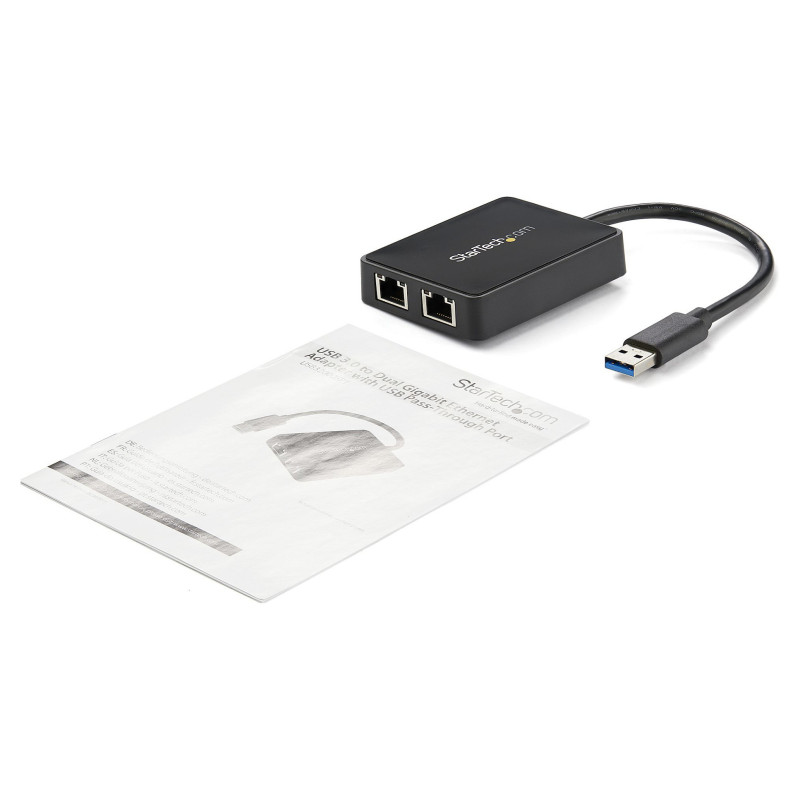

Feature: Manual

Technical details

Compliance certificates: CE, RoHS

Logistics data

Harmonized System (HS) code: 85176990
Master (outer) case width: 306 mm
Master (outer) case length: 586 mm
Master (outer) case height: 362 mm
Products per master (outer) case: 80 pc(s)

Other features

Housing material: Plastic
Cable length: 0.203 m
