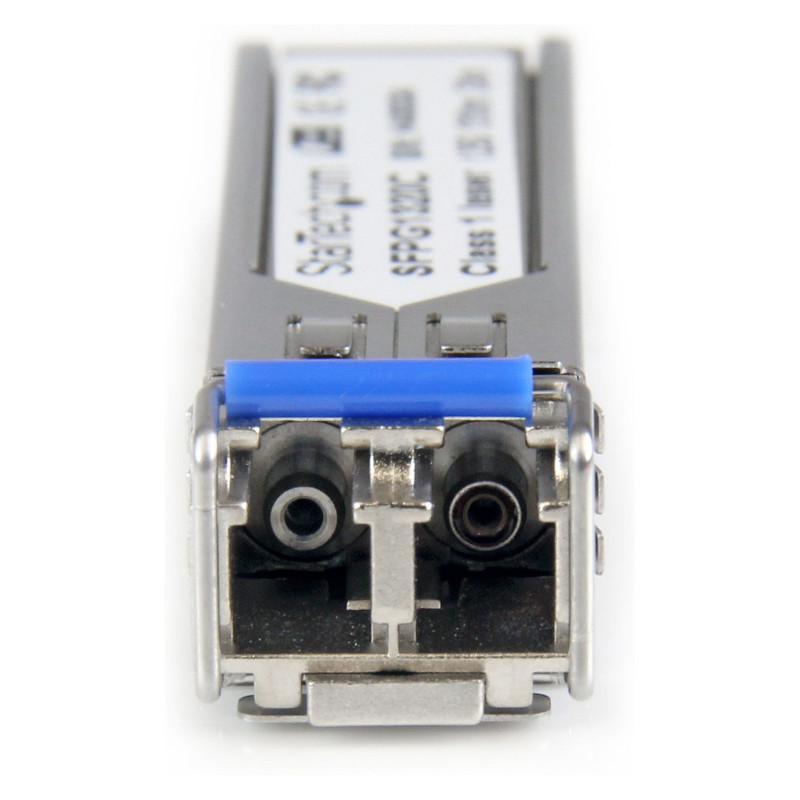

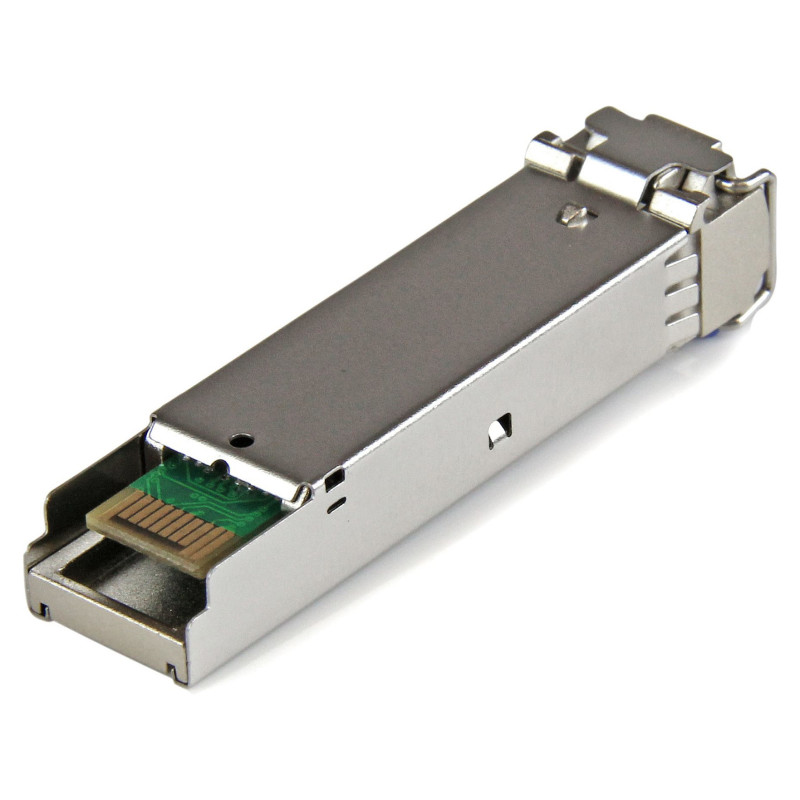

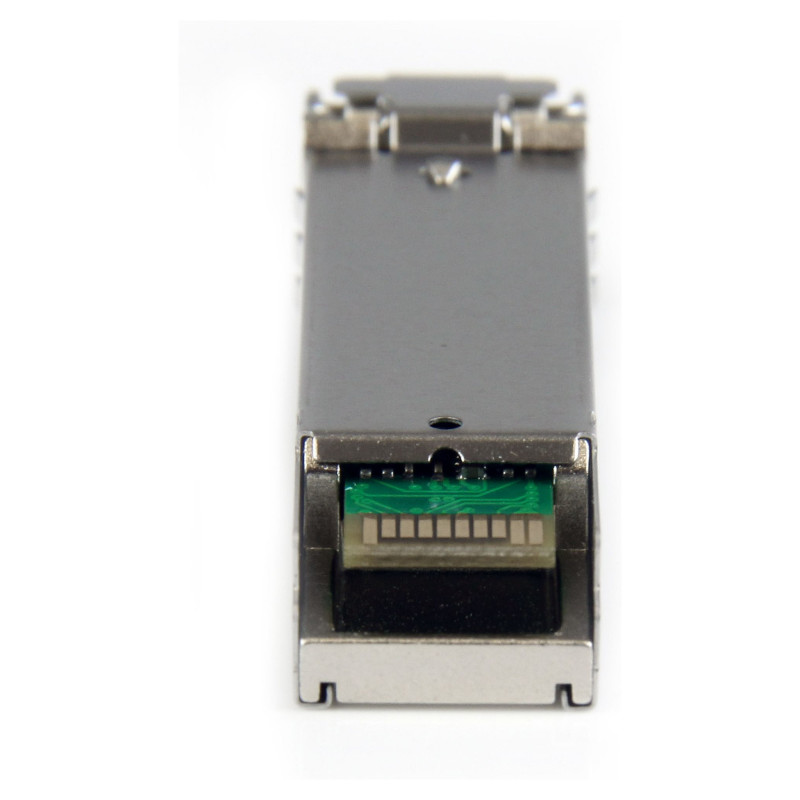

StarTech.com SFPG1320C tinklo siųstuvo-imtuvo modulis

StarTech.com Cisco GLC-LH-SMD Compatible SFP Module - 1000BASE-LH - 1GbE Single Mode Fiber SMF Optic Transceiver - 1GE Gigabit Ethernet SFP - LC 20km - 1310nm - DDM Cisco Firepower, IE2000, IE4000. SFP transceiver type: Fiber optic, Maximum data transfer rate: 1250 Mbit/s, Interface type: SFP. Product colour: Silver, Mean time between failures (MTBF): 2722277 h, Brand compatibility: Cisco. Power consumption (typical): 1 W. Compliance certificates: RoHS, Certification: CE, FCC, UL, REACH. Width: 12 mm, Depth: 60 mm, Height: 10 mm

1000 Mbps (1 Gbps) | Single Mode Fiber | LC | 20 km (12.4 mi) | Lifetime Warranty

The SFPG1320C is a Cisco GLC-LH-SMD compatible fiber transceiver module that has been designed, programmed and tested to work with Cisco® brand switches and routers. It delivers dependable 1 GbE connectivity over fiber cable, for 1000BASE-LH compliant networks, with a maximum distance of up to 20 km (12.4 mi).

Technical Specifications:

• Wavelength: 1310nm
• Maximum Data Transfer Rate: 1.25 Gbps
• Type: Single Mode Fiber
• Connection Type: LC Connector
• Maximum Transfer Distance: 20 km (12.4 mi)
• MTBF: 2,722,277 hours
• Power Consumption: Less than 1 Watt
• Digital Diagnostics Monitoring (DDM): Yes

This SFP fiber module is hot-swappable, making upgrades and replacements seamless by minimizing network disruptions.

StarTech.com SFPs

All StarTech.com SFP & SFP+ transceiver modules are backed by a lifetime warranty and free lifetime multilingual technical support. StarTech.com offers a wide variety of SFP modules and direct-attach SFP cables, providing the convenience and reliability you need to ensure dependable network performance.

Performance

SFP transceiver type: Fiber optic
Maximum data transfer rate: 1250 Mbit/s
Interface type: SFP
Feature: Single-mode fiber (SMF) supported
Fiber optic connector: LC
SFP transceiver standard: LH
Maximum transfer distance: 20000 m
Wavelength: 1310 nm
Networking standards: IEEE 802.3z
Duplex system: Full, Half
Feature: Digital Diagnostics Monitoring (DDM)

Features

Product colour: Silver
Feature: Hot-swap
Mean time between failures (MTBF): 2722277 h
Brand compatibility: Cisco
Compatible products: GLC-LH-SMD

Power

Power consumption (typical): 1 W

Certificates

Compliance certificates: RoHS
Certification: CE, FCC, UL, REACH

Operational conditions

Operating temperature (T-T): 0 - 70 °C
Storage temperature (T-T): -40 - 85 °C
Operating relative humidity (H-H): 30 - 70%

Weight & dimensions

Width: 12 mm
Depth: 60 mm
Height: 10 mm
Weight: 20 g

Packaging content

Quantity per pack: 1 pc(s)

Packaging data

Package width: 91 mm
Package depth: 113 mm
Package height: 33 mm
Package weight: 48 g

Logistics data

Master (outer) case width: 254 mm
Master (outer) case length: 302 mm
Harmonized System (HS) code: 85369010
Master (outer) case height: 201 mm
Products per master (outer) case: 36 pc(s)
