„StarTech.com“ PEX8S1050 sąsajos plokštės / adapteris

StarTech.com 8-Port PCI Express RS232 Serial Adapter Card, PCIe RS232 Serial Card, 16C1050 UART, Multiport Serial DB9 Controller/Expansion Card, 15kV ESD Protection, Windows Only - TAA. Host interface: PCIe, Output interface: Serial, Serial interface type: RS-232. Product colour: Yellow, Maximum cable length: 0.5 m, Mean time between failures (MTBF): 160013 h. Chipset: ASMedia - ASM1083, System Base - SB16C1058PCI, Baud rate: 921.6 Kbit/s, FIFO (First In, First Out): 256 B. Windows operating systems supported: Windows 10, Windows 10 Education, Windows 10 Education x64, Windows 10 Enterprise, Windows 10..., Server operating systems supported: Windows Server 2003, Windows Server 2008 R2, Windows Server 2012, Windows Server 2016, Windows.... Width: 16 mm, Depth: 105 mm, Height: 120 mm

Add eight RS-232 capable DB9 Serial Ports to a desktop computer via PCIe x1 Expansion Card - Full Profile Serial Card

Add eight RS-232 DB9 serial ports to your desktop computer, through a PCIe expansion card slots. This PCI express serial card, with 8-port breakout cable, provides you with multiple ports to connect a wide variety of serial peripherals, at speeds of up to 921.4Kbps.

Connect your Peripherals with 8 Serial Ports

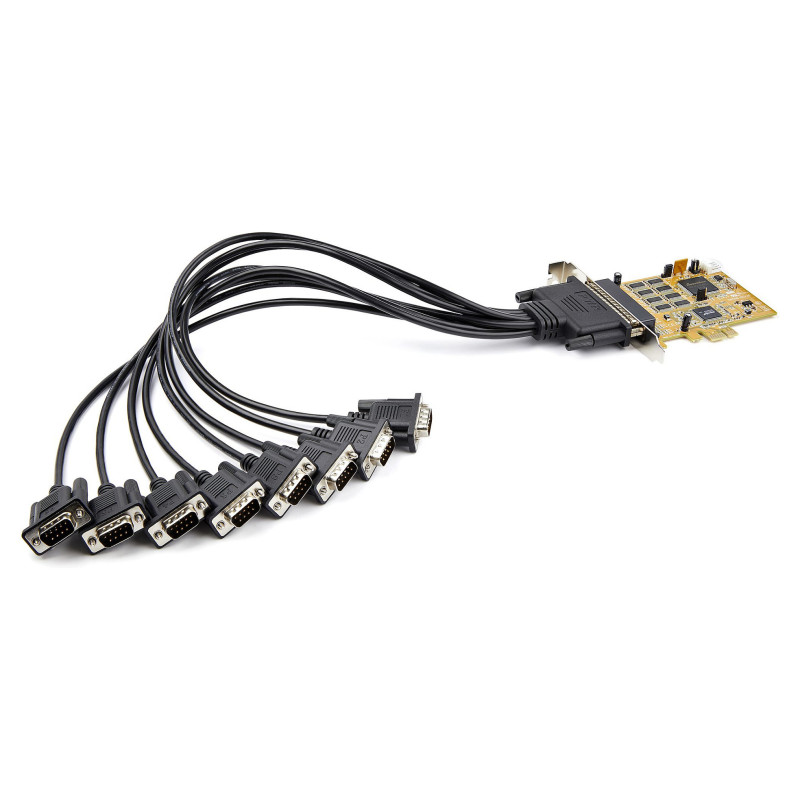

The PCI express serial port card makes it easy to add serial ports to connect your peripherals including printers, scanners, credit/debit card readers, PIN pads and modems, industrial controls and more. The 8 port PCIe serial card includes a breakout cable - with 8 DB9 connectors.

Windows Only

This PCI Express card is only compatible with Windows and Windows server.

Ports & interfaces

Host interface: PCIe
Output interface: Serial
Serial ports quantity: 8
Serial interface type: RS-232

Design

Feature: Internal
Product colour: Yellow
Maximum cable length: 0.5 m
Mean time between failures (MTBF): 160013 h

Features

Chipset: ASMedia - ASM1083, System Base - SB16C1058PCI
Baud rate: 921.6 Kbit/s
FIFO (First In, First Out): 256 B
Data bits: 5, 6, 7, 8
Stop bits: 1, 1.5, 2
Parity bit: Even, No, Odd
Flow Control type: RTS/CTS, XON/XOFF

Operational conditions

Operating temperature (T-T): 0 - 55 °C
Storage temperature (T-T): -40 - 75 °C
Operating relative humidity (H-H): 5 - 95%

System requirements

Linux operating systems supported: Yes
Server operating systems supported: Windows Server 2003, Windows Server 2008 R2, Windows Server 2012, Windows Server 2016, Windows Server 2019

Technical details

Compliance certificates: RoHS

Weight & dimensions

Width: 16 mm
Depth: 105 mm
Height: 120 mm
Weight: 74 g

Packaging data

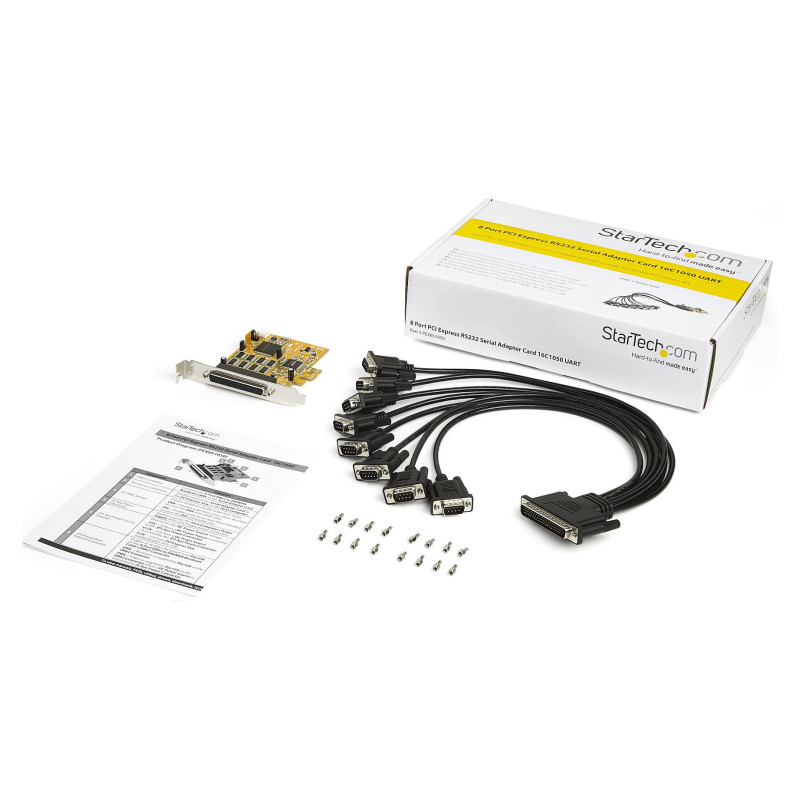

Cables included: Serial
Feature: Quick installation guide
Package width: 192 mm
Package depth: 294 mm
Package height: 70 mm
Package weight: 672 g

Logistics data

Harmonized System (HS) code: 84733020
Products per master (outer) case: 16 pc(s)
Master (outer) case width: 519 mm
Master (outer) case length: 404 mm
Master (outer) case height: 330 mm

Other features

Compliance industry standards: 16C1050 UART
