„StarTech.com“ PEX1S953LP sąsajos plokštės / adapteris

StarTech.com 1-port PCI Express RS232 Serial Adapter Card - PCIe RS232 Serial Host Controller Card - PCIe to Serial DB9 - 16950 UART - Low Profile Expansion Card - Windows & Linux - TAA. Host interface: PCIe, Output interface: Serial, Expansion card standard: PCIe 1.1. Product colour: Green, Mean time between failures (MTBF): 277385 h. Chipset: Asix AX99100, Baud rate: 921.4 Kbit/s, FIFO (First In, First Out): 256 B. Windows operating systems supported: Windows 10, Windows 10 Education, Windows 10 Education x64, Windows 10 Enterprise, Windows 10..., Server operating systems supported: Windows Server 2003, Windows Server 2008 R2, Windows Server 2012, Windows Server 2012 R2, Windows.... Width: 67 mm, Depth: 98 mm, Height: 150 mm

PCI Express to Serial Adapter | 921.4Kbps | Windows® and Linux® Compatible

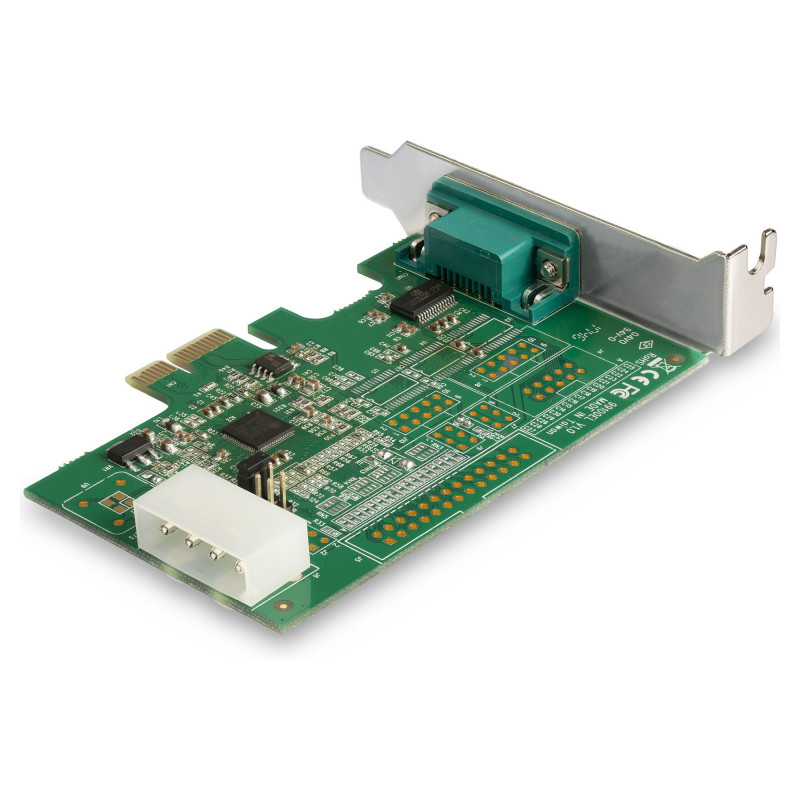

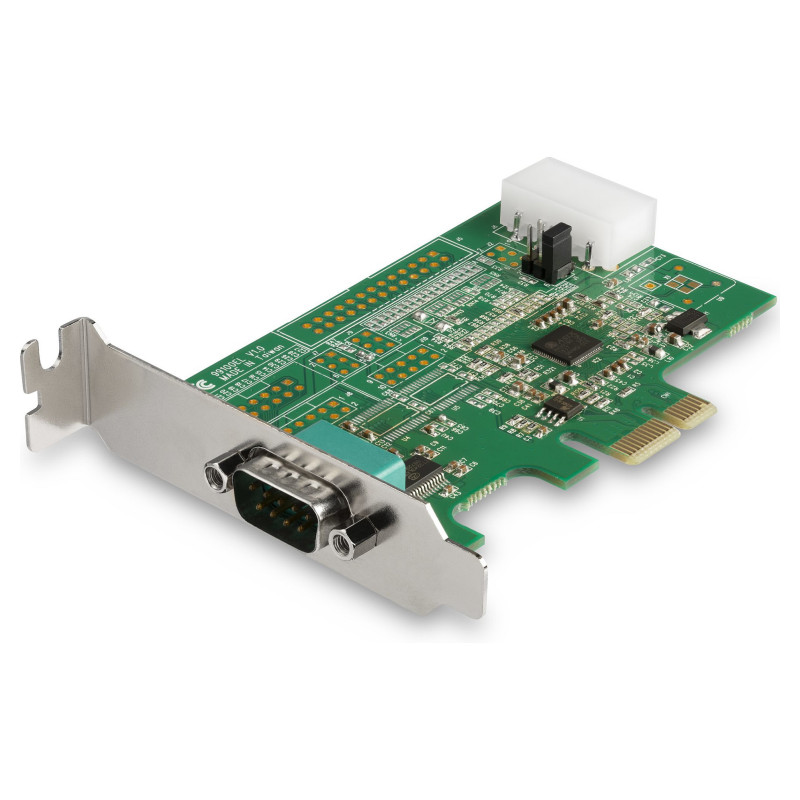

This RS232 Serial Adapter Card lets you add an RS232 DB9 serial port to your computer through a PCI Express (PCIe) slot. It enables you to interact with serial devices such as card readers, printers, PIN pads, and modems, at speeds of up-to 921.4Kbps.

Maximum Compatibility

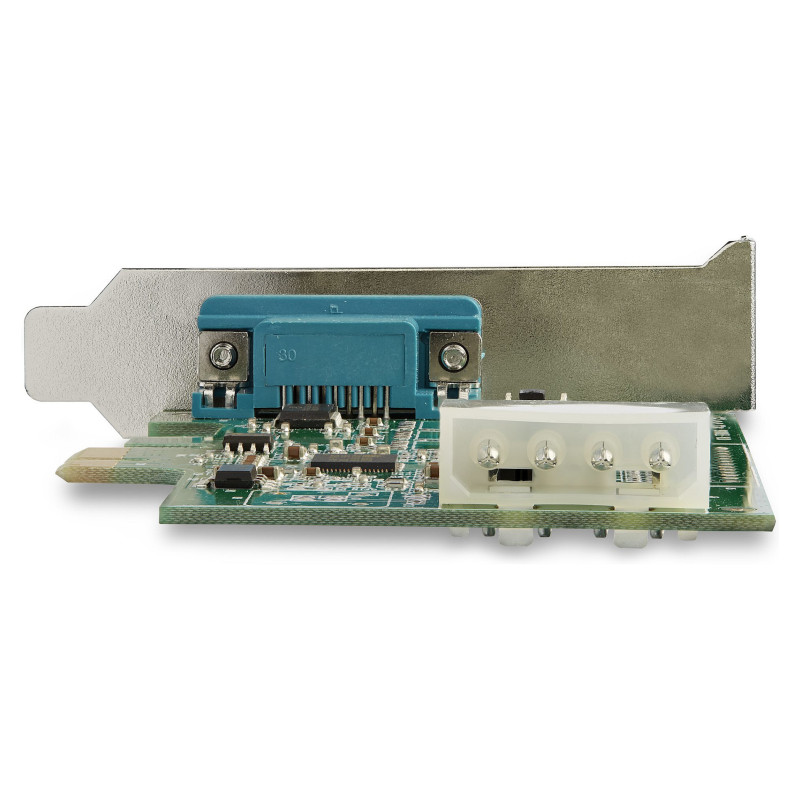

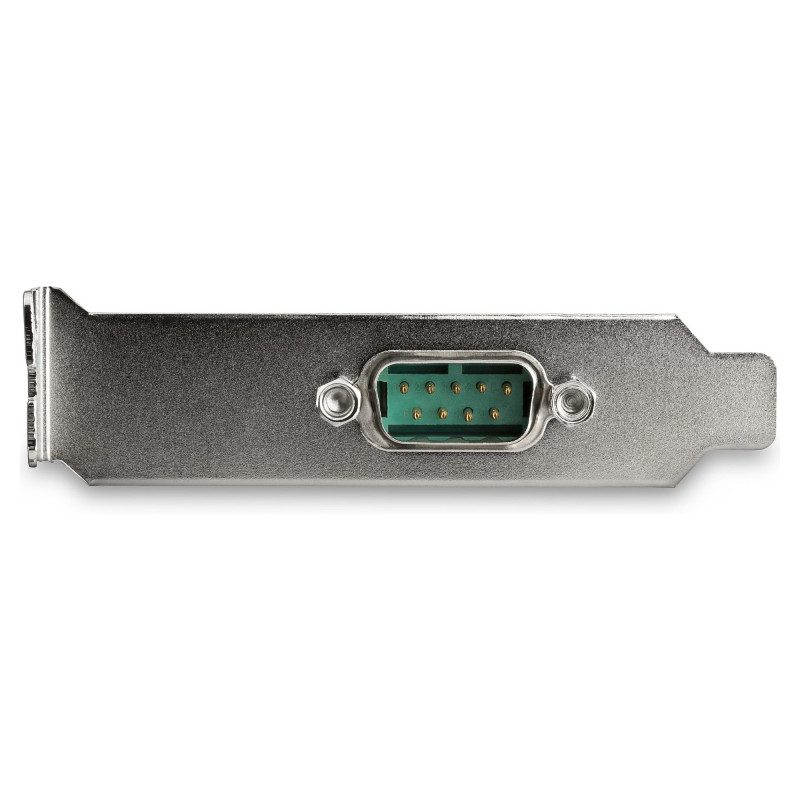

With broad OS support, including for Windows and Linux, this PCI Express card is easy to integrate into mixed environments. The card comes pre-configured with a low-profile bracket, and includes an optional full-profile bracket, so installation is easy regardless of the case form factor.

Experience Optimal Technology

This PCIe to serial adapter supports the following features:

• Compatible with industry standard 16950 UART
• Supports max baud rate of up-to 921.4Kbps
• Provides 5/12V power output on Pin 9 when external power is connected
• 128-byte depth FIFO per transmitter and receiver
• Supports 9, 8, 7, 6, 5 data bits

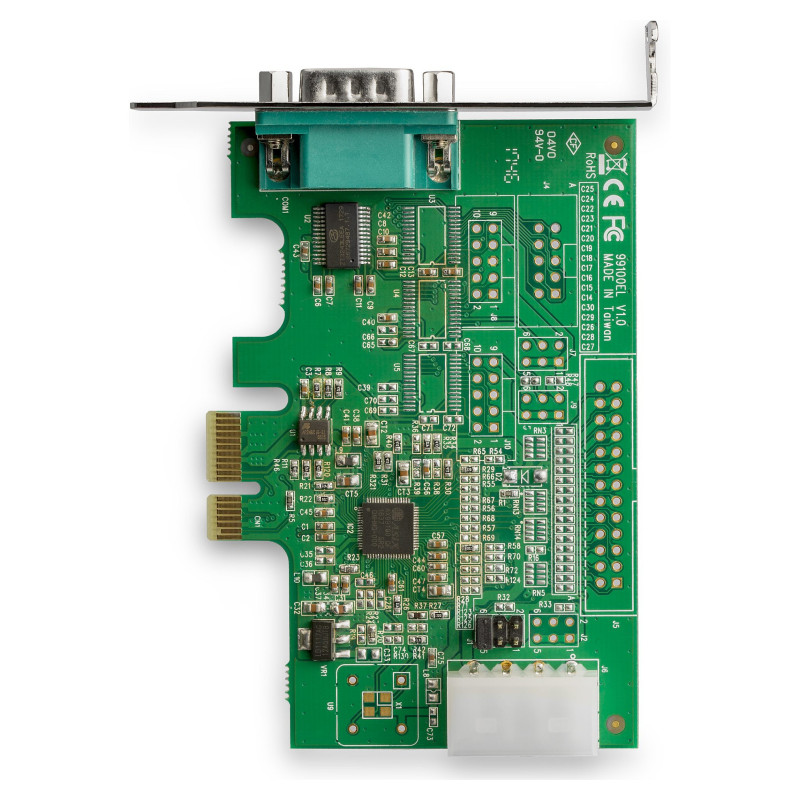

• Asix AX99100A chipset
• PCI Express 1.1 compliant

Ports & interfaces

Host interface: PCIe
Output interface: Serial
Expansion card standard: PCIe 1.1
Serial ports quantity: 1
Serial interface type: RS-232
Peripheral (Molex) power connectors (4-pin): 1

Design

Feature: Internal
Product colour: Green
Mean time between failures (MTBF): 277385 h

Features

Chipset: Asix AX99100
Baud rate: 921.4 Kbit/s
FIFO (First In, First Out): 256 B
Data bits: 5, 6, 7, 8, 9
Stop bits: 1, 1.5, 2
Feature: Flow control support
Parity bit: Even, Mark, No, Odd, Space
Flow Control type: No, RTS/CTS, XON/XOFF

Operational conditions

Operating temperature (T-T): 0 - 70 °C
Storage temperature (T-T): -20 - 80 °C
Operating relative humidity (H-H): 20 - 80%

System requirements

Linux operating systems supported: Yes
Server operating systems supported: Windows Server 2003, Windows Server 2008 R2, Windows Server 2012, Windows Server 2012 R2, Windows Server 2016

Technical details

Feature: Sustainability compliance
Compliance certificates: CE, RoHS

Weight & dimensions

Width: 67 mm
Depth: 98 mm
Height: 150 mm
Weight: 44 g

Packaging data

Quantity: 1

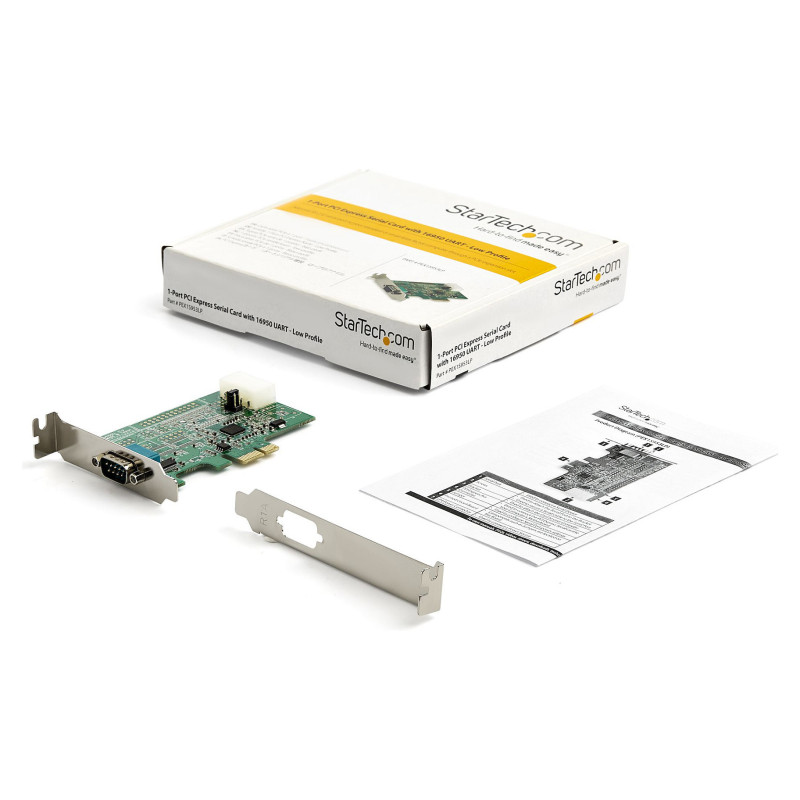

Feature: Mounting brackets included
Feature: Manual
Package width: 143 mm
Package depth: 174 mm
Package height: 33 mm
Package weight: 112 g

Logistics data

Harmonized System (HS) code: 84733020
Products per master (outer) case: 75 pc(s)
Master (outer) case width: 694 mm
Master (outer) case length: 358 mm
Master (outer) case height: 325 mm
