StarTech.com J8177C10PKST tinklo siųstuvo-imtuvo modulis

StarTech.com 10 pack HPE J8177C Compatible SFP Module - 1000BASE-T - SFP to RJ45 Cat6/Cat5e - 1GE Gigabit Ethernet SFP - RJ-45 100m - HPE 1810, 1820, 2530. SFP transceiver type: Copper, Maximum data transfer rate: 1000 Mbit/s, Interface type: SFP. Product colour: Silver, Housing material: Aluminium, Mean time between failures (MTBF): 4655371 h. Power consumption (typical): 1.3 W. Compliance certificates: RoHS, Certification: CE, FCC. Width: 13 mm, Depth: 67 mm, Height: 14 mm

1000 Mbps (1 Gbps) | Copper | RJ45 | 100 m (328 ft) | Lifetime Warranty

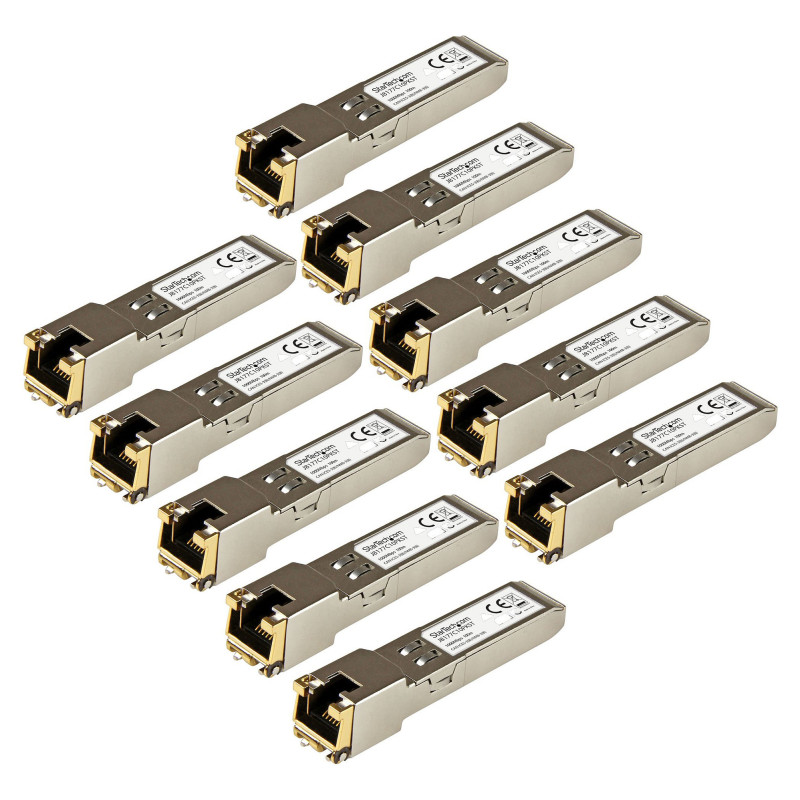

The J8177C10PKST is a ten-pack of our HPE J8177C compatible copper transceiver module that has been designed, programmed and tested to work with HPE® brand switches and routers. It delivers dependable 1 GbE connectivity over fiber cable, for 1000BASE-T compliant networks, with a maximum distance of up to 100 m (328 ft).

Technical Specifications:

• Maximum Data Transfer Rate: 1000 Mbps
• Type: Copper
• Connection Type: RJ45 Connector
• Maximum Transfer Distance: 100 m (328 ft)
• MTBF: 4,655,371 hours
• Power Consumption: Less than 1.3 Watts
• Digital Diagnostics Monitoring (DDM): No

This SFP copper module is hot-swappable, making upgrades and replacements seamless by minimizing network disruptions.

StarTech.com SFPs

All StarTech.com SFP & SFP+ transceiver modules are backed by a lifetime warranty and free lifetime multilingual technical support. StarTech.com offers a wide variety of SFP modules and direct-attach SFP cables, providing the convenience and reliability you need to ensure dependable network performance.

Performance

SFP transceiver type: Copper
Maximum data transfer rate: 1000 Mbit/s
Interface type: SFP
Fiber optic connector: MiniGBIC
Maximum transfer distance: 100 m
Networking standards: IEEE 802.3ab
Ethernet LAN (RJ-45) ports: 1
Feature: Auto MDI/MDI-X
Feature: Auto-negotiation

Features

Product colour: Silver
Housing material: Aluminium
Feature: Hot-swap
Mean time between failures (MTBF): 4655371 h

Power

Power consumption (typical): 1.3 W

Certificates

Compliance certificates: RoHS
Certification: CE, FCC

Operational conditions

Operating temperature (T-T): 0 - 70 °C
Storage temperature (T-T): -40 - 85 °C
Operating relative humidity (H-H): 30 - 75%

Weight & dimensions

Width: 13 mm
Depth: 67 mm
Height: 14 mm
Weight: 220 g

Packaging content

Quantity per pack: 10 pc(s)

Packaging data

Package width: 120 mm
Package depth: 202 mm
Package height: 35 mm
Package weight: 279 g

Logistics data

Master (outer) case width: 340 mm
Master (outer) case length: 420 mm
Harmonized System (HS) code: 85369010
Master (outer) case height: 340 mm
Products per master (outer) case: 45 pc(s)
Country of origin: China
