Snom PA1+

Snom PA1+. RMS rated power: 6.5 W, Impedance: 8 Ω, Audio formats supported: G.722, G.723, G.726, G.729, OPUS. Speaker type: 1-way, Amplifier: External. Type: Freestanding Public Address (PA) system, Product colour: Black, Mounting type: Wall. Connectivity technology: Wired. Power source type: AC, AC input voltage: 100-240 V, AC input frequency: 50-60 Hz

The extra versatile announcement and public announcement system
The Snom PA1+ is Snom's proven SIP announcement and public address system that has a few additional "tricks" up its sleeve.

The integrated 6.5-watt high-performance amplifier can already provide large rooms with HD audio announcements or background music on a 600-ohm loudspeaker system; more power can be achieved by connecting a PA system.

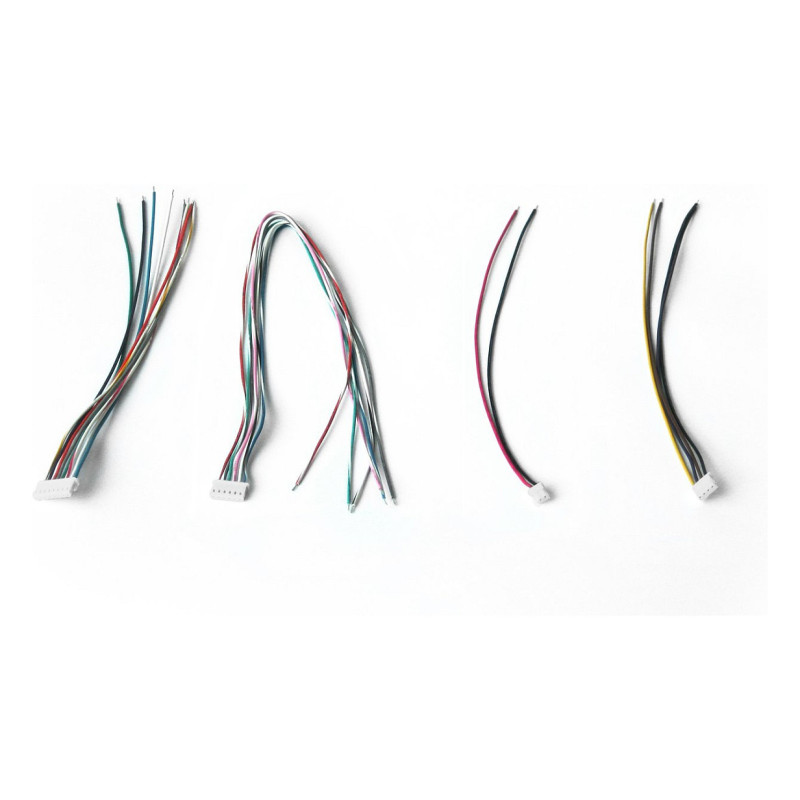

The Snom PA1+ is not only controllable from any Snom telephone or a central source, thanks to the supplied cable harnesses together with the freely configurable relay contacts that can be controlled via SIP or DTMF, a variety of devices can be activated by a current pulse, e.g. a garage door or an electric door latch. Security plays an increasingly important role, which is why the Snom PA1+ uses the ultimate standards, such as SHA2.

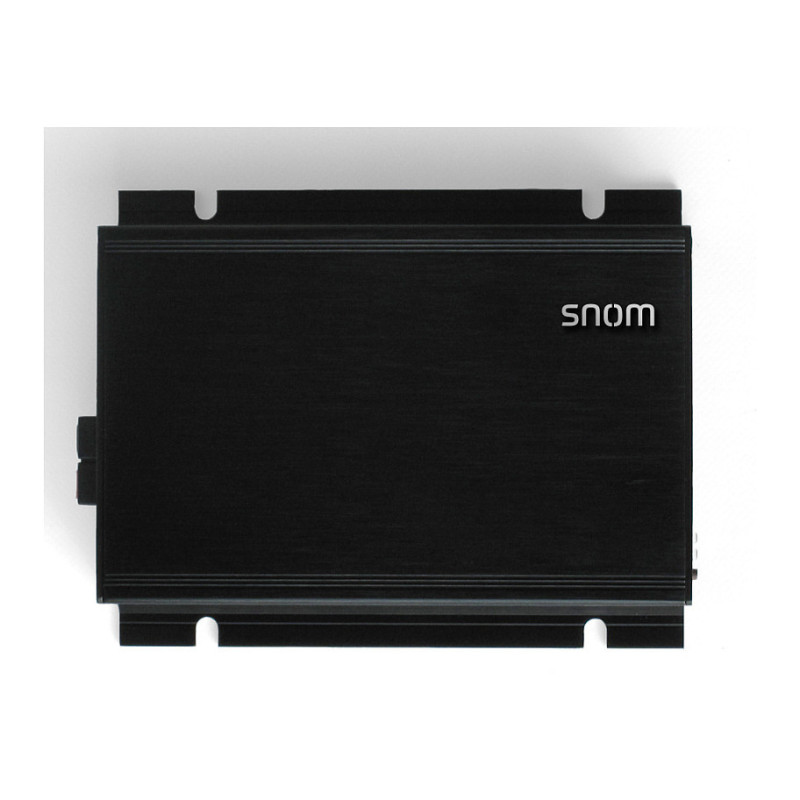

Wall mounting possible
Thanks to the notches, two at the top and two at the bottom, it is possible to mount the unit anywhere on a wall.

LED display
Detect from a distance whether the unit is ready for operation.

Audio

RMS rated power: 6.5 W
Impedance: 8 Ω
Audio formats supported: G.722, G.723, G.726, G.729, OPUS

Loudspeakers

Speaker type: 1-way
Number of speakers: 1
Amplifier: External

Design

Type: Freestanding Public Address (PA) system
Product colour: Black
Mounting type: Wall
Feature: Display included
Display type: LED
LED indicators: Call, Status, Power
Operating temperature (T-T): 0 - 35 °C
Storage temperature (T-T): -10 - 45 °C
Operating relative humidity (H-H): 5 - 95%

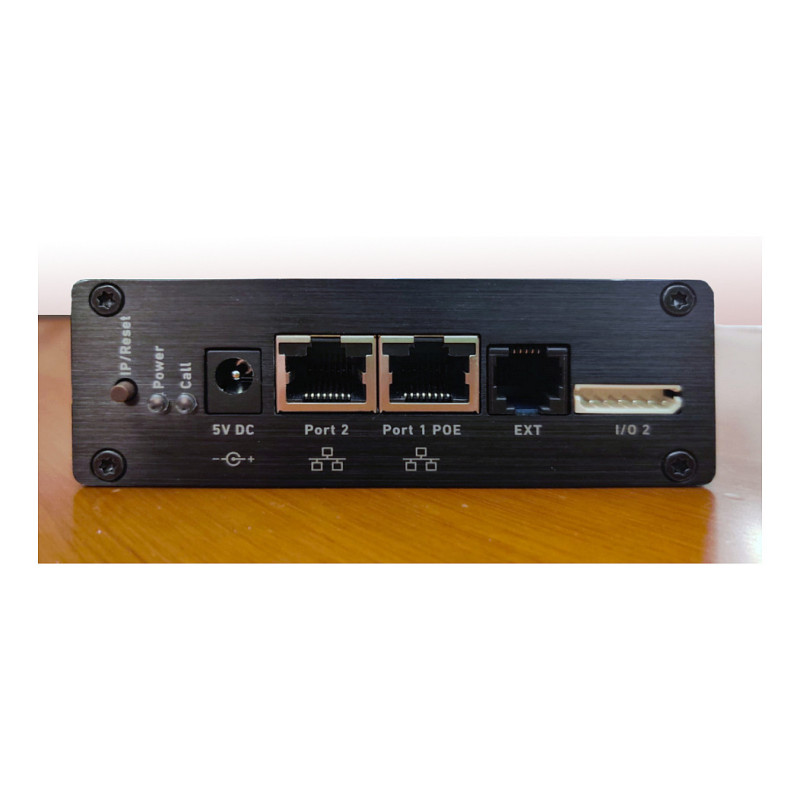

Ports & interfaces

Connectivity technology: Wired
Ethernet LAN (RJ-45) ports: 2
Feature: DC-in jack

Power

Power source type: AC
AC input voltage: 100-240 V
AC input frequency: 50-60 Hz
Power consumption (max): 10 W
Battery voltage: 5 V

Weight & dimensions

Width: 104 mm
Depth: 175 mm
Height: 35 mm
Weight: 400 g
