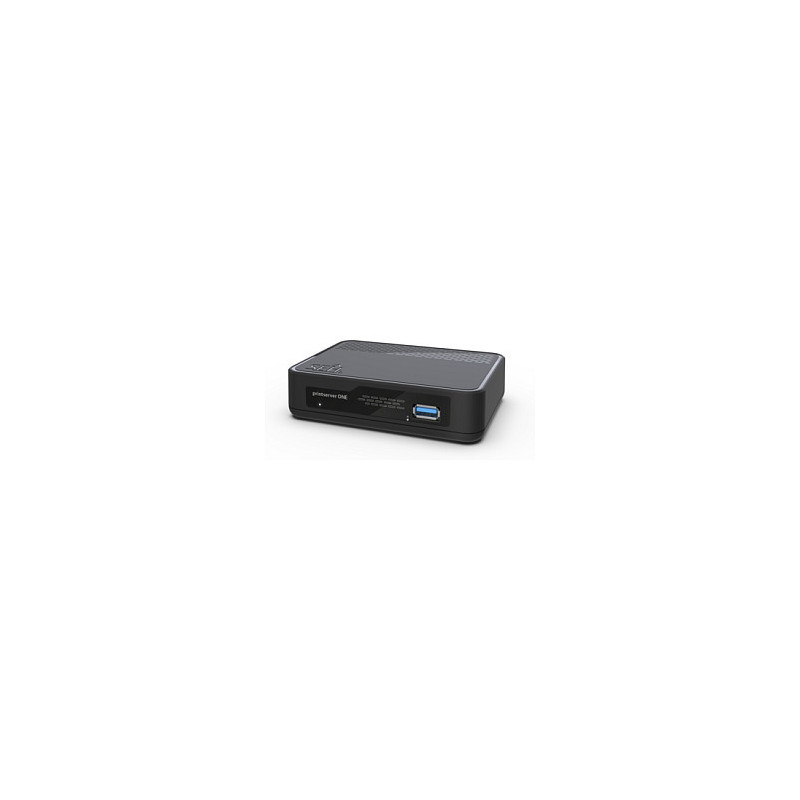

SEH spausdinimo serveris Vienas spausdinimo serveris

SEH printserver One. Product colour: Black. Network connection type: Ethernet LAN, Networking standards: IEEE 802.3, IEEE 802.3ab, IEEE 802.3u, Ethernet LAN data rates: 10,100,1000 Mbit/s. Supported network protocols: BOOTP, DHCP. Power consumption (typical): 2.5 W, Input current: 1.4 A, AC adapter output voltage: 5 V. Server operating systems supported: Windows Server 2012 R2, Windows Server 2012 R2 x64, Windows Server 2012 x64, Windows Server 2013,...

Flexible
Equip printing systems with a 2nd network interface

In some network configurations it may be necessary to operate more than one network interface on a printer. A network printer usually has an interface and an additional USB port. This is where the printserver ONE comes into play - simply connect it to the USB interface and the second interface is available.

The present application case shows printer access from several computers to one printer.

SECURE against attacks from the Internet: Computers in a network that do not have an Internet connection.

UNSAFE against attacks from the Internet: Computer has access to the Internet via the connected network.

With the printserver ONE it is possible in this case to use the printer safely from both sides!

For all printing systems:

Inkjet printers, laser printers, label printers, large format printers, plotters, dot matrix printers, barcode printers, multifunction devices, digital copiers and many more!
and secure usage of printing systems in any work environment

Features

Product colour: Black
LED indicators: Yes
Number of simultaneous printers: 1
Feature: IPP support
Feature: Reset button
Feature: Firmware upgradeable
Feature: DHCP client

Network

Network connection type: Ethernet LAN
Networking standards: IEEE 802.3, IEEE 802.3ab, IEEE 802.3u
Ethernet LAN data rates: 10,100,1000 Mbit/s
Security algorithms: 802.1x RADIUS, EAP-FAST, EAP-MD5, EAP-TLS, EAP-TTLS, HTTPS, IPSec, PEAP, TLS
Copper ethernet cabling technology: 10BASE-T, 100BASE-TX, 1000BASE-T

Protocols

Supported network protocols: BOOTP, DHCP

Ports & interfaces

Ethernet LAN (RJ-45) ports: 1
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity: 1

Power

Power consumption (typical): 2.5 W
Input current: 1.4 A
AC adapter output voltage: 5 V

Software

Windows operating systems supported: Yes
Mac operating systems supported: Yes
Server operating systems supported: Windows Server 2012 R2, Windows Server 2012 R2 x64, Windows Server 2012 x64, Windows Server 2013, Windows Server 2016 x64, Windows Server 2019

Certificates

Certification: FCC

Weight & dimensions

Width: 120 mm
Depth: 84 mm
Height: 29 mm
Weight: 116 g

Packaging data

Quantity per pack: 1 pc(s)

Packaging content

Feature: External power adapter

Operational conditions

Operating temperature (T-T): 5 - 40 °C
Operating relative humidity (H-H): 20 - 80%
