Reolink NVS36

Reolink NVS36 - 36-Channel PoE NVR with 48TB Storage Capacity, Support Up to 16MP Cam, 2-Way Audio via NVR. Video input channels: 36 channels, Maximum resolution: 3840 x 2160 pixels, Number of simultaneously playbacked channels: 4 channels. Maximum storage capacity: 48 TB, HDD interface: SATA. Ethernet LAN data rates: 10,100,1000 Mbit/s, Supported network protocols: HTTPS, TCP/IP, UDP, DHCP, P2P, UPNP, RTMP, SMTP, SSL/TLS, DNS, DDNS, NTP. Product colour: Black. Power consumption (typical): 10 W, Output current: 5.4 A, Output voltage: 20 V

Get top-tier whole-house security solutions with this 36-channel NVR. Boasting 48TB storage capacity, it ensures your 24/7 footage is securely stored locally. Feel free to add high-definition cameras with resolutions up to 16MP, capturing every detail. This NVR also allows two-way audio communication. The PoE connection enables easy and flexible setup without cluttered cables. Moreover, multi-channel management makes monitoring multiple areas effortless.

36 Channels at 16MP
Supports up to 36 channels of IPC access; each channel up to 16MP input.

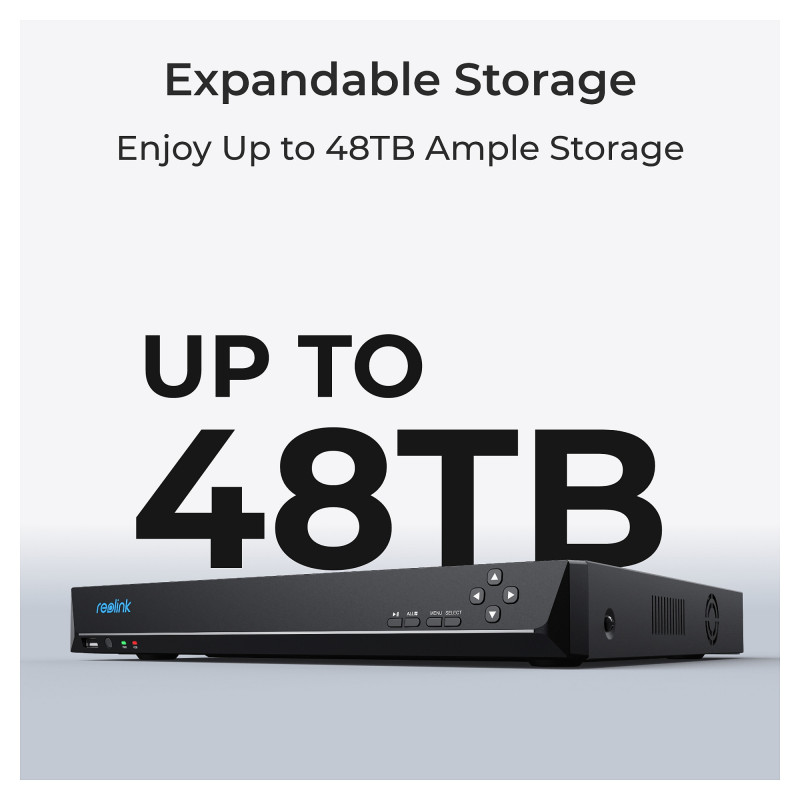

3* 16TB HDD Capacity
With three SATA ports, it supports up to 48TB storage capacity (max. 16TB HDD for each SATA).

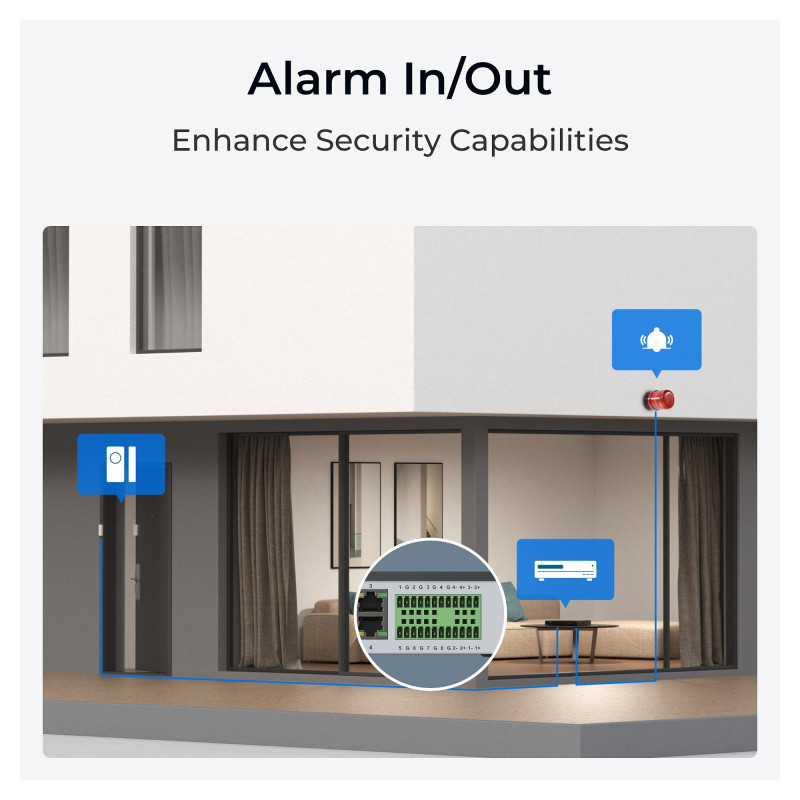

8* Alarm In/4* Alarm Out
Customizable alarm input/output channels enable versatile security configurations.

2-Way Audio via NVR
Convenient two-way audio communication enhances surveillance experience.

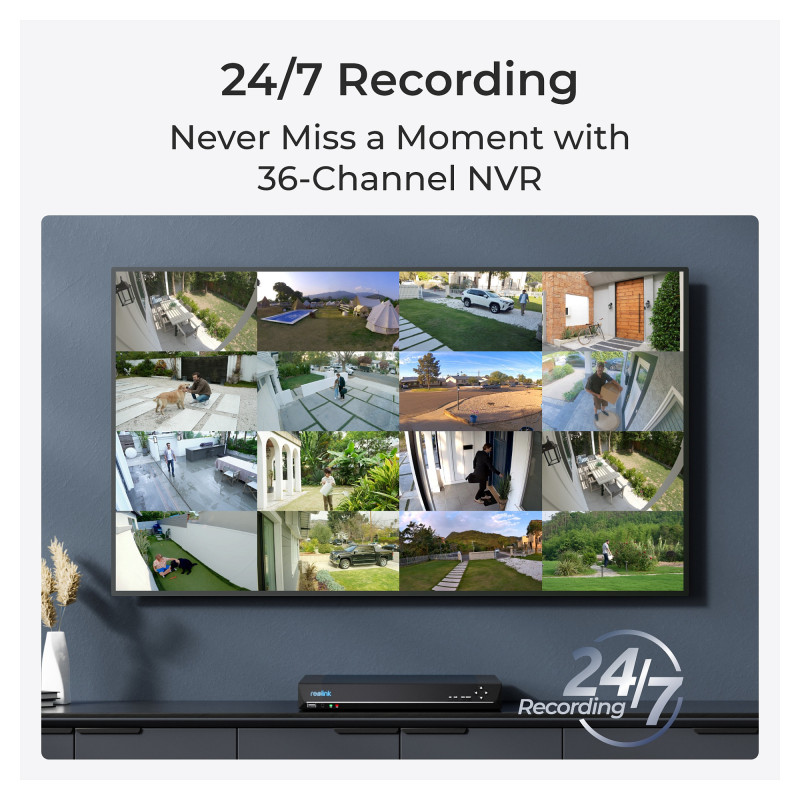

24/7 Recording
Continuous recordings directly to your hard drive with expandable storage.

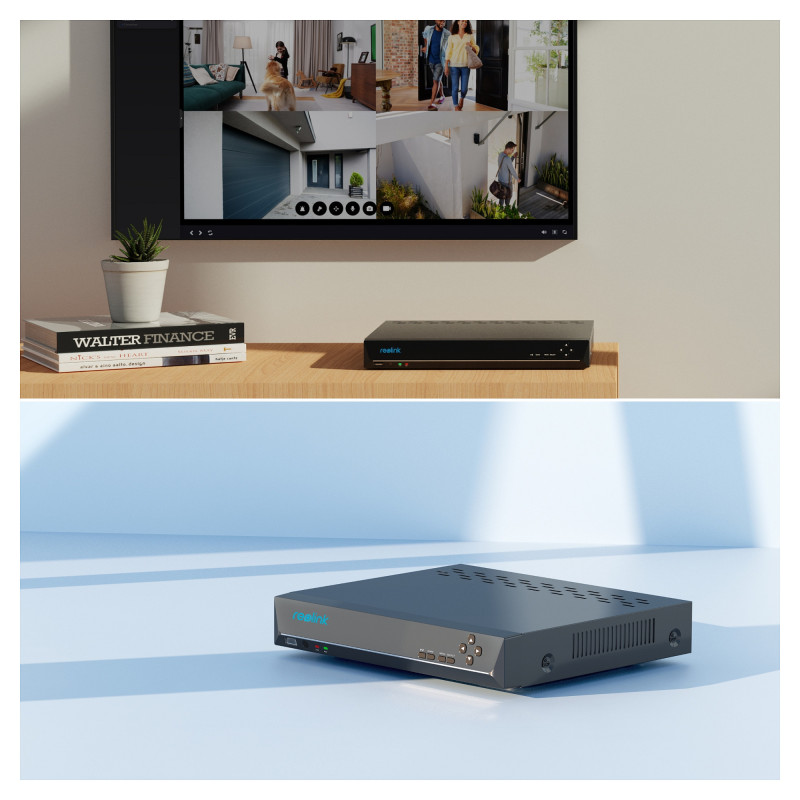

Local and Remote Access
Access the live feeds offline via a monitor or an HD TV, or remotely via the Reolink App.

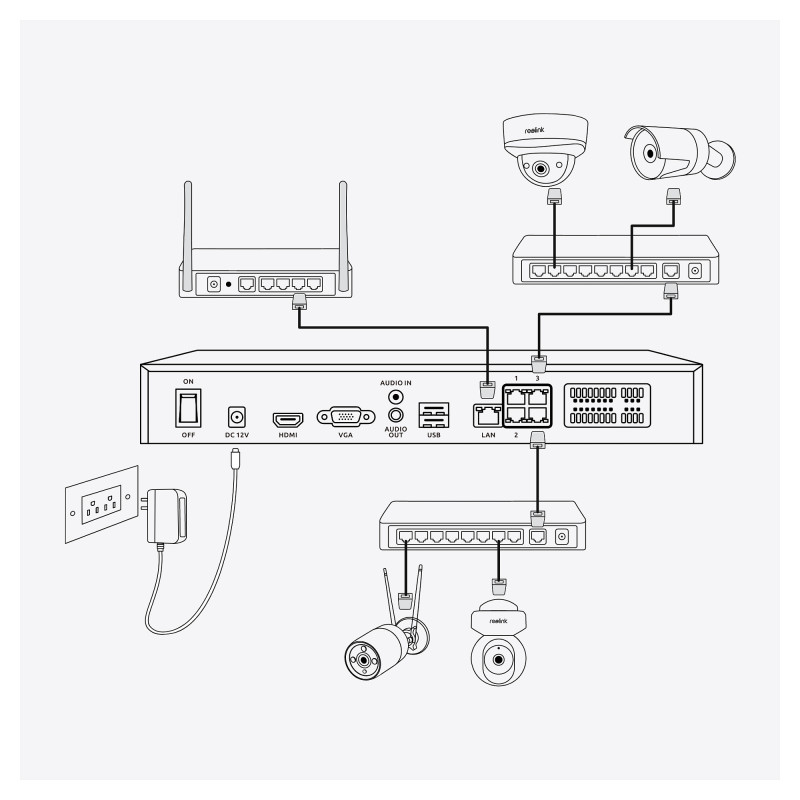

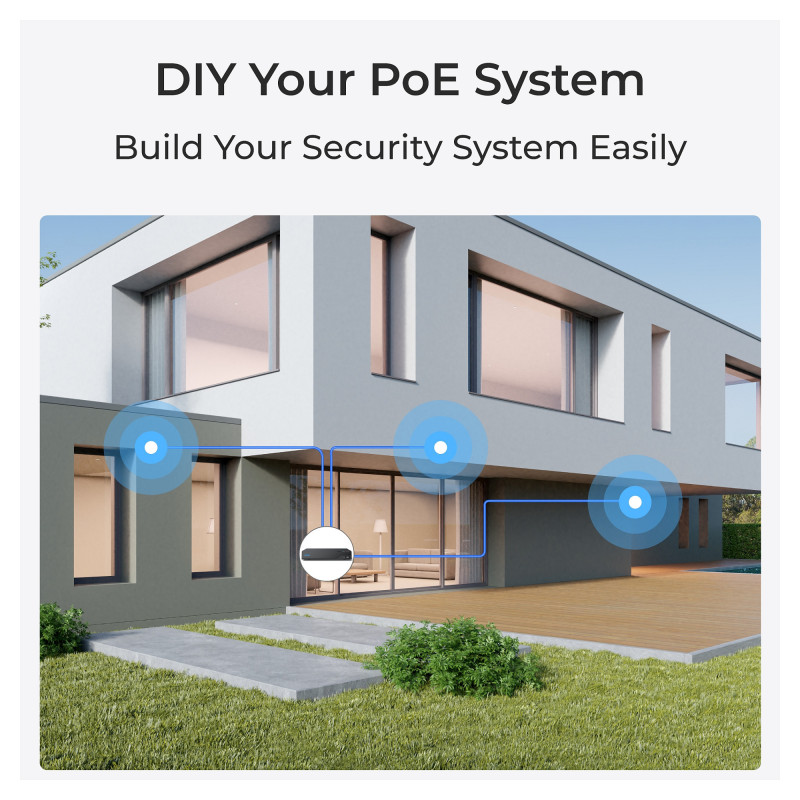

Build Your Security System Easily
Customize your own security system by connecting your cameras to a Reolink NVR, allowing you to centrally manage all your devices.

Performance

Video input channels: 36 channels
Alarm input channels: 8
Alarm output channels: 4
Number of simultaneously playbacked channels: 4 channels
Video recording modes: 720p, 1080p
Maximum resolution: 3840 x 2160 pixels
Supported resolutions: 3840x2160, 1920x1080, 1280x1024,1280x720, 1024x768
Number of users: 20 user(s)
Feature: Video motion detection
Video formats supported: H.264, H.265
Audio system: 2-way

Hard drive

HDD capacity: 0 GB
Number of HDDs supported: 3
Maximum storage capacity: 48 TB
HDD interface: SATA

Ports & interfaces

Ethernet LAN (RJ-45) ports: 5
Ethernet LAN data rates: 10,100,1000 Mbit/s
Feature: Ethernet WAN
Feature: HDMI output
HDMI ports quantity: 1
VGA (D-Sub) output ports: 1
USB 2.0 ports quantity: 2
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity: 1
Audio RCA inputs: 1
Audio RCA outputs: 1
Supported network protocols: HTTPS, TCP/IP, UDP, DHCP, P2P, UPNP, RTMP, SMTP, SSL/TLS, DNS, DDNS, NTP

Features

Product colour: Black

Power

Power consumption (typical): 10 W
Output current: 5.4 A
Output voltage: 20 V

System requirements

Windows operating systems supported: Yes
Feature: Mac compatibility
Mobile operating systems supported: Android, iOS
Browser supported: Edge, Firefox, Chrome, Safari

Operational conditions

Operating temperature (T-T): -10 - 45 °C
Operating relative humidity (H-H): 10 - 90%

Weight & dimensions

Width: 330 mm
Depth: 310 mm
Height: 48 mm
Weight: 2.26 kg

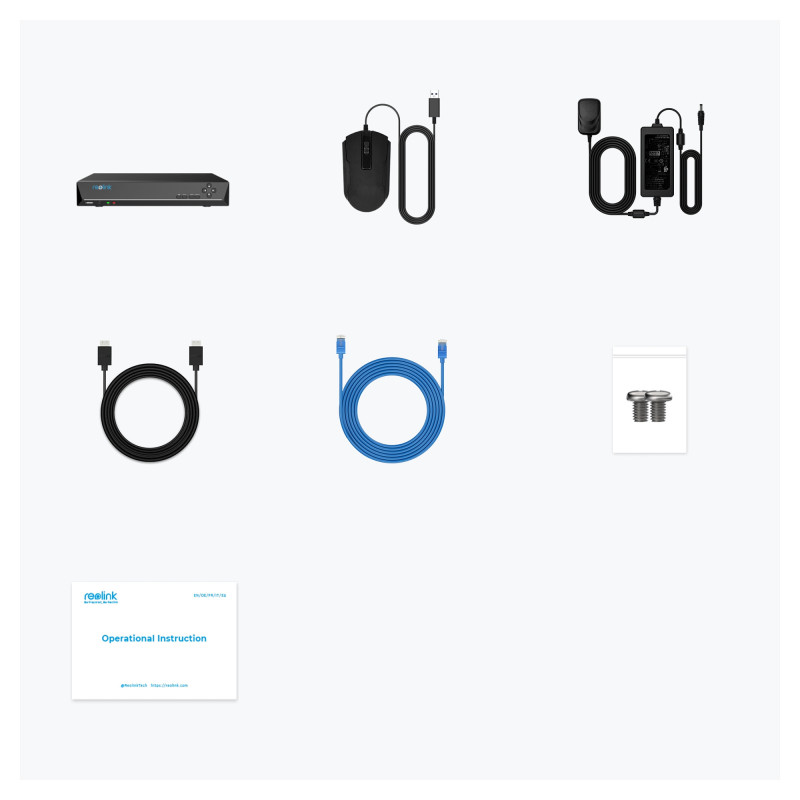

Packaging content

Packaging content: 1 - NVS361 - NVR Power Adapter1 - HDMI Cable1 - USB Mouse1 - 1m Network Cable1 - Quick Start Guide3 - Pack of Screws
