Reolink E serija E540

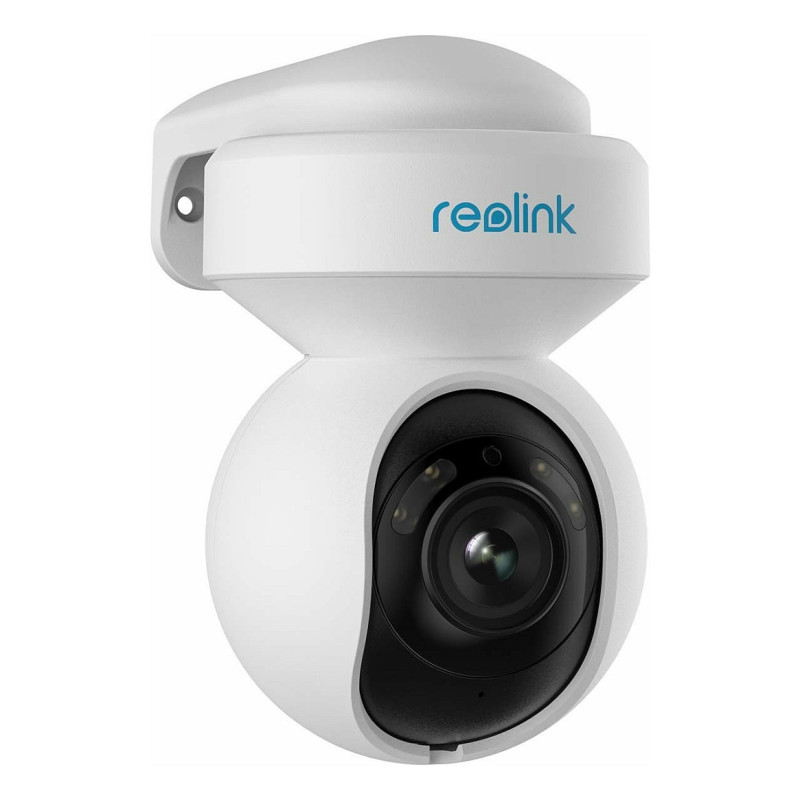

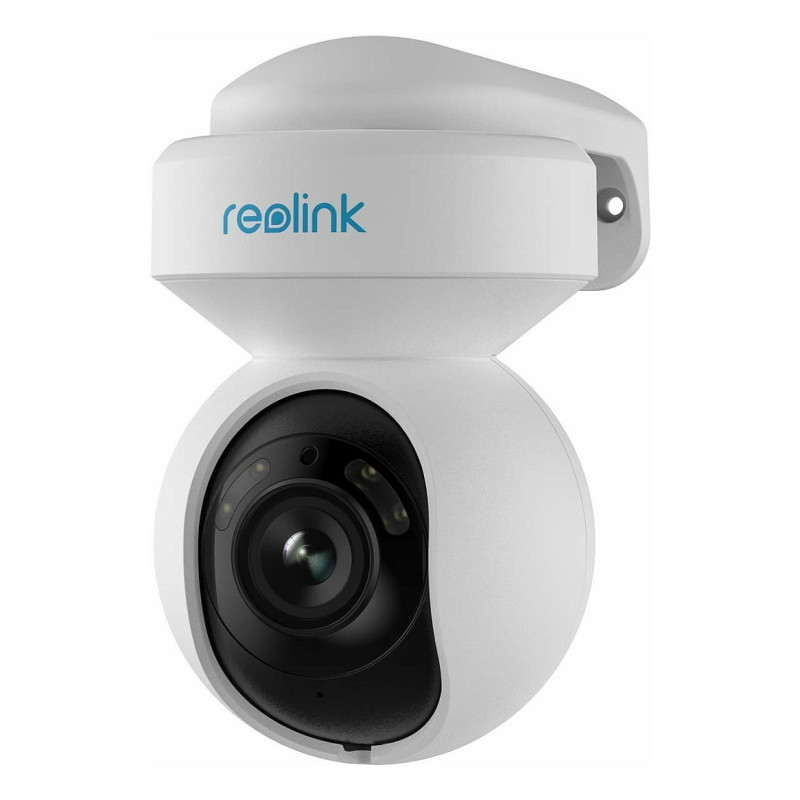

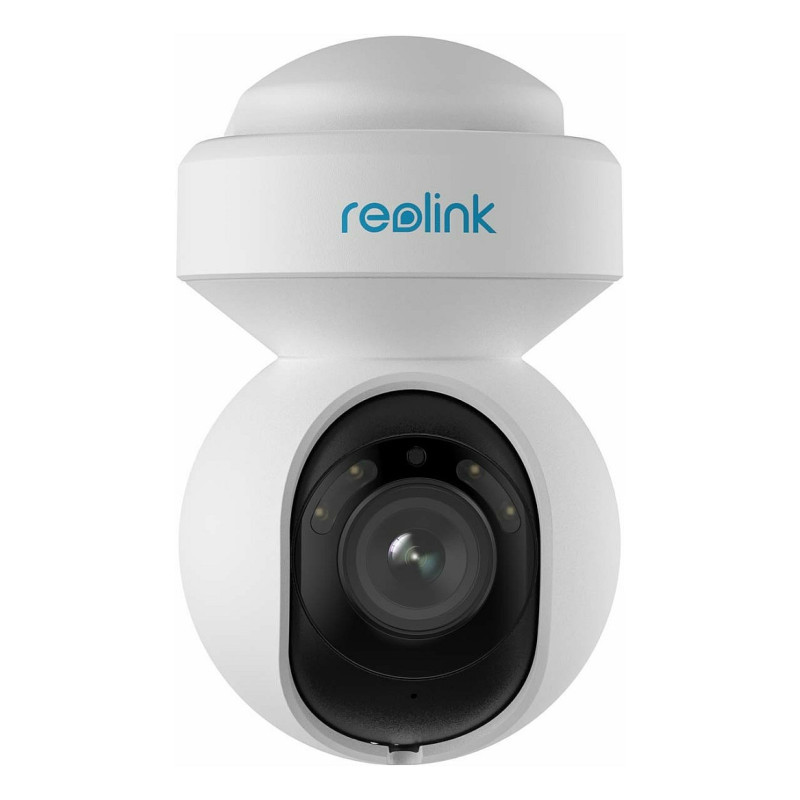

Reolink E Series E540 - 5MP Outdoor Wi-Fi Camera, Person/Vehicle/Animal Detection, Pan & Tilt, 3X Optical Zoom. Type: IP security camera, Placement supported: Indoor & outdoor, Connectivity technology: Wired & Wireless. Mounting type: Wall, Product colour: White, Form factor: Dome. Lens viewing angle, horizontal: 48 - 90°, Lens viewing angle, vertical: 37 - 68°, Tilt angle range: 0 - 50°. Sensor type: CMOS, Optical sensor size: 25.4 / 2.7 mm (1 / 2.7"). Optical zoom: 3x, Focal length range: 2.8 - 8 mm

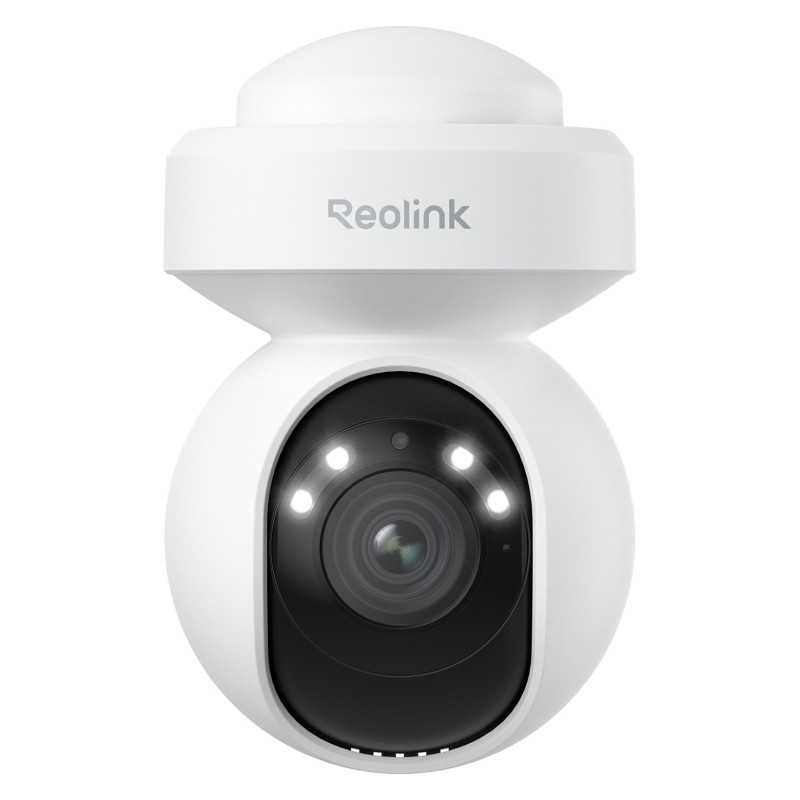

The small and exquisite Reolink E Series E540 with smart technology can detect humans, vehicles, and animals with accurate alerts. This outdoor PTZ security camera can 355° pan, 50° tilt, 3X zoom in, and automatically rotate leftward and rightward to follow the moving target, keeping track of intruders. It supports both 2.4GHz and 5GHz frequencies to ensure better wireless connection. Boasting 5MP super HD and color night vision, see crystal-clear details in full color day & night.

Pan-Tilt & Auto Tracking

Pan 355° and tilt 52° to automatically track the detected person or pet, so you won't miss anything important.

3X Optical Zoom

See details in greater clarity even at a distance.

More stable and faster WiFi connection

Enjoy the reliability of 2.4/5GHz dual-band Wi-Fi for uninterrupted surveillance and smooth live viewing anytime, anywhere.

2K+ 5MP Enhanced Definition

Elevate your viewing experience with 2K+ 5MP Super HD resolution, offering high image quality for precise monitoring and surveillance.

Illuminate the Night in Vivid Color

Experience enhanced nighttime with vibrant colors and rich details, even in low-light conditions

Smart Detection Tailored to Your Needs

Experience customized security with Person/Vehicle/Motion Detection feature, offering precise alerts and notifications tailored to your specific security requirements.

Double Warning for the Unwelcome

Enhance your security with double warning method. With siren and spotlights both activated, this camera can deter intruders and other threats effectively.

Talk Anytime, from Anywhere

Engage in seamless communication with our two-way audio feature, allowing you to listen and talk to people in front of your camera in real-time from anywhere.

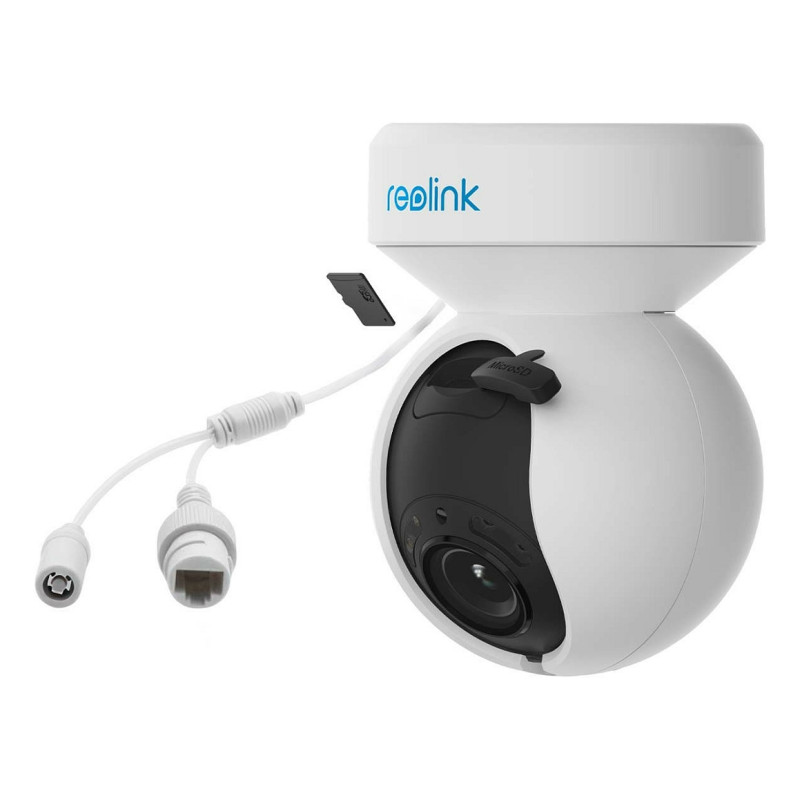

Flexible Storage Choices

With support for up to 256GB SD cards, NVR compatibility, and cloud storage options, ensuring maximum flexibility and security for your recordings.

Control Your Cameras, Hands-Free

With Google Voice Control, you can effortlessly access your camera using simple voice commands, making monitoring your home a breeze.

Performance

Type: IP security camera
Placement supported: Indoor & outdoor
Connectivity technology: Wired & Wireless
Feature: PTZ control
Feature: Preset points
Virtual assistant: Google Assistant
Feature: Day/night mode
Feature: Infrared (IR) cut-off filter
Feature: Built-in light
Colour temperature: 6500 K
Antenna type: Internal
Operating frequency: 2400 - 5000 MHz

Design

Form factor: Dome

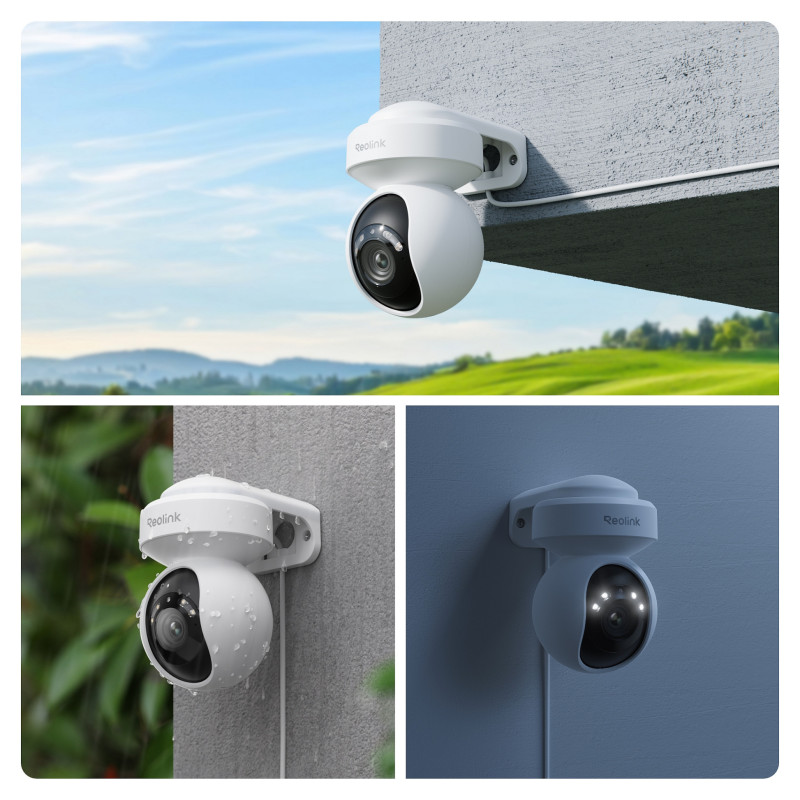

Mounting type: Wall
Product colour: White
LED indicators: Yes
International Protection (IP) code: IP65

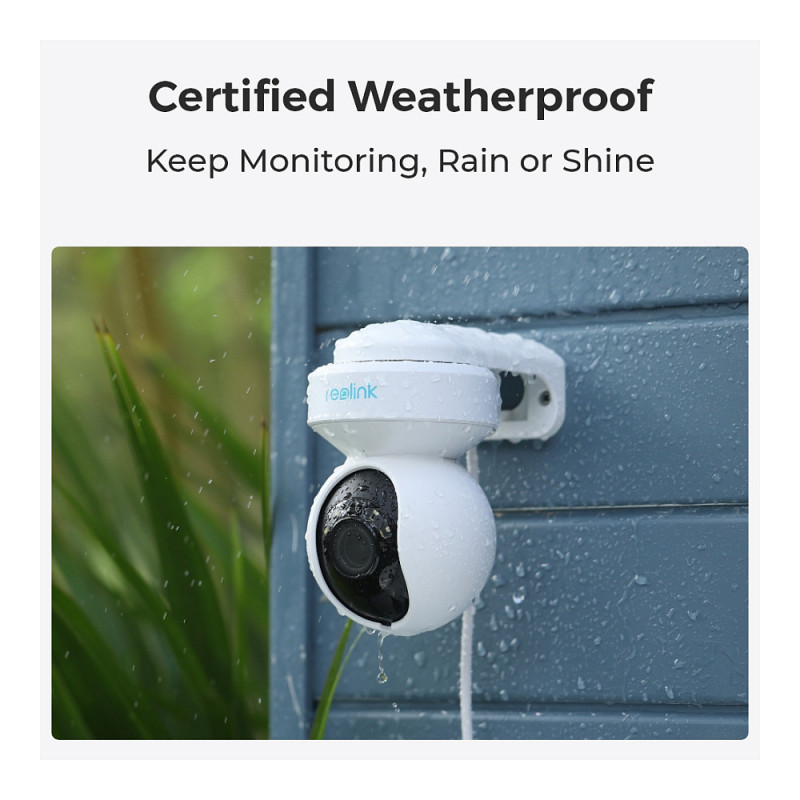

Feature: Weatherproof

Camera

Lens viewing angle, horizontal: 48 - 90°
Lens viewing angle, vertical: 37 - 68°
Tilt angle range: 0 - 50°
Pan range: 0 - 355°

Image sensor

Number of sensors: 1
Optical sensor size: 25.4 / 2.7 mm (1 / 2.7")
Sensor type: CMOS

Lens system

Feature: Zoom capability
Optical zoom: 3x
Number of lenses: 1
Focal length range: 2.8 - 8 mm
Maximum aperture number: 1.6

Night vision

Feature: Night vision
Night vision distance: 12 m
LED type: IR
Infra-red wavelength: 850 nm

Video

Maximum resolution: 2560 x 1920 pixels
Total megapixels: 5 MP
Video compression formats: H.264
Feature: Video recording
Frame rate: 20 fps

Audio

Feature: Built-in speaker(s)
Audio system: 2-way
Feature: Built-in microphone
Bit rate range: 64 - 8192 Kbit/s

Network

Feature: Ethernet LAN
Ethernet interface type: Fast Ethernet
Networking standards: IEEE 802.11a, IEEE 802.11b, IEEE 802.11g, IEEE 802.11n
Supported network protocols: HTTPS, SSL, TCP/IP, UDP, IPv4, UPnP, RTSP, RTMP, ONVIF, SMTP, NTP, DHCP, DNS, DDNS, FTP, P2P
Feature: Wi-Fi
Wi-Fi standards: 802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n)
Number of users: 20 user(s)
User access level: Administrator, User

Storage

Feature: Card reader integrated
Compatible memory cards: MicroSD (TransFlash)
Maximum memory card size: 512 GB

Ports & interfaces

Ethernet LAN (RJ-45) ports: 1
Feature: DC-in jack

Security

Feature: Video motion detection
Security algorithms: WPA, WPA2
Intelligent Video Surveillance (IVS) system features: Human detection, Pet detection, Vehicle detection

Management features

Feature: Reset button

Power

Power source type: DC
Power consumption (max): 12 W
DC output voltage: 12
DC output current: 1 A

Operational conditions

Operating temperature (T-T): -10 - 55 °C
Operating relative humidity (H-H): 20 - 85%

System requirements

Windows operating systems supported: Yes
Mac operating systems supported: Yes
Mobile operating systems supported: Android, iOS

Weight & dimensions

Height: 120 mm
Diameter: 9 cm
Weight: 458 g

Packaging data

Package width: 159 mm
Package depth: 217 mm
Package height: 125 mm
Package weight: 1 kg

Packaging content

Number of cameras: 1
Cables included: LAN (RJ-45)
Feature: Mounting kit
Feature: Screws included
