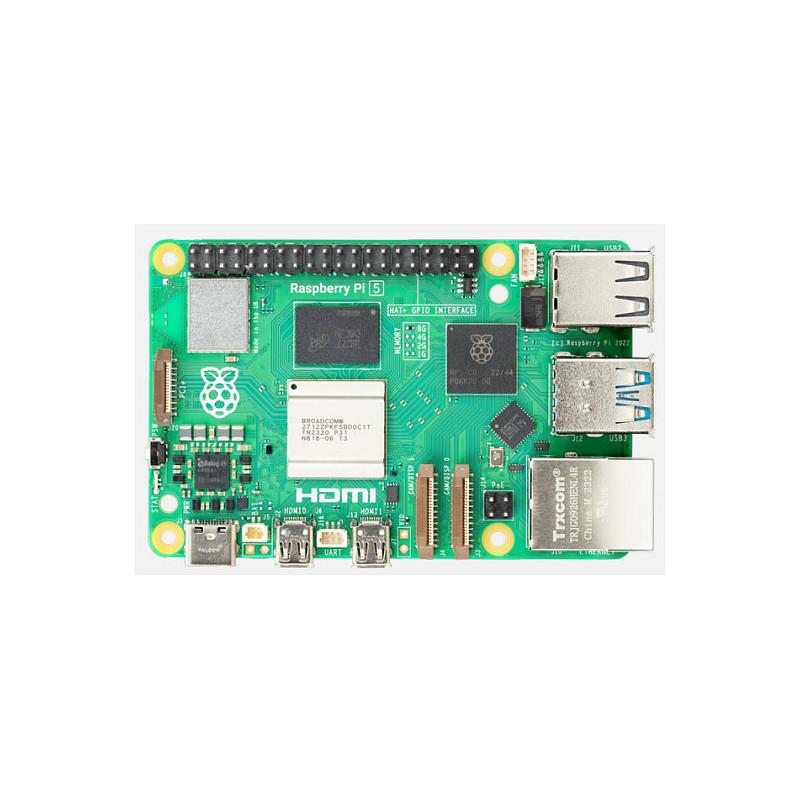

„Raspberry Pi 5B“ kūrimo plokštė

Raspberry Pi 5B. Processor manufacturer: ARM, Processor model: Arm Cortex-A76, Processor frequency: 2400 MHz. Maximum internal memory: 8 GB, Internal memory type: LPDDR4x-SDRAM, Compatible memory cards: MicroSD (TransFlash). USB version: 2.0/3.2 Gen 1 (3.1 Gen 1), Wi-Fi standards: Wi-Fi 5 (802.11ac). PCI Express interface data lanes: x1. DC input voltage: 5 V, Input current: 5 A

RP1
Raspberry Pi 5 is built using the RP1 I/O controller, a package containing silicon designed in-house at Raspberry Pi. USB 3 has more total bandwidth, for much faster transfer speeds. Camera and DSI display connectors are interchangeable, so you can have one of each, or two the same.

More than twice as fast and infinitely smoother
Raspberry Pi 5 features the Broadcom BCM2712 quad-core Arm Cortex A76 processor @ 2.4GHz, making it up to three times faster than the previous generation. With RAM variants up to 8GB, this is the fastest, smoothest Raspberry Pi experience yet.

All aboard the PCI express
This addition to Raspberry Pi allows you to connect an M.2 SSD to your Raspberry Pi, giving you speedy data transfer and super-fast boot.

Raspberry Pi OS
The latest release of Raspberry Pi OS is made to get the most from Raspberry Pi 5. The newest version of our operating system delivers a superb desktop performance, making it an ideal computer for work, leisure, enterprise, and more.

Processor

Processor manufacturer: ARM
Processor model: Arm Cortex-A76
Processor frequency: 2400 MHz
Processor cache: 512 KB
Processor cores: 4
Feature: 64-bit computing

Memory

Maximum internal memory: 8 GB
Internal memory type: LPDDR4x-SDRAM
Compatible memory cards: MicroSD (TransFlash)

Ports & interfaces

Feature: Wi-Fi
Wi-Fi standards: Wi-Fi 5 (802.11ac)
Feature: Ethernet LAN
Feature: Power over Ethernet (PoE)
USB version: 2.0/3.2 Gen 1 (3.1 Gen 1)
USB ports quantity: 2
USB 3.2 Gen 1 (3.1 Gen 1) ports quantity: 2
Feature: Bluetooth
Bluetooth version: 5.0
Feature: Bluetooth Low Energy (BLE)
Ethernet LAN (RJ-45) ports: 1
Feature: MPI DSI interface
Feature: MPI CSI interface
Feature: Integrated LAN

Expansion slots

PCI version: 2.0
PCI Express interface data lanes: x1

Features

Feature: Real-time clock (RTC)
Feature: On/off button

Power

DC input voltage: 5 V
Input current: 5 A
Feature: USB powered

Weight & dimensions

Board dimensions: 85 x 49 mm
Width: 85 mm
Depth: 49 mm
