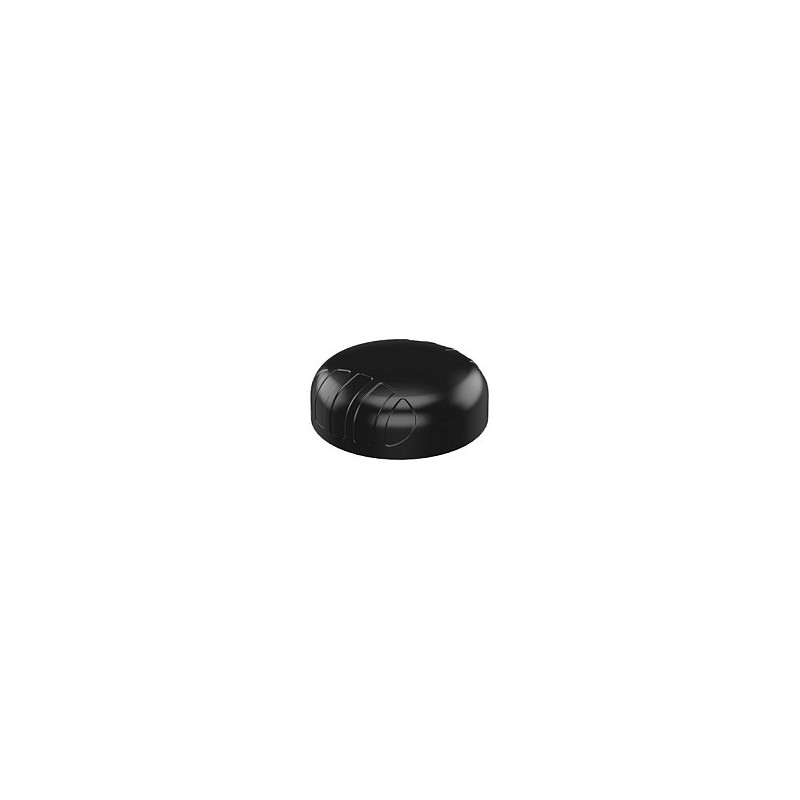

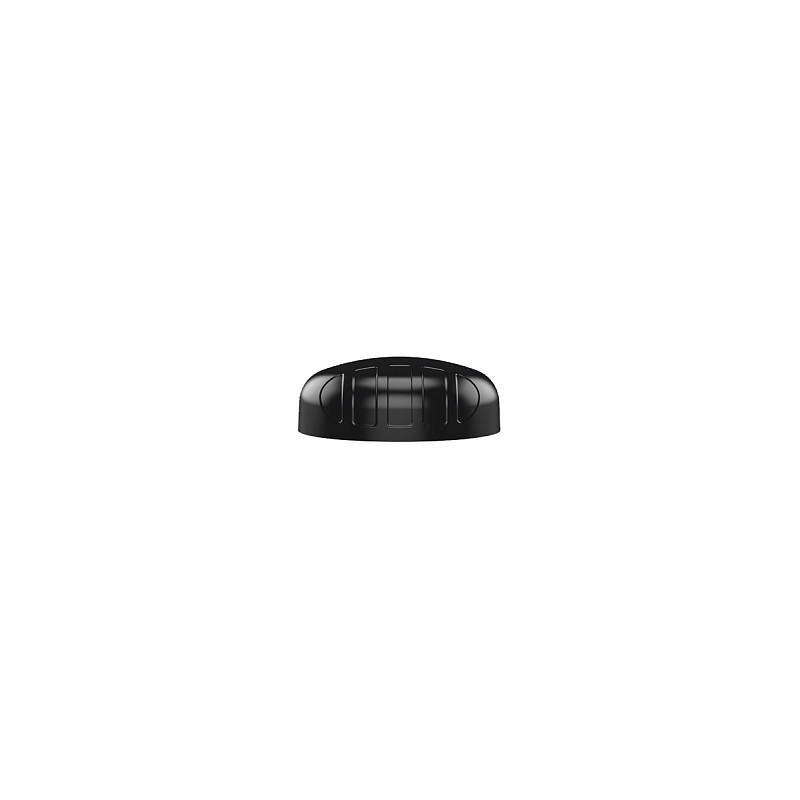

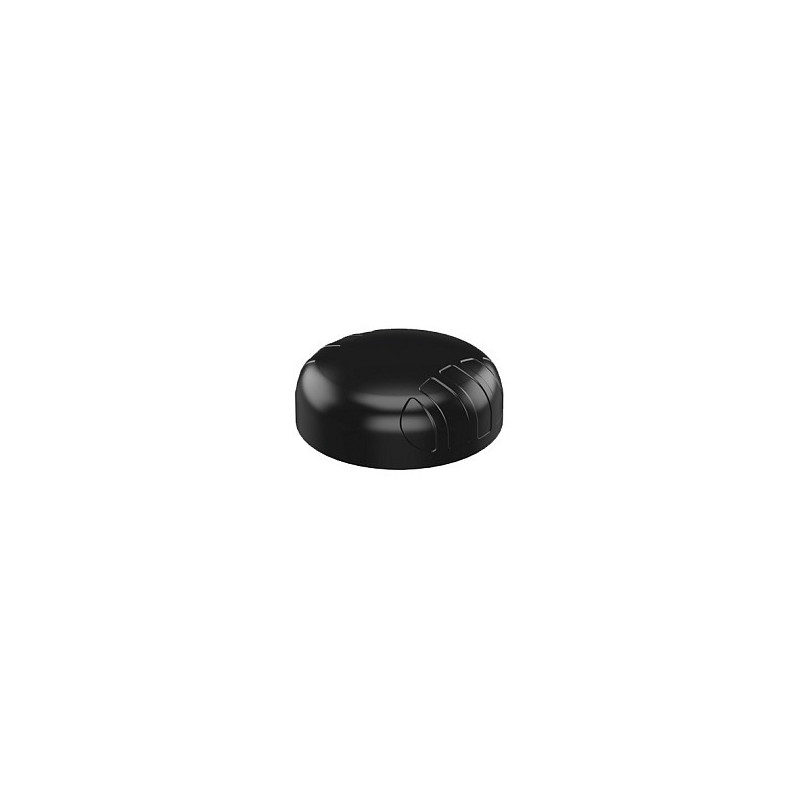

„Poynting GPS-1“ tinklo antena

Poynting GPS-1. Antenna gain level (max): 21 dBi, Frequency band: 1.575 - 1.600 GHz, Gain: 21 dBi. Antenna type: Omni-directional antenna, Antenna connector type: SMA, Connector gender: Male. Power source type: DC, Input voltage: 2.7 - 3.3 V. Compliance certificates: CE, RoHS, Certification: MIL-STD 810G/ASTM B117. Width: 99.3 mm, Depth: 99.3 mm, Height: 36 mm

POYNTING's new V2 version of the GPS-1 antenna is a compact and reliable solution designed for IoT/M2M and transportation applications where precise positioning and timing are critical. The updated enclosure ensures effortless implementation with multiple mounting options.

Accurate GPS/GLONASS Positioning: Supports 1575.42 MHz / 1600 MHz for enhanced satellite connectivity.
Compact & Low-Profile Design: Ideal for space-constrained IoT and M2M applications.
Reliable Performance in Extreme Conditions: Operates in temperatures as low as -40°C for dependable functionality in harsh environments.
Easy Installation: Features a new enclosure with versatile mounting options for seamless integration.
The GPS-1 V2 is the perfect solution for industries requiring **accurate navigation and timing**, offering durability, efficiency, and effortless deployment.

Performance

Frequency band: 1.575 - 1.600 GHz
Gain: 21 dBi
Impedance: 50 Ω
Antenna gain level (max): 21 dBi

Features

Antenna type: Omni-directional antenna
Antenna connector type: SMA
Connector gender: Male
Voltage Standing Wave Ratio (VSWR): 1.5:1
Product colour: White
Housing material: Acrylonitrile butadiene styrene (ABS), Polycarbonate (PC)
Protection features: Dust resistant, Water resistant
International Protection (IP) code: IP68
Feature: Ultraviolet (UV) resistant
Survival wind speed: 220 km/h
Cable length: 2 m
Cable type: RTK-031
Mounting: Wall/Pole
Purpose: Indoor & outdoor

Power

Power source type: DC
Input voltage: 2.7 - 3.3 V

Certificates

Feature: Sustainability compliance
Compliance certificates: CE, RoHS
Certification: MIL-STD 810G/ASTM B117

Operational conditions

Operating temperature (T-T): -40 - 80 °C
Storage temperature (T-T): -40 - 80 °C
Operating relative humidity (H-H): 0 - 98%
Storage relative humidity (H-H): 5 - 95%

Weight & dimensions

Width: 99.3 mm
Depth: 99.3 mm
Height: 36 mm
Weight: 312 g

Packaging data

Package width: 150 mm
Package depth: 150 mm
Package height: 120 mm
Package weight: 443 g

Packaging content

Quantity per pack: 1 pc(s)
