LevelOne GEP-1011 tinklo jungiklis

LevelOne 10-Port Gigabit PoE Switch, 802.3af/at PoE, 8 PoE Outputs, 120W Power Budget, 1 x Gigabit SFP, 1 x Gigabit RJ45 Uplink. Switch type: Unmanaged, Switch layer: L2. Basic switching RJ-45 Ethernet ports type: Gigabit Ethernet (10/100/1000), Basic switching RJ-45 Ethernet ports quantity: 9. Full duplex. MAC address table: 4000 entries, Switching capacity: 20 Gbit/s. Networking standards: IEEE 802.3, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3x, IEEE 802.3af, IEEE 802.3at, IEEE 802.3z. DC input voltage: 54 V. Power connector: DC-in jack. Power over Ethernet (PoE). Wall mountable, Form factor: Desktop/Wall-Mounting

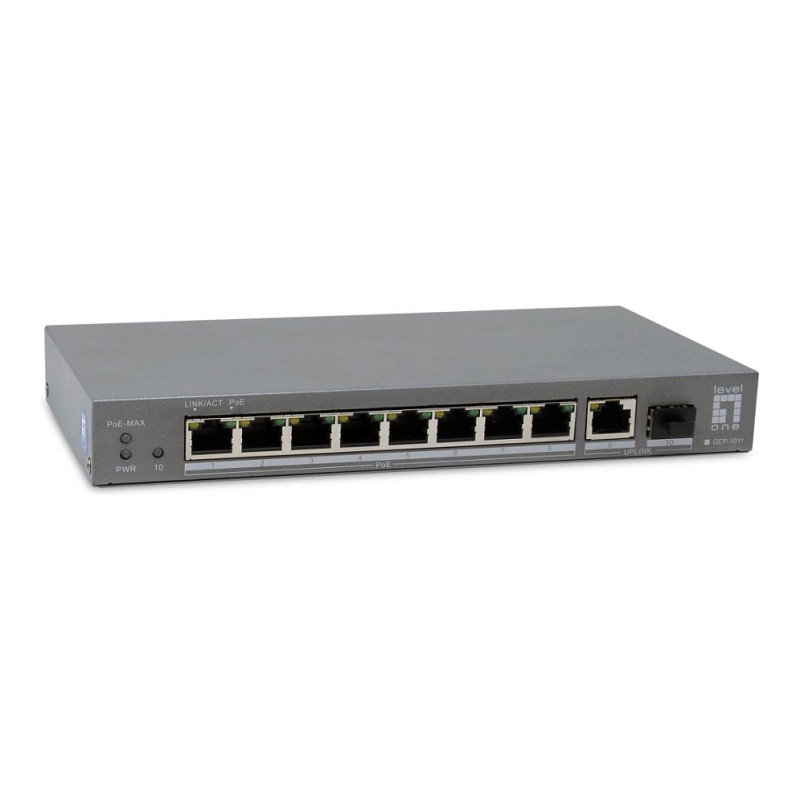

The LevelOne GEP-1011 is a 10-port Gigabit PoE switch designed for small and medium business networks that need to power and connect IP cameras, wireless access points and VoIP phones over a single Ethernet cable. It provides 8 PoE-capable 10/100/1000Base-T ports, 1 additional Gigabit RJ45 uplink and 1 Gigabit SFP uplink for flexible connectivity to core switches or fiber backbones.

Compliant with IEEE 802.3af/at, the GEP-1011 delivers a total PoE power budget of 120W, supplying up to 30W per PoE port to compatible devices. Built-in PoE detection and overload protection help ensure safe power delivery, automatically identifying powered devices and cutting power to ports that exceed the budget or are not PoE compliant. This reduces the need for separate power supplies and makes it easier to deploy devices in ceilings, corridors, or remote corners where power outlets are limited.

The combination of one Gigabit copper uplink and one 1000Base-X SFP uplink port gives administrators the freedom to connect using either twisted-pair cabling or fiber, depending on distance and infrastructure. This makes the GEP-1011 suitable as an edge PoE switch in larger networks or as a compact aggregation point for IP surveillance and wireless coverage in branch offices.

With 6KV surge protection and wall-mount support, the GEP-1011 is designed for reliable operation in real-world environments where electrical interference and space constraints are common. Its plug-and-play design requires no software configuration, allowing fast, cost-effective upgrades to a PoE-enabled Gigabit network.

Management features

Switch type: Unmanaged
Switch layer: L2

Ports & interfaces

Basic switching RJ-45 Ethernet ports quantity: 9
Basic switching RJ-45 Ethernet ports type: Gigabit Ethernet (10/100/1000)
SFP module slots quantity: 1
Uplink ports quantity: 1
Fiber uplink ports quantity: 1

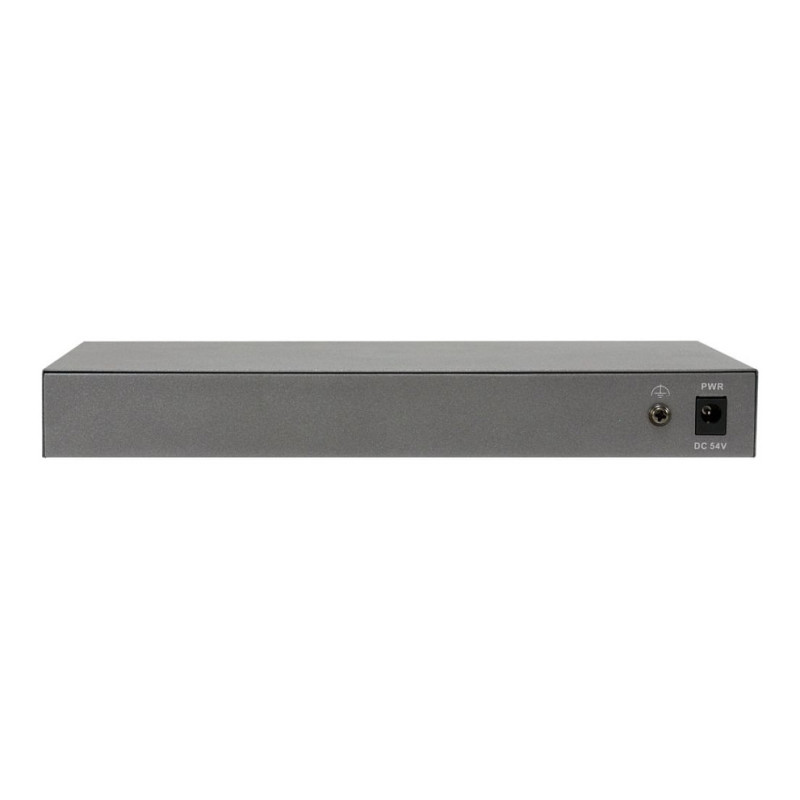

Power connector: DC-in jack

Network

Networking standards: IEEE 802.3, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3x, IEEE 802.3af, IEEE 802.3at, IEEE 802.3z
Copper ethernet cabling technology: 10BASE-T, 100BASE-TX, 1000BASE-T, 1000BASE-SX, 1000BASE-LX
Feature: Full duplex
Feature: Auto MDI/MDI-X
Ethernet LAN data rates: 10,100,1000 Mbit/s
Feature: Auto-negotiation

Data transmission

Switching capacity: 20 Gbit/s
Forwarding rate: 14.88 Mpps
MAC address table: 4000 entries
Packet buffer memory: 0.1875 MB

Design

Form factor: Desktop/Wall-Mounting
Product colour: Grey
LED indicators: Link, PoE, ACT, Power

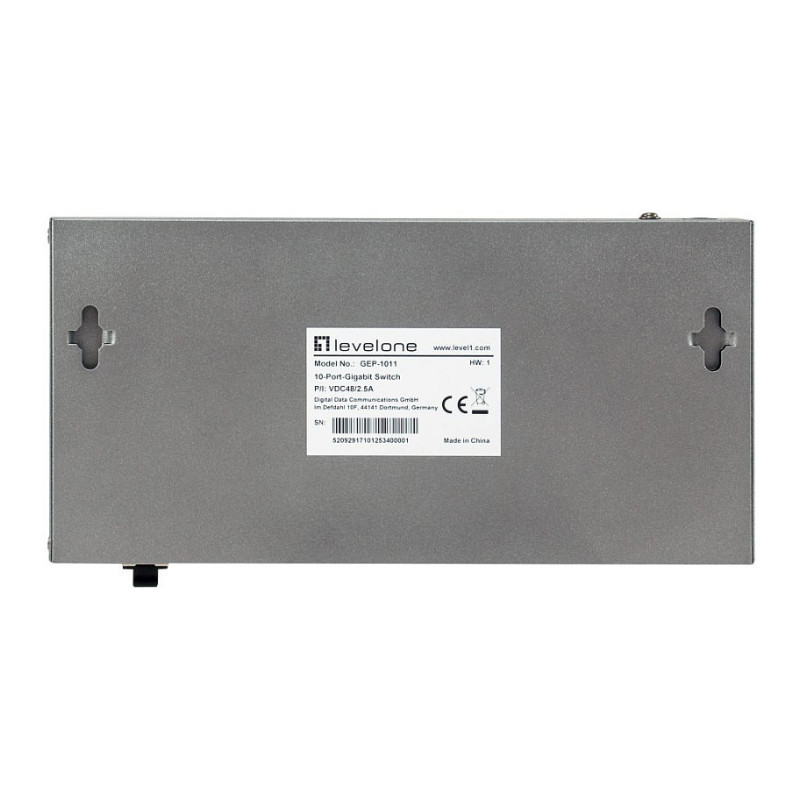

Feature: Wall mountable
Market segment: Business

Performance

Feature: Plug and Play
Feature: Fanless

Power

Power source: DC
Feature: Power supply included
DC input voltage: 54 V
Input current: 2.22 A
Power consumption (typical): 10 W

Power over Ethernet (PoE)

Feature: Power over Ethernet (PoE)
Power over Ethernet (PoE) type supported: PoE+
Power over Ethernet plus (PoE+) ports quantity: 8
Power over Ethernet (PoE) power per port: 30 W
Total Power over Ethernet (PoE) budget: 120 W

Other features

Packaging content: Declaration of Conformity

Operational conditions

Operating temperature (T-T): 0 - 40 °C
Storage temperature (T-T): -45 - 85 °C
Operating relative humidity (H-H): 5 - 95%
Storage relative humidity (H-H): 5 - 95%

Weight & dimensions

Width: 217.6 mm
Depth: 27.8 mm
Height: 108.5 mm
Weight: 600 g

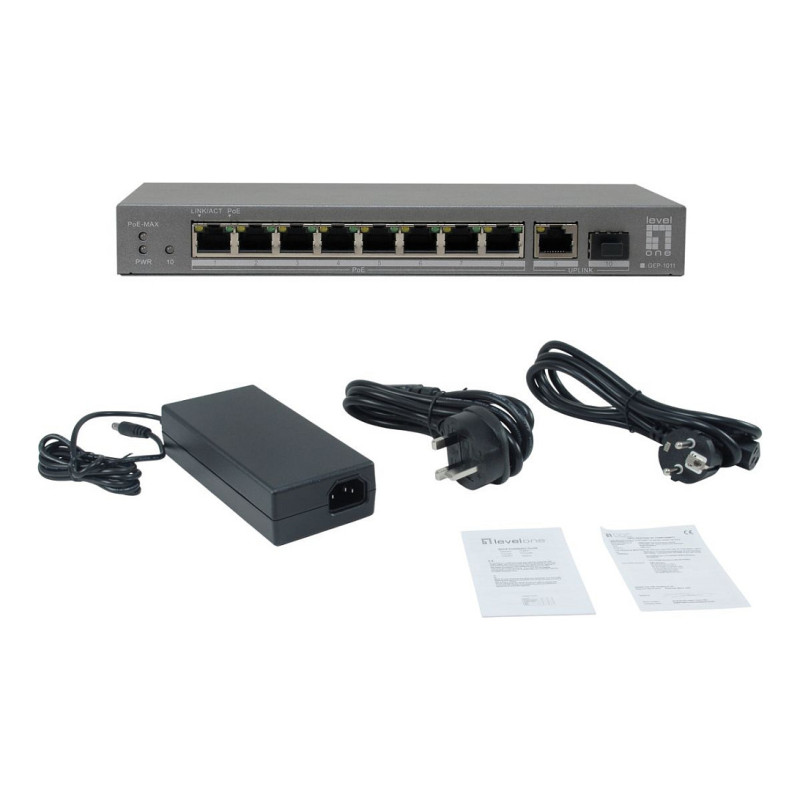

Packaging content

Cables included: Power
Feature: Quick start guide

Certificates

Compliance certificates: CE, Federal Communications Commission (FCC), UL

Logistics data

Customs product code (TARIC): 846359
Country of origin: China
Harmonized System (HS) code: 846359
