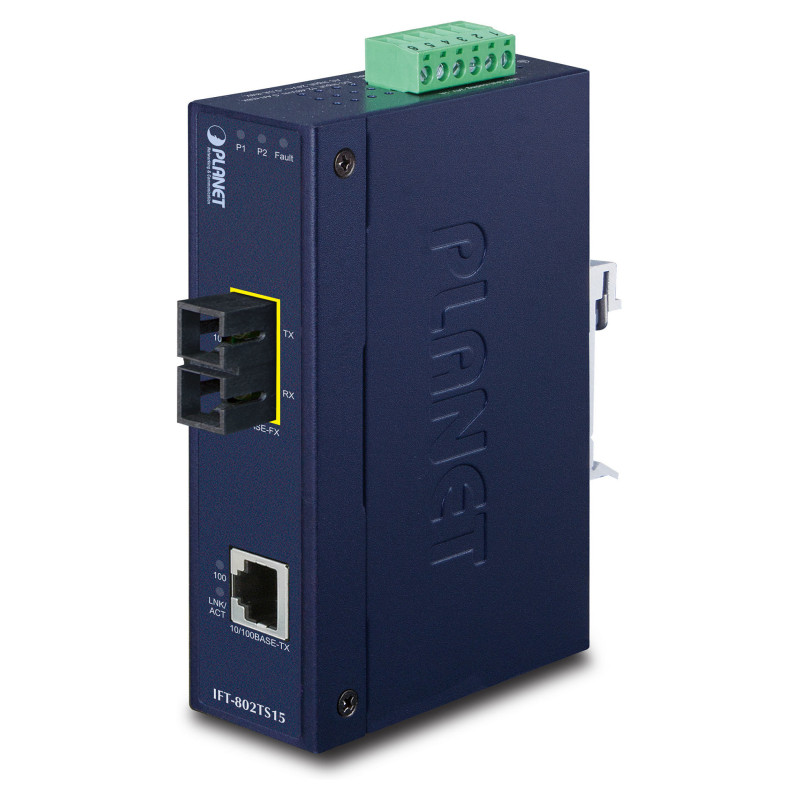

PLANET IFT-802TS15 tinklo medijos keitiklis

PLANET IFT-802TS15. Maximum data transfer rate: 100 Mbit/s, Converter input interface: 10Base-T, 100Base-TX, Converter output interface: 100Base-FX. Maximum transfer distance: 15000 m, Wavelength: 1310 nm, Fiber mode structure: Single-mode. Product colour: Blue, Housing material: Metal, International Protection (IP) code: IP30. Fiber optic connector: SC, Connectivity technology: Wired. Input voltage: 12 - 48 V, Power consumption (typical): 3 W

Distance Extension with High Performance and Steady Network Communication

PLANET 10/100Base-TX to 100Base-FX Industrial Media Converter IFT-80xT series extends communication distance with stable performance via fiber optic wire, in which the extended distance could be up to 2km with the IFT-802T, up to 15km with the IFT-802TS15 or up to 20km with the IFT-805AT (depending on SFP module). The IFT-80xT series is specifically equipped with durable components and strong housing case to operate reliably in electrically harsh and climatically demanding environments. The industrial level media converter provides a high level of immunity to electromagnetic interference and heavy electrical surges which are usually found on plant floors or traffic control cabinets on sidewalk. Being able to operate under the temperature range from -40 to 75 degrees C allows the IFT-80xT series to be placed in almost any difficult environment.


Robust Media Converter Performance

PLANET IFT-80xT 10/100Base-TX to 100Base-FX Industrial Media Converter series efficiently converts data between 10/100Base-TX and 100Base-FX network. The IFT-80xT series provides the flexibility to all kinds of 10/100Mbps Ethernet Media on RJ-45 port and performs highly stable fiber performance.


Easy Installation and Wide Range of Power Usages

The IFT-80xT series is packaged in a compact IP-30 case that allows either DIN rail or panel mounting to have efficient usage of cabinet space. It provides an integrated power supply with a wide range of voltages for worldwide operation. It also offers dual-redundant, reversible polarity 12V DC to 48V DC power supply inputs for high availability applications requiring dual or backup power inputs.

Network

Maximum data transfer rate: 100 Mbit/s
Converter input interface: 10Base-T, 100Base-TX
Converter output interface: 100Base-FX
Networking standards: IEEE 802.3, IEEE 802.3u, IEEE 802.3x
Ethernet interface type: Fast Ethernet
Ethernet LAN data rates: 10,100 Mbit/s
Copper ethernet cabling technology: 10BASE-T, 100BASE-TX
Fiber ethernet cabling technology: 100BASE-FX
Data transfer rate: 100 Mbit/s

Performance

Maximum transfer distance: 15000 m
Wavelength: 1310 nm
Fiber mode structure: Single-mode

Features

LED indicators: Yes
Product colour: Blue
Housing material: Metal
International Protection (IP) code: IP30
Feature: DIN rail mounting

Ports & interfaces

Connectivity technology: Wired
Ethernet LAN (RJ-45) ports: 1
Fiber ports quantity: 1
Fiber optic connector: SC

Power

Input voltage: 12 - 48 V
Power consumption (typical): 3 W

Weight & dimensions

Width: 135 mm
Depth: 85 mm
Height: 32 mm
Weight: 430 g

Operational conditions

Operating temperature (T-T): -40 - 75 °C
Storage temperature (T-T): -40 - 85 °C
Operating relative humidity (H-H): 5 - 95%
Storage relative humidity (H-H): 5 - 95%

Certificates

Certification: FCC Class A, CE Class A

Logistics data

Harmonized System (HS) code: 85176990
