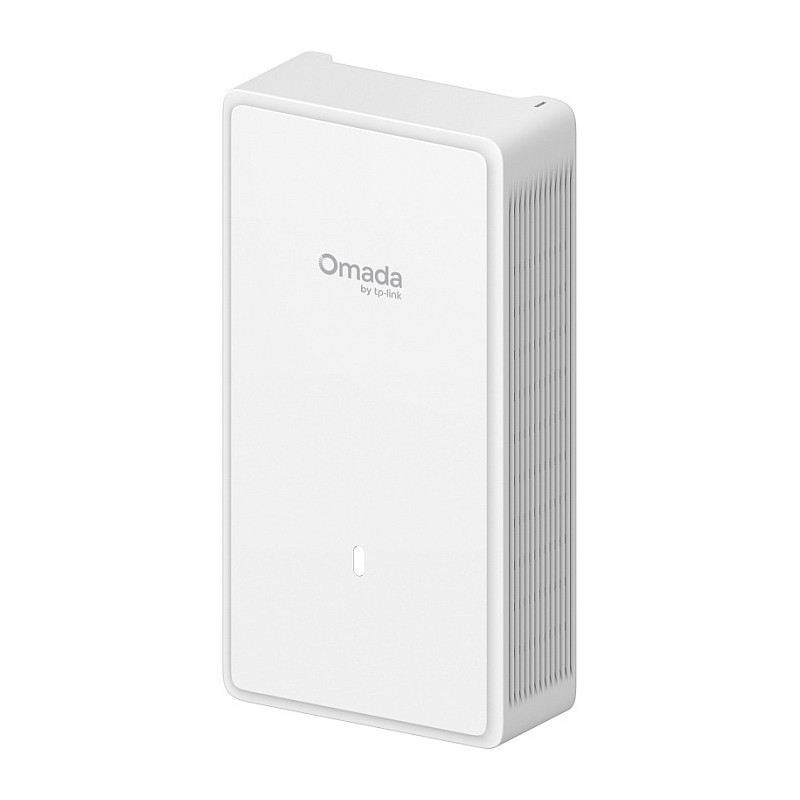

OMADA EAP775-Siena

OMADA EAP775-Wall. 2.4 GHz, 5 GHz, 6 GHz, Maximum data transfer rate: 9300 Mbit/s. Security algorithms: SNMP, SNMPv2, SNMPv3, SSH, WPA-Enterprise, WPA-Personal, WPA2-Enterprise, WPA2-Personal,.... Ethernet LAN data rates: 1000,2500 Mbit/s. Power over Ethernet (PoE). Product colour: White. Power consumption (max): 43.35 W

Features

Feature: 2.4 GHz
Feature: 5 GHz
Feature: 6 GHz
Maximum data transfer rate: 9300 Mbit/s
Maximum data transfer rate (2.4 GHz): 688 Mbit/s
Maximum data transfer rate (5 GHz): 2882 Mbit/s
Maximum data transfer rate (6 GHz): 5765 Mbit/s
Ethernet LAN data rates: 1000,2500 Mbit/s
Networking standards: IEEE 802.11a, IEEE 802.11ac, IEEE 802.11ax, IEEE 802.11b, IEEE 802.11be, IEEE 802.11g, IEEE 802.11n, IEEE 802.3at, IEEE 802.3bt
Cabling technology: 10/100/1000/2500Base-T
Coverage area: 100 m²
Number of users: 380 user(s)
Feature: Bluetooth
Channel bandwidth: 320 MHz
Bluetooth version: 5.2
Feature: MIMO
MIMO type: Multi User MIMO
Feature: Wi-Fi Multimedia (WMM)/(WME)
Feature: VLAN support
Virtual LAN features: Management VLAN
Feature: Rate limiting
Feature: Quality of Service (QoS) support
Feature: BeamForming

Security

Security algorithms: SNMP, SNMPv2, SNMPv3, SSH, WPA-Enterprise, WPA-Personal, WPA2-Enterprise, WPA2-Personal, WPA3-Enterprise, WPA3-Personal
Feature: MAC address filtering
Service Set Identifier (SSID) features: Multiple SSIDs
Number of SSID supported: 24
Feature: Schedule access
Feature: Remote Authentication Dial-In User Service (RADIUS)

Management features

Feature: Web-based management
Feature: Syslog
Feature: Cloud-managed

Ports & interfaces

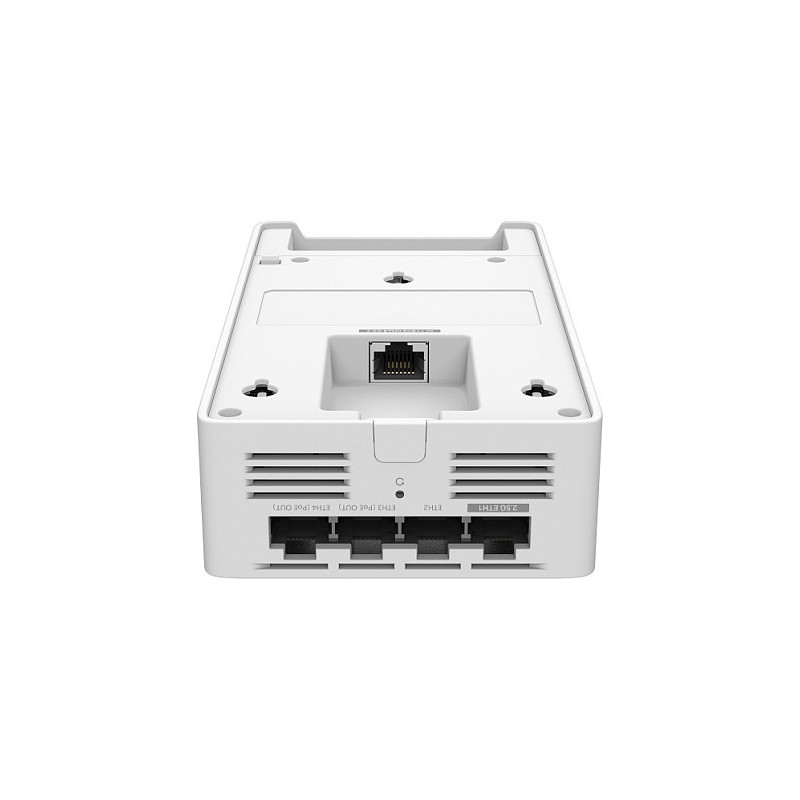

Ethernet LAN (RJ-45) ports: 5

Power

Feature: Power over Ethernet (PoE)
Power over Ethernet (PoE) type supported: PoE+
Power consumption (max): 43.35 W

Design

Placement: Wall
Product colour: White
Feature: Reset button
LED indicators: Yes

Antenna

Antenna type: Internal
Antennas quantity: 6
Antenna gain level (max): 5.5 dBi

Certificates

Compliance certificates: CE, RoHS

Weight & dimensions

Width: 91.2 mm
Depth: 41.3 mm
Height: 172.9 mm
Weight: 480 g

Packaging content

Quantity per pack: 1 pc(s)

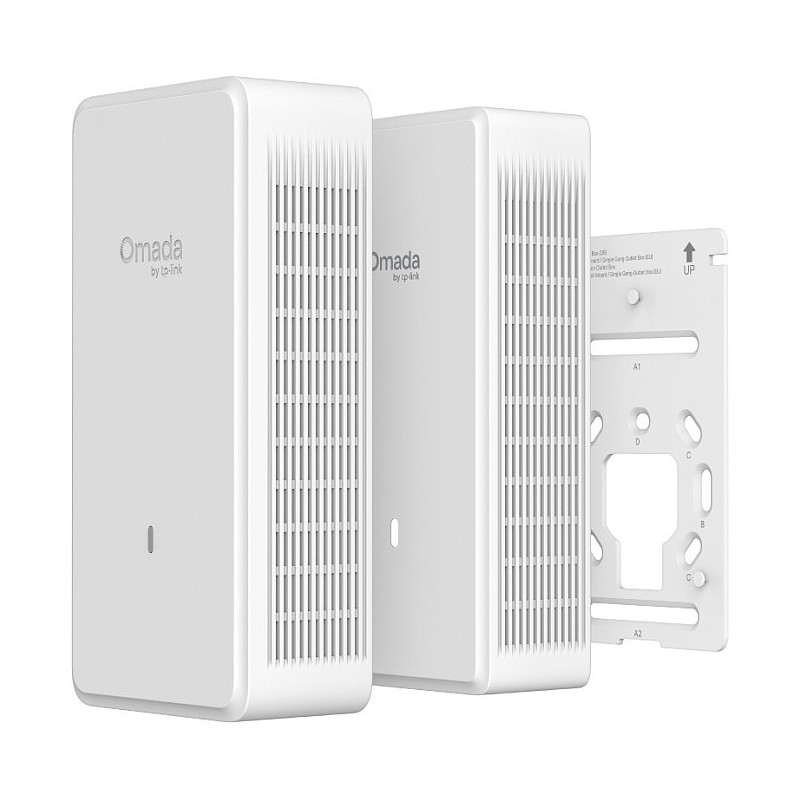

Feature: Mounting kit

Operational conditions

Operating relative humidity (H-H): 10 - 90%
Operating temperature (T-T): 0 - 40 °C
Storage temperature (T-T): -40 - 70 °C
Storage relative humidity (H-H): 5 - 90%
