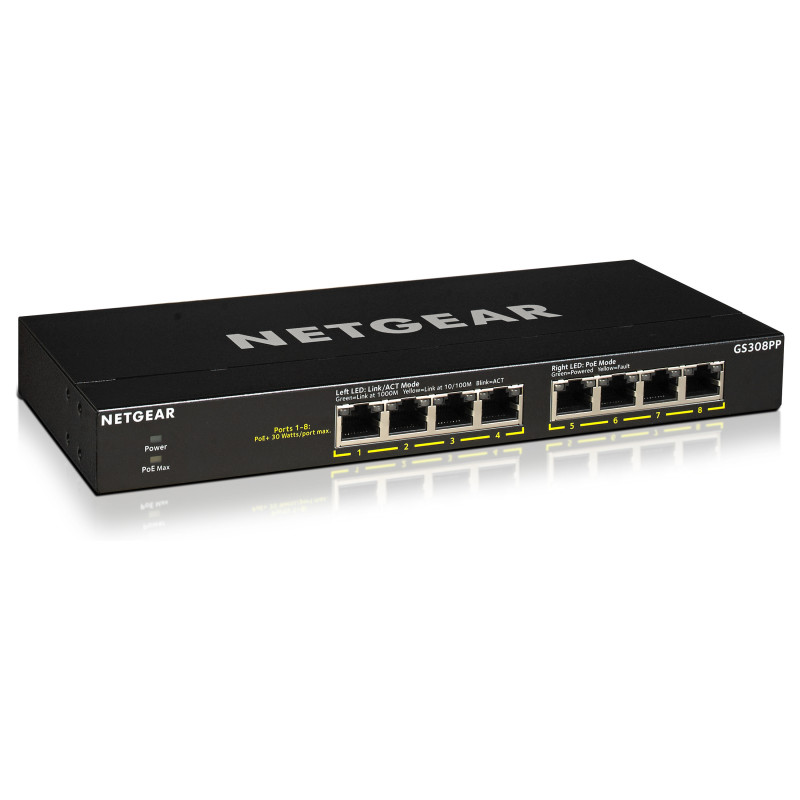

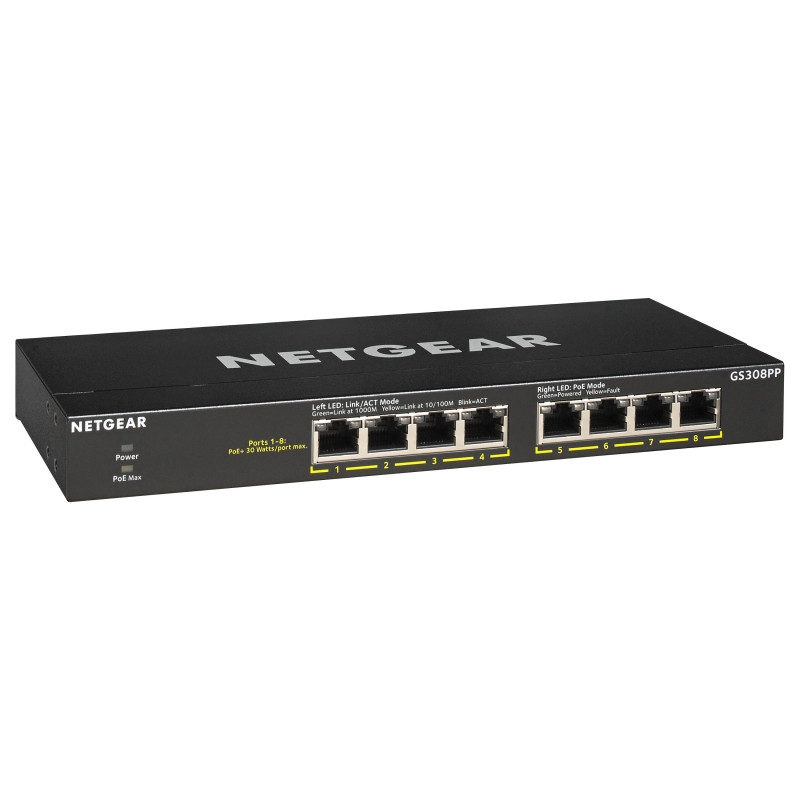

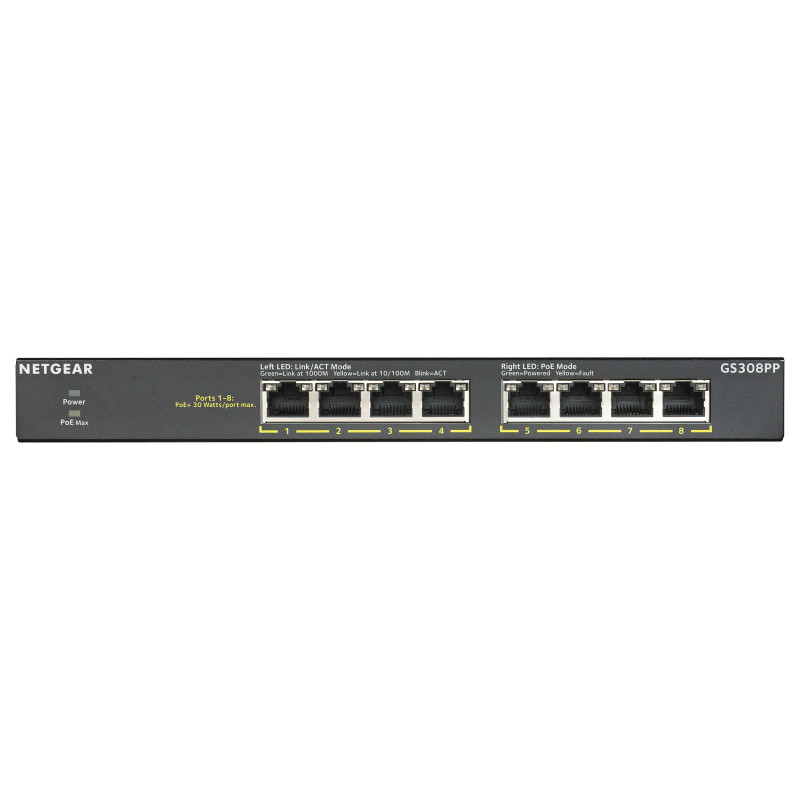

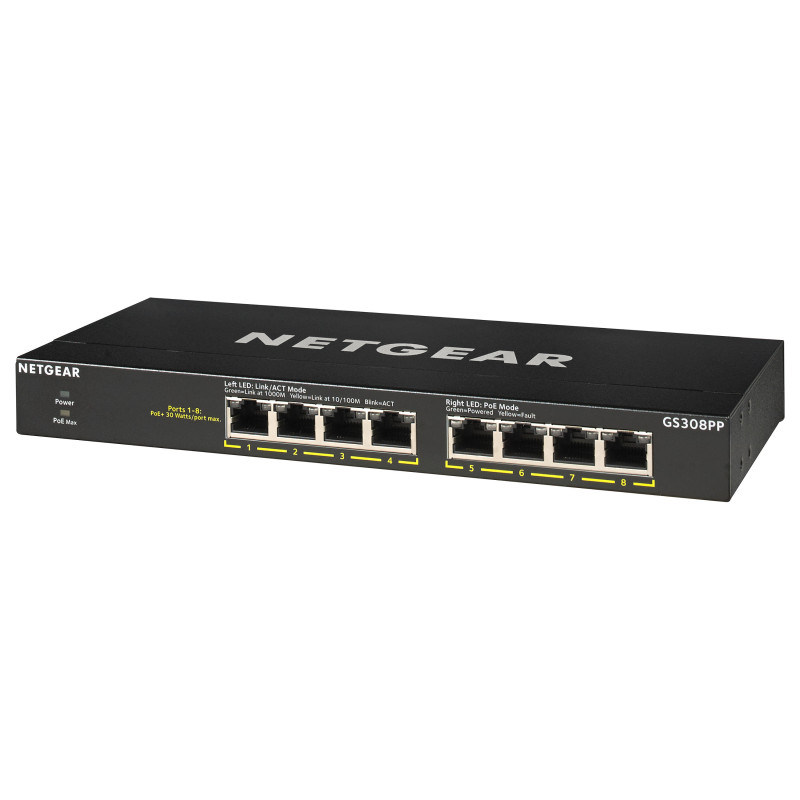

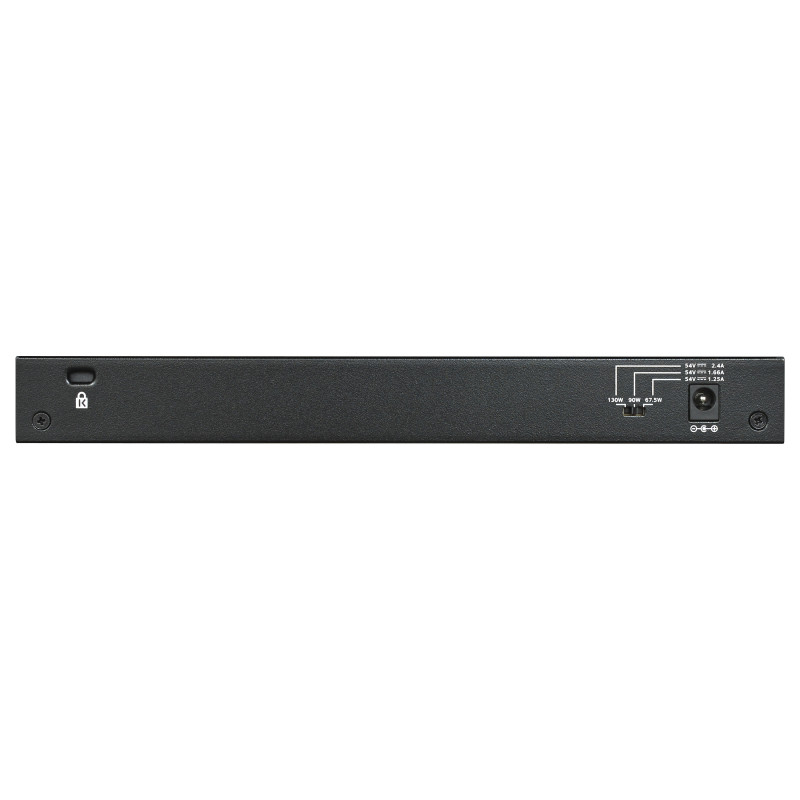

NETGEAR GS308PP

NETGEAR GS308PP. Switch type: Unmanaged. Basic switching RJ-45 Ethernet ports type: Gigabit Ethernet (10/100/1000), Basic switching RJ-45 Ethernet ports quantity: 8. Full duplex. MAC address table: 4000 entries, Switching capacity: 16 Gbit/s. Networking standards: IEEE 802.1p, IEEE 802.3, IEEE 802.3ab, IEEE 802.3az, IEEE 802.3i, IEEE 802.3u, IEEE 802.3x. DC input voltage: 54 V. Power connector: DC-in jack. Power over Ethernet (PoE). Wall mountable, Rack mounting

NETGEAR 300 Series Gigabit Ethernet Unmanaged Switches with PoE provide easy, reliable, and affordable network connectivity for home and small offices. With these unmanaged plug-and-play switches, you can expand your network connections to multiple devices instantly.

The unmanaged switches provides power and data from a single Ethernet (CAT-5e) cable to devices such as IP cameras, VoIP/ Internet-based phones, wireless access points, etc. The majority of these models also support PoE power auto-balance and allocation feature.

NETGEAR's unique PoE technology automatically balances the PoE power based on the device needs independent of PoE class detected. These switches deliver the power the device needs, at the most granular level

Management features

Switch type: Unmanaged
Feature: Quality of Service (QoS) support

Ports & interfaces

Basic switching RJ-45 Ethernet ports quantity: 8
Basic switching RJ-45 Ethernet ports type: Gigabit Ethernet (10/100/1000)
Power connector: DC-in jack

Network

Networking standards: IEEE 802.1p, IEEE 802.3, IEEE 802.3ab, IEEE 802.3az, IEEE 802.3i, IEEE 802.3u, IEEE 802.3x
Feature: Full duplex
Feature: Flow control support
Feature: Auto MDI/MDI-X
Feature: Auto-sensing
Feature: Auto-negotiation

Data transmission

Switching capacity: 16 Gbit/s
MAC address table: 4000 entries
Latency (1 Gbps): 3 µs
Feature: Jumbo frames support
Jumbo frames: 9216
Packet forwarding rate (1 Gbps): 1448000 pps
Packet buffer memory: 0.192 MB

Design

Feature: Rack mounting
Product colour: Black
Housing material: Metal
LED indicators: Activity, Link, PoE, Power, Speed
Feature: Wall mountable

Performance

Mean time between failures (MTBF): 2752476 h

Power

DC input voltage: 54 V
Input current: 1.66 A
Power consumption (max): 87.9 W

Power over Ethernet (PoE)

Feature: Power over Ethernet (PoE)
Power over Ethernet (PoE) type supported: PoE+
Power over Ethernet plus (PoE+) ports quantity: 8
Power over Ethernet (PoE) power per port: 30 W
Total Power over Ethernet (PoE) budget: 130 W

Operational conditions

Operating temperature (T-T): 0 - 40 °C
Storage temperature (T-T): -20 - 70 °C
Operating relative humidity (H-H): 0 - 90%
Operating altitude: 0 - 3000 m
Heat dissipation: 300.6 BTU/h

Weight & dimensions

Width: 236 mm
Depth: 102 mm
Height: 27 mm
Weight: 600 g

Certificates

Certification: CE Mark, FCC Part 15 Class A, IC Class A, RCM, VCCI,BSMI, KC

Logistics data

Harmonized System (HS) code: 85176990
