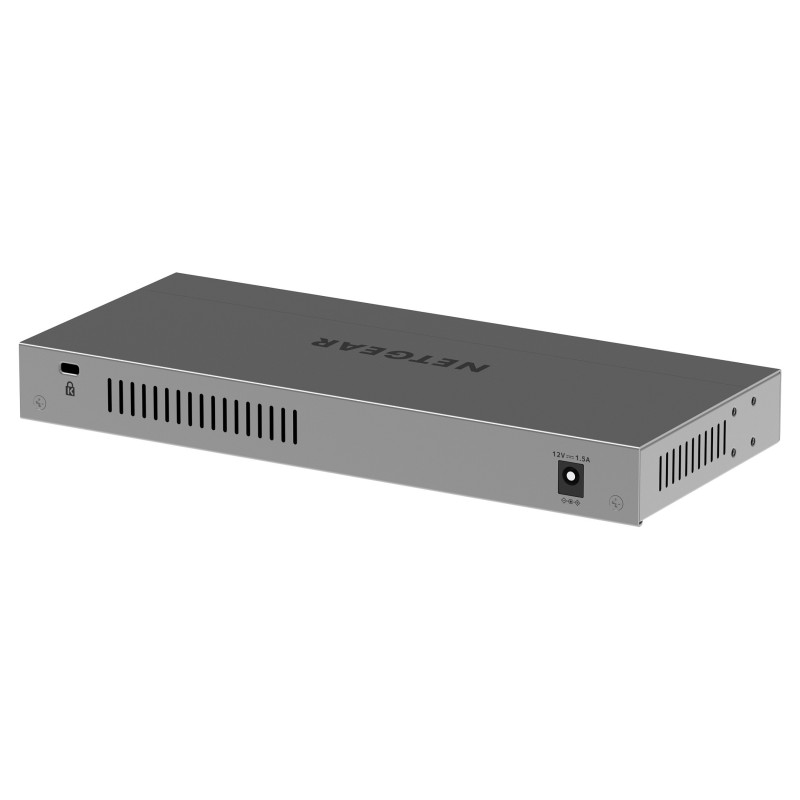

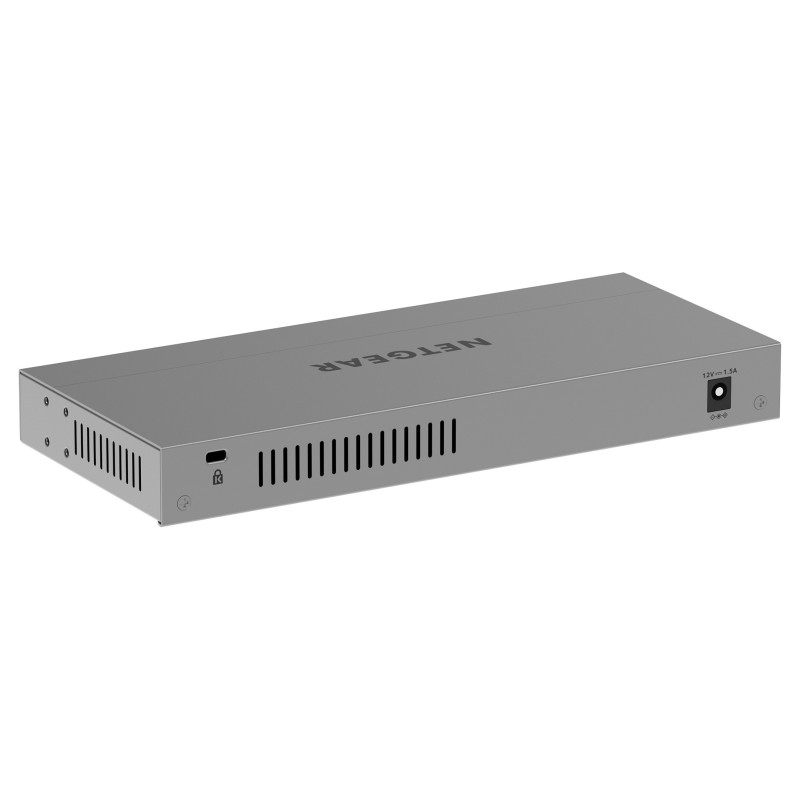

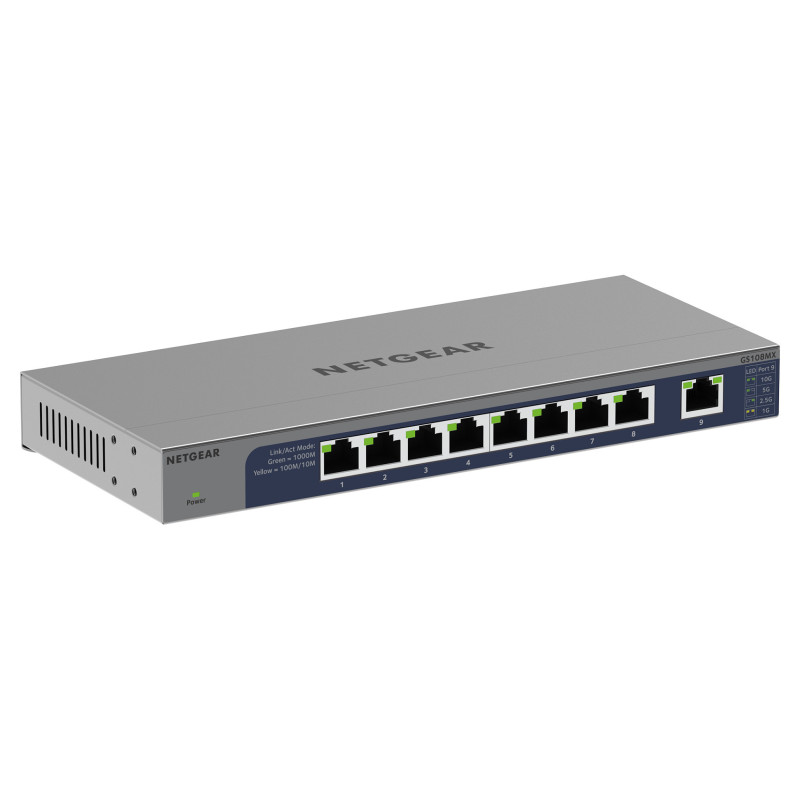

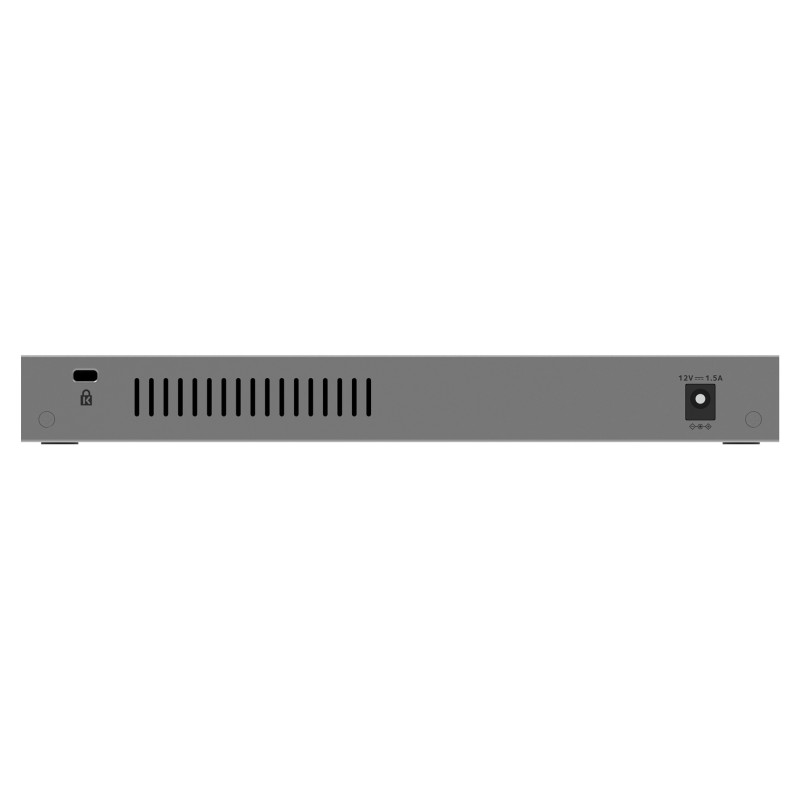

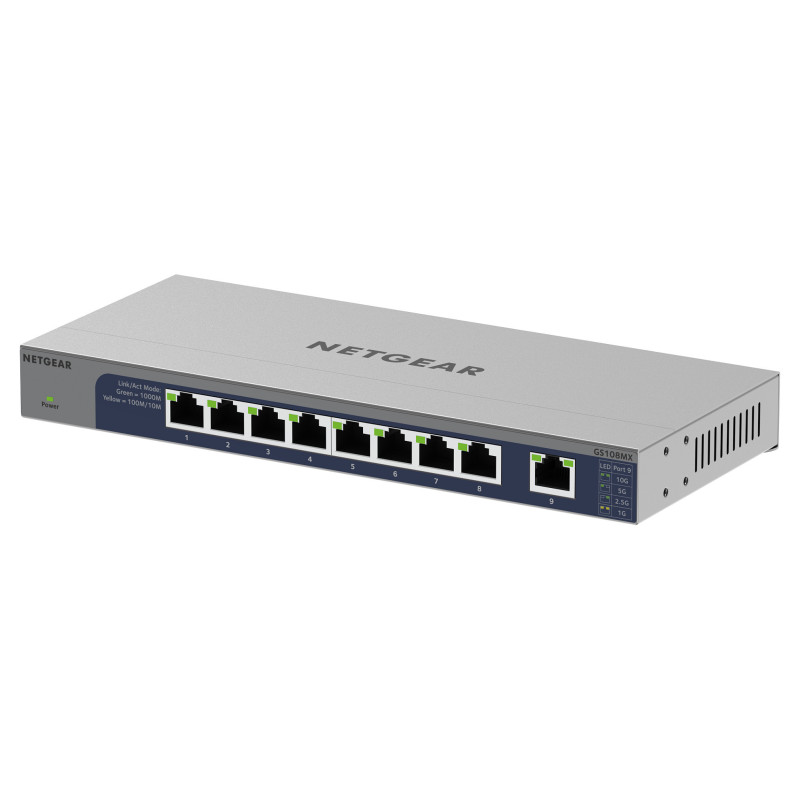

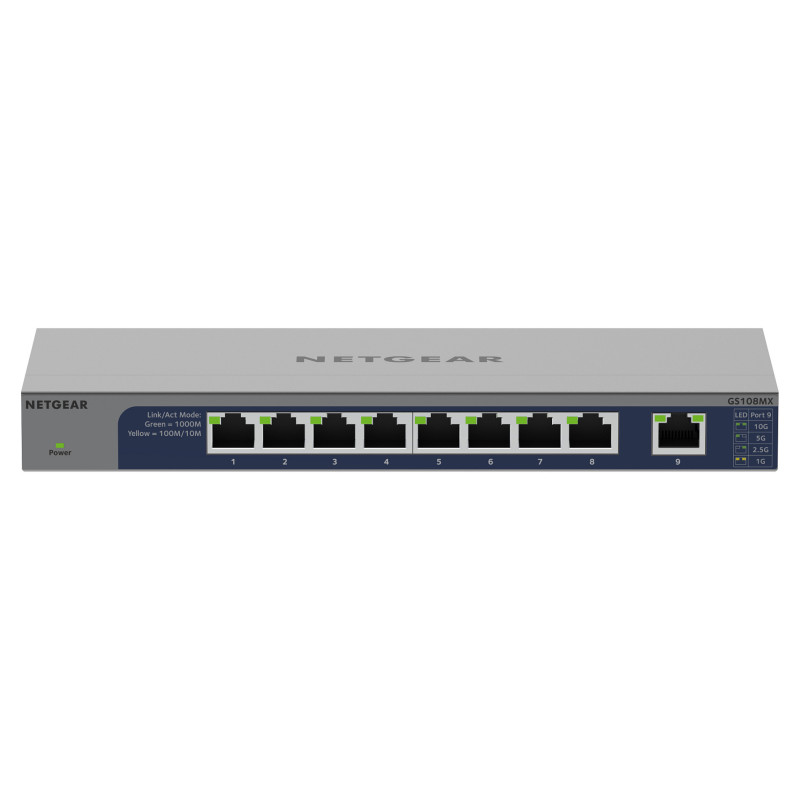

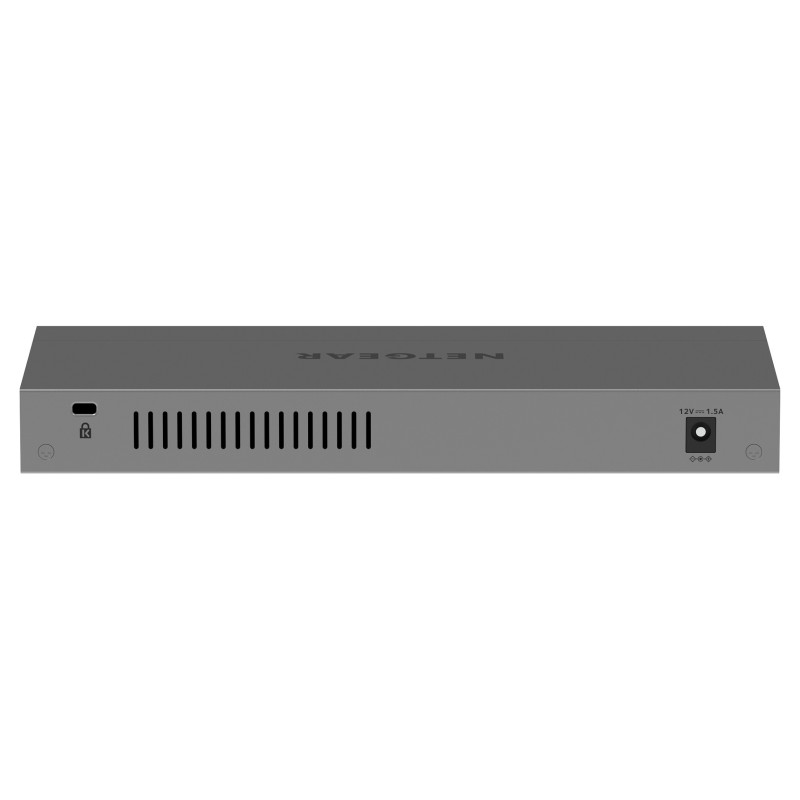

NETGEAR GS108MX-100EUS tinklo komutatorius

NETGEAR GS108MX-100EUS. Switch type: Unmanaged, Switch layer: L2. Basic switching RJ-45 Ethernet ports type: Gigabit Ethernet (10/100/1000). Full duplex. MAC address table: 16000 entries, Switching capacity: 36 Gbit/s. Networking standards: IEEE 802.1p, IEEE 802.3az. DC input voltage: 12 V. Power connector: DC-in jack. Rack mounting, Form factor: Desktop/Wall-Mounting

The NETGEAR 8-port Gigabit Unmanaged Switches, GS108X and GS108MX, help businesses cost-effectively connect their network with powerful gigabit speeds.

The GS108MX features one 10G/Multi-Gig Ethernet port for non-blocking uplink while the GS108X features a 10G SFP+ port for non-blocking uplink over longer distances.

Both switches come with eight 1G Ethernet ports housed in a fanless metal case that can be placed on a desk or mounted on a wall. These switches are energy efficient, built to last, and rigorously tested to provide the reliability businesses need.

- PLUG-AND-PLAY
Simple set up with no software to install or configuration needed

- FULL PERFORMANCE
Non-blocking switching architecture for maximum throughput at wire speed

- SILENT OPERATION
The fanless design means zero added noise wherever its located, making it ideal for noise-sensitive environments

- ENERGY EFFICIENT
Designed to optimize power usage lowering its cost to operate

- METAL CASE
Durable and rugged case for long-lasting performance

- VERSATILE MOUNTING OPTIONS
Supports desktop and wall placement with included wall-mount kit

Management features

Switch type: Unmanaged
Switch layer: L2

Ports & interfaces

Basic switching RJ-45 Ethernet ports type: Gigabit Ethernet (10/100/1000)
Gigabit Ethernet (copper) ports quantity: 8
10G Ethernet (copper) ports quantity: 1
Power connector: DC-in jack

Network

Networking standards: IEEE 802.1p, IEEE 802.3az
Feature: 10G support
Feature: Full duplex
Feature: Flow control support

Data transmission

Switching capacity: 36 Gbit/s
Forwarding rate: 41.664 Mpps
MAC address table: 16000 entries
Latency (10-100 Mbps): 5 µs
Latency (1 Gbps): 2 µs
Latency (10 Gbps): 2 µs
Number of queues: 8
Feature: Jumbo frames support
Jumbo frames: 9728
Packet buffer memory: 0.768 MB

Security

Feature: MAC address filtering
Queue scheduling algorithms: Priority queuing (PQ), Weighted Round Robin (WRR)

Multicast features

Multicast MAC address table: 16000 entries

Design

Feature: Rack mounting
Form factor: Desktop/Wall-Mounting
Housing material: Metal
LED indicators: Activity, Link, Power, Speed
Number of fans: 0 fan(s)
Electromagnetic compatibility: Class B

Performance

Mean time between failures (MTBF): 3514690 h

Power

Power source: DC
Feature: Power supply included
DC input voltage: 12 V
Input current: 1.5 A
Power consumption (max): 5.8 W

Operational conditions

Operating temperature (T-T): 0 - 40 °C
Operating relative humidity (H-H): 0 - 90%
Operating altitude: 0 - 3000 m
Heat dissipation: 19.91 BTU/h

Weight & dimensions

Width: 235 mm
Depth: 100.8 mm
Height: 27 mm
Weight: 575 g

Packaging content

Feature: User guide
Feature: Rack mount kit

Certificates

Compliance certificates: BSMI, CE, Federal Communications Commission (FCC), ICES, KC, RCM, UKCA, VCCI
