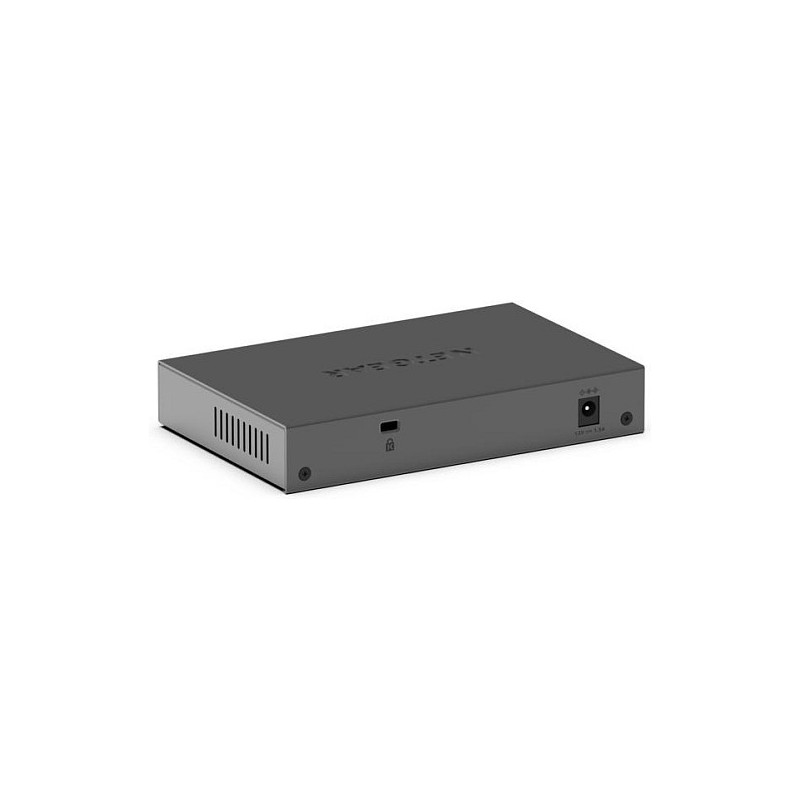

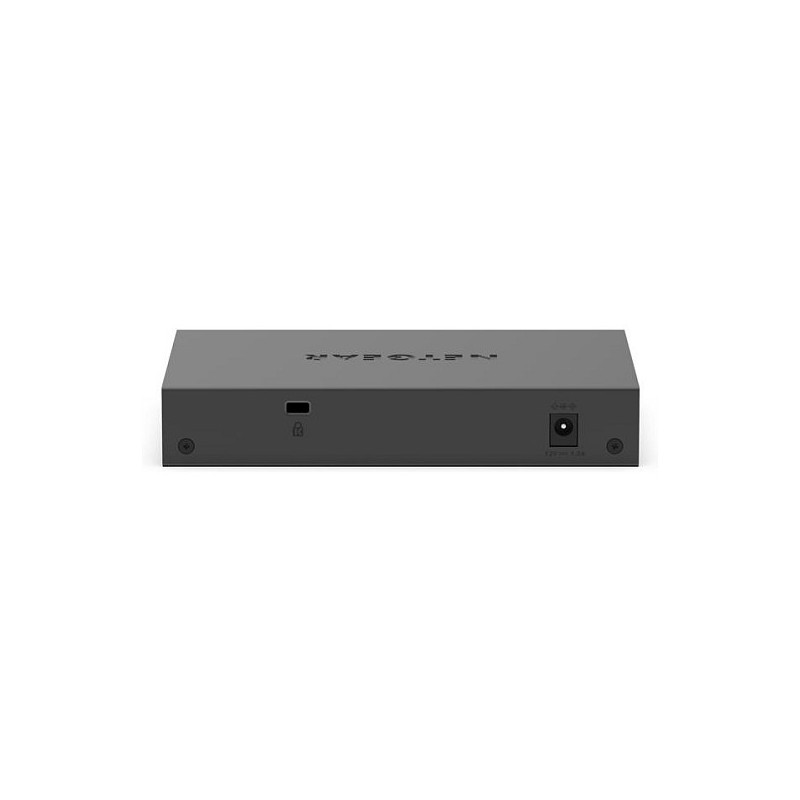

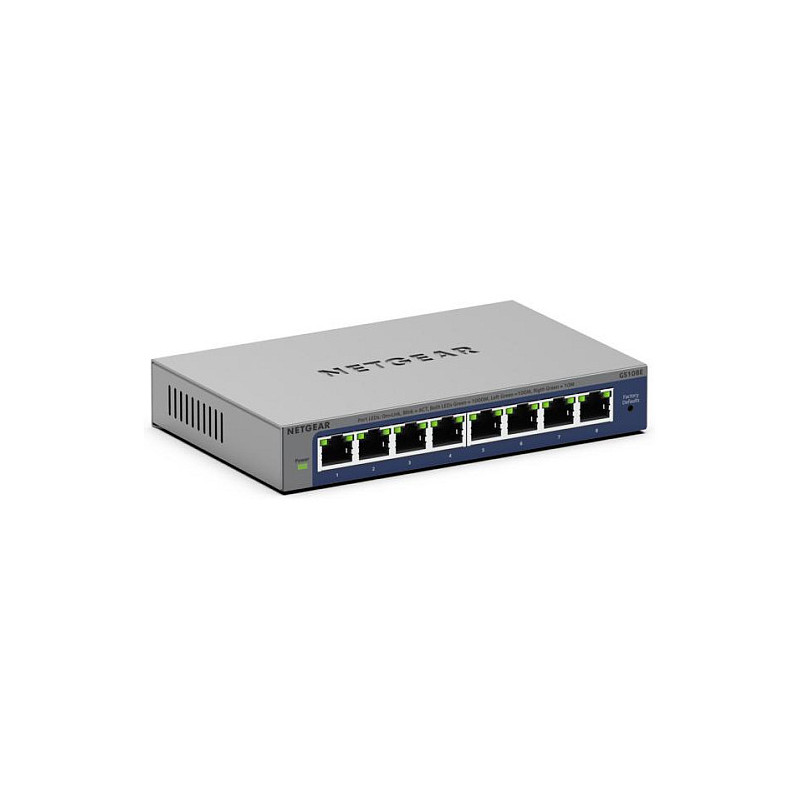

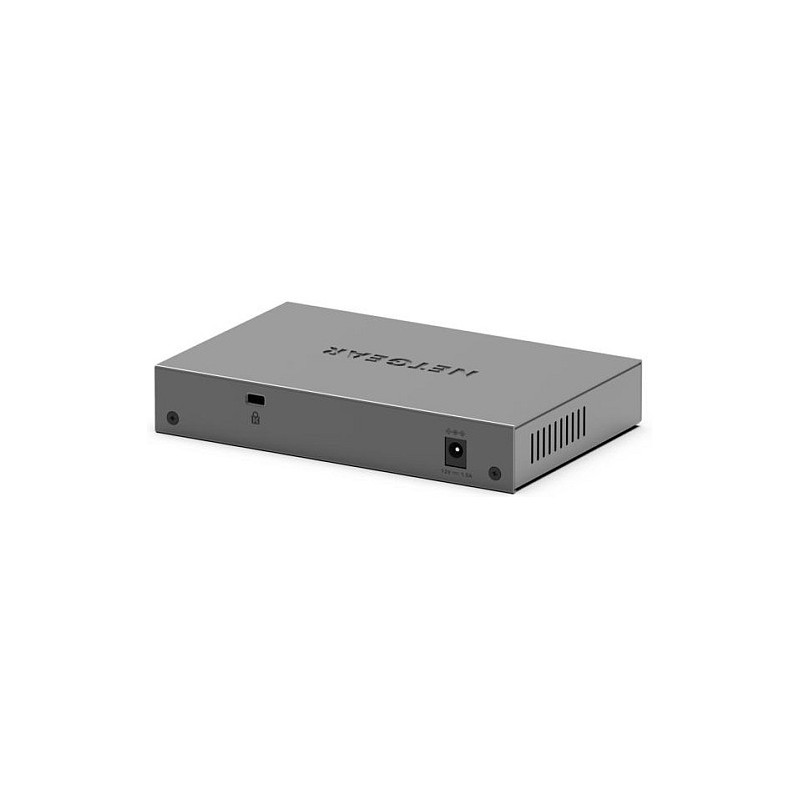

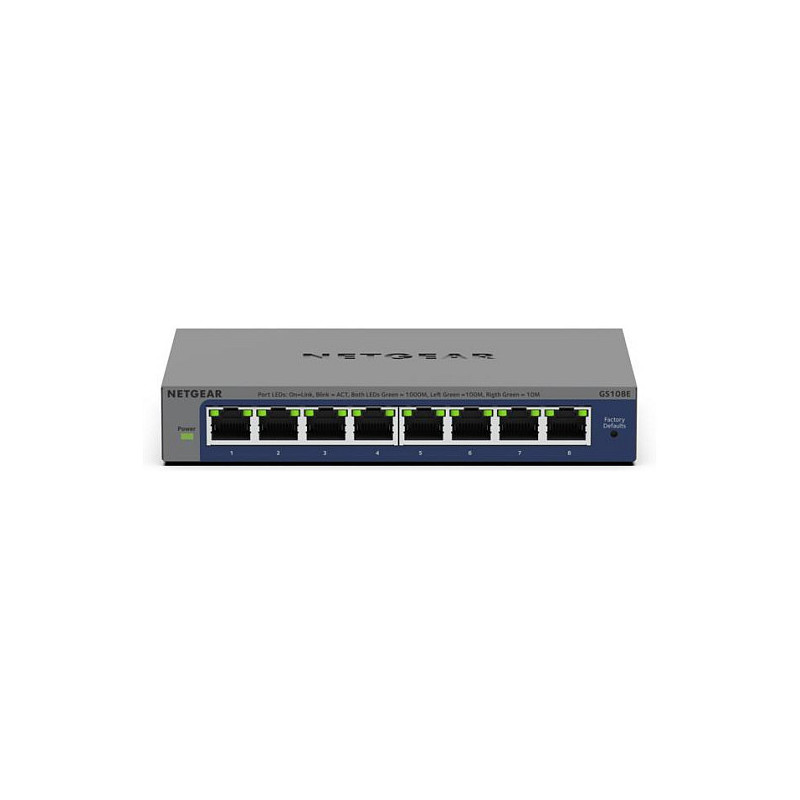

NETGEAR GS108Ev4

NETGEAR GS108Ev4. Switch type: Unmanaged, Switch layer: L2/L3. Basic switching RJ-45 Ethernet ports type: Gigabit Ethernet (10/100/1000), Basic switching RJ-45 Ethernet ports quantity: 8. MAC address table: 4000 entries, Switching capacity: 16 Gbit/s. Networking standards: IEEE 802.1Q, IEEE 802.1p, IEEE 802.3, IEEE 802.3ab, IEEE 802.3u, IEEE 802.3x. DC input voltage: 12 V

8-Port Gigabit Plus Switch
On top of the plug-n-play Gigabit Ethernet connectivity, the NETGEAR GS108E switch offers essential networking features such as VLAN, QoS, IGMP Snooping, rate limiting, traffic monitoring and more. NETGEAR Plus Switches are an exceptional value for businesses looking to add intelligence to their network beyond what unmanaged switches can provide.

Management features

Switch type: Unmanaged
Switch layer: L2/L3

Ports & interfaces

Basic switching RJ-45 Ethernet ports quantity: 8
Basic switching RJ-45 Ethernet ports type: Gigabit Ethernet (10/100/1000)

Network

Networking standards: IEEE 802.1Q, IEEE 802.1p, IEEE 802.3, IEEE 802.3ab, IEEE 802.3u, IEEE 802.3x
Cable types supported: Cat5e, Cat6, Cat6+, Cat6a, Cat6e, Cat7, Cat7e, Cat8, Cat8.1
Feature: Port mirroring
Ethernet LAN data rates: 10,100,1000 Mbit/s
Feature: VLAN support
Virtual LAN features: Port-based VLAN, Tagged VLAN
Number of VLANs: 64

Data transmission

Switching capacity: 16 Gbit/s
MAC address table: 4000 entries

Security

Feature: Access Control List (ACL)

Multicast features

Feature: Multicast support
Number of multicast groups filtered: 128

Design

Product colour: Grey
LED indicators: Activity, Link, Power, Speed, System

Performance

Feature: Fanless
Mean time between failures (MTBF): 2463431 h

Power

Power source: DC
Feature: Power supply included
DC input voltage: 12 V
Input current: 1.5 A
Power consumption (max): 3.7 W

Operational conditions

Operating temperature (T-T): 0 - 40 °C
Storage temperature (T-T): -20 - 70 °C
Operating relative humidity (H-H): 10 - 90%
Operating altitude: 0 - 3000 m
Heat dissipation: 8.9 BTU/h

Weight & dimensions

Width: 158 mm
Depth: 101 mm
Height: 29 mm
Weight: 508 g
