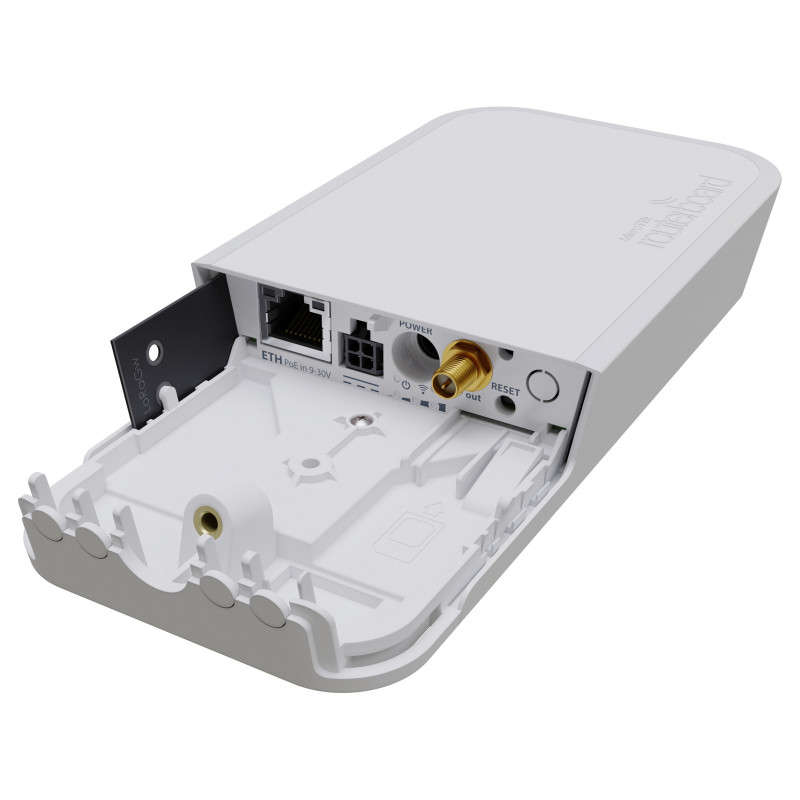

Mikrotik wAP LR2 kit

Mikrotik wAP LR2 kit. 2.4 GHz, Maximum data transfer rate: 300 Mbit/s, Ethernet LAN data rates: 10,100 Mbit/s. Power over Ethernet (PoE). Product colour: White

Our newest out-of-the-box solution for LoRa® technology. Like the previous wAP LR kits, it contains a pre-installed UDP packet forwarder to any public or private LoRa® servers and an outdoor weatherproof wireless access point with 2.4 GHz WLAN interface and Ethernet port with PoE-in that could be used as a backend.

Here's the difference: this device works with the 2.4 GHz frequency for LoRa® as well. That means significantly higher bandwidth, higher data rate, and less air time. And because of the Chirp modulation technology, it doesn't interfere with the 2.4 GHz WLAN signal! A perfect solution for industrial setups with a high density of sensors.

There is a built-in 2 dBi WLAN / 4.7 dBi LoRa® antenna, but you can add an external antenna for extra coverage. We suggest using the TOF-2400-8V-4 Omni antenna for best results.

We've decided to keep the classic wAP form-factor that has been tested in many other MikroTik products - it can deliver excellent and stable performance in almost any weather conditions. Functional and non-intrusive design, astonishing durability, and great value remain at the core of this design.

The whole IoT community is exploring the 2.4 GHz LoRa® possibilities - join them and be among the first ones to benefit from the increased data rates.

*) the device has no built in LTE modem, the SIM slot can only be used, if LoRa interface card is removed and replaced by an LTE modem

Features

Feature: 2.4 GHz
Maximum data transfer rate: 300 Mbit/s
Maximum data transfer rate (2.4 GHz): 300 Mbit/s
Ethernet LAN data rates: 10,100 Mbit/s
Networking standards: IEEE 802.11b, IEEE 802.11g, IEEE 802.11n

Security

Security algorithms: Not supported

Power

Feature: Power over Ethernet (PoE)
Power over Ethernet (PoE) type supported: Passive PoE

Design

Product colour: White
International Protection (IP) code: IP54

Antenna

Antenna type: Internal

Performance

Feature: Built-in processor
Processor model: Qualcomm Atheros QCA9531
Processor frequency: 650 MHz
Flash memory: 16 MB
Internal memory: 64 MB
Operating system installed: RouterOS

Certificates

Certification: CE, FCC, IC, EAC, ROHS

Weight & dimensions

Width: 85 mm
Depth: 30 mm
Height: 185 mm

Packaging content

Quantity per pack: 1 pc(s)

Operational conditions

Operating temperature (T-T): -40 - 60 °C
