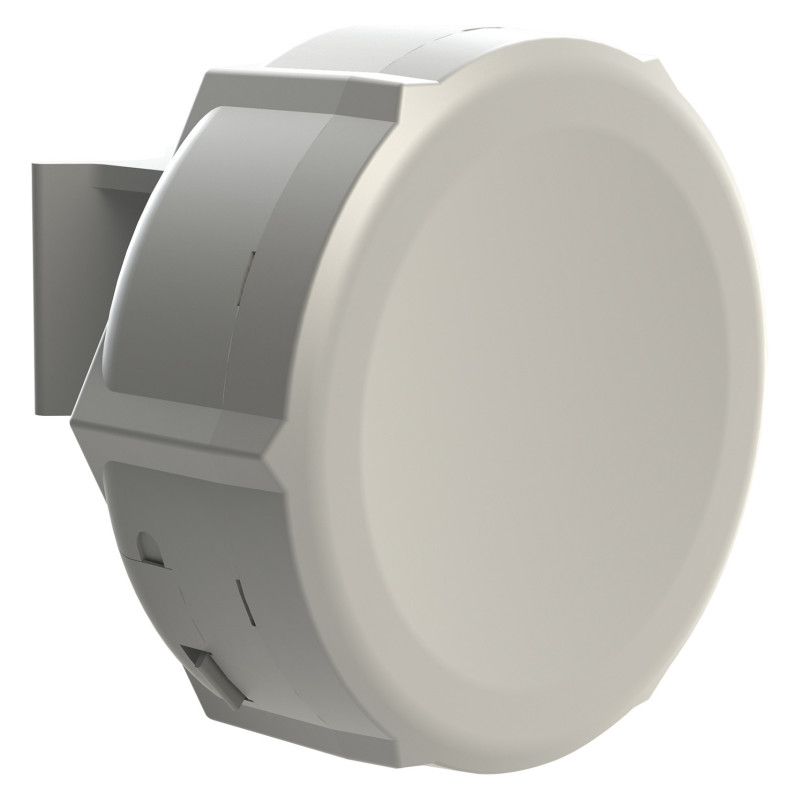

Mikrotik SXT SA5 ac

Mikrotik SXT SA5 ac. 5 GHz, Ethernet LAN data rates: 10,100,1000 Mbit/s. Power over Ethernet (PoE). Product colour: White. Power consumption (max): 12 W

The new AC standard is here, with up to 866Mbit over the air datarate, 256-QAM modulation, and 80MHz channels. 802.11a/n/ac opens up new possibilities and speeds never possible before.

The SXT ac is a new member in our 802.11ac product lineup, currently two models are available — with regular 28 degree antenna, and the SA model with a 90 wide beam- width sector antenna. Also supports 802.11a/n mode and is compatible with all legacy RouterBOARD devices, including Nstream and Nv2 protocols. Both devices come with Gigabit Ethernet.
New products are backwards compatible- for example, you can replace your 5GHz 802.11an legacy Access Point with new 802.11ac product and your existing customers will still be able to connect to it.

Features

Feature: 5 GHz
Ethernet LAN data rates: 10,100,1000 Mbit/s
Channel bandwidth: 80 MHz
Modulation: 256-QAM

Ports & interfaces

Ethernet LAN (RJ-45) ports: 1
USB 2.0 ports quantity: 1
USB connector type: USB Type-A

Power

Feature: Power over Ethernet (PoE)
AC input voltage: 12 - 57 V
Power consumption (max): 12 W

Design

Product colour: White
LED indicators: Power, WAN, WLAN

Antenna

Antenna features: Integrated antenna
Antenna gain level (max): 13 dBi

Performance

Chipset: QCA9882-BR4A-R
Feature: Built-in processor
Processor model: Qualcomm Atheros QCA9557-AT4A-R
Internal memory: 128 MB

Weight & dimensions

Width: 140 mm
Depth: 65 mm
Height: 140 mm

Packaging data

Package weight: 265 g

Packaging content

Feature: AC adapter included
Feature: Mounting kit
Feature: Quick start guide

Other features

Wireless standard: a/n/ac

Operational conditions

Operating temperature (T-T): -30 - 80 °C

Logistics data

Harmonized System (HS) code: 85176990
